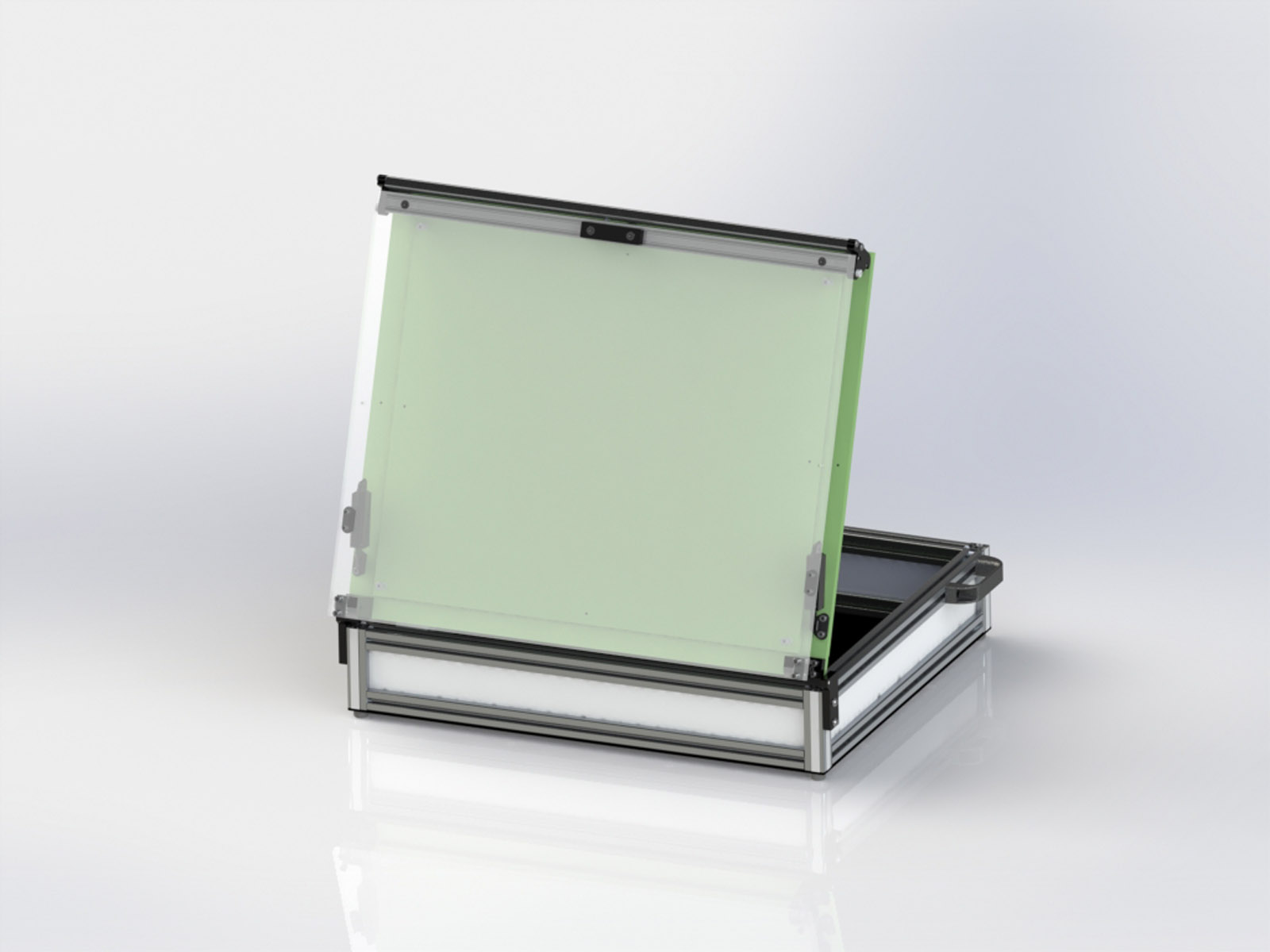

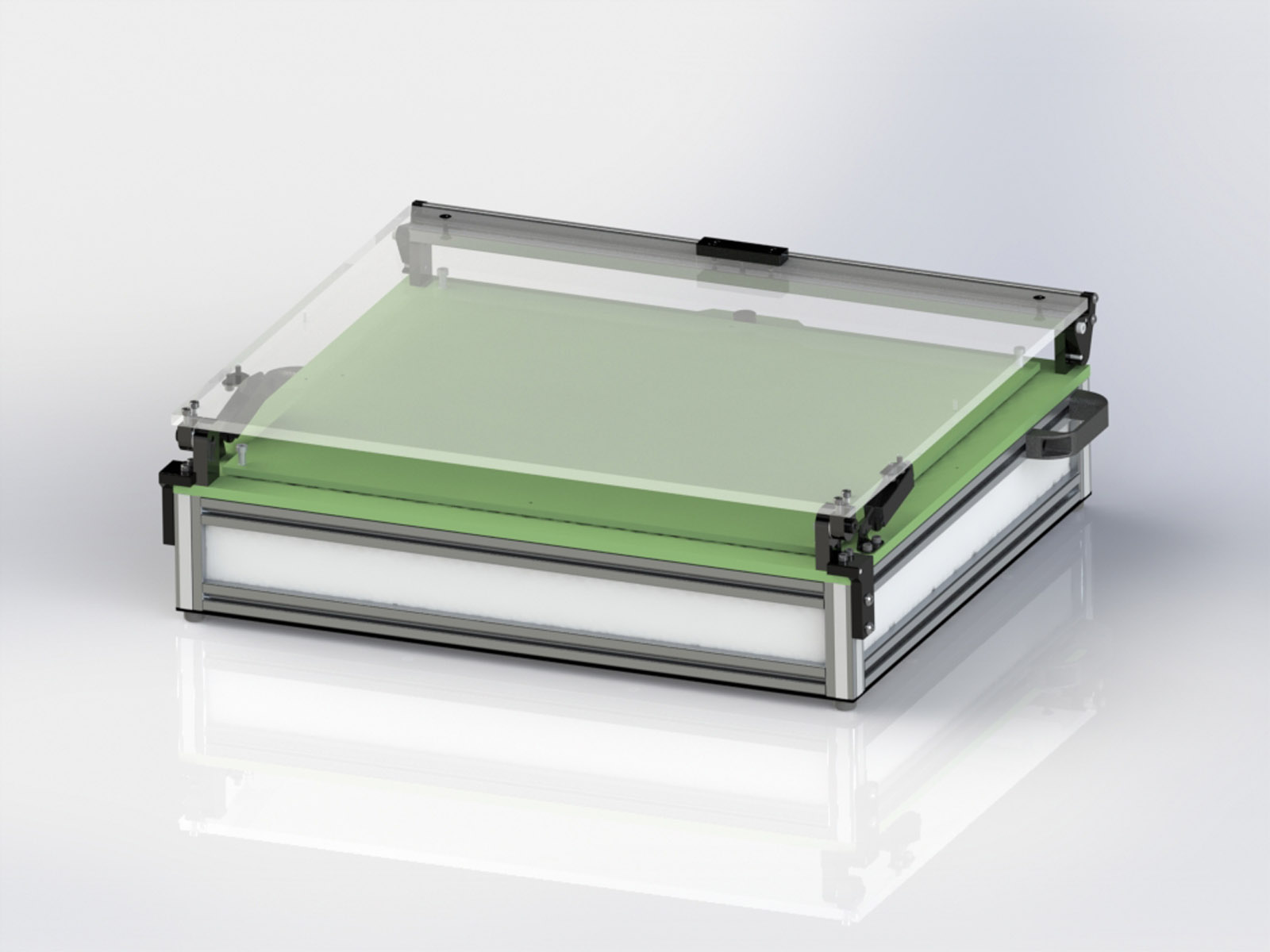

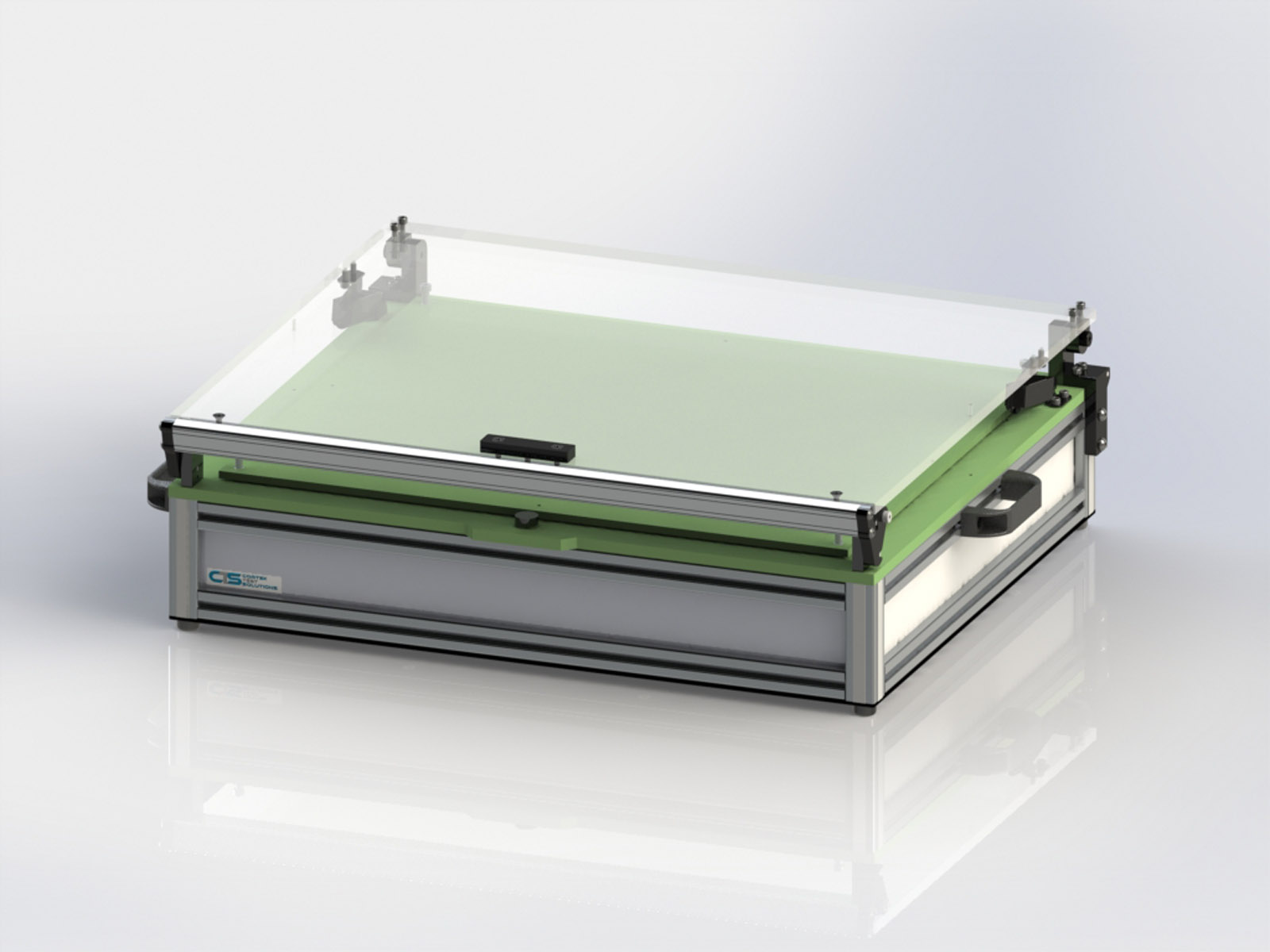

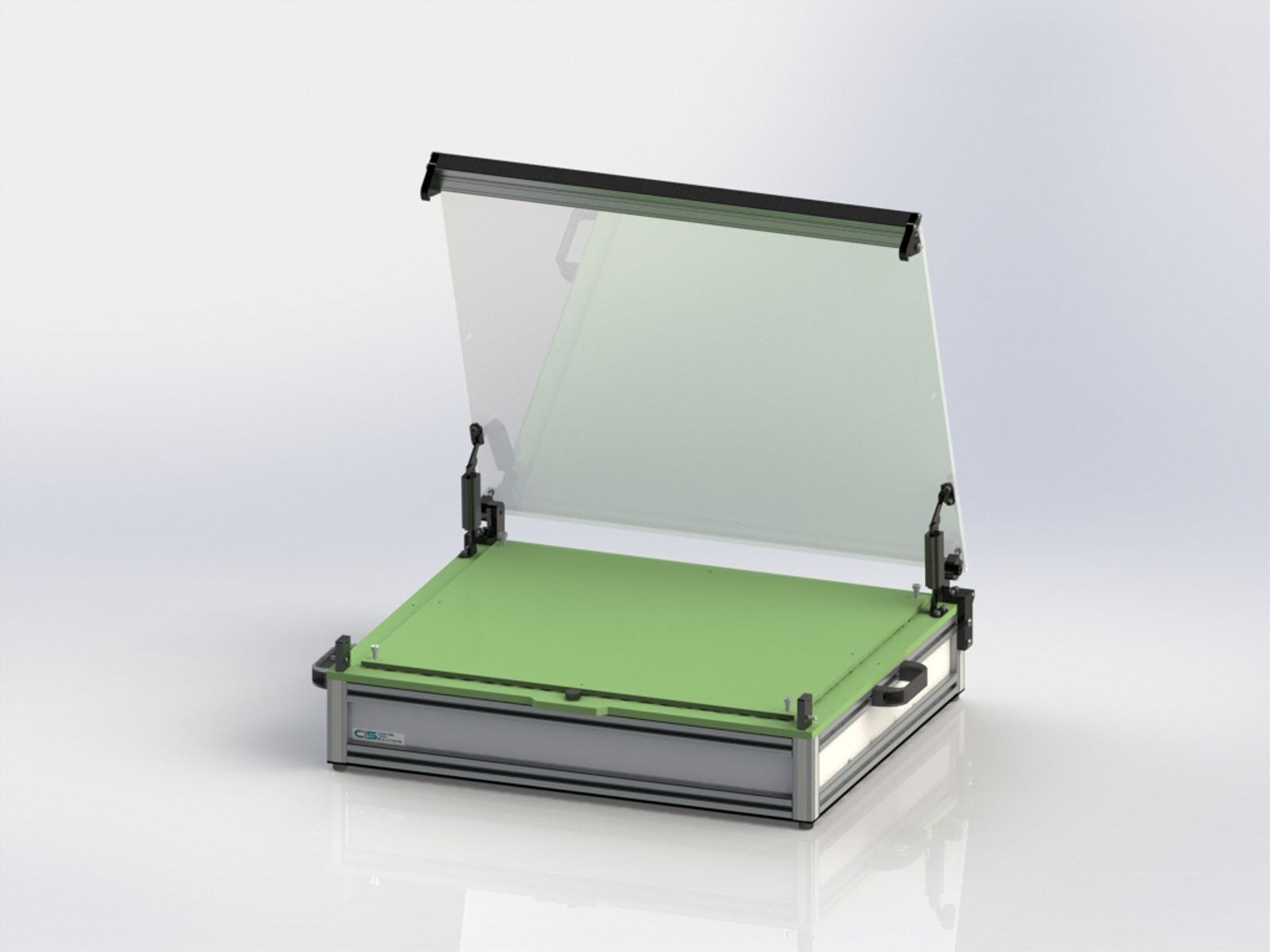

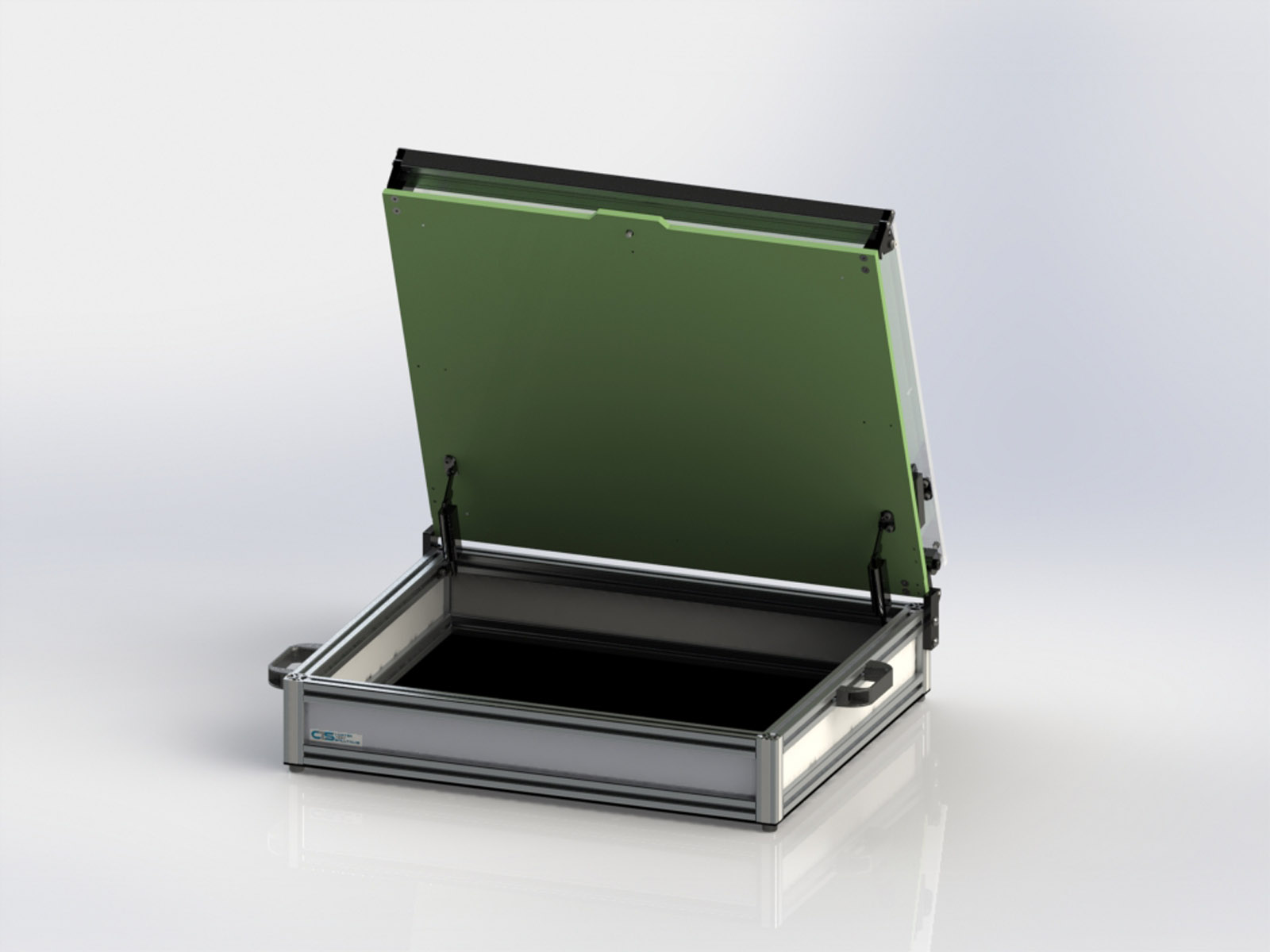

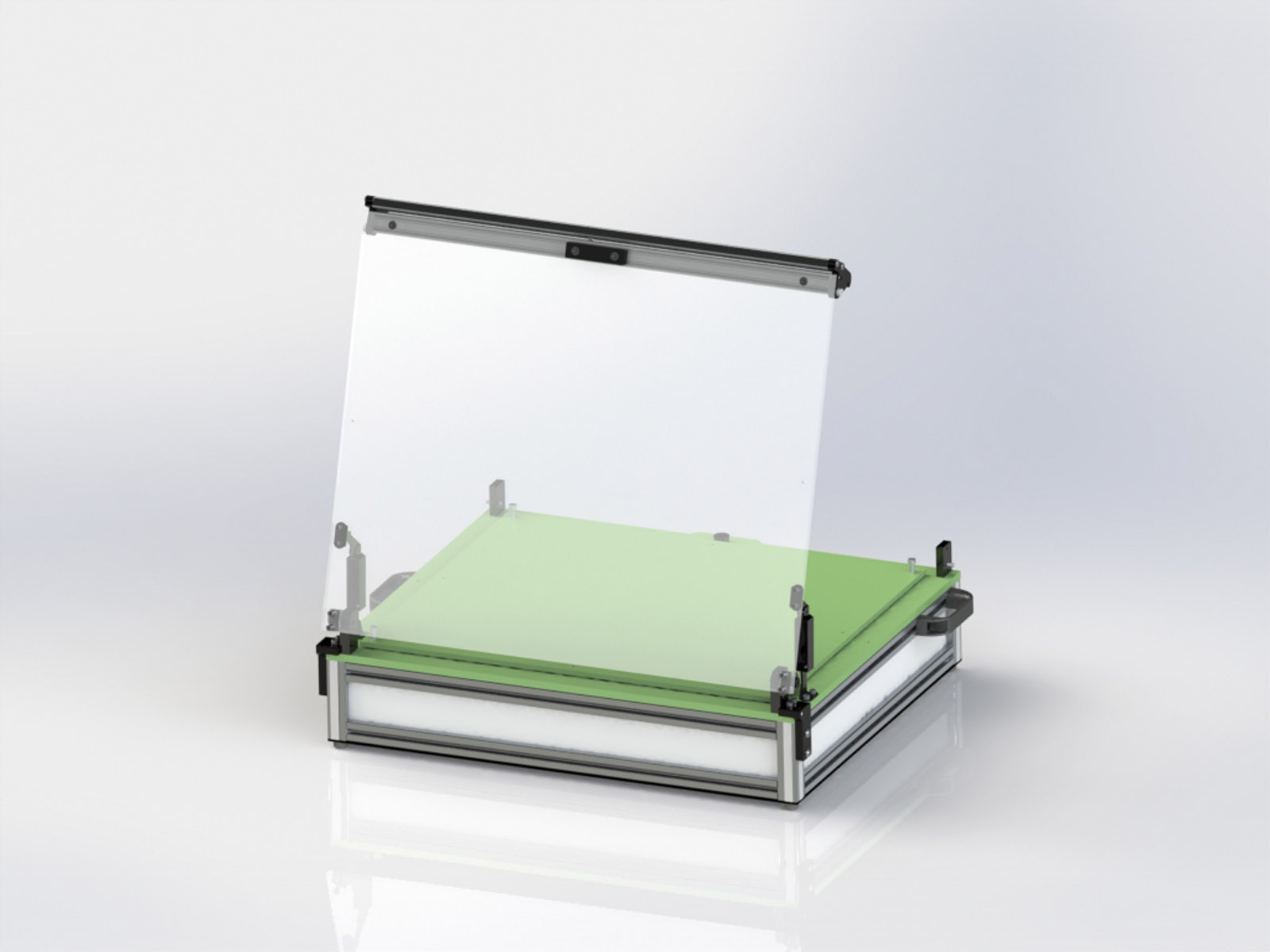

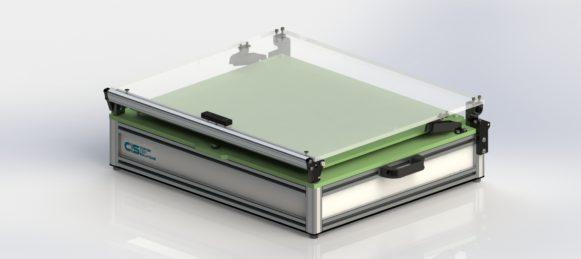

Mechanical Test Kit - 2420 Test Area up to 22.0” x 18.0”

Model #: 2420

$1,750.00 $1,750.00

  • UUT Test Area: (W x D x H): 20.0” x 18.0” x 2.0” (UUT may extend beyond test area)
  • Overall Dimensions: (W x D x H): 25.9” x 20.9” x 7.7” (dimensions include handles, hinges)
  • Weight: Approximately 38 lbs.
  • Includes 20 ESD pushers/nuts

Check out our machining and design services. Visit our Gallery to see some examples of applications of this unit.

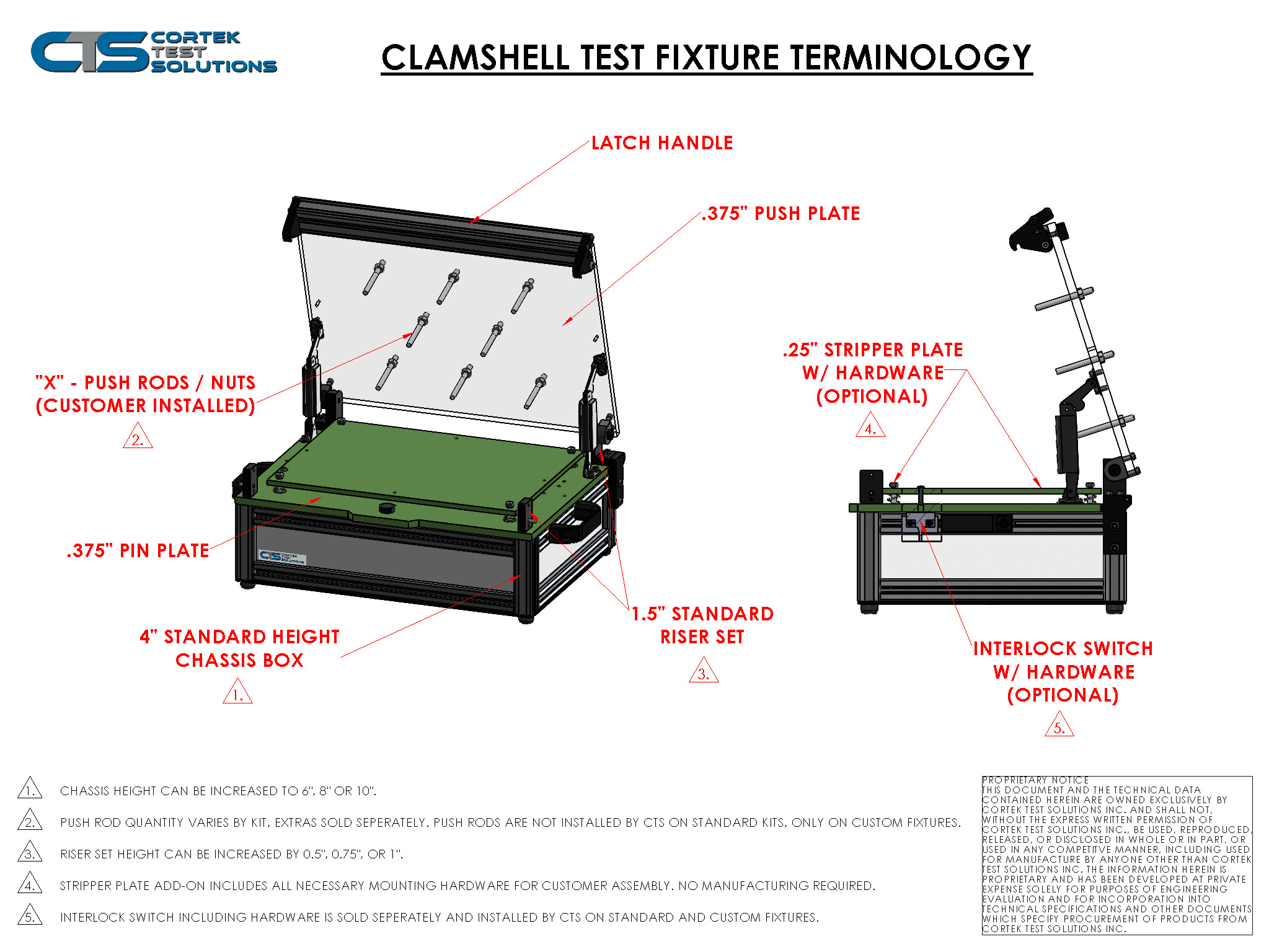

Key Features:

  • Go Green! When current lifecycle of application is complete, you can reuse base parts for next application.
  • Multiple heights available – unique custom size configurations readily available if our standard doesn’t meet your requirement.
  • More useable testable area for UUT compared to competition.
  • More useable area for height as a standard. Ability to increase height as an option in between push and pin plate.
  • Design is clean, streamlined and rugged and more adaptable compared to competition.
  • New latch bar design moves the latching posts outboard of the center UUT area making for easier UUT handling.
  • Easier for operator to use fixture because of accessibility improvements
  • Ease of side panel fabrication for I/O connections, switches or other hardware.
  • CTS custom designed hinges made of 6061 aluminum, black anodized.
  • Mechanical Spring Hinges
  • Rubber Feet
  • FR4 pin plate locking screw

  Options:

  • Customization of fixture plates – submission of data required for quote
  • Additional FR4, Acrylic, Polycarbonate ESD plates available
  • Installation of fixture hardware to include: Probes & Sockets, locating pins, push rods, side guides, connectors, interface pcb, interlocks, etc.
  • Wiring per customer specification
  • Safety shroud
  • Stripper plate
