Mechanical Test Kit - 2016 - Test Area up to 16.0” x 14.0”
    Mechanical Test Kit - 2016 - Test Area up to 16.0” x 14.0”
    Clamshell mechanical test fixture kit terminology

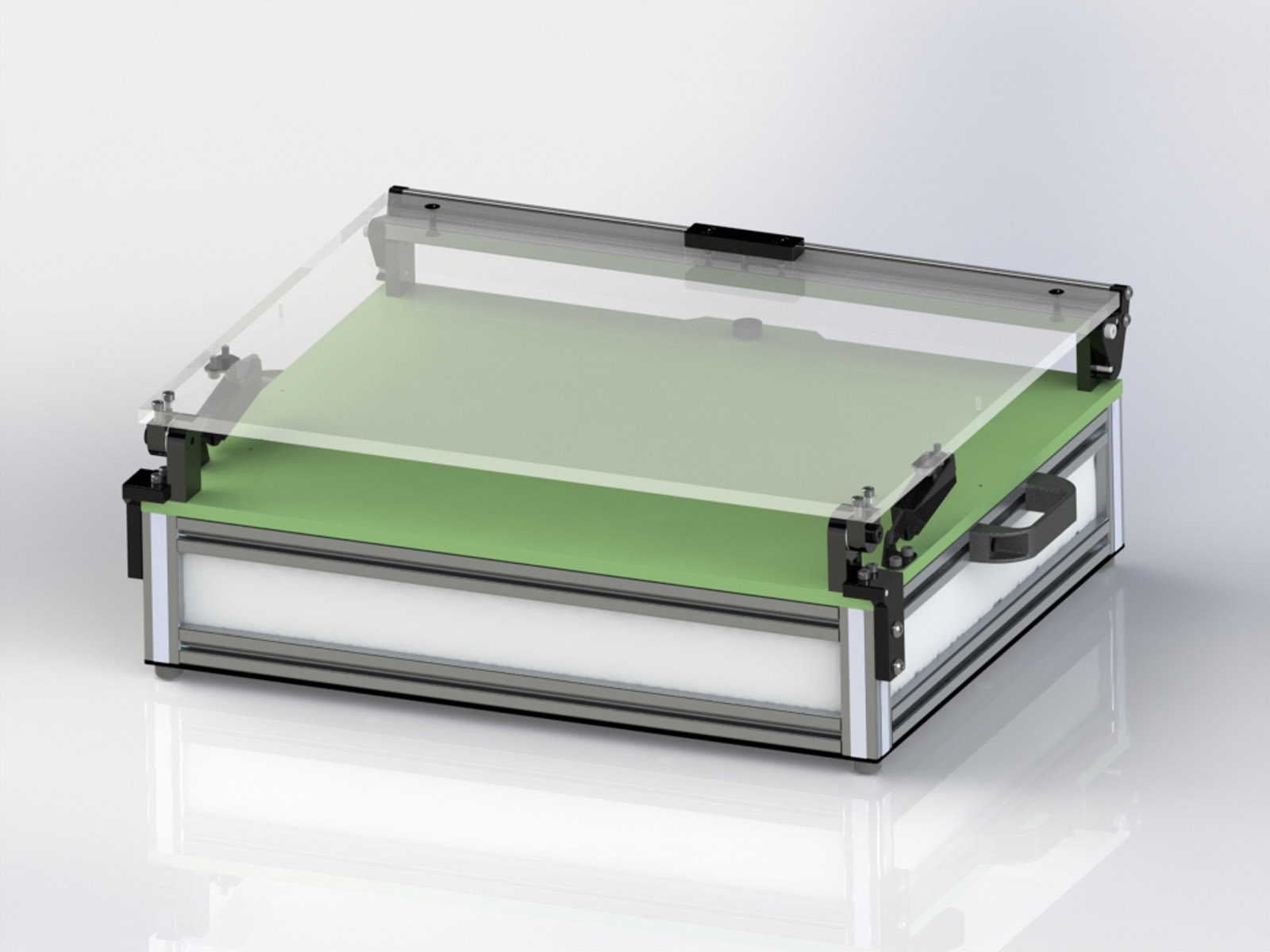

    Mechanical Test Kit 2016 - Closed Back View

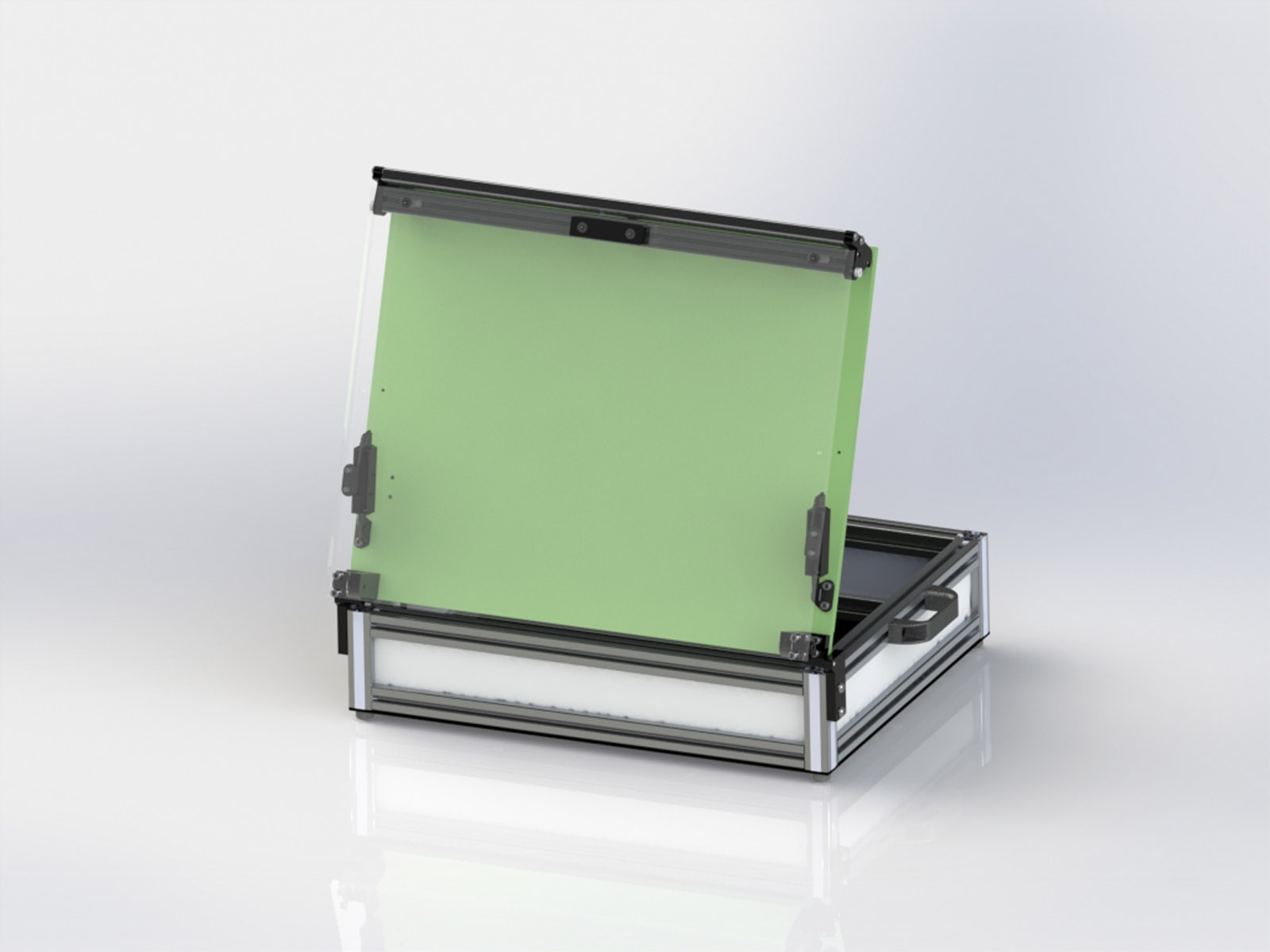

    Mechanical Test Kit Plate Open Back View

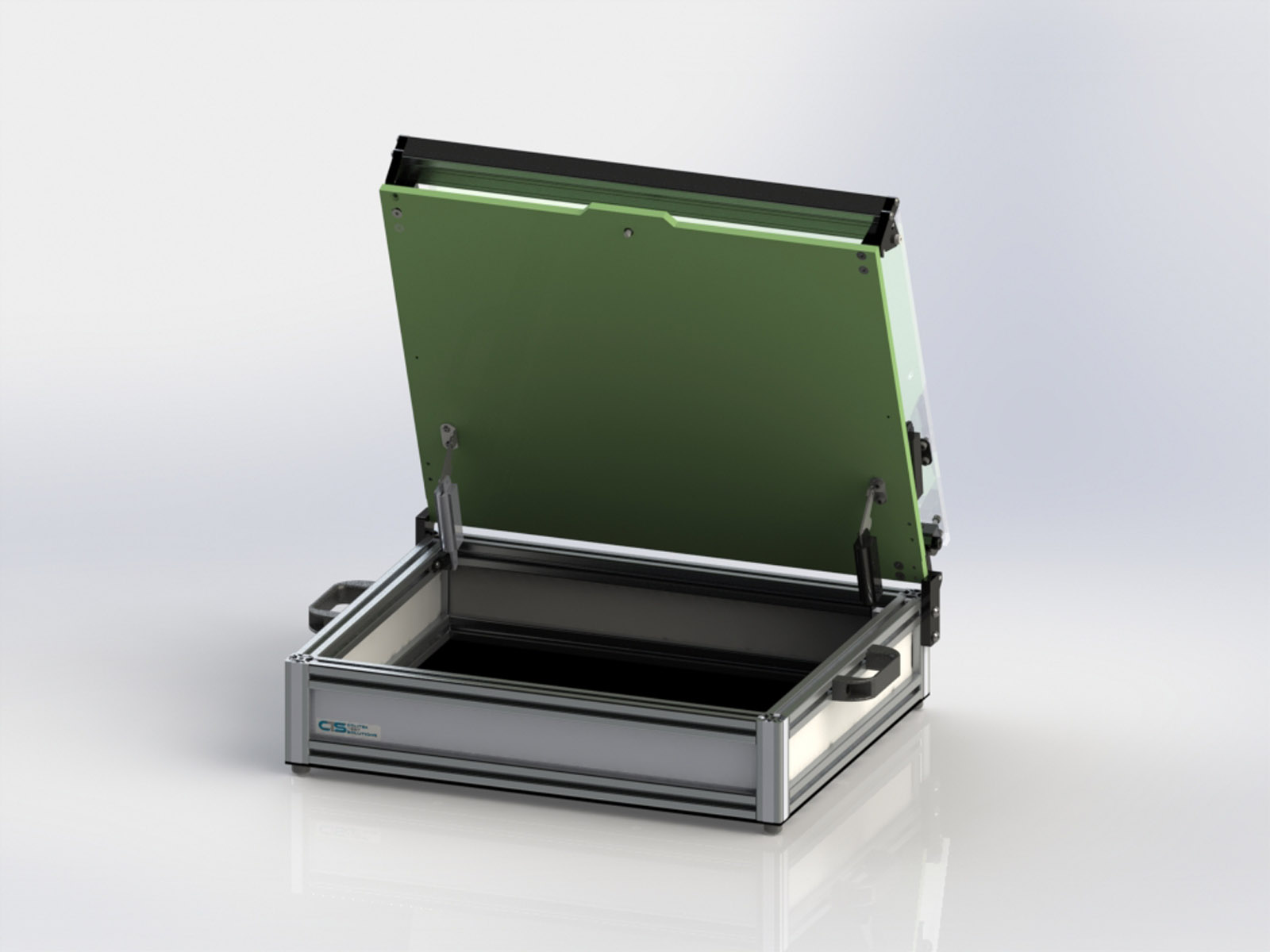

    Mechanical Test Kit Plate Open Front View

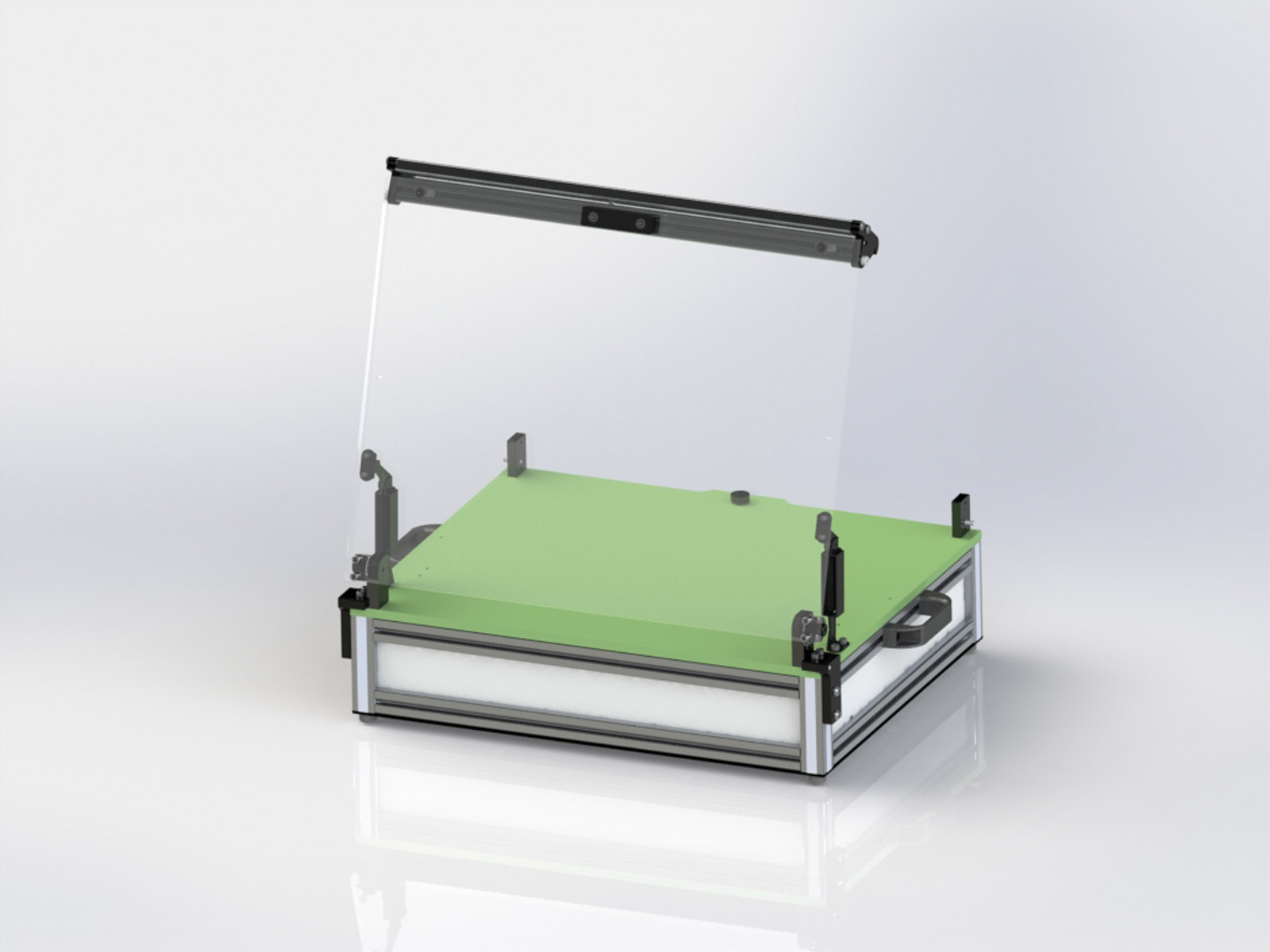

    Mechanical Test Kit Push Open Back View

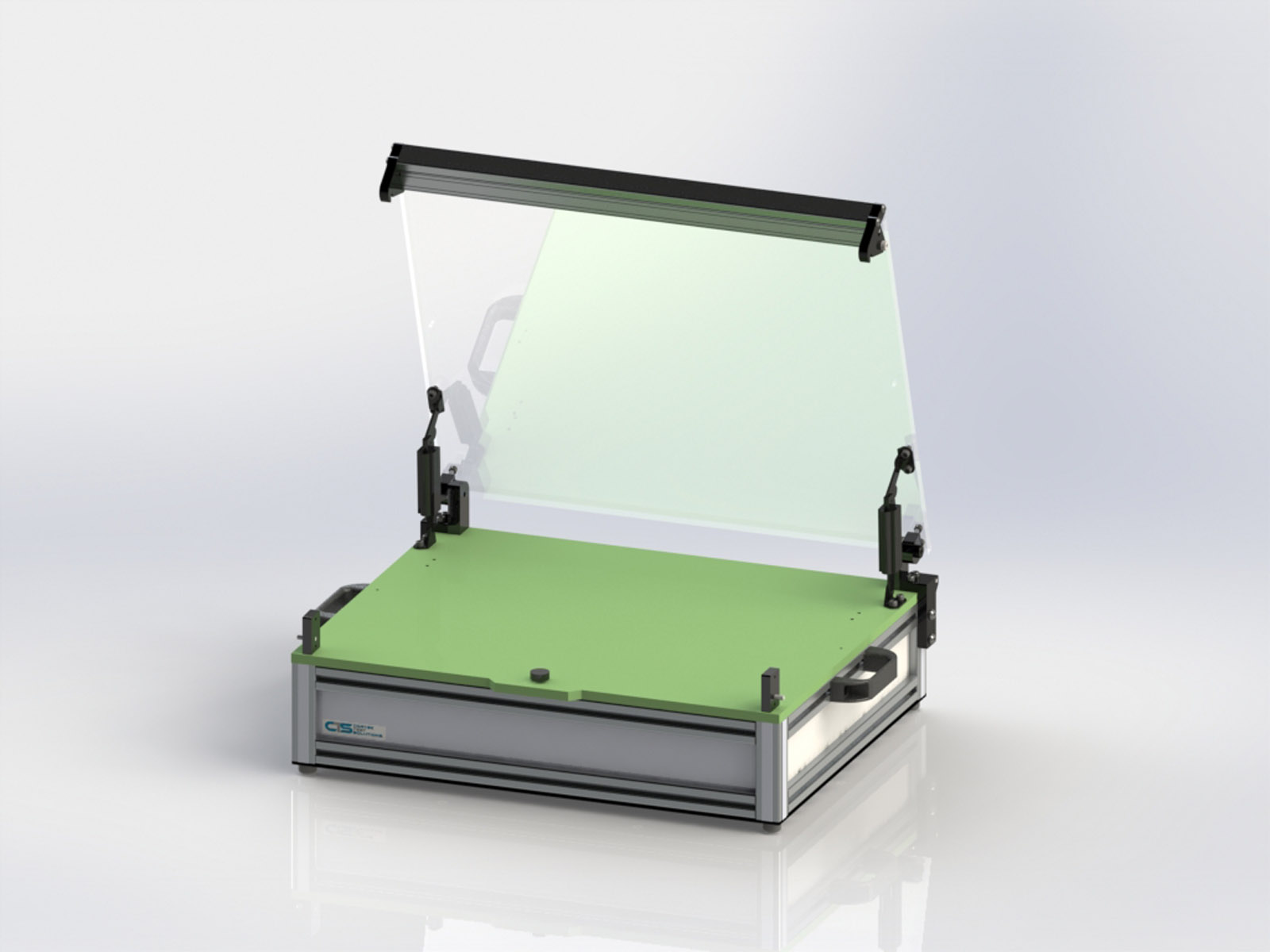

    Mechanical Test Kit Push Open Front View

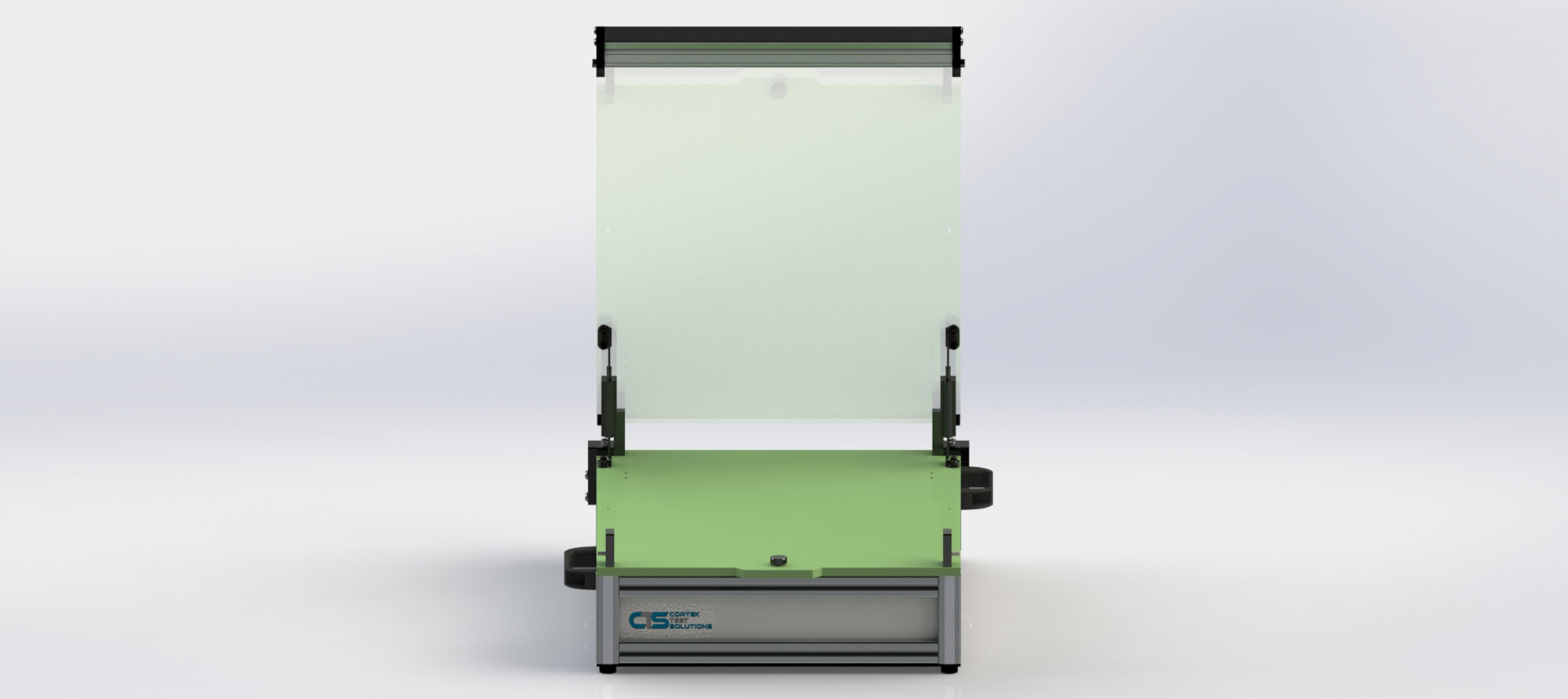

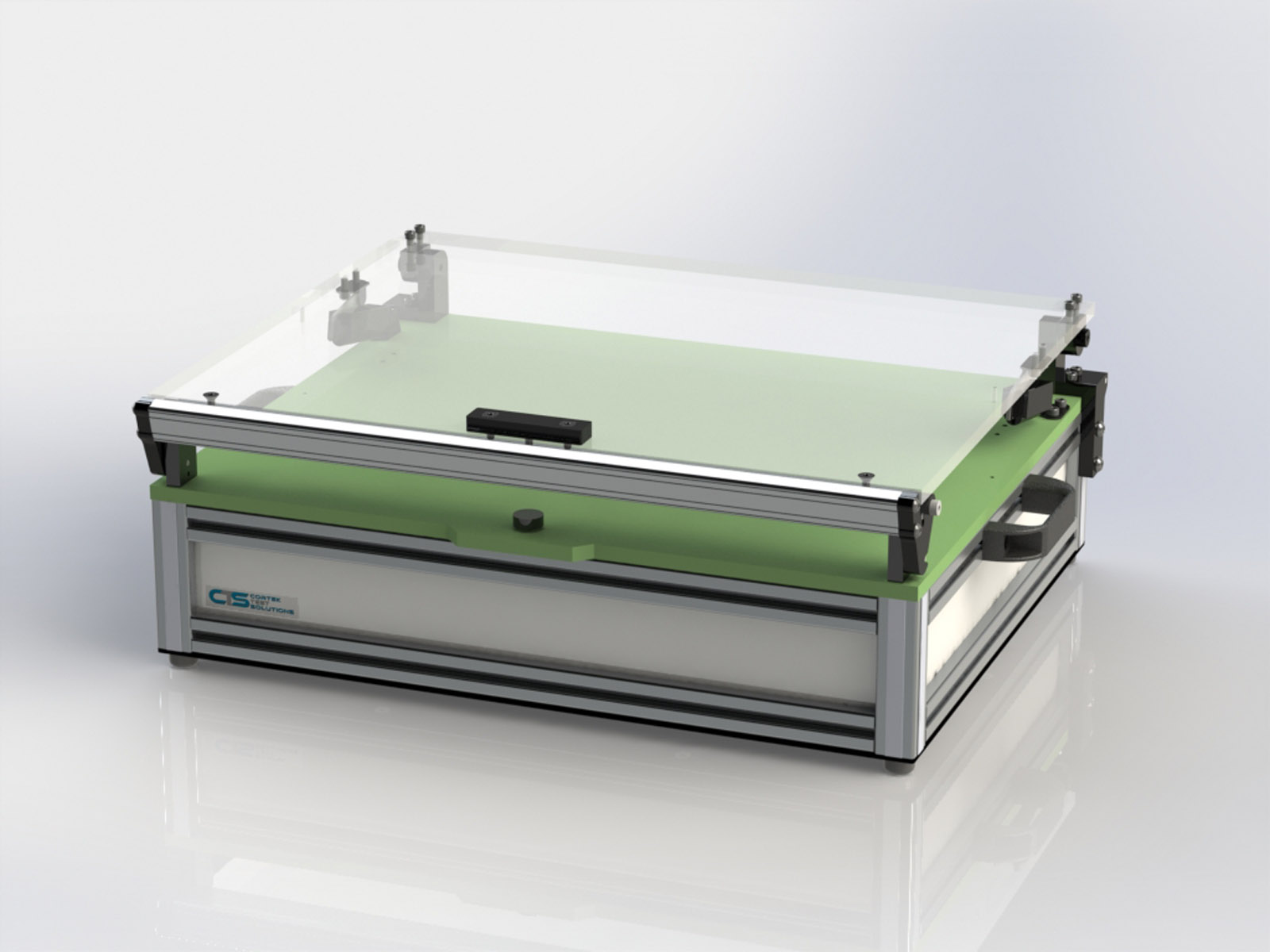

    Mechanical Test Kit Front View

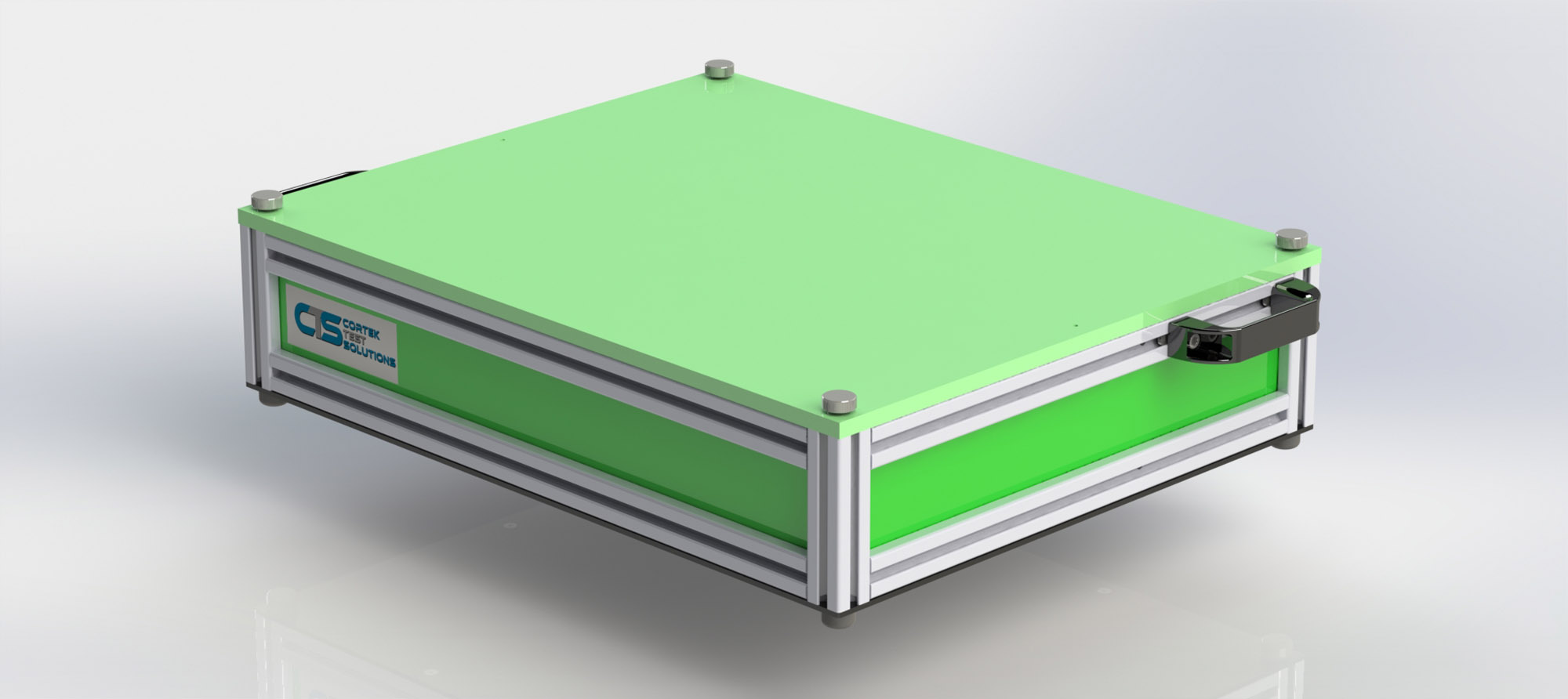

    Mechanical Test Kit Isometric View

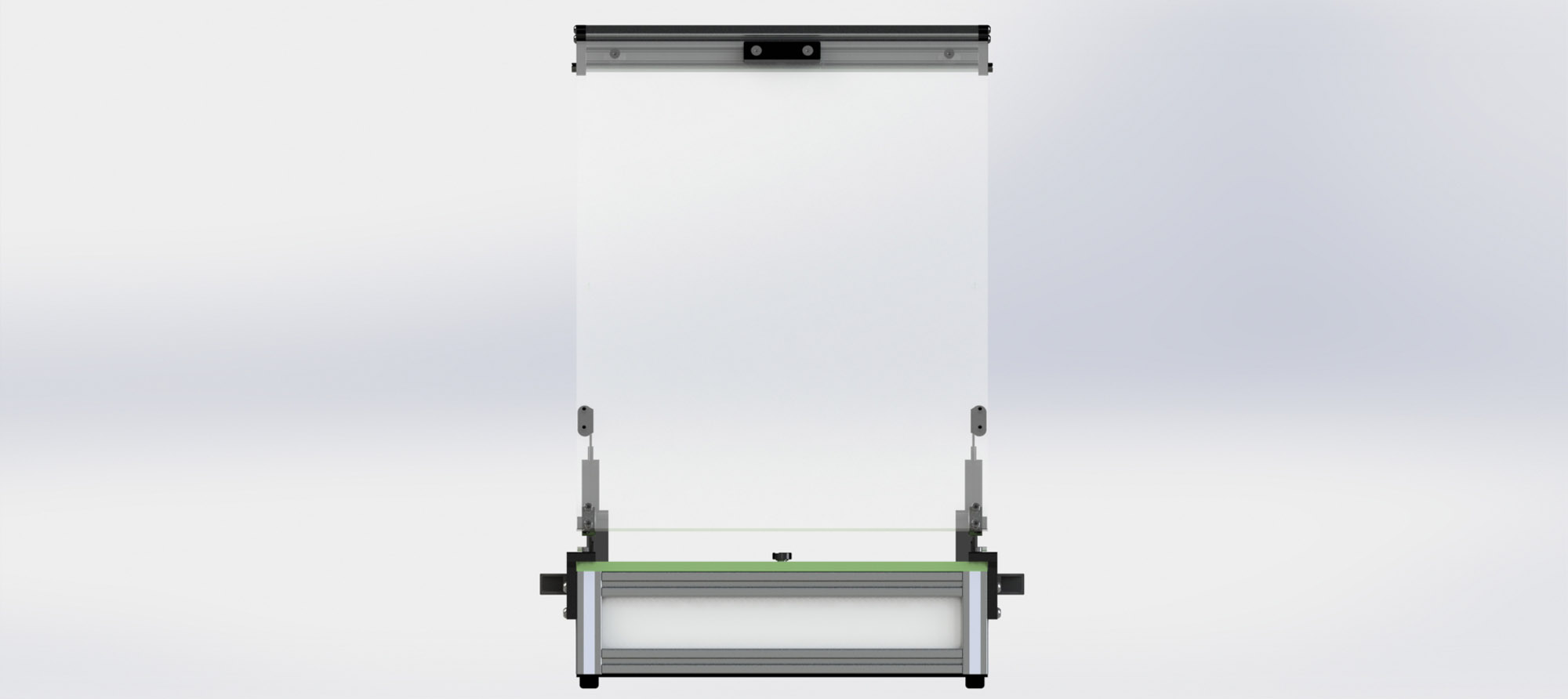

    Mechanical Test Kit Rear View

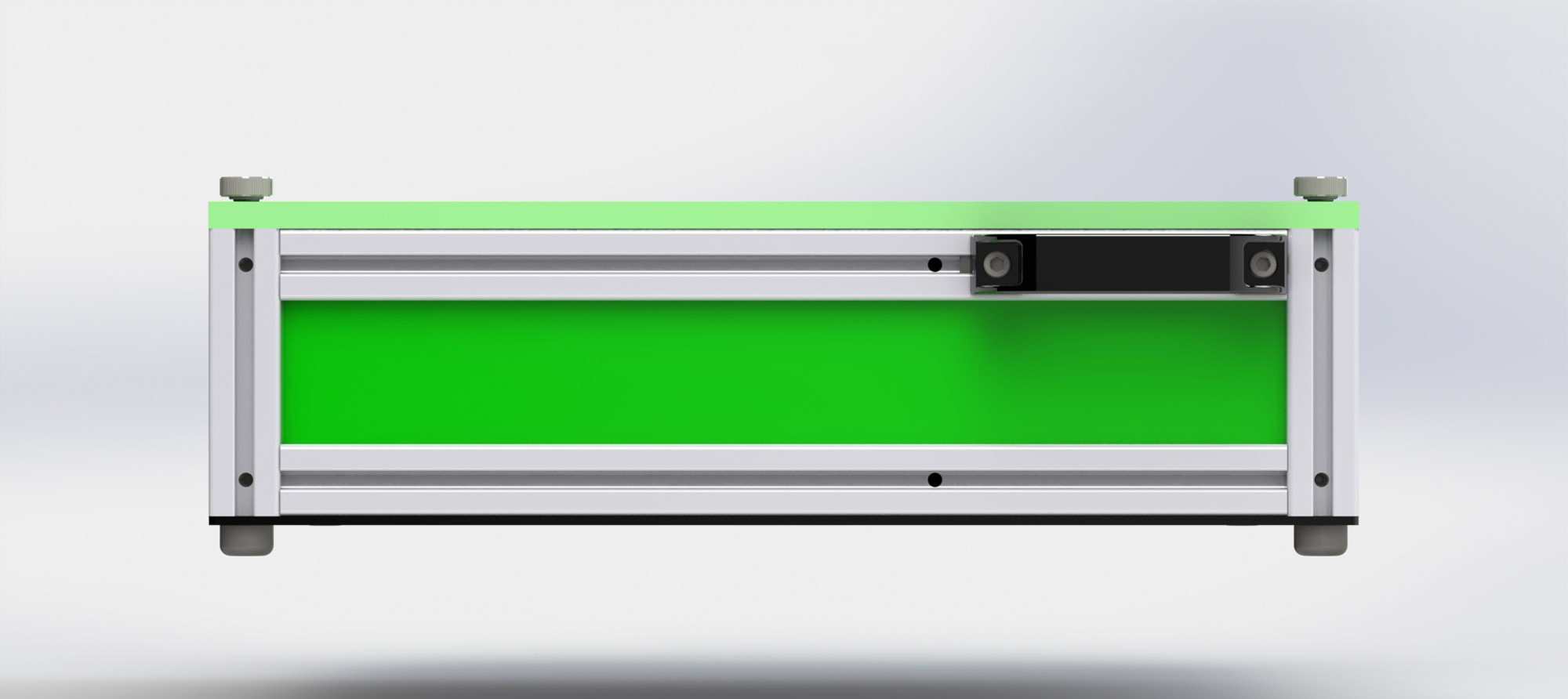

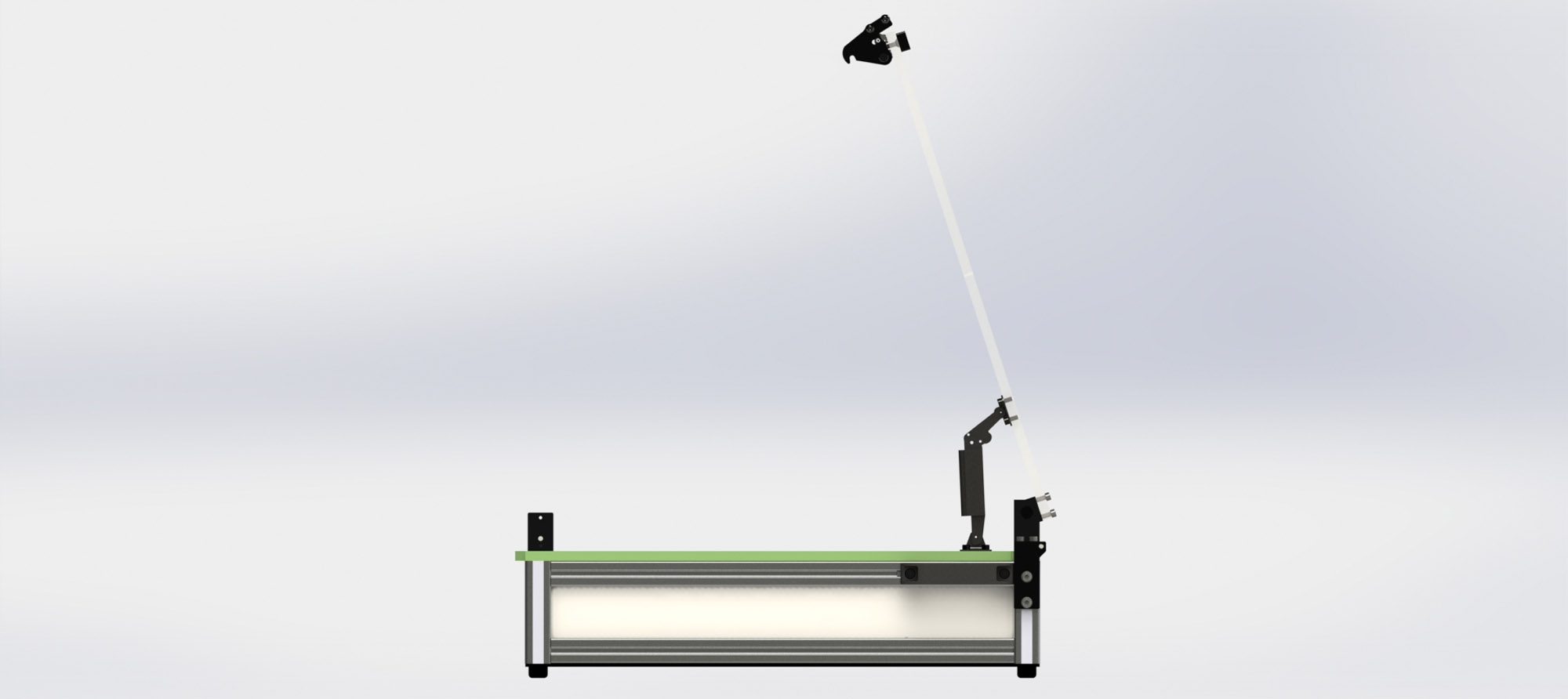

    Mechanical Test Kit Side View

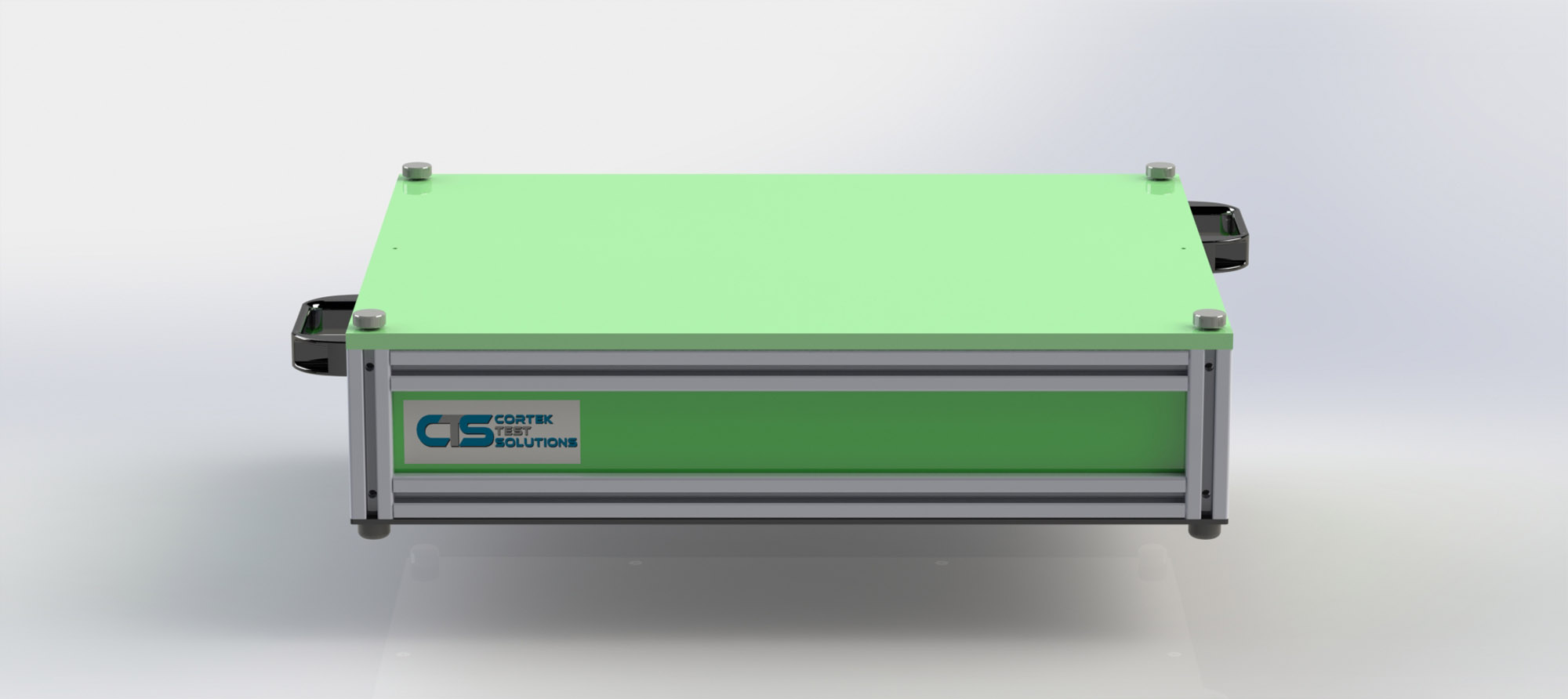

    Mechanical Test Kit Front View

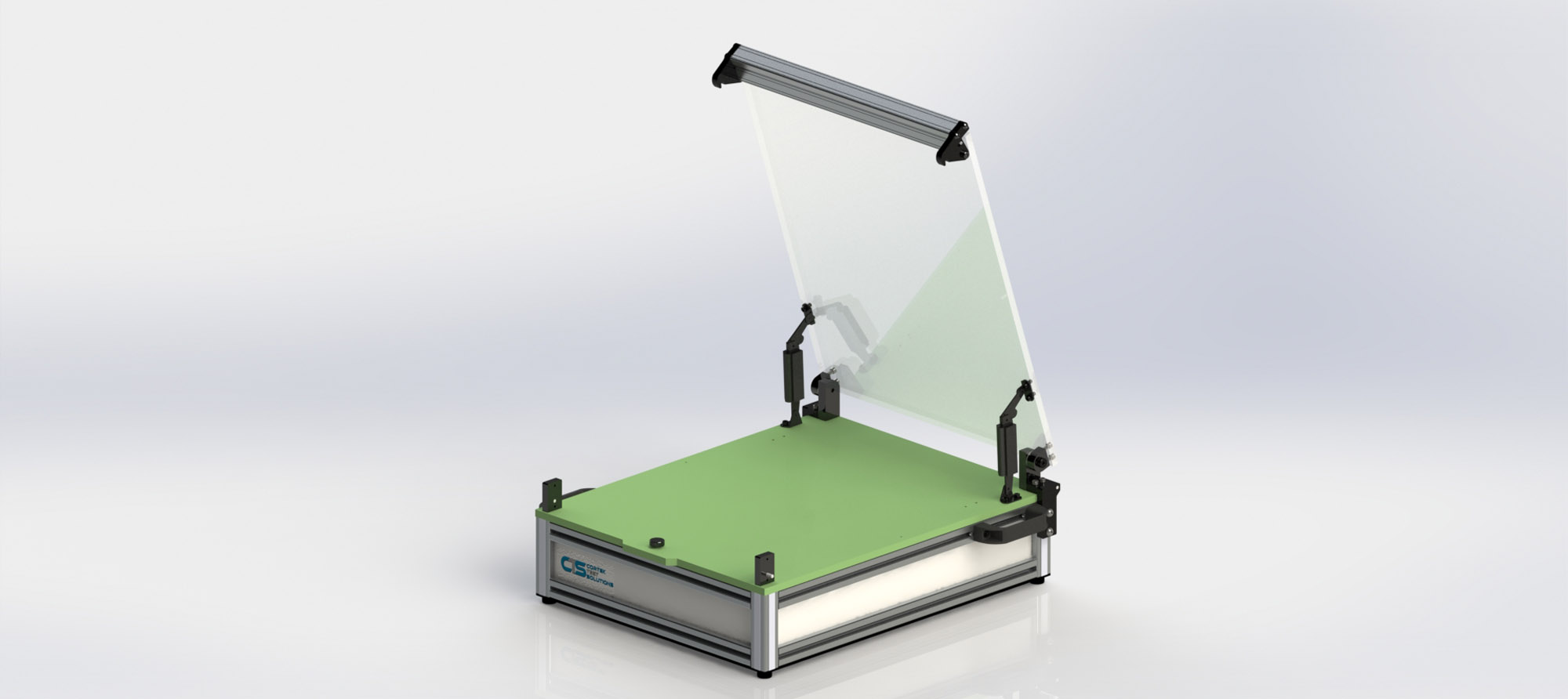

    Mechanical Test Kit Isometric View

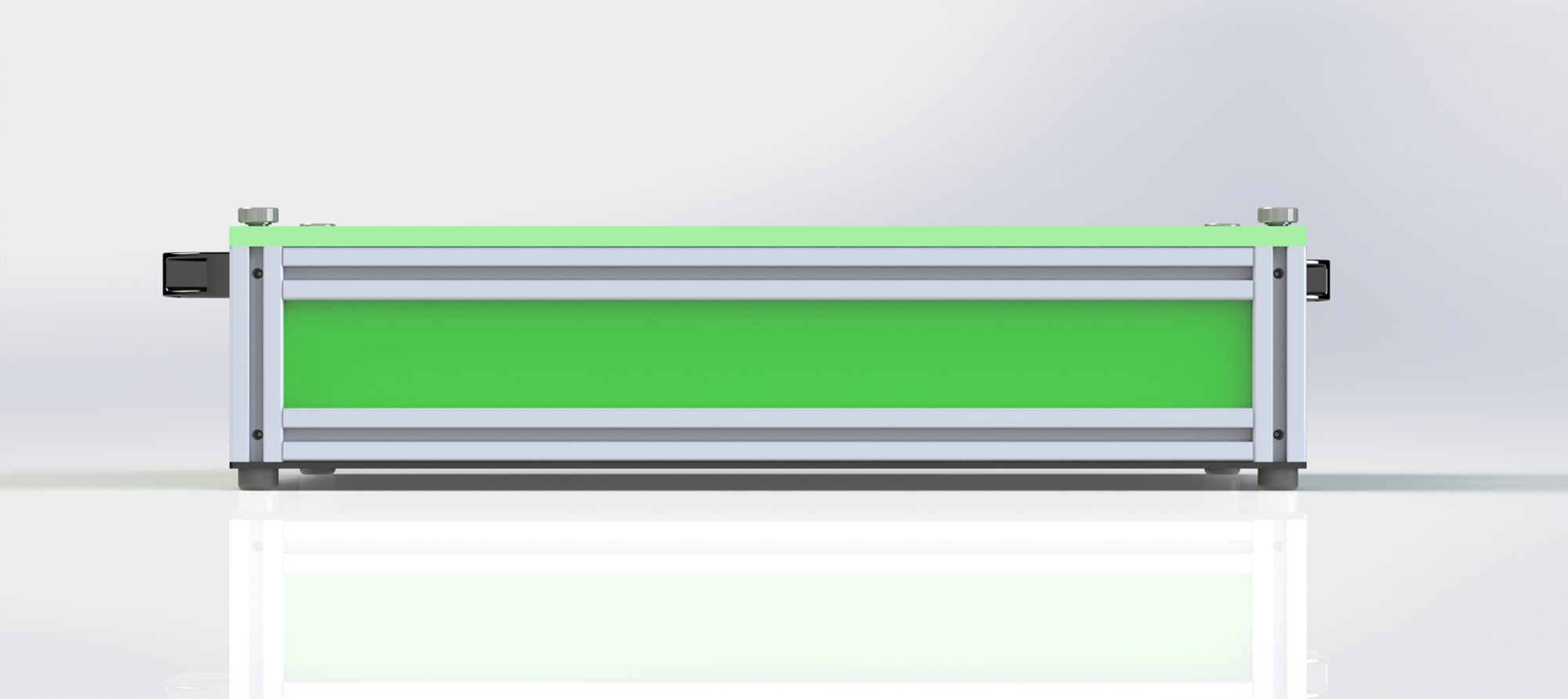

    Mechanical Test Kit Rear View
    Mechanical Test Kit Side View

Mechanical Test Kit - 2016 Test Area up to 16.0” x 14.0”

Model #: 2016

$1,450.00 $1,450.00

- +
Looking for a Custom Solution? Get a Free Quote

Fulfillment note:

Various lead times may apply to this product. Please contact us for more details.

Description

A reliable and effective solution for conducting precise mechanical testing on your electronic devices and components. This kits durable construction and versatile design make it an ideal choice for a wide variety of applications, providing enhanced accuracy and reproducibility in your testing processes.

Cortek presents cost-effective, high-quality clamshell mechanical test fixture kits tailored for printed circuit board testing, debugging, and programming. These kits are an affordable solution for bed of nails (BON) printed circuit board testing.





Specifications

Features

  • More spacious and usable test area compared to our competitor's
  • CTS clamshell kits offer a greater standard height and also comes with the option to increase height further between the push and pin plate.
  • The design is sleek, sturdy, and adaptable in nature, surpassing that of the competition.
  • The innovative latch bar design moves the latching posts away from the center UUT area, resulting in improved handling of UUT.
  • Operators will find it easier to use our fixtures due to enhanced accessibility featres.
  • The side panels are designed for convenient fabrication of I/O connections, switches, and other hardware.
  • CTS custom-designed hinges made from black anodized 6061 aluminum.
  • Mechanical spring hinges for added functionality.
  • Rubber feet for stability.
  • FR4 pin plate locking screw
  • Go Green! CTS Clamshell Kits emphasize sustainability and allows for reusing base parts for future applications once the current lifecycle ends.
  • We offer multiple height options, and custom size configurations are readily available to meet specific requirements beyond our standard offerings.

Options

  • Stripper Plate
  • Safety Shroud
  • Customization of fixture plates – submission of data required for quote
  • Additional FR4, Acrylic, Polycarbonate ESD plates available
  • Installation of fixture hardware to include: Probes & Sockets, locating pins, push rods, side guides, connectors, interface pcb, interlocks, etc.
  • Wiring per customer specification
  • Extended 6" height
  • Extended 8" height
  • Extended 10" height
  • 1/2" Riser Block
  • 3/4" Riser Block
  • 1" Riser Block
