Mechanical Test Kit - 1612 - Test Area up to 12.0” x 10.0”
    Mechanical Test Kit - 1612 - Test Area up to 12.0” x 10.0”
    Clamshell mechanical test fixture kit terminology
    Mechanical Test Kit - 1612 - Test Area up to 12.0” x 10.0”

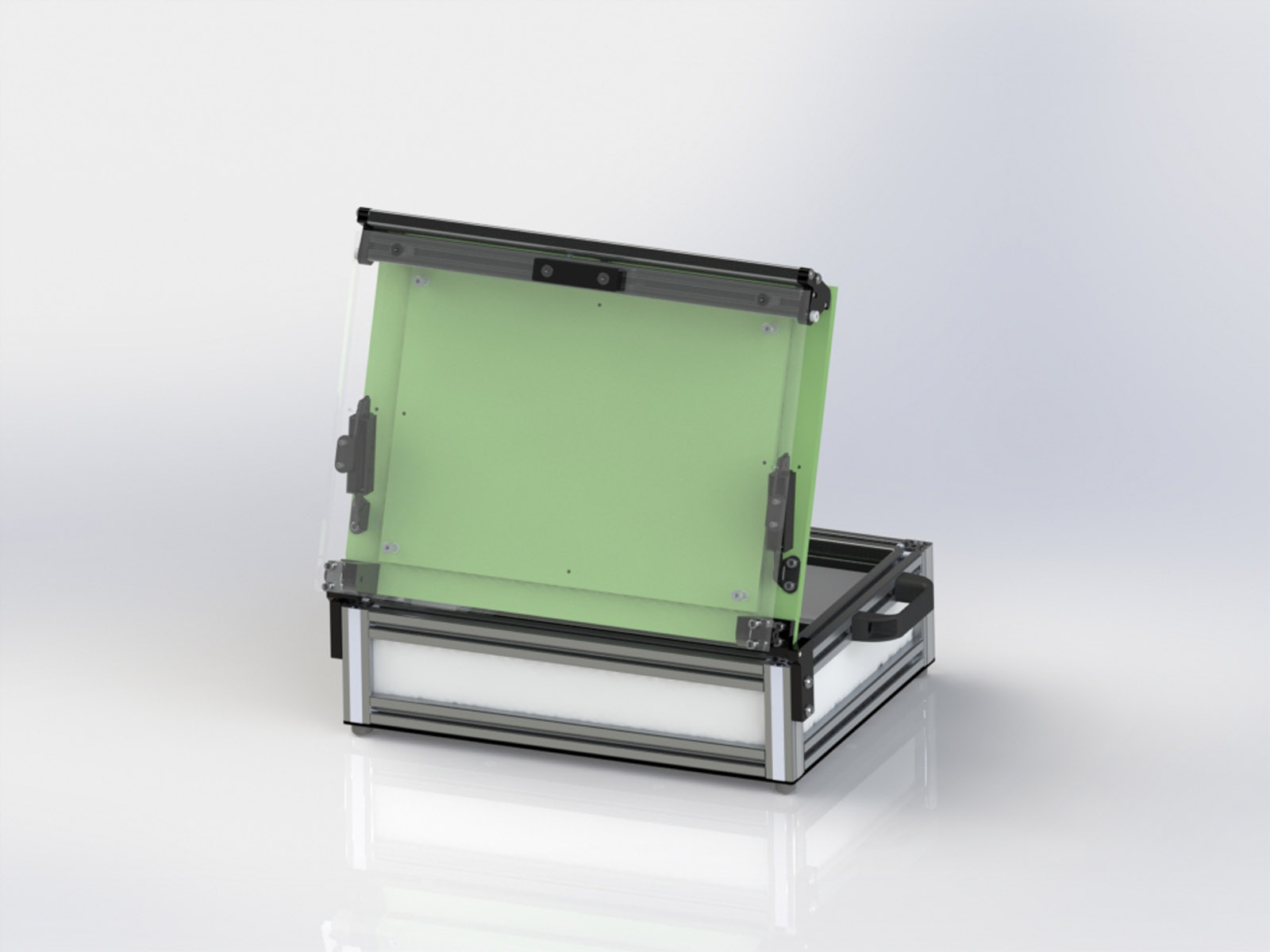

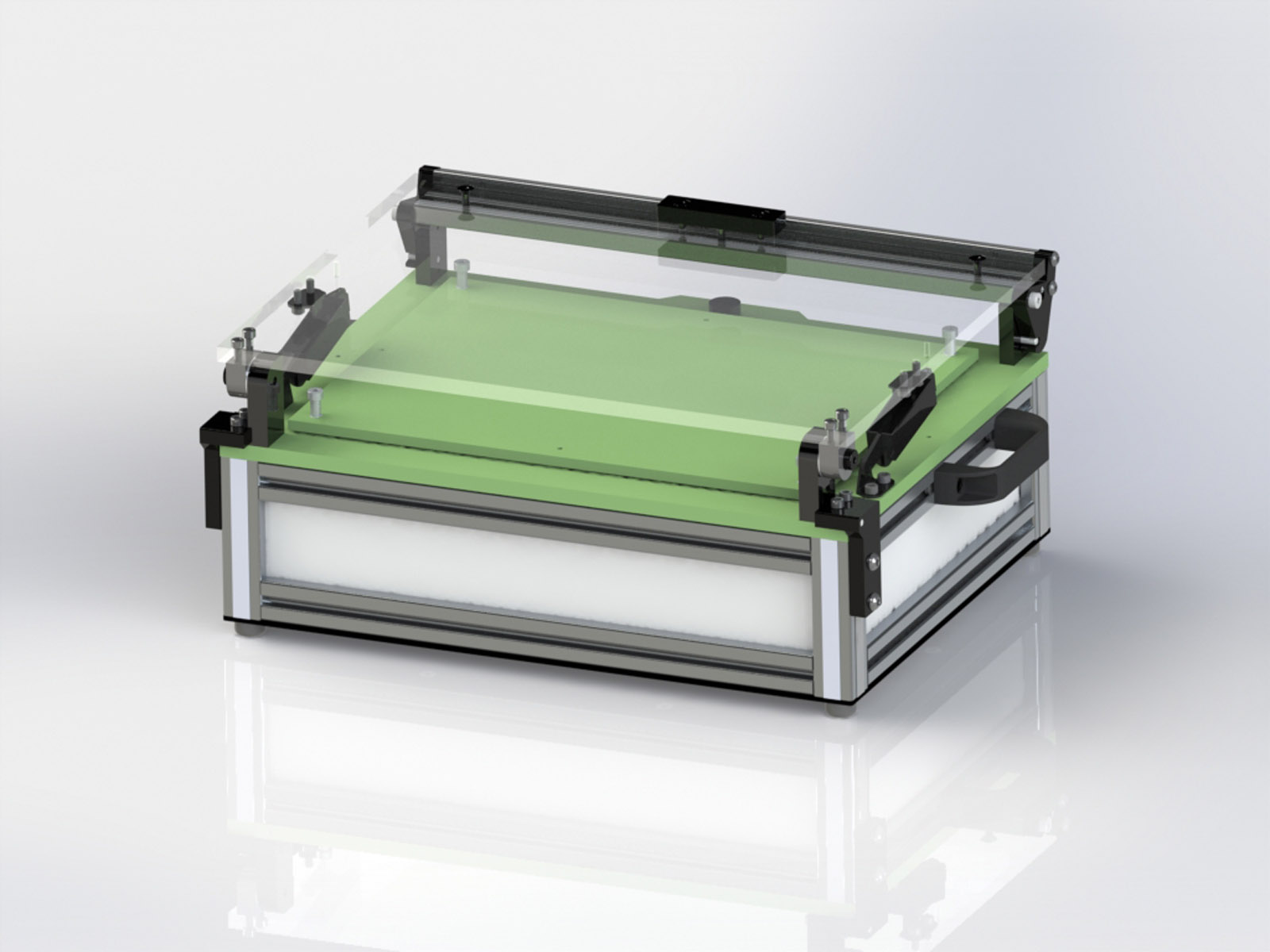

    Mechanical Test Kit 1612 Plate Open Back View

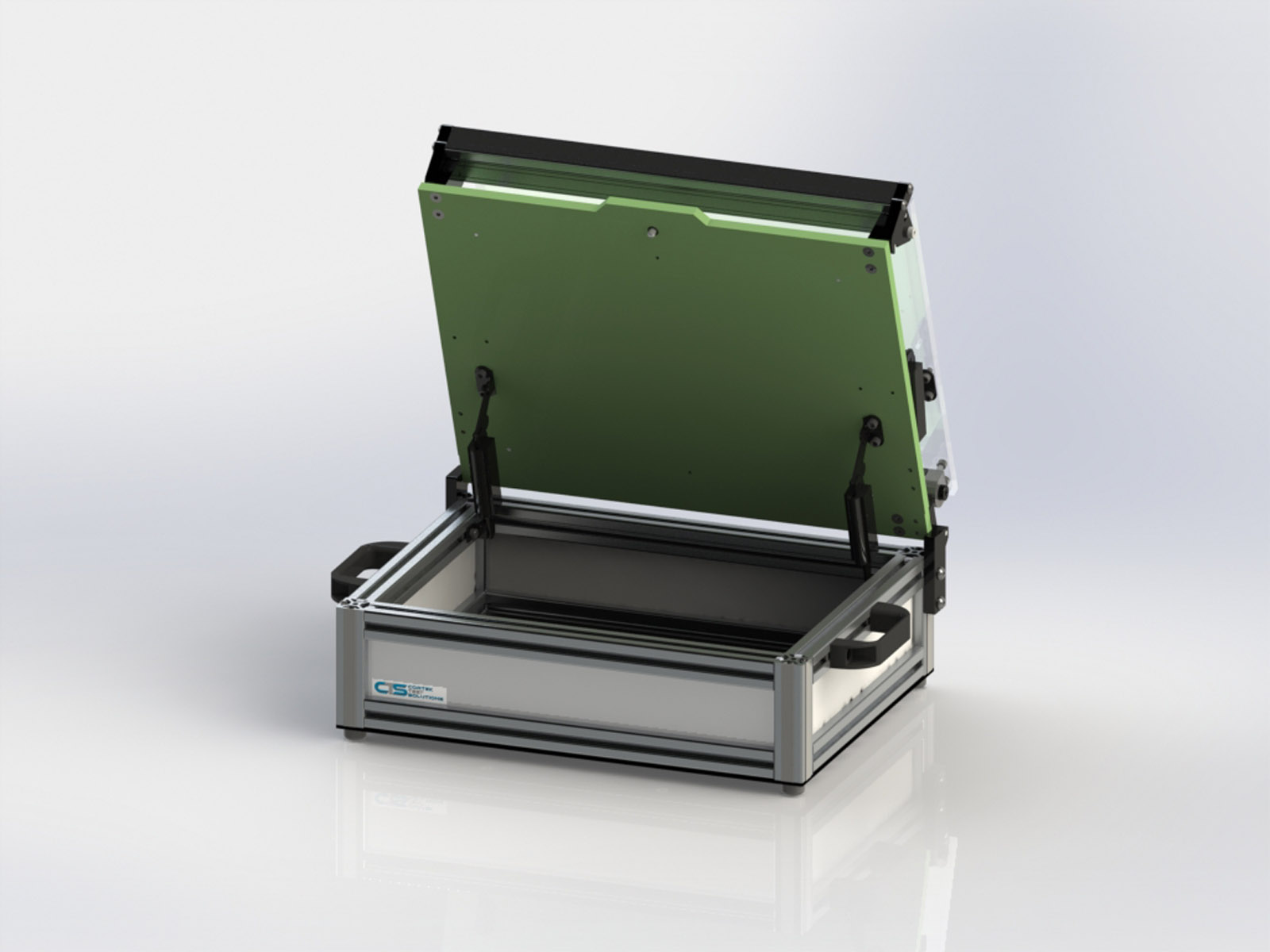

    Mechanical Test Kit 1612 Plate Open Front View

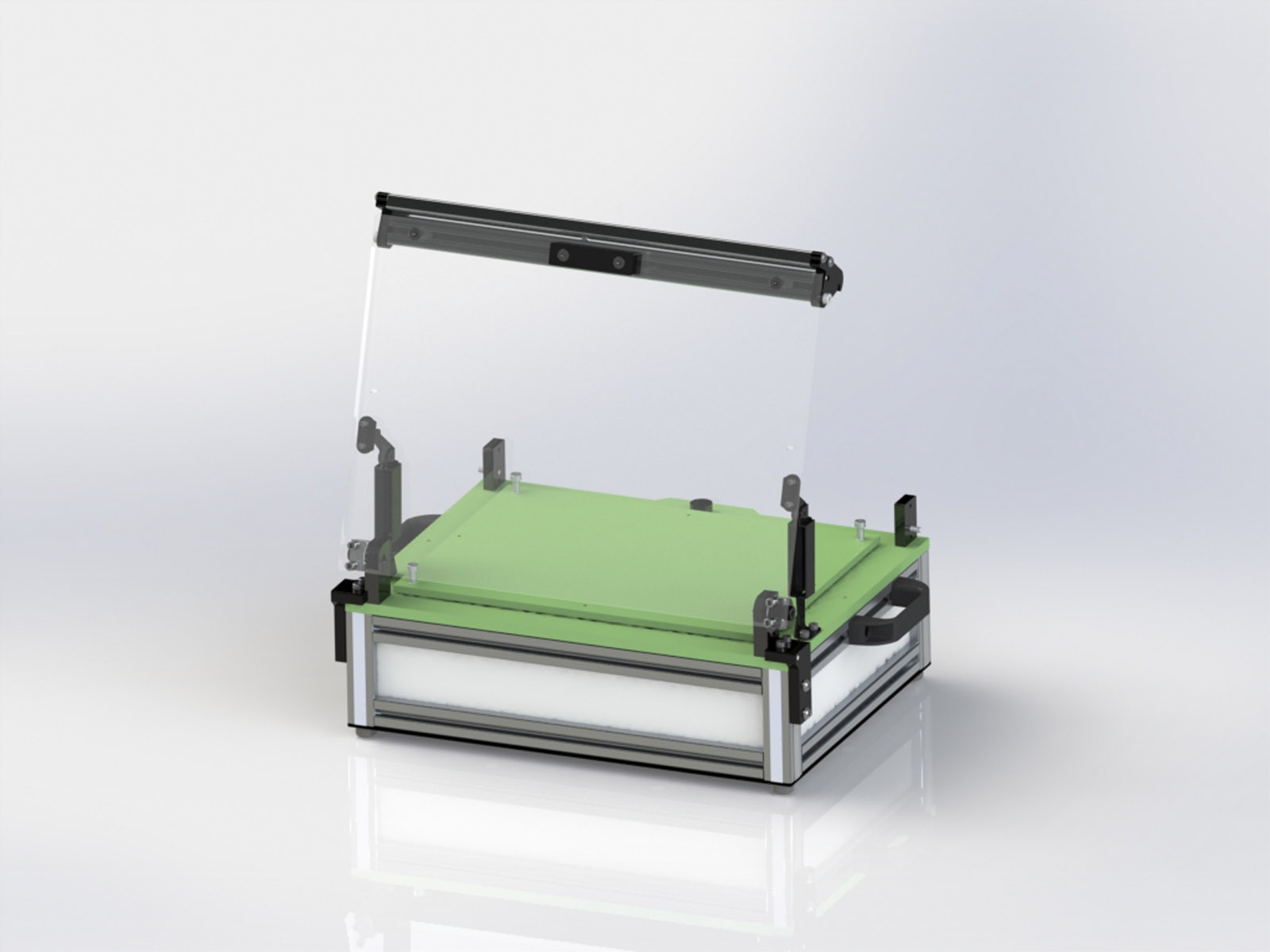

    Mechanical Test Kit 1612 Push Open Back View

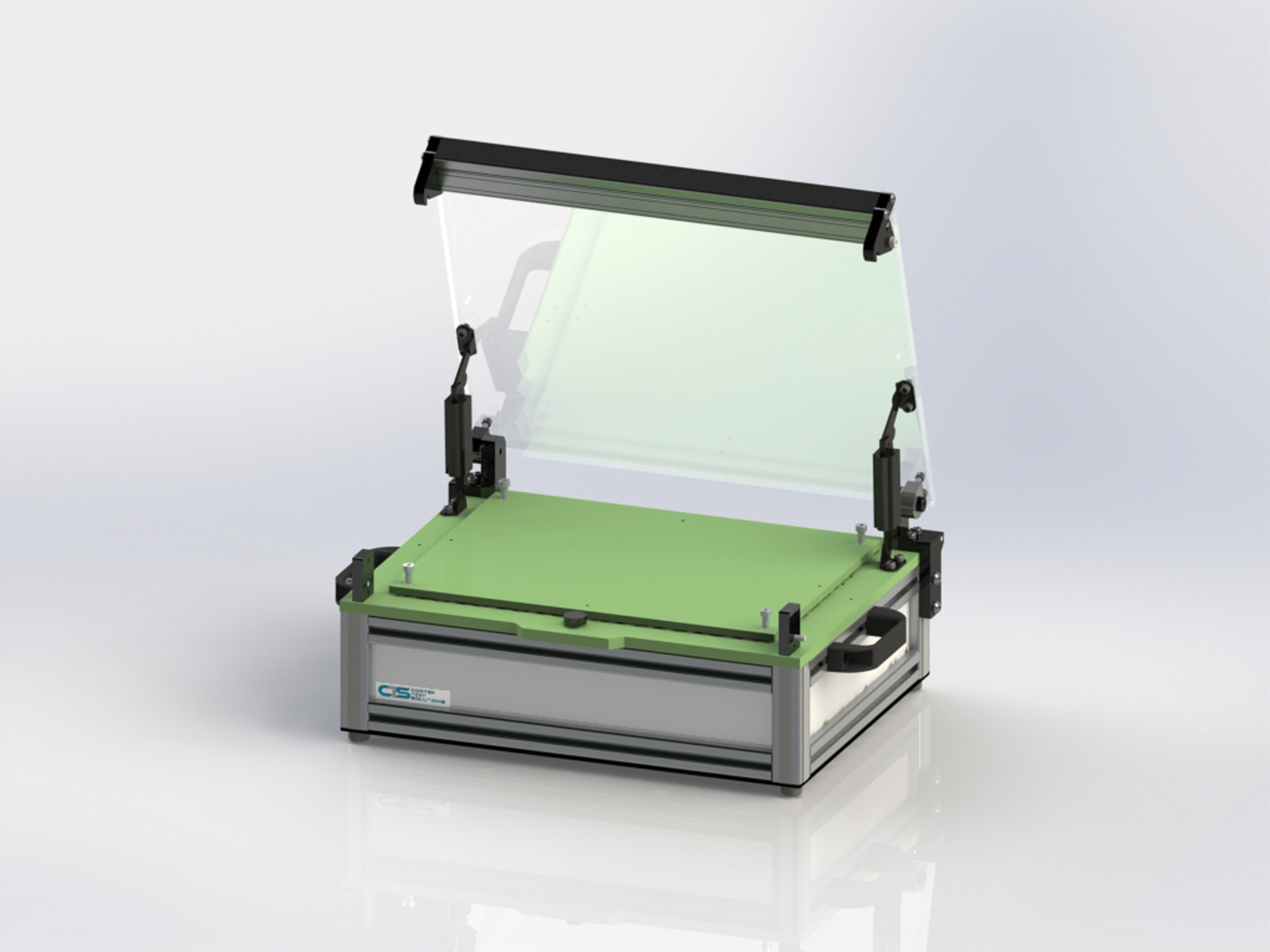

    Mechanical Test Kit 1612 Push Open Front View

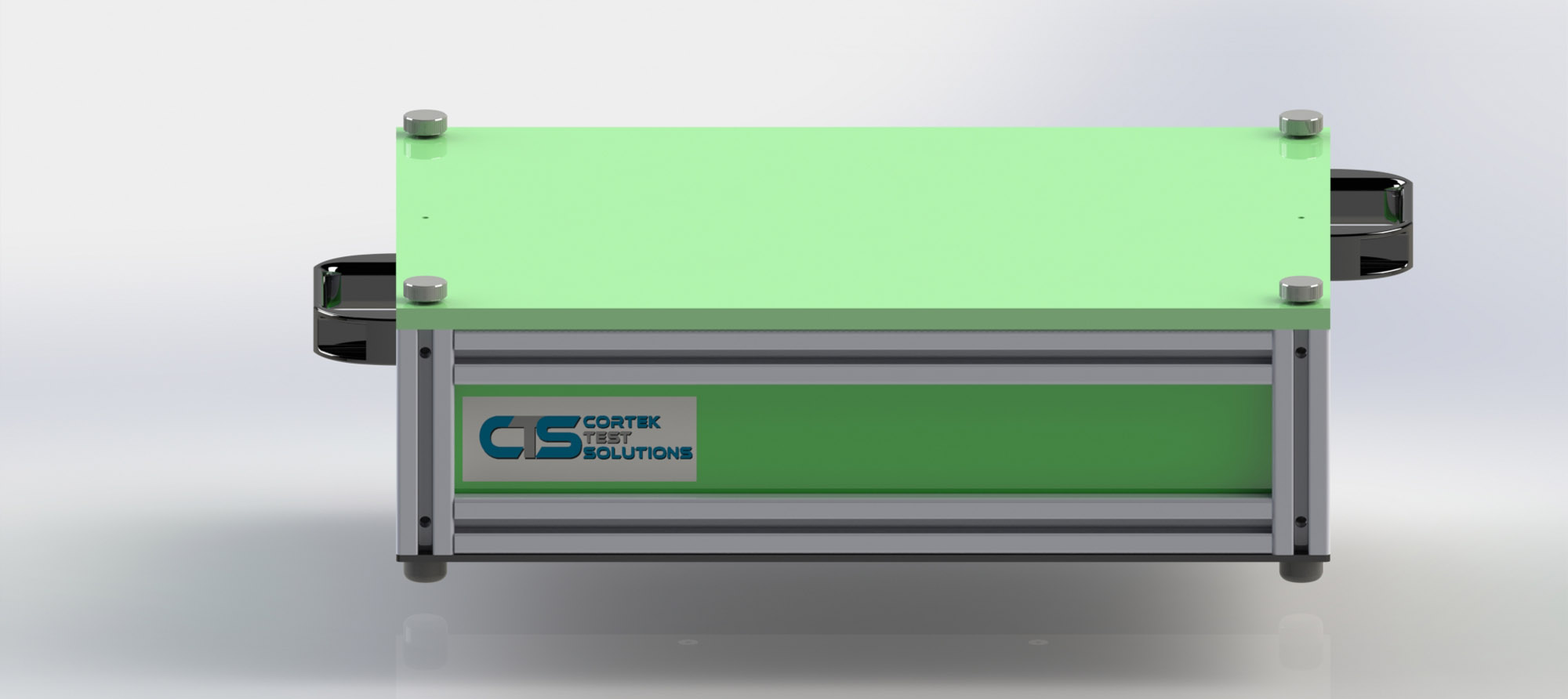

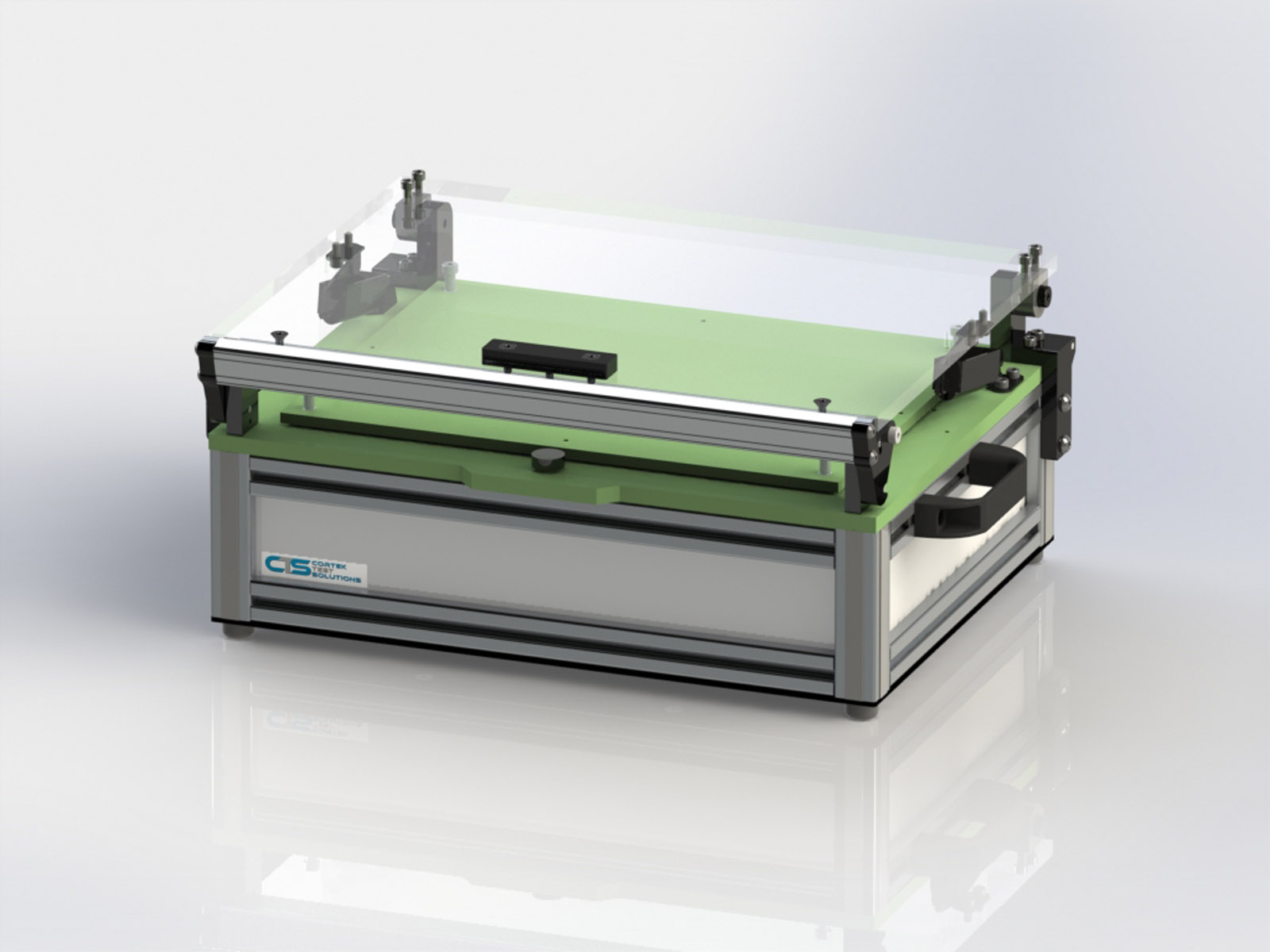

    Mechanical Test Kit 1612 Front View

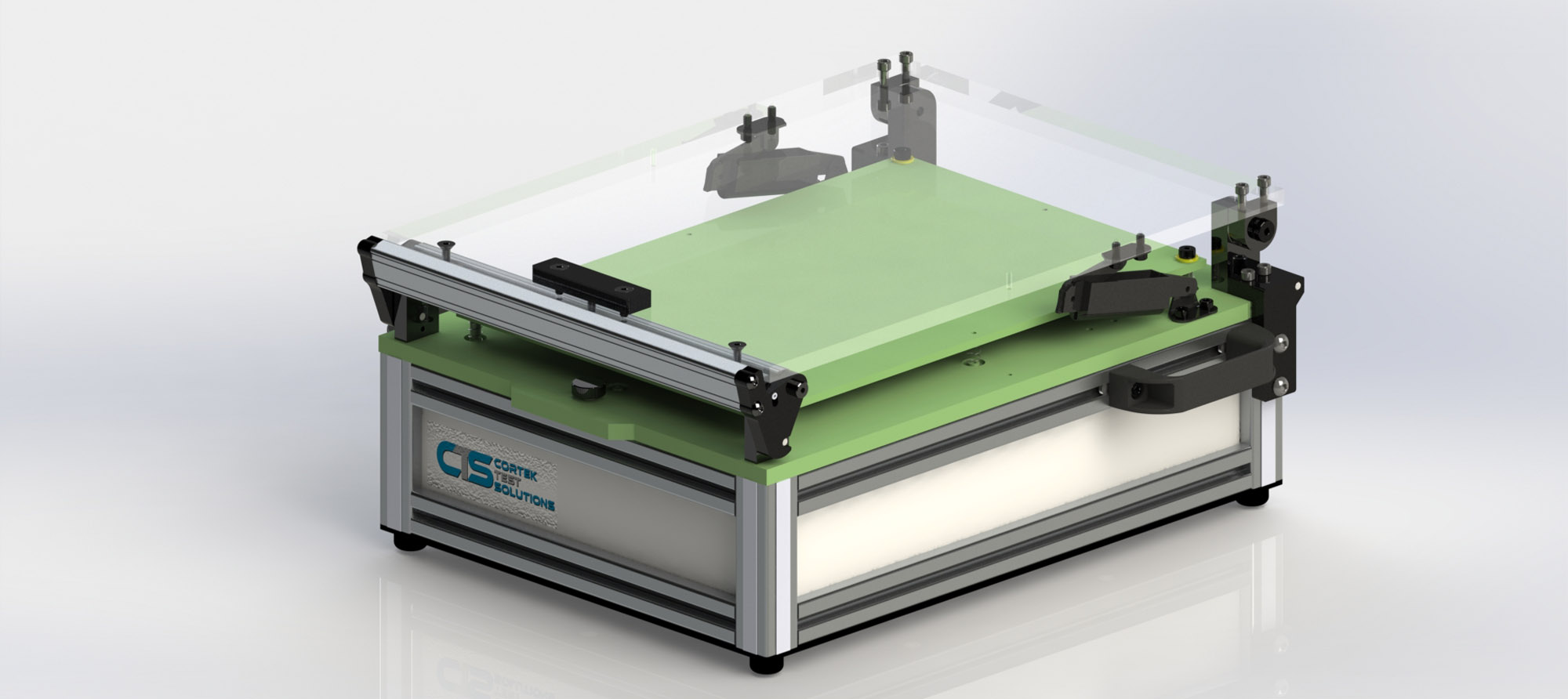

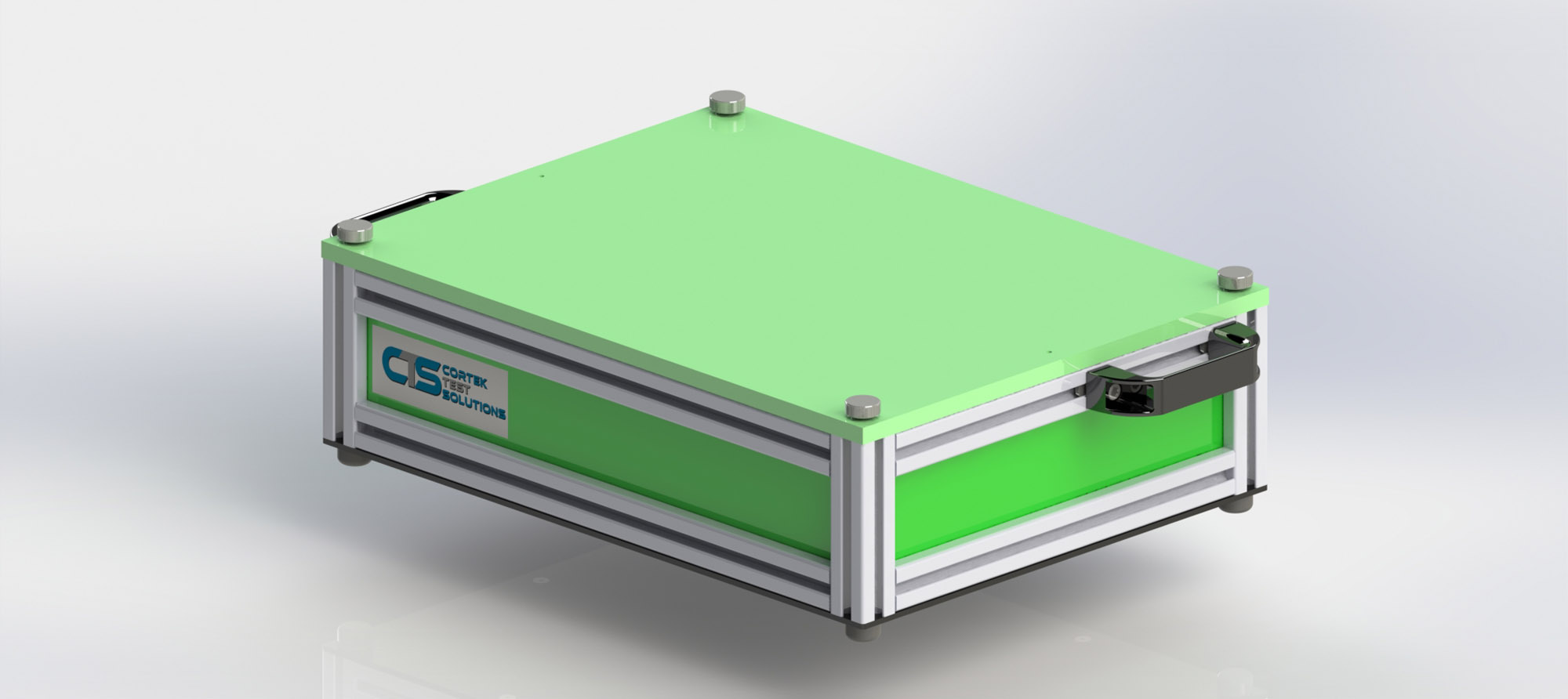

    Mechanical Test Kit 1612 Isometric View

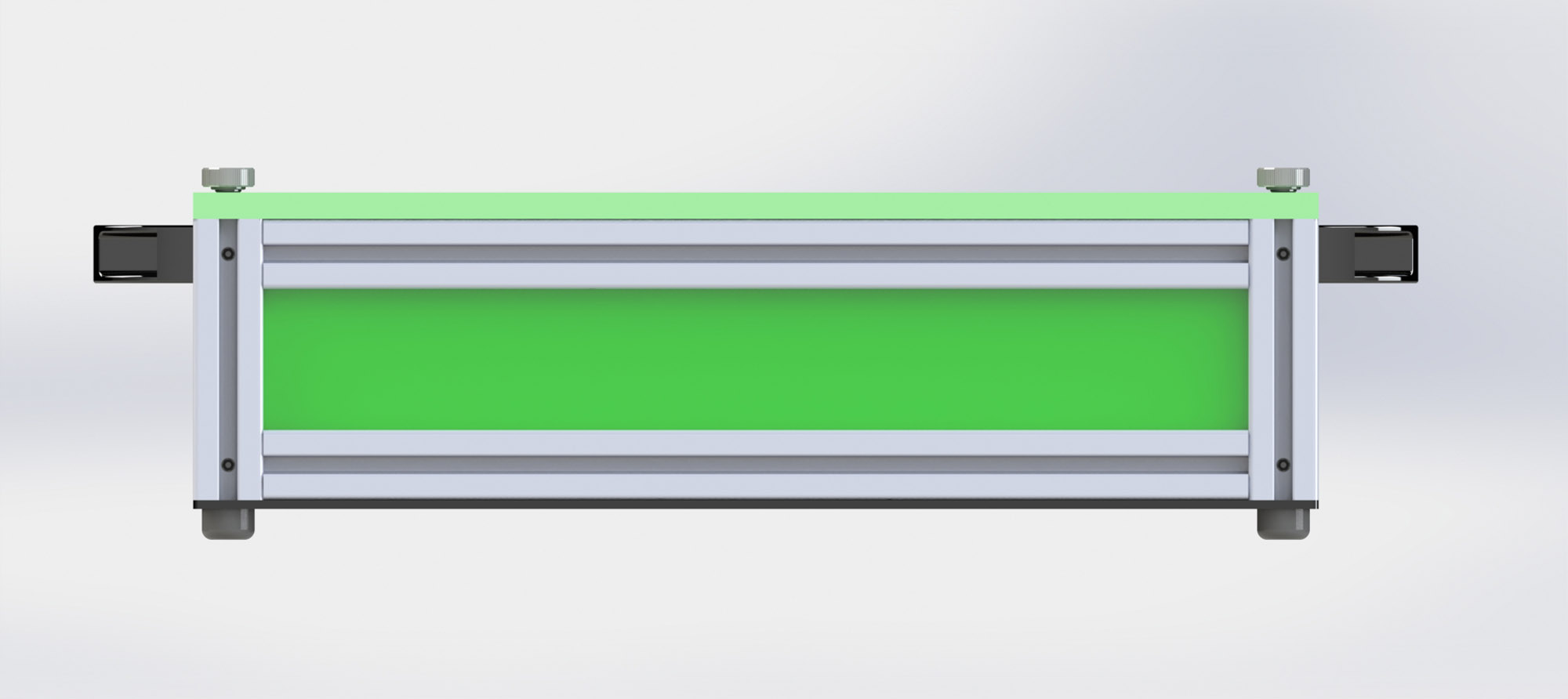

    Mechanical Test Kit 1612 Rear View

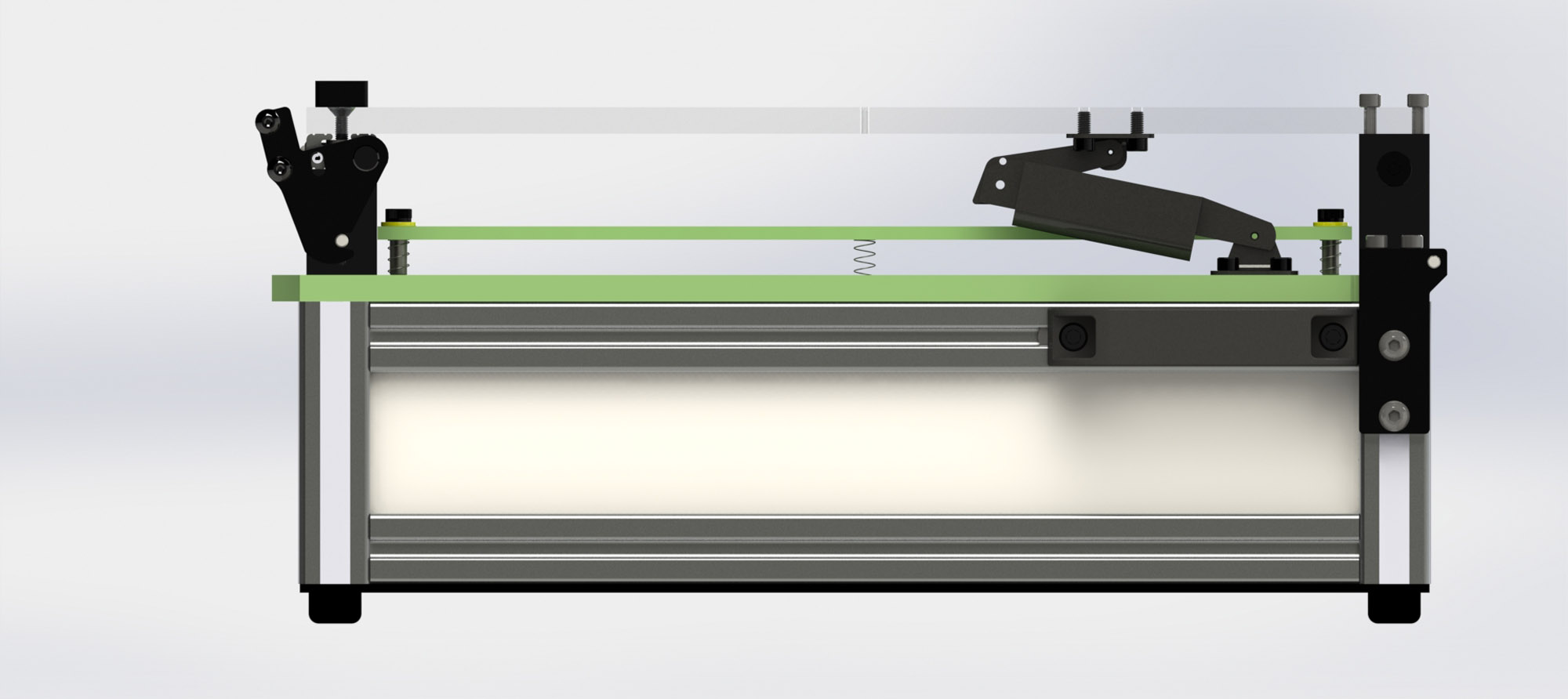

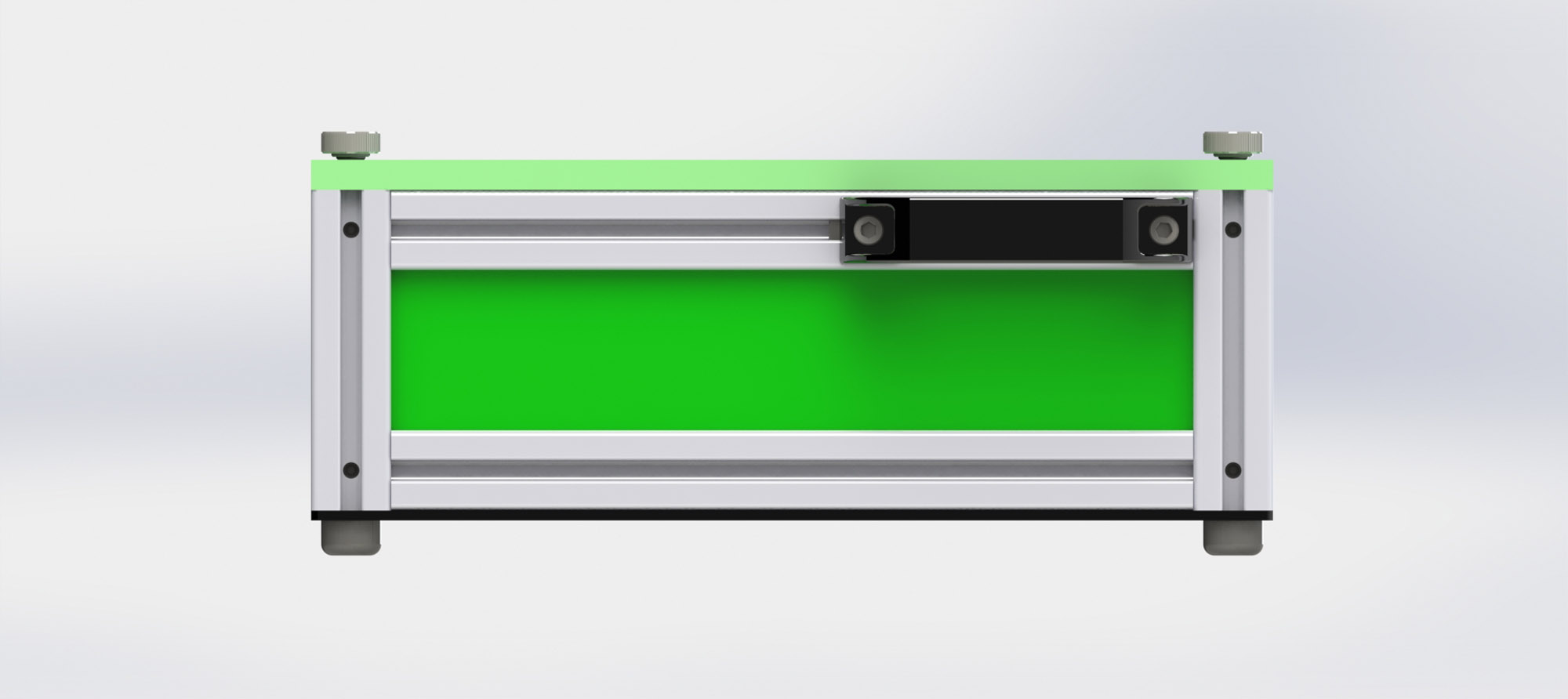

    Mechanical Test Kit 1612 Side View

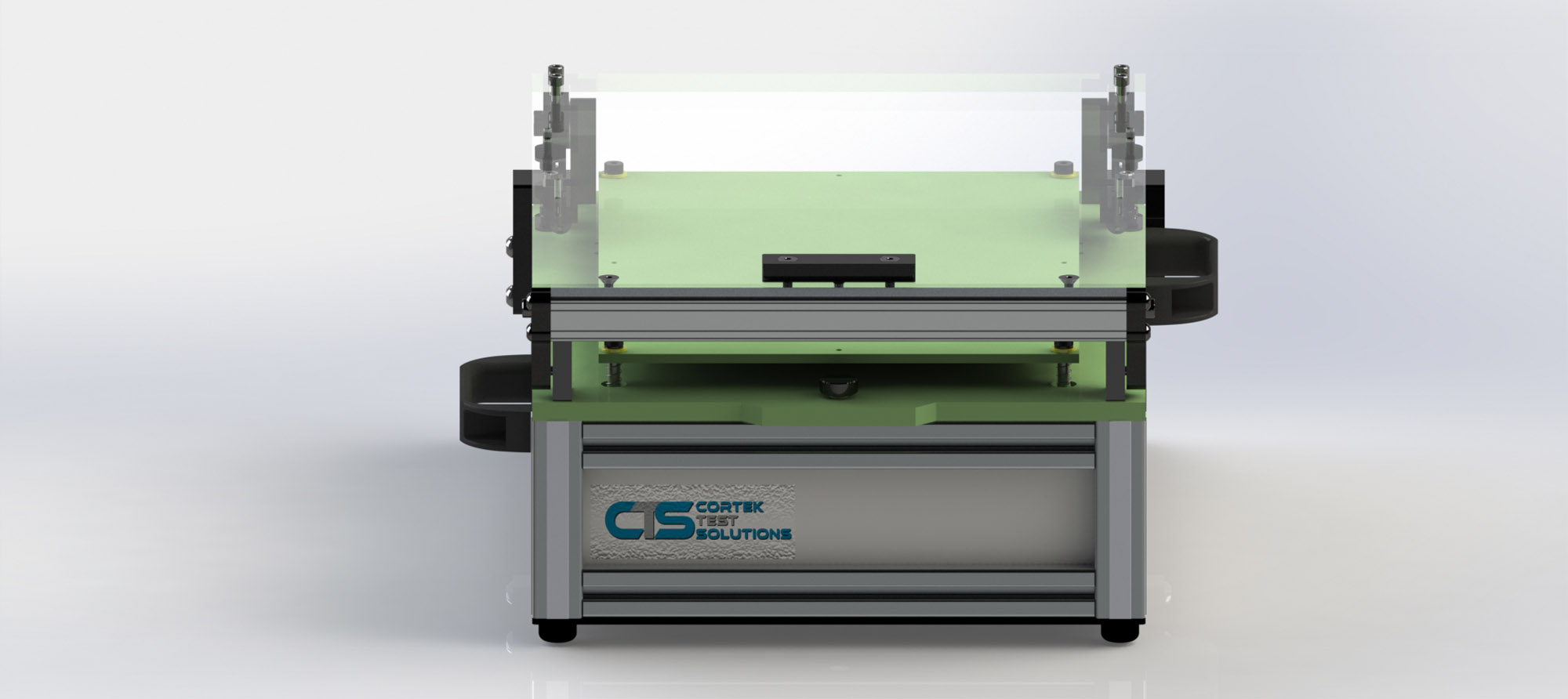

    Mechanical Test Kit 1612 Front View
    Mechanical Test Kit 1612 Isometric View

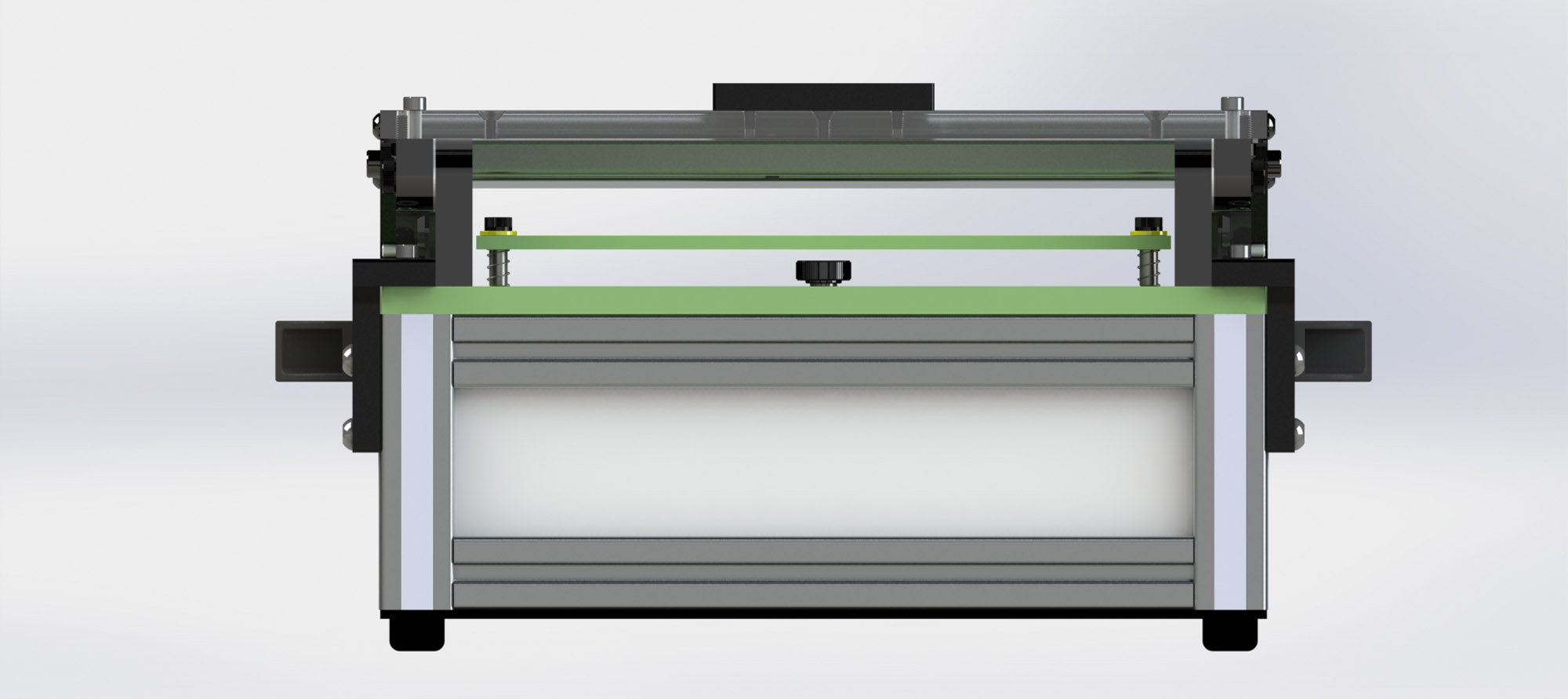

    Mechanical Test Kit 1612 Rear View
    Mechanical Test Kit 1612 Side View

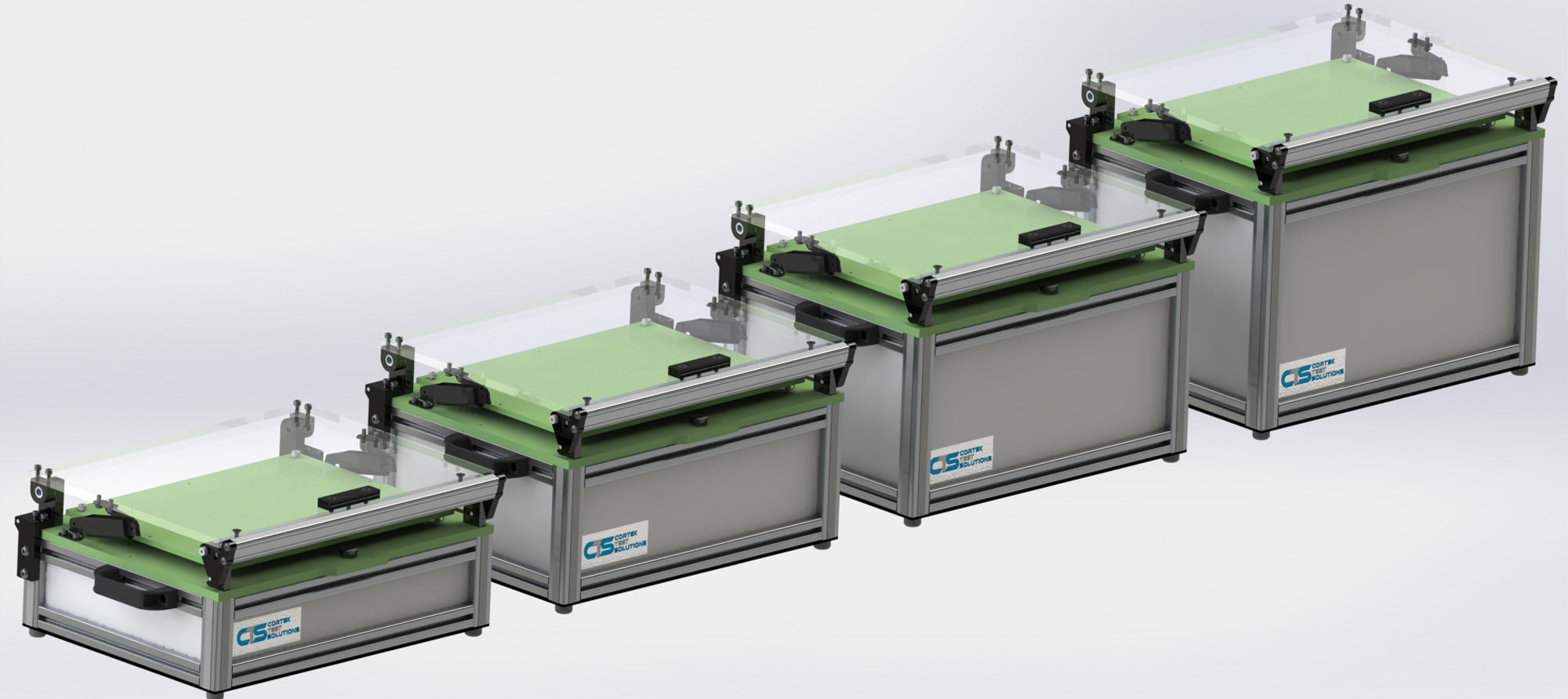

    All configurations (standard) ISO for the mechanical test kit 1612

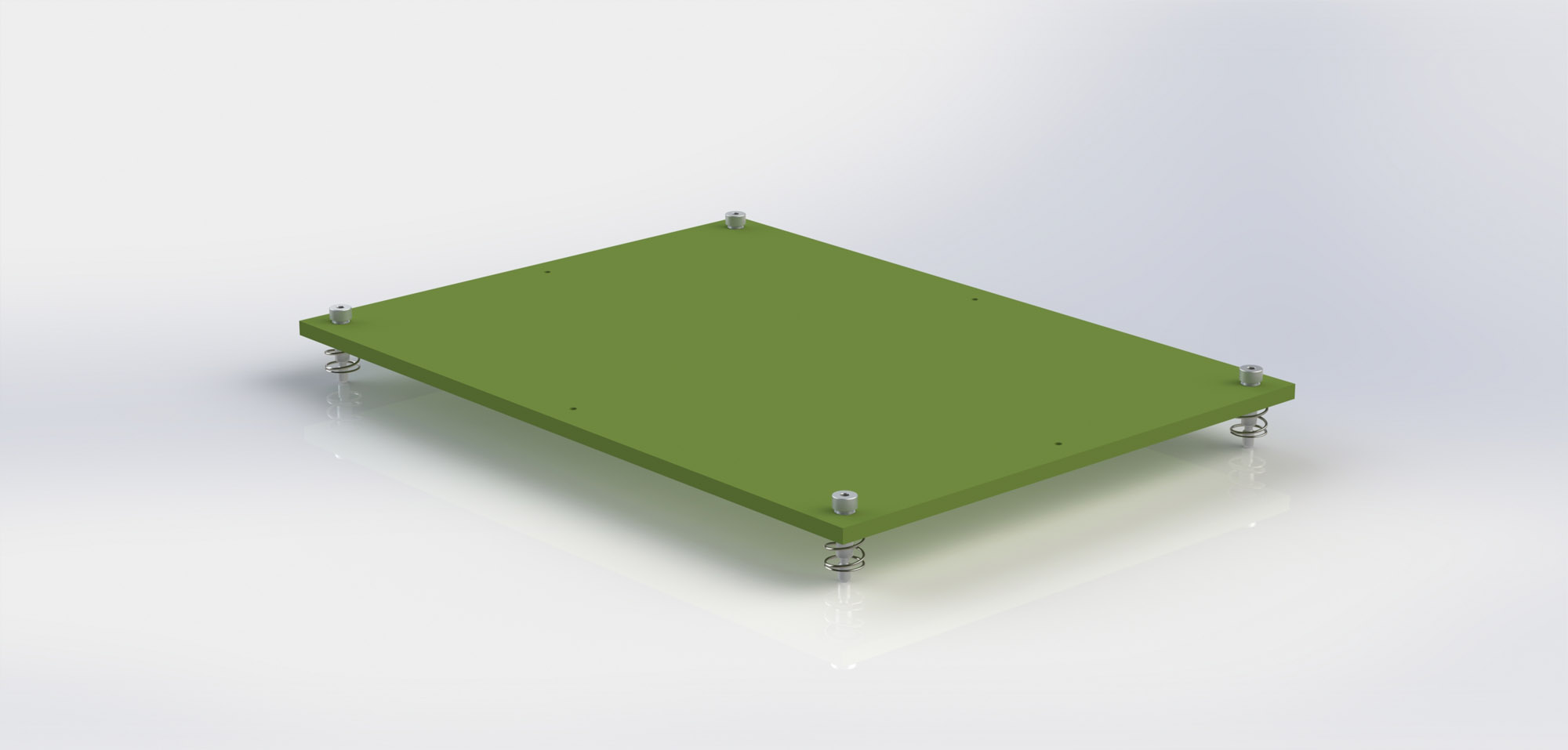

    Stripper Plate

Mechanical Test Kit - 1612 Test Area up to 12.0” x 10.0”

Model #: 1612

$1,250.00 $1,250.00

- +
Looking for a Custom Solution? Get a Free Quote

Fulfillment note:

Various lead times may apply to this product. Please contact us for more details.

Description

A reliable and versatile solution for precise mechanical testing of electronic devices and components. With its durable construction and wide application range, this kit provides enhanced accuracy and reproducibility in testing.

Cortek provides affordable, top-notch clamshell mechanical test fixture kits designed for printed circuit board testing, debugging, and programming. These kits come in various sizes and can be easily customized, offering size adaptability on all axes.





Specifications

Features

  • A larger and more functional area for testing purposes.
  • Greater usable height compared to other standard options, and there is an option to increase height further between the push and pin plate.
  • The design is sleek, durable, and adaptable, surpassing that of its competitors.
  • The innovative latch bar design relocates the latching posts to the outer edges of the central UUT area, resulting in improved handling of the UUT.
  • Easier for operators to utilize fixtures due to enhanced accessibility features.
  • The side panels are designed for effortless fabrication of I/O connections, switches, and other hardware components.
  • Features custom-designed hinges made of black anodized 6061 aluminum by CTS.
  • Incorporates mechanical spring hinges for added functionality.
  • Rubber feet to ensure stability and prevent slippage.
  • FR4 pin plate locking screw
  • Go Green! This product promotes sustainability as its base parts can be reused for subsequent applications once the current lifecycle is completed.
  • Multiple height options are available, and unique custom size configurations can be easily accommodated if the standard dimensions do not meet specific requirements.

Options

  • Stripper Plate
  • Safety Shroud
  • Customization of fixture plates – submission of data required for quote
  • Additional FR4, Acrylic, Polycarbonate ESD plates available
  • Installation of fixture hardware to include: Probes & Sockets, locating pins, push rods, side guides, connectors, interface pcb, interlocks, etc.
  • Wiring per customer specification
  • Extended 6" height
  • Extended 8" height
  • Extended 10" height
  • 1/2" Riser Block
  • 3/4" Riser Block
  • 1" Riser Block
