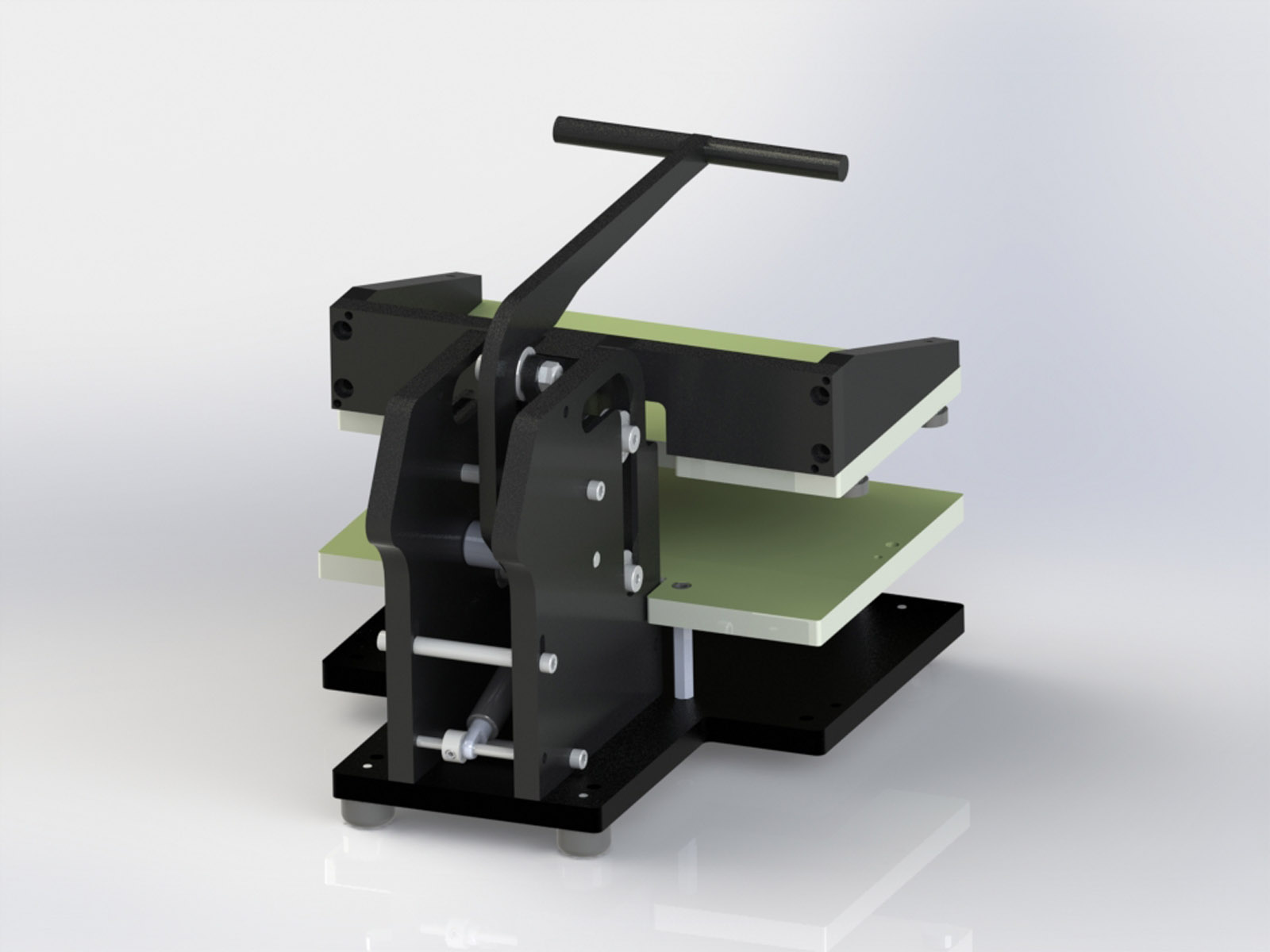

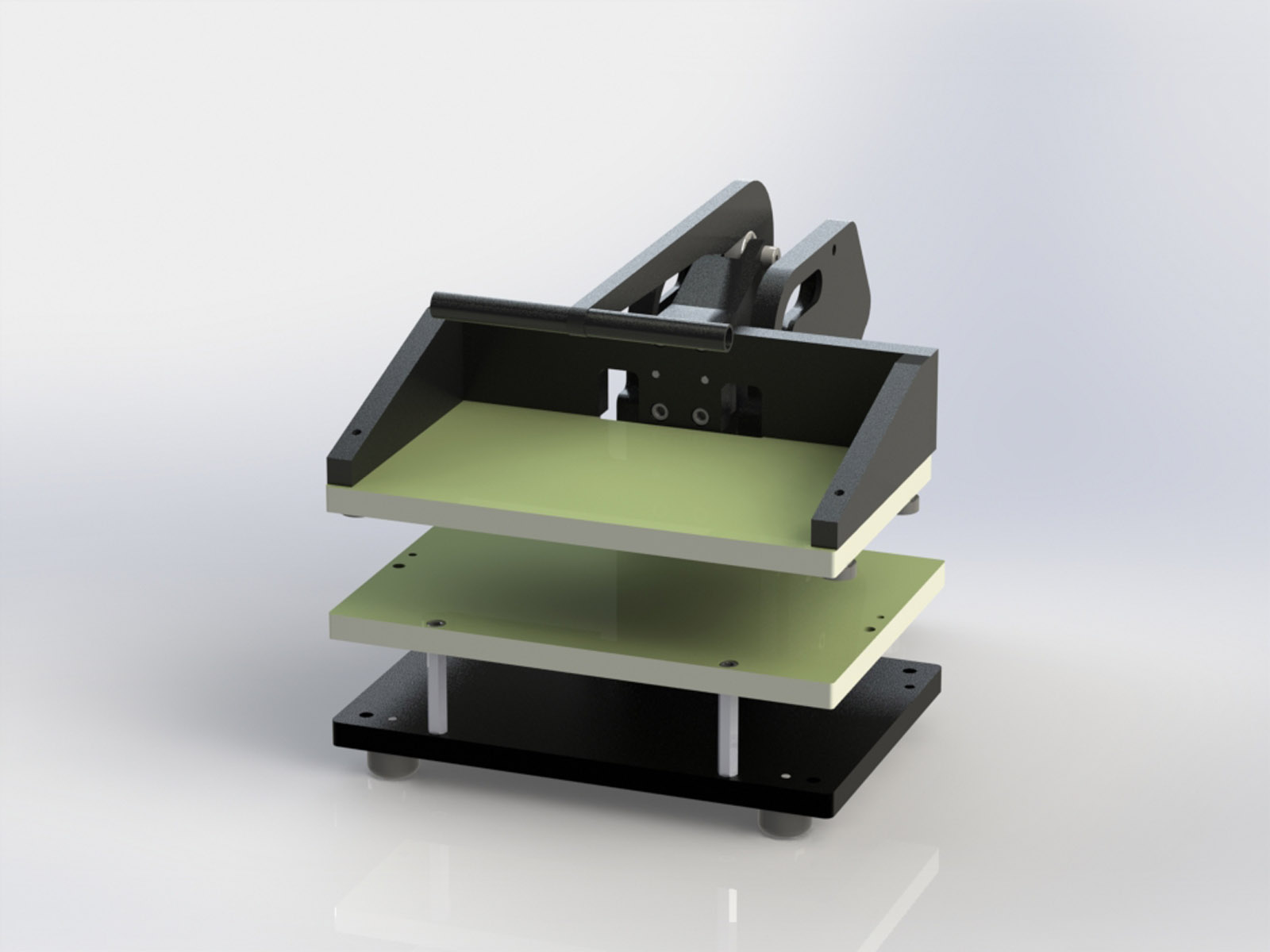

Flip Top Mechanical Press 7540

Model #: 7540

$2,495.00 $2,495.00

Probe Specification

  • Test Area: 7.5” x 4.0” (UUT may extend beyond test area)
  • Maximum Load: Standard up to 35 lbs.
  • Dimensions: (W x H x D): 7.5” x 7.5” x 9.25”
  • Weight: Approximately 6 lbs.

Cortek Test Solutions manufactures and offers the compact Flip Top Z-axis mechanical press. This is ideal for testing small devices where vertical actuation is required to ensure there is no side-loading of probes to the UUT. It has been used successfully for many years in a wide variety of difficult test applications both in R&D and production environments. The Flip Top press offers precise linear motion that guarantees reliable contact between the test pins and UUT when a fixture is properly designed.

Key Features:

  • Interchangeable top & bottom plates
  • Mechanical operation
  • Cam Follower
  • Linear Vertical Actuation
  • Top and Bottom side probing
  • Black Anodized 6061 Aluminum

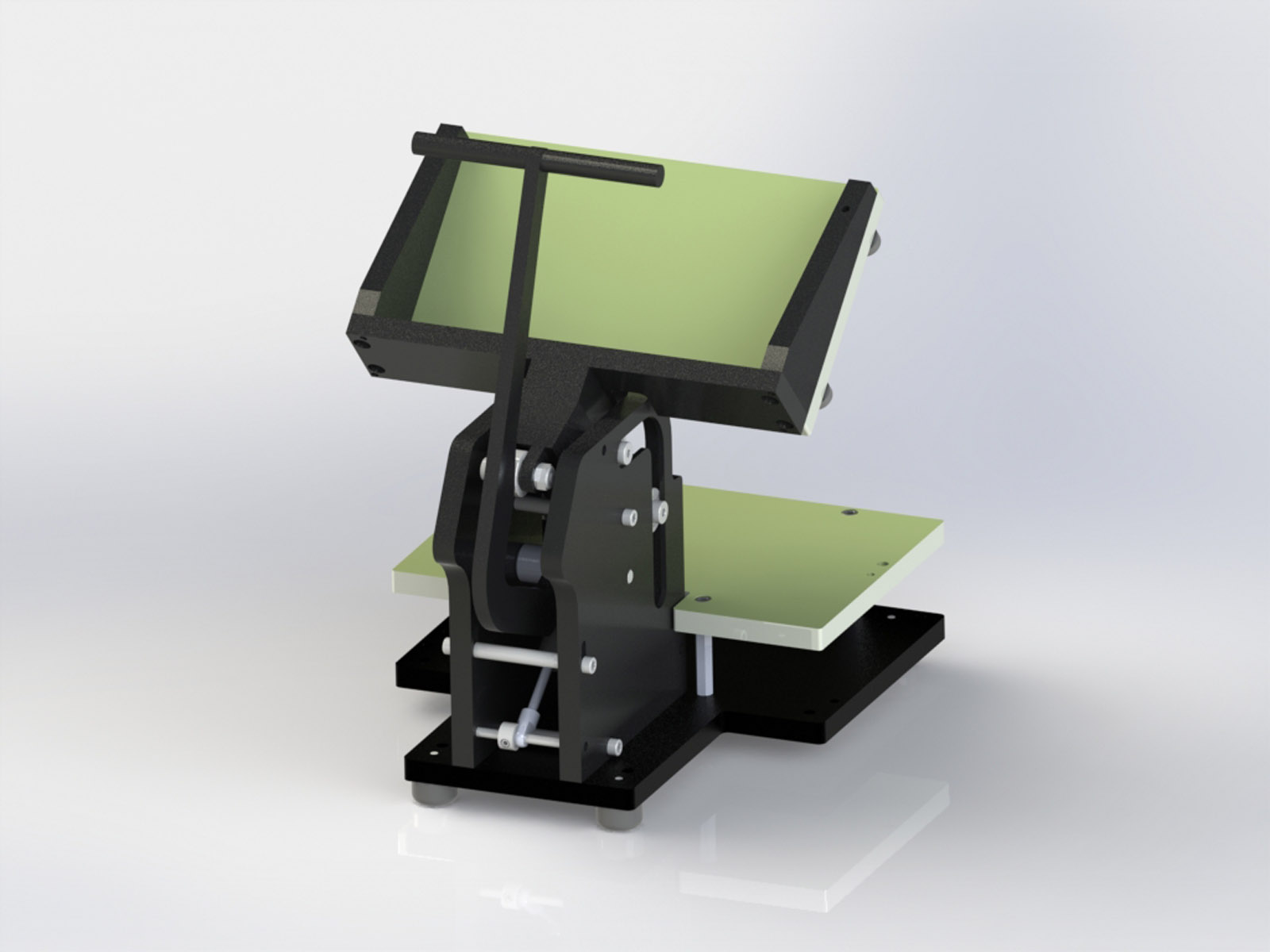

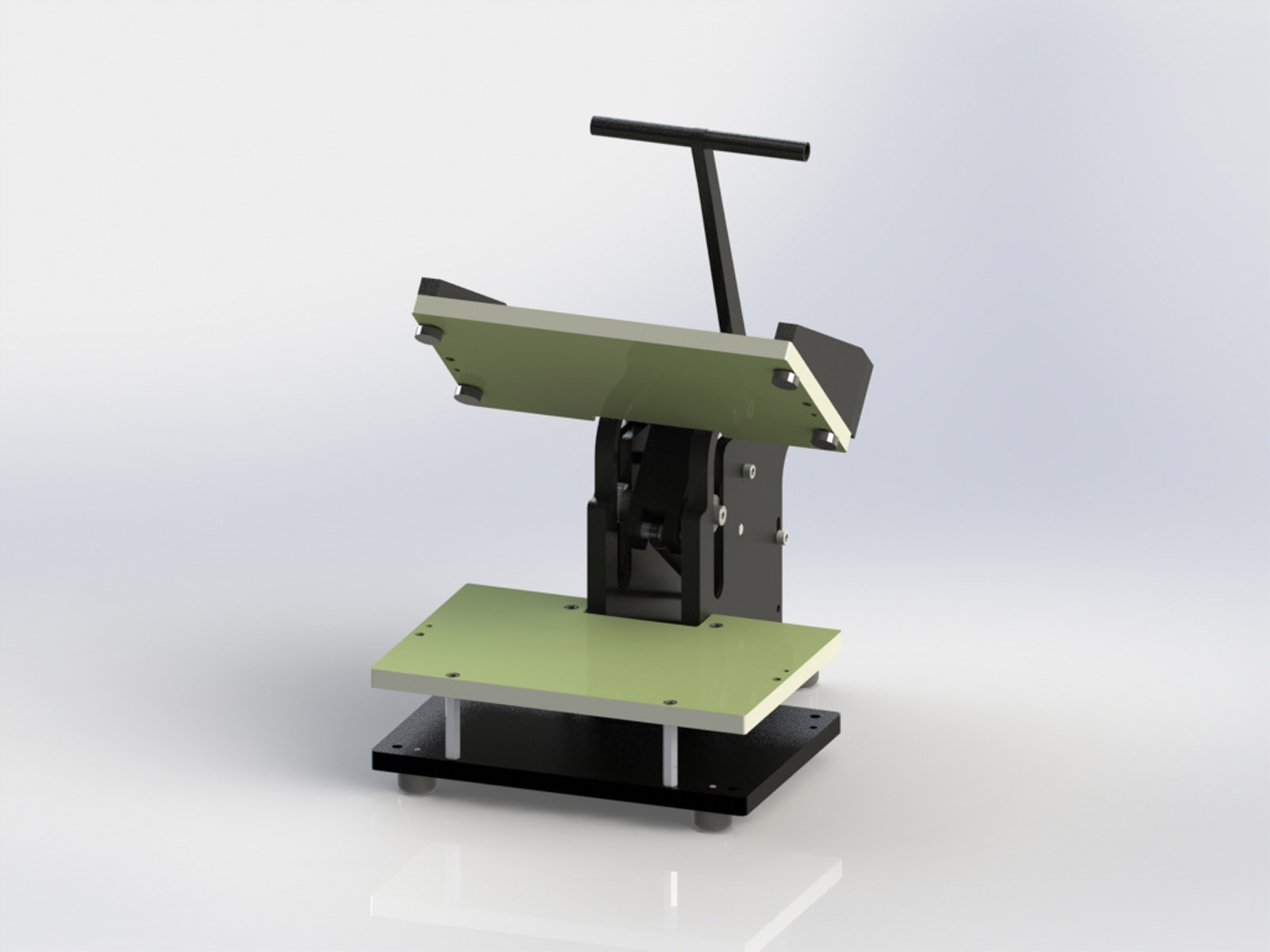

  • Upper plate flips out of place when opened for ease of seating UUT for test.
  • Small footprint ideal for limited space

Options:

  • Customization of fixture plates – submission of data required for quote
  • Additional FR4, Acrylic, Polycarbonate ESD plates available
  • Installation of fixture hardware to include: Probes & Sockets, locating pins,  push rods, side guides, connectors, interface pcb, interlock switch, etc.
  • Wiring per customer specification
  • Safety shroud
  • Stripper plate



Additional Information

Weight 15 lbs
