Functional Test Fixtures
Cortek specializes in creating custom solutions for test fixture units that require functional testing. Our team designs and manufactures a machine to test each of our customers needed requirements. Our functional test kits offer flexibility and robust features and come in a variety of sizes. From simple mechanical test fixtures, to intricate functional test units that interface with test software, CTS will provide the solution needed to get the job done.

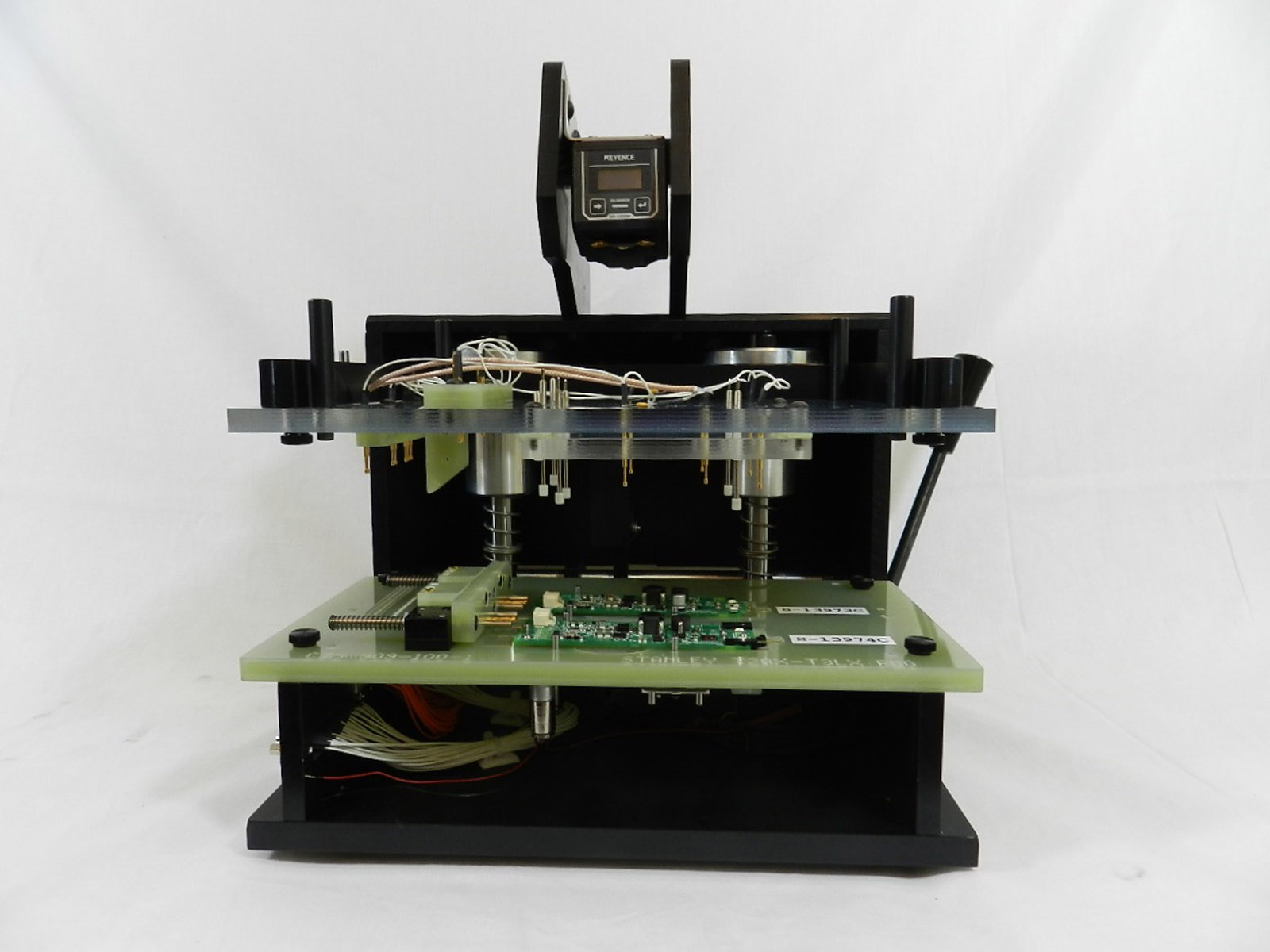

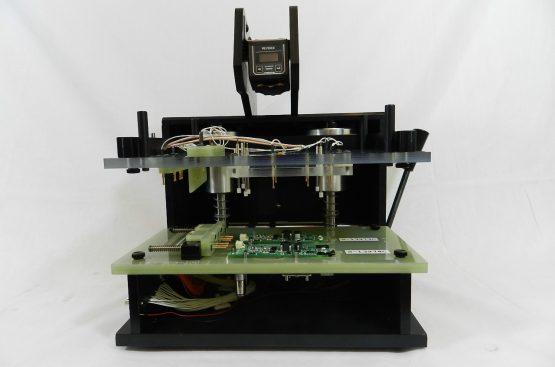

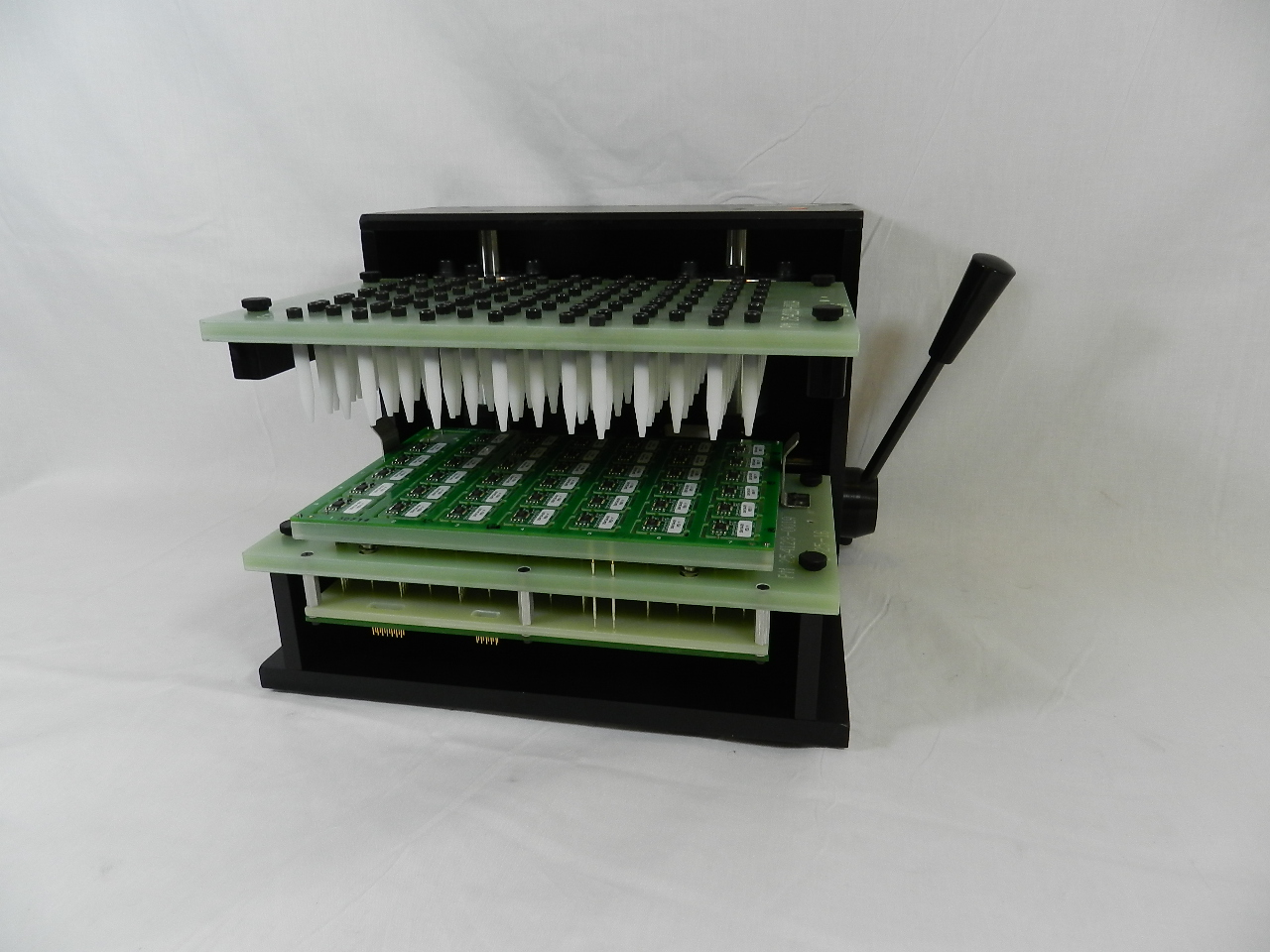

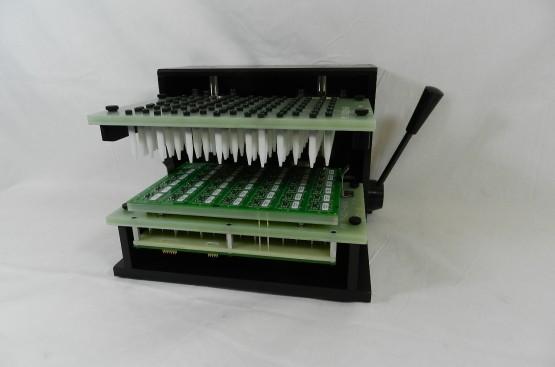

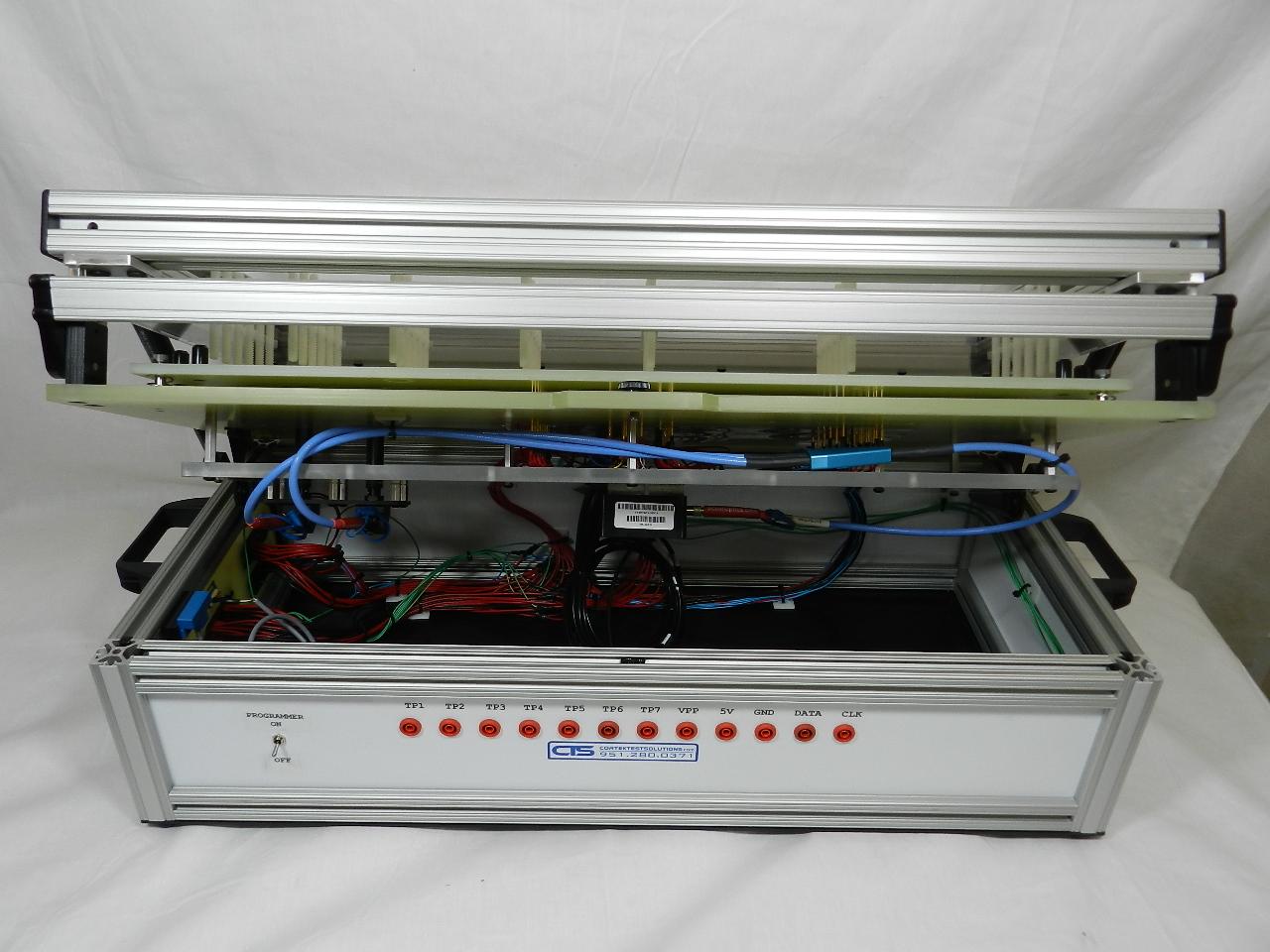

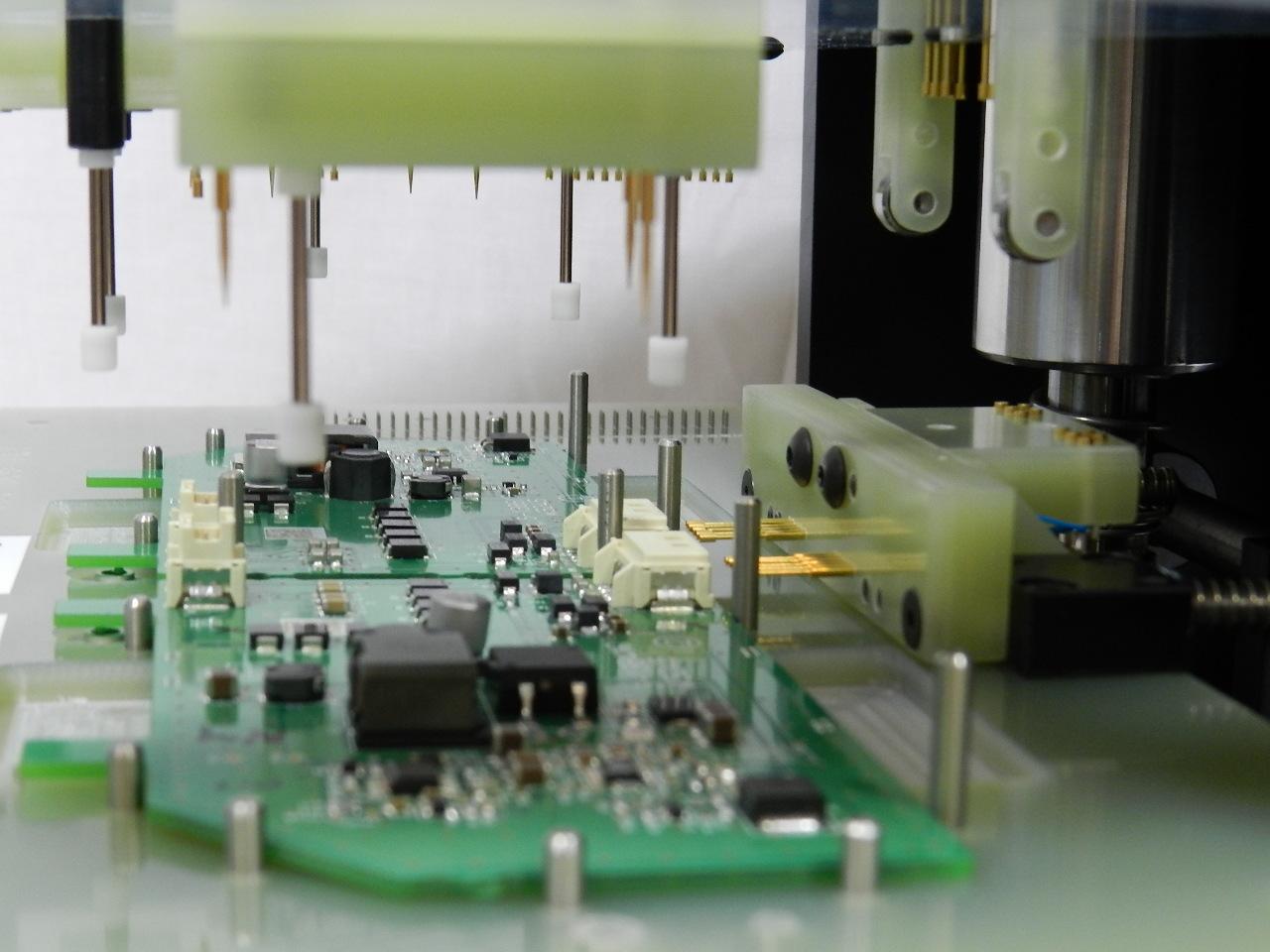

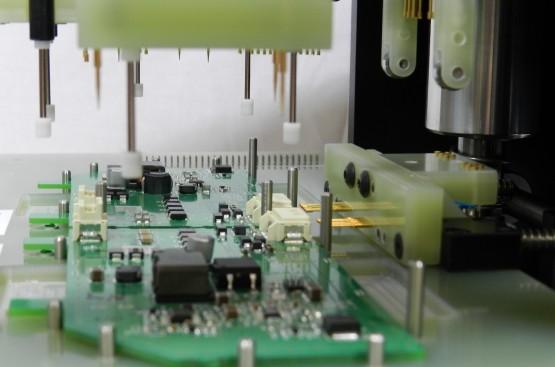

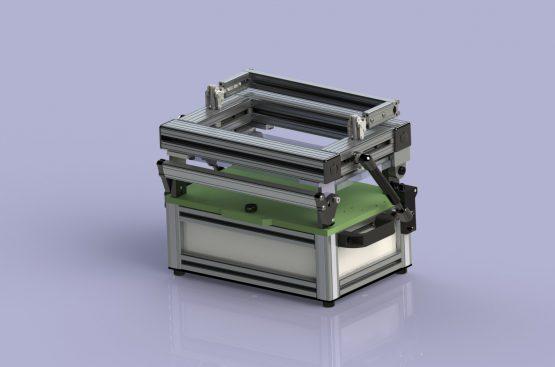

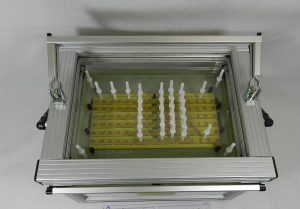

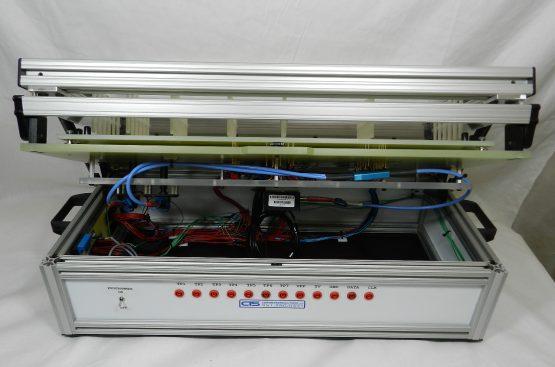

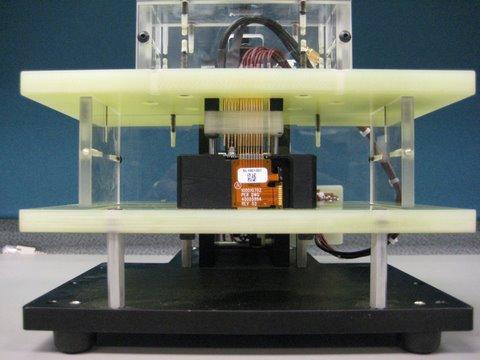

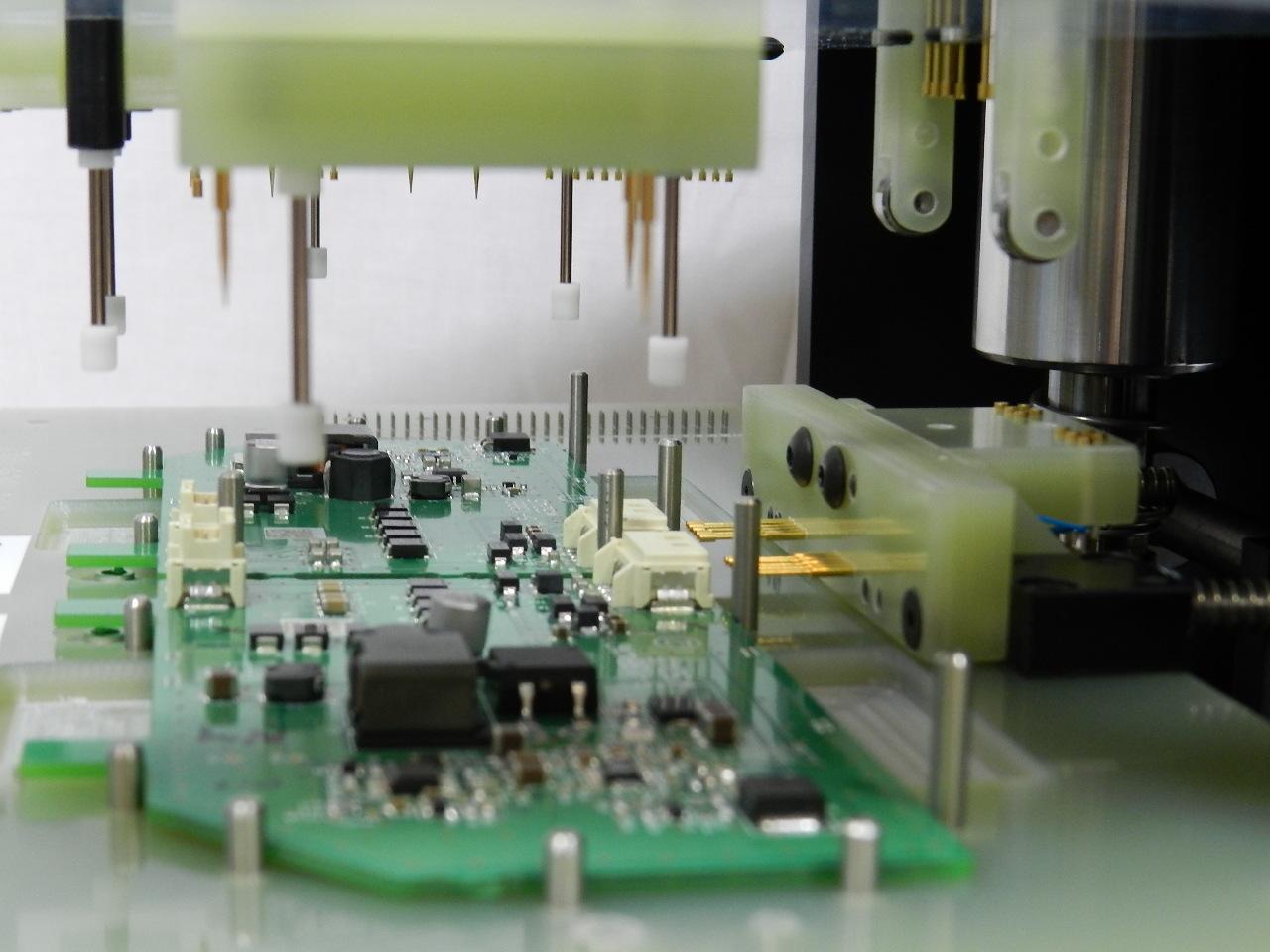

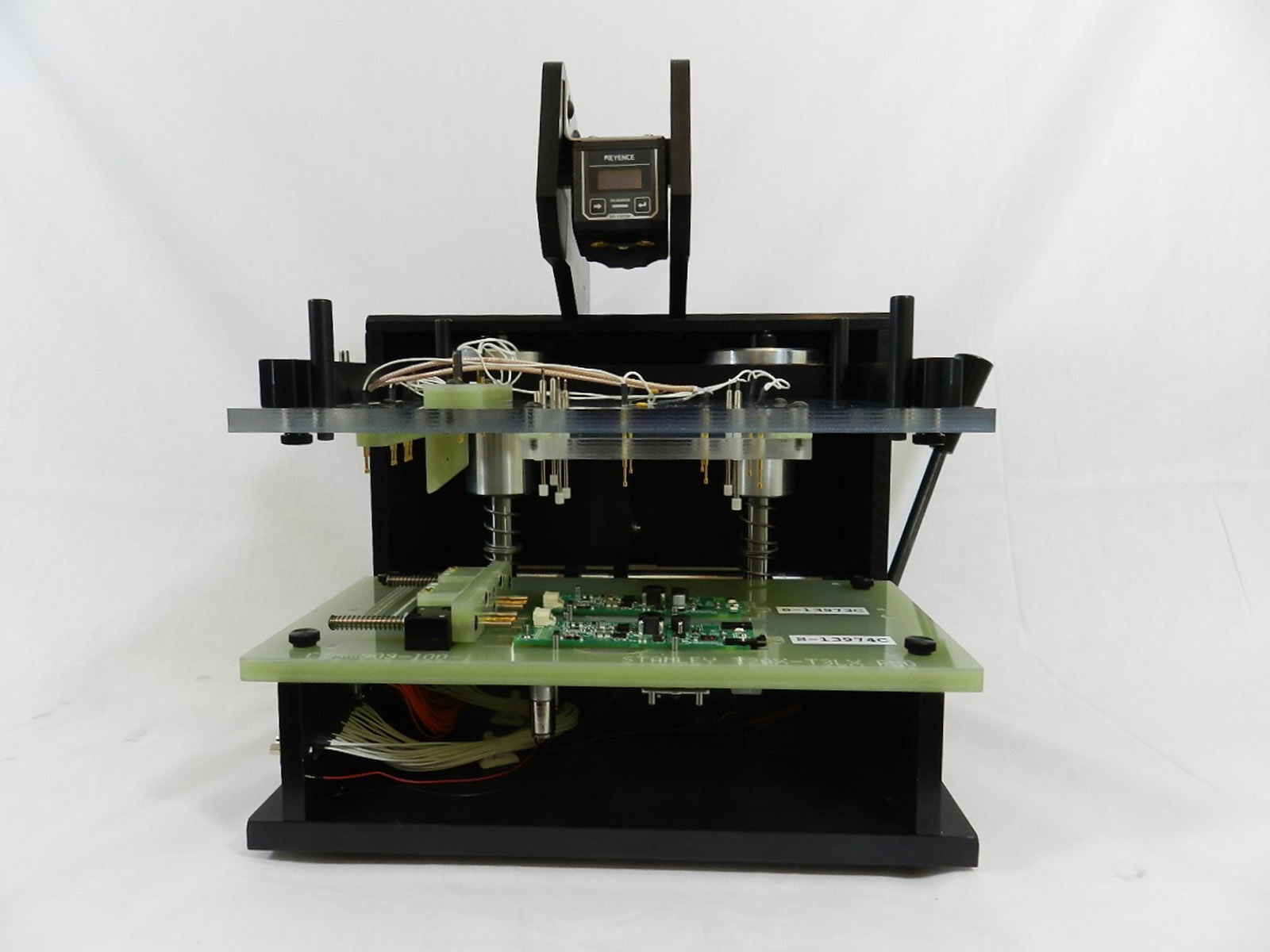

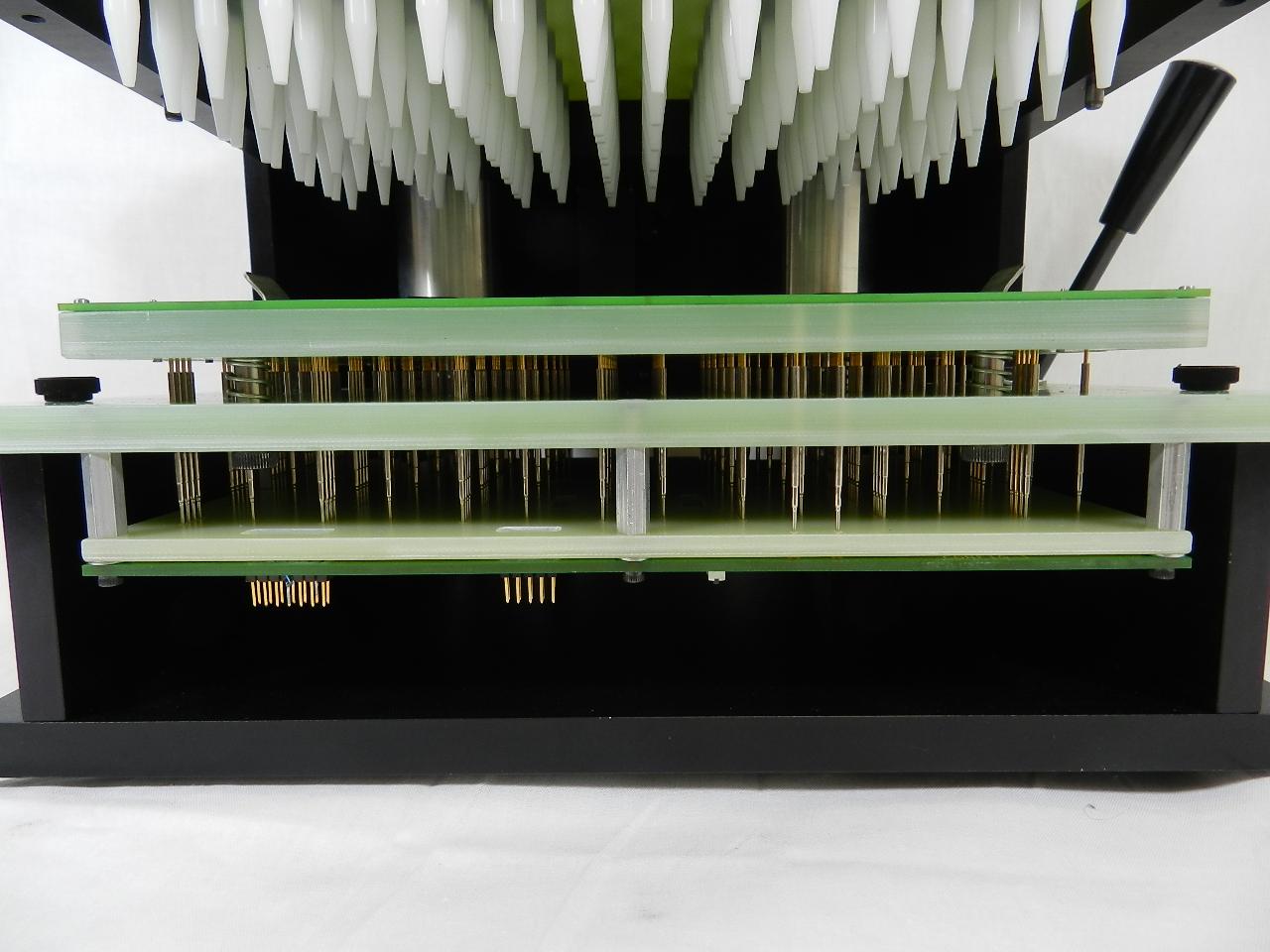

Z-Axis Test Fixture Kits

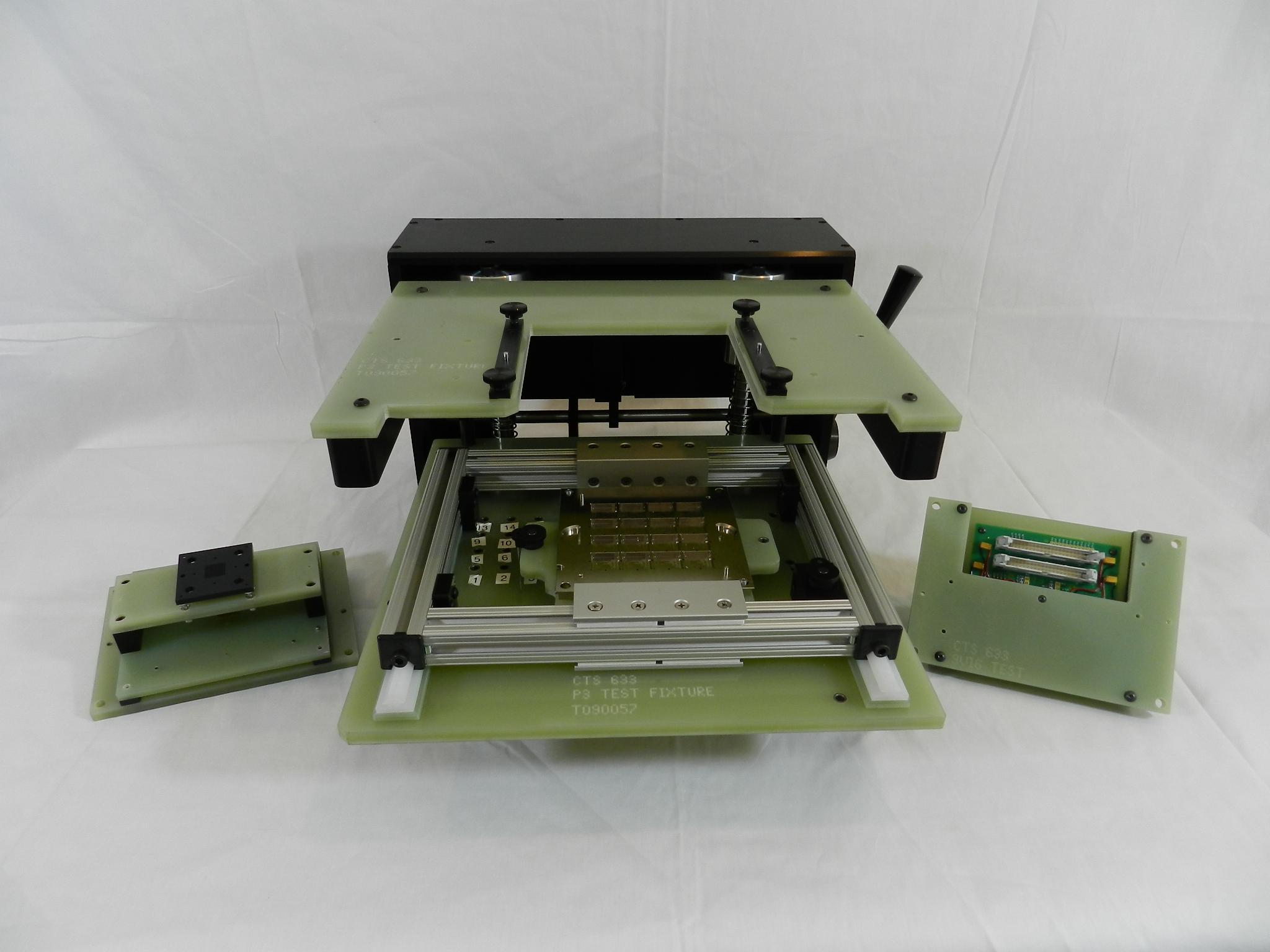

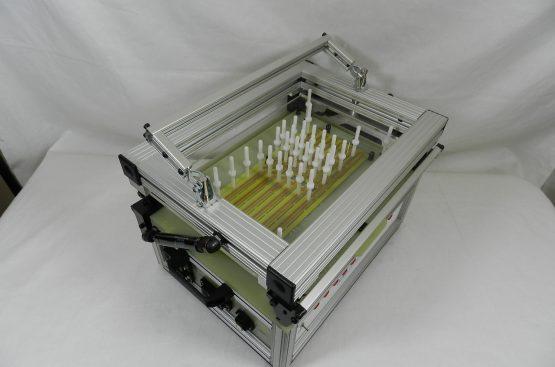

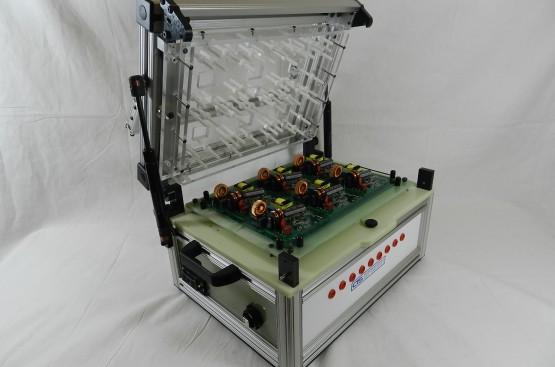

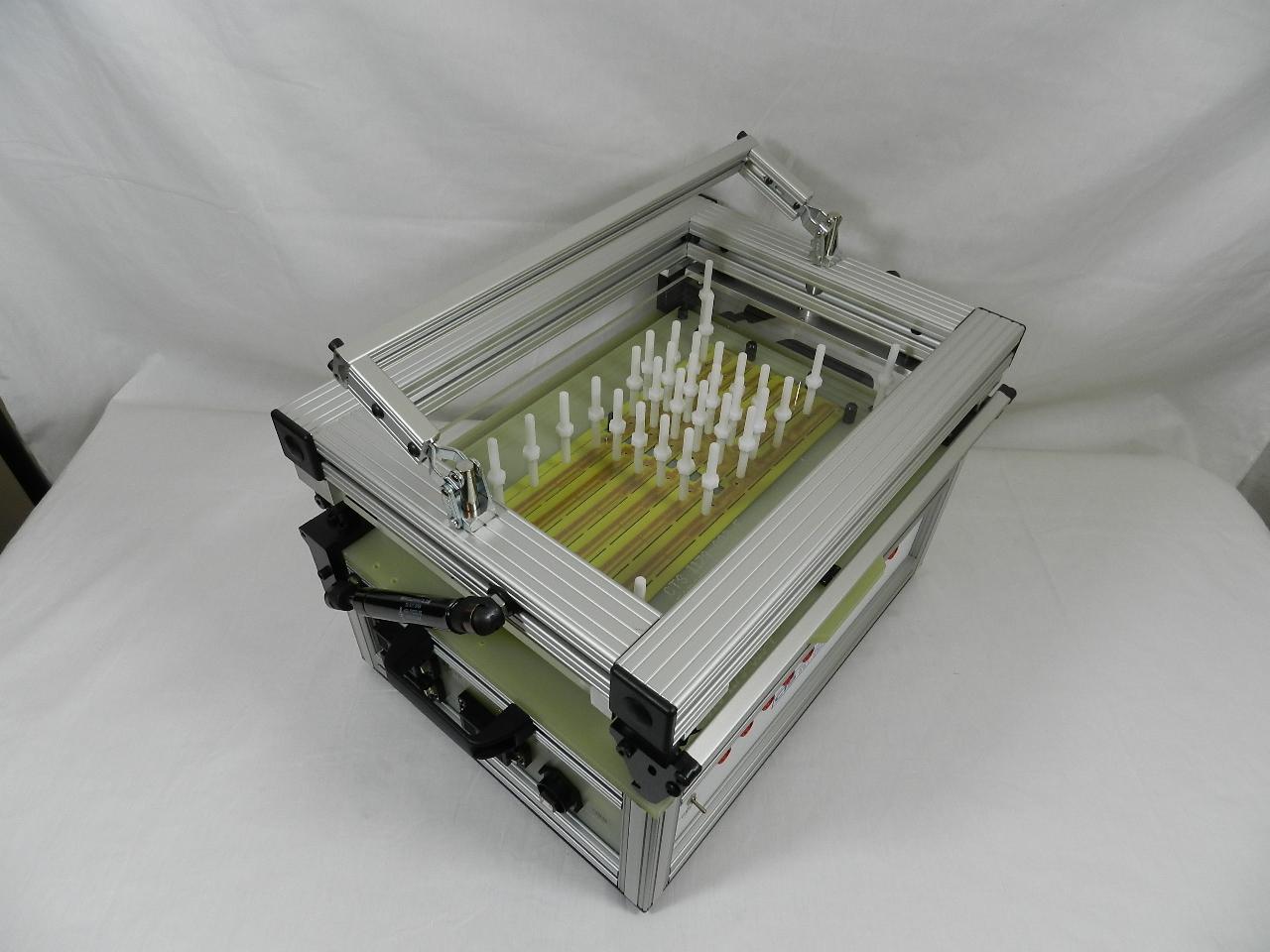

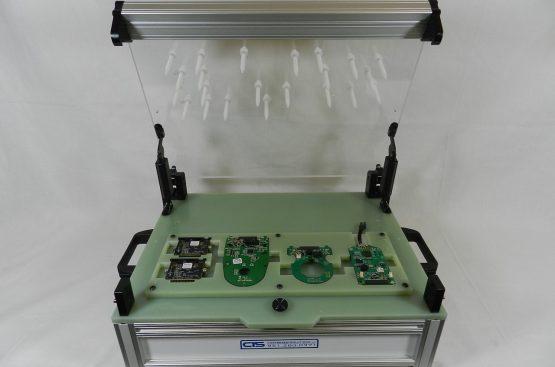

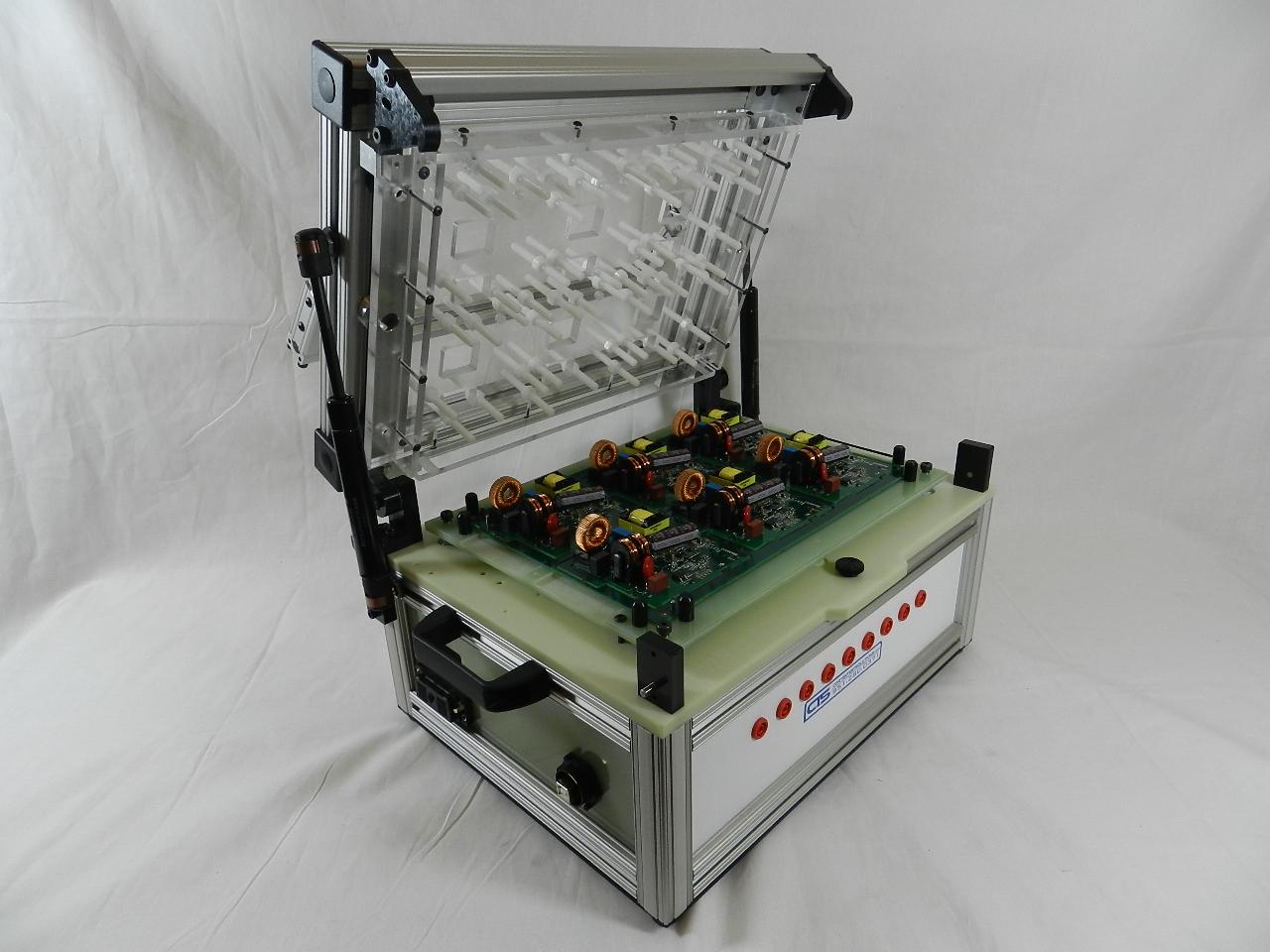

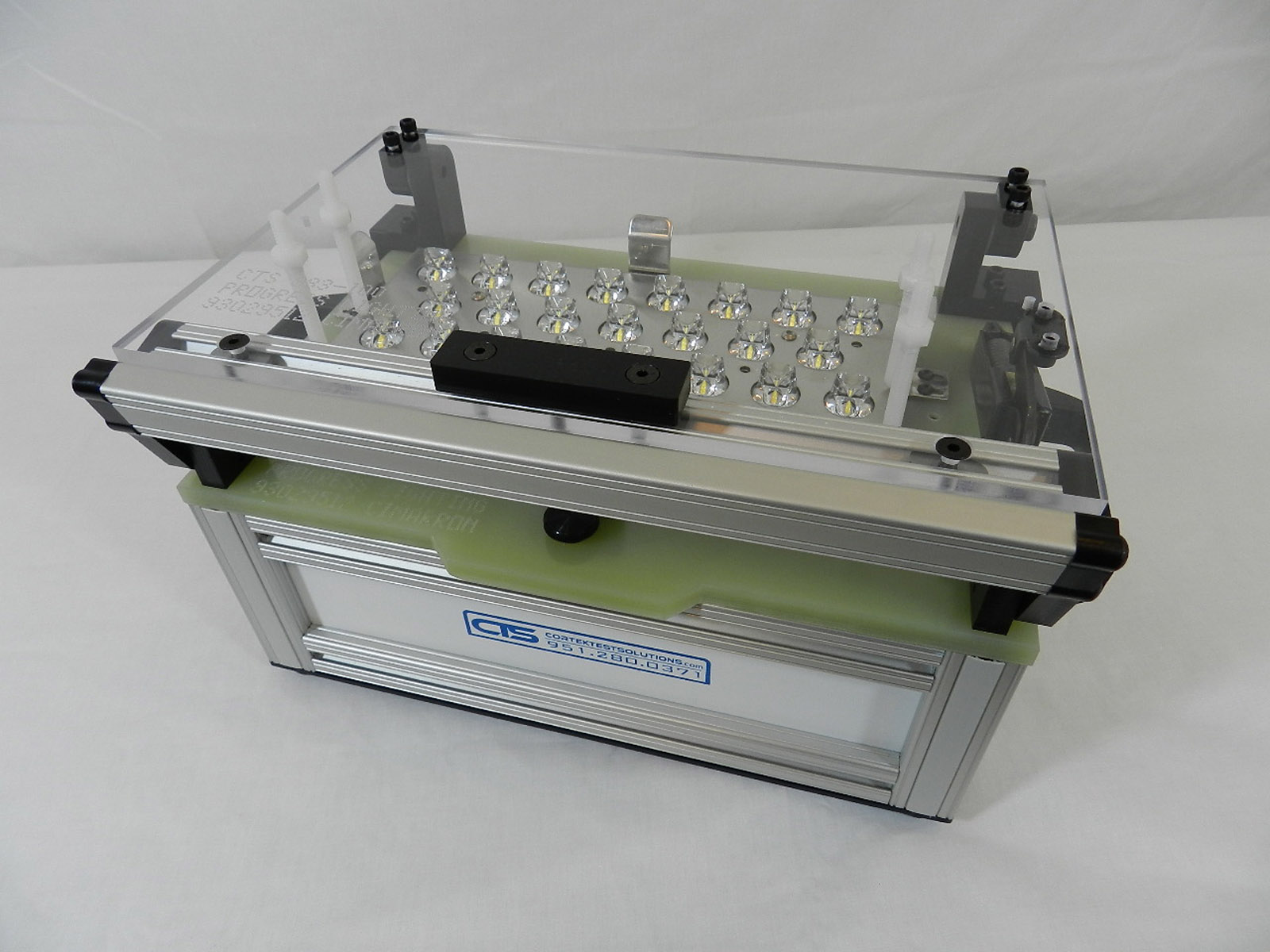

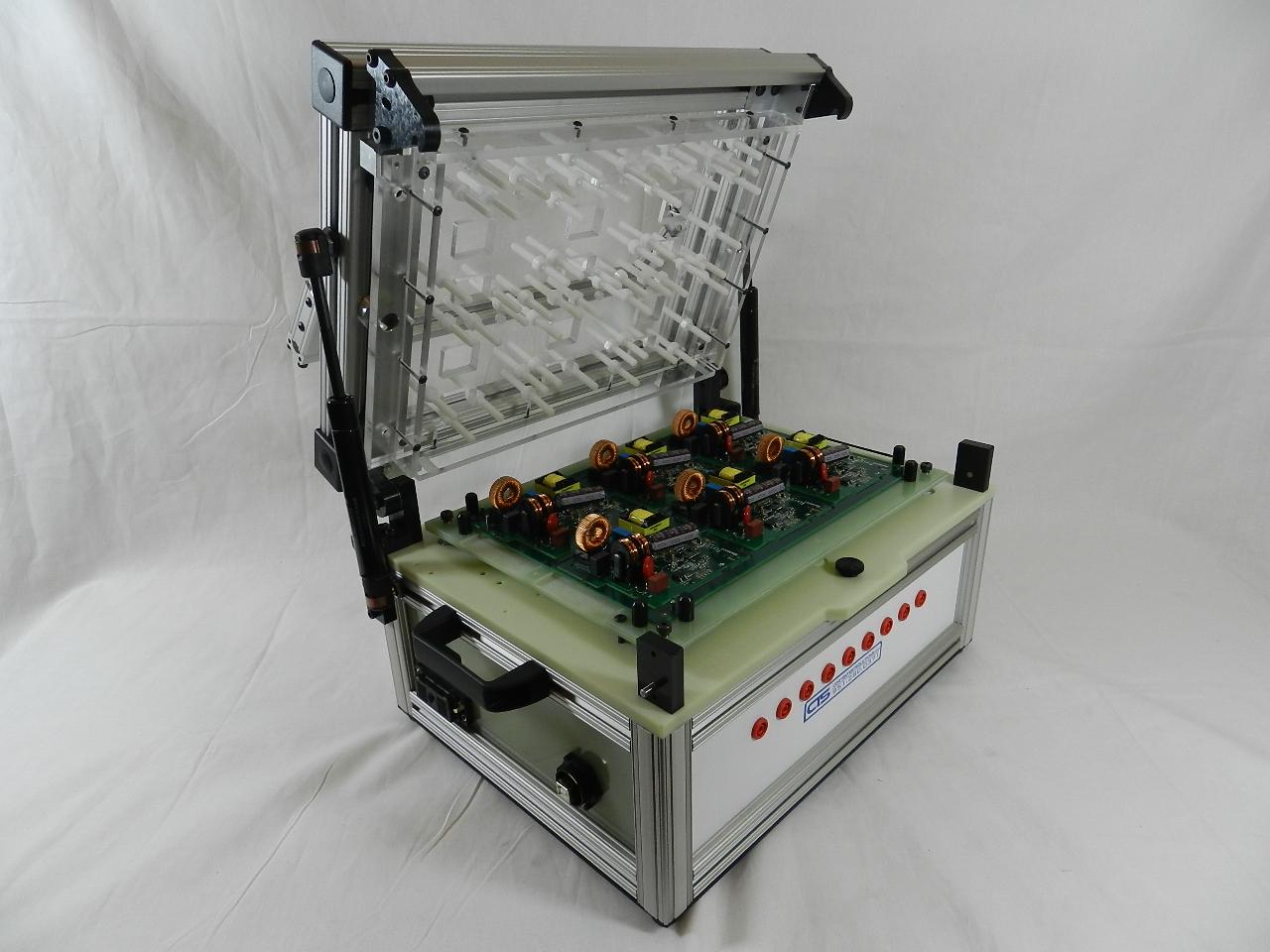

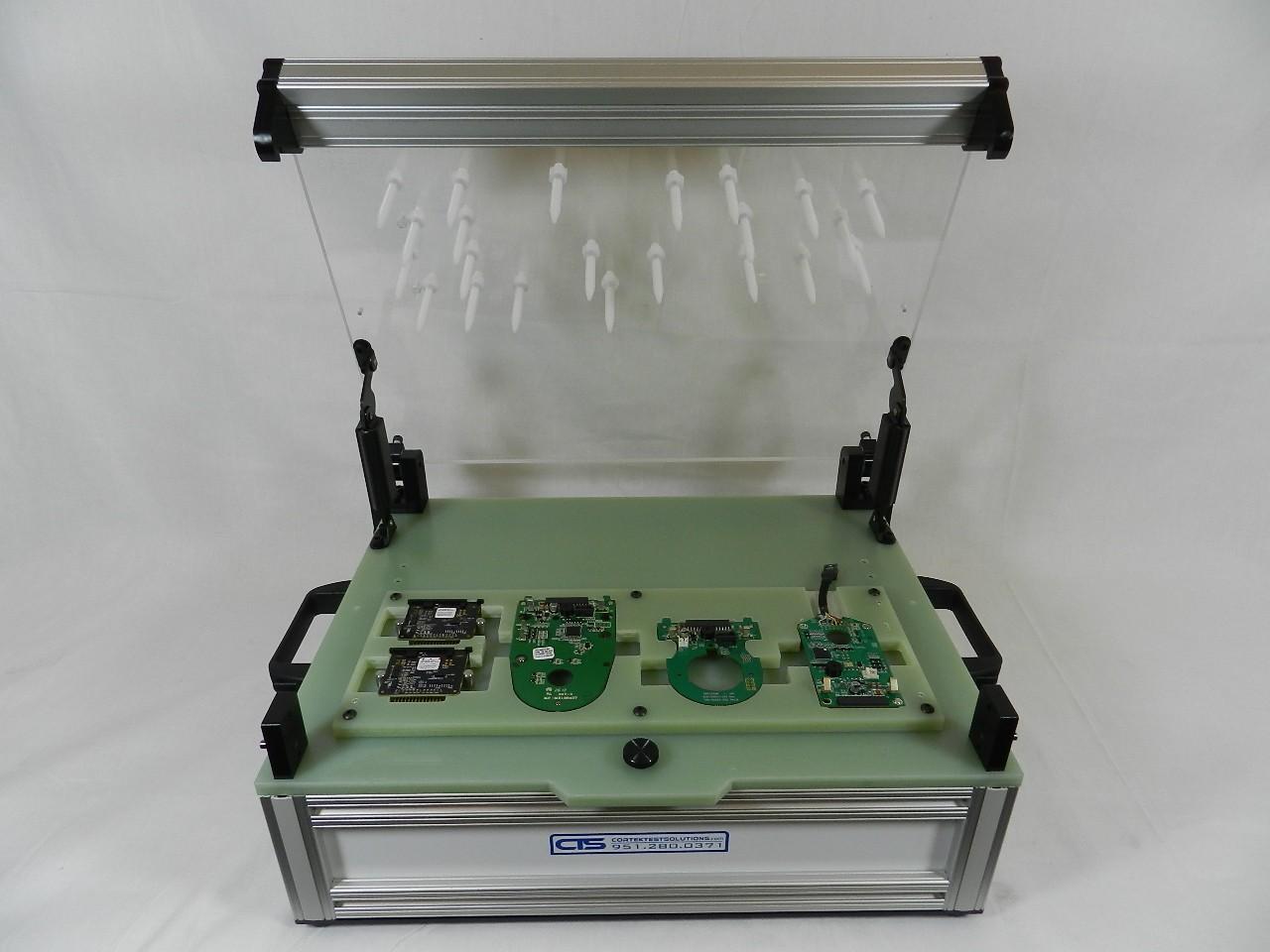

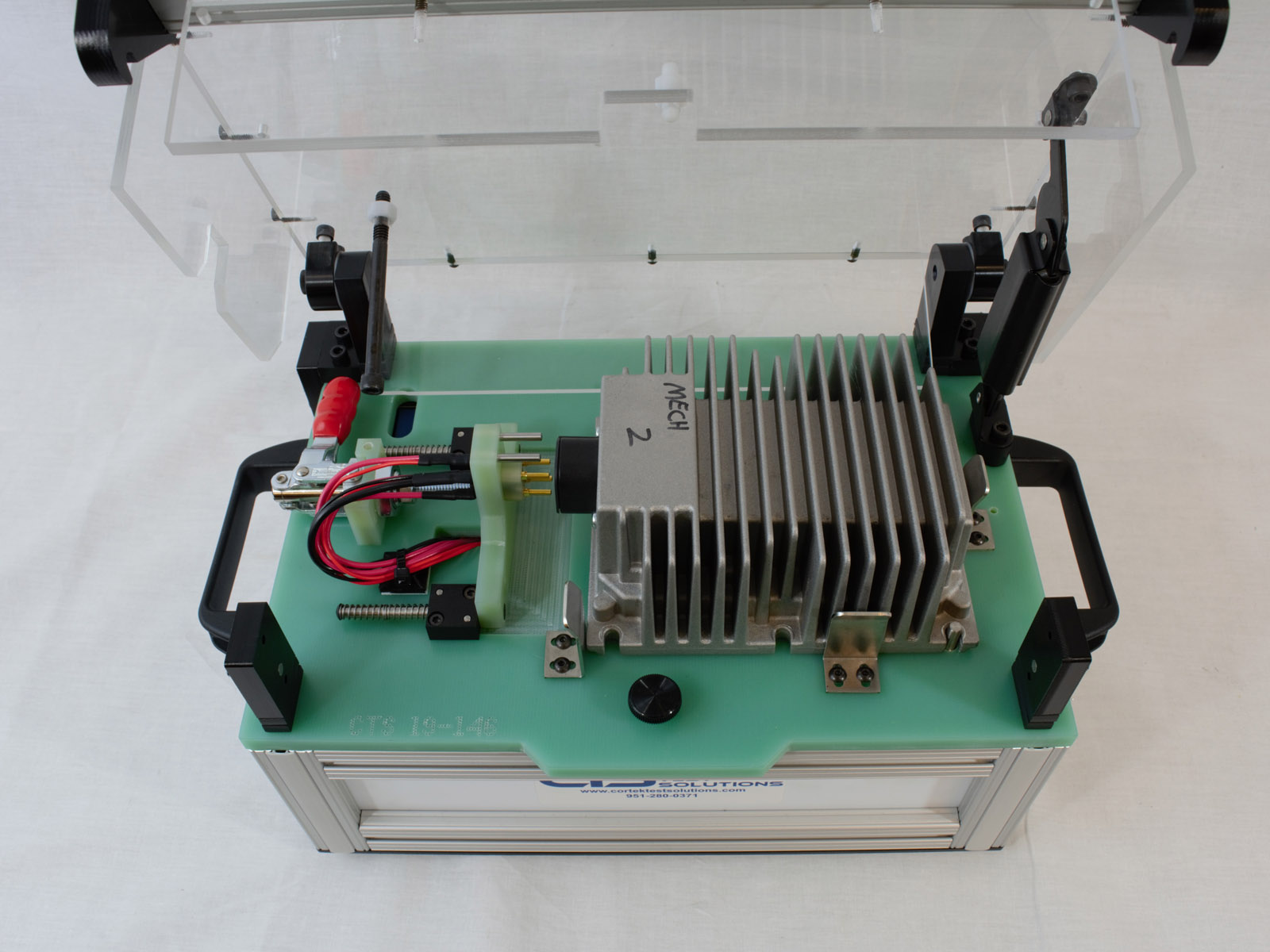

Clamshell (non Z-Axis) Test Fixture Kits

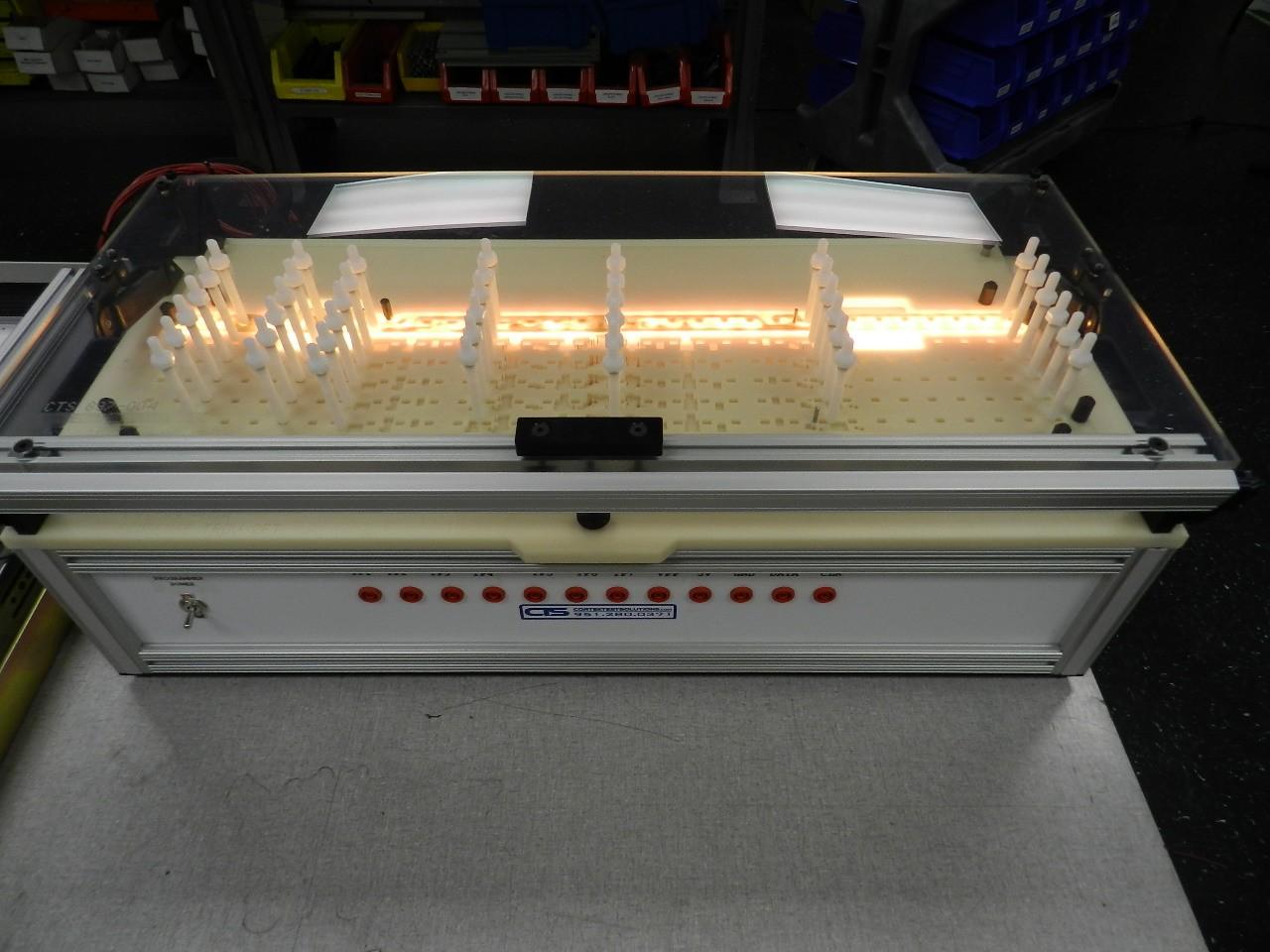

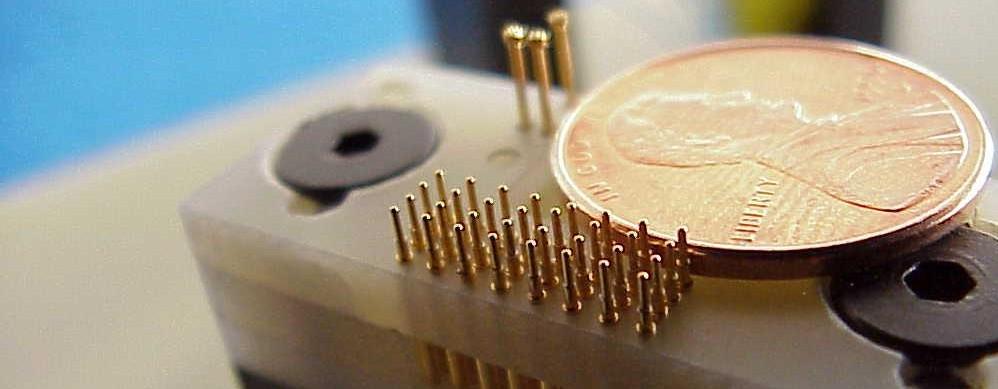

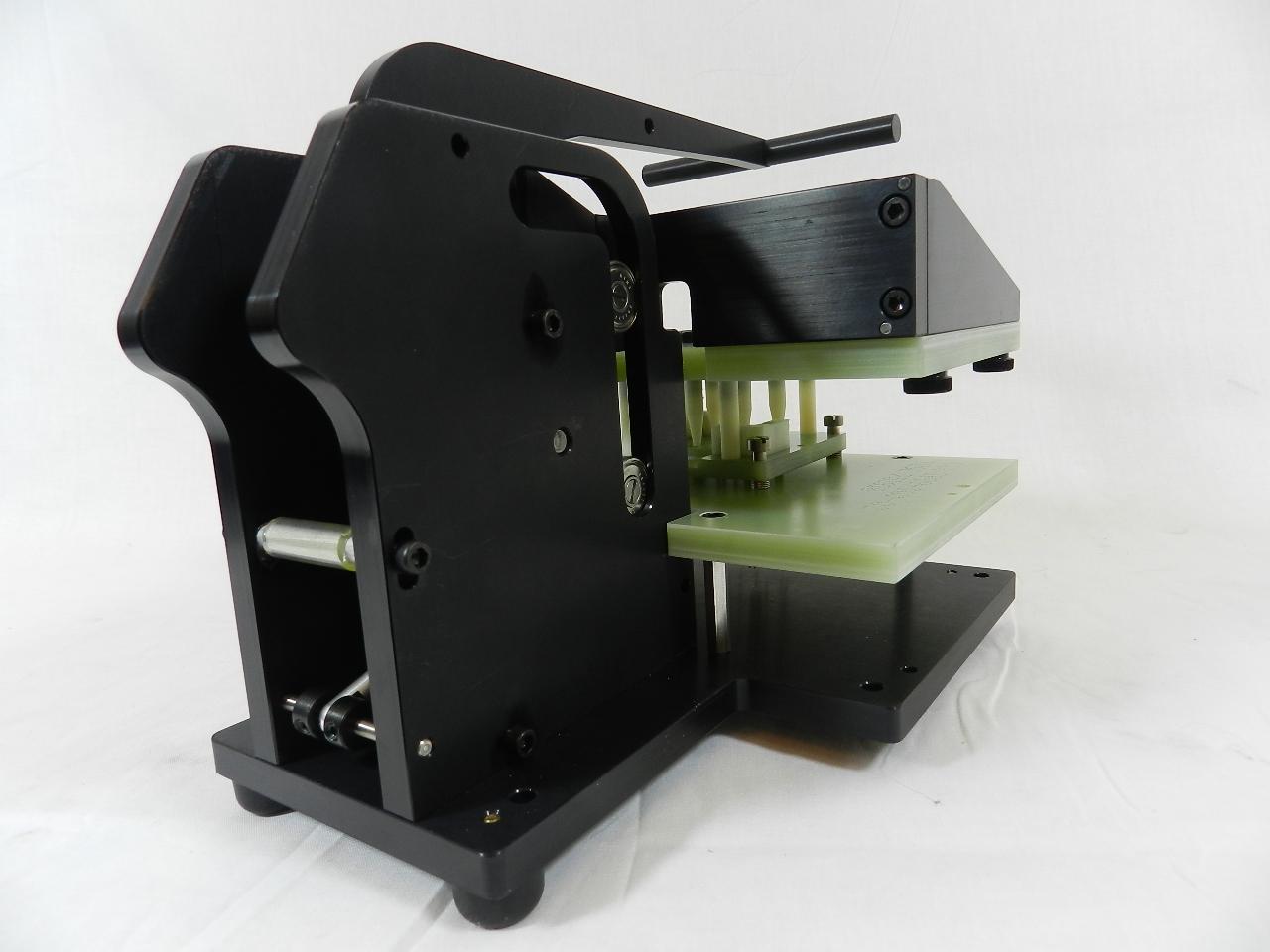

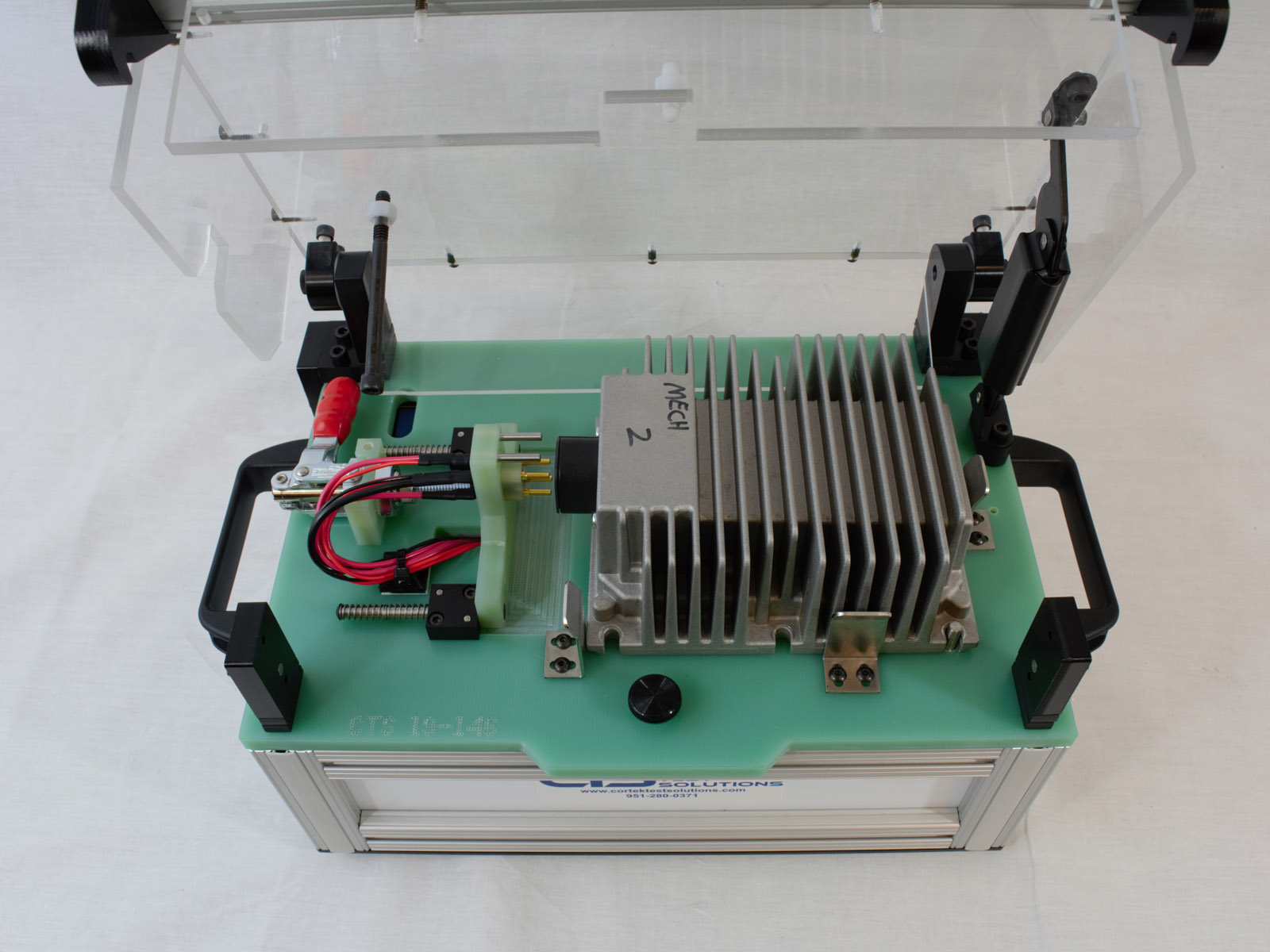

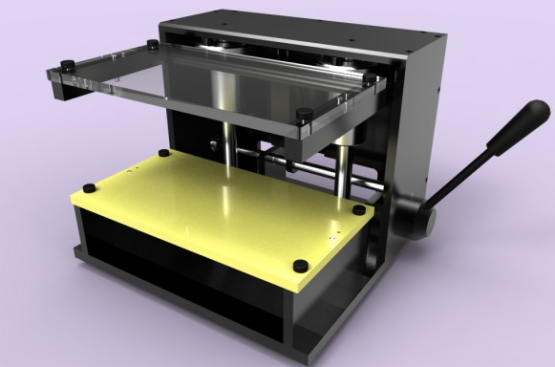

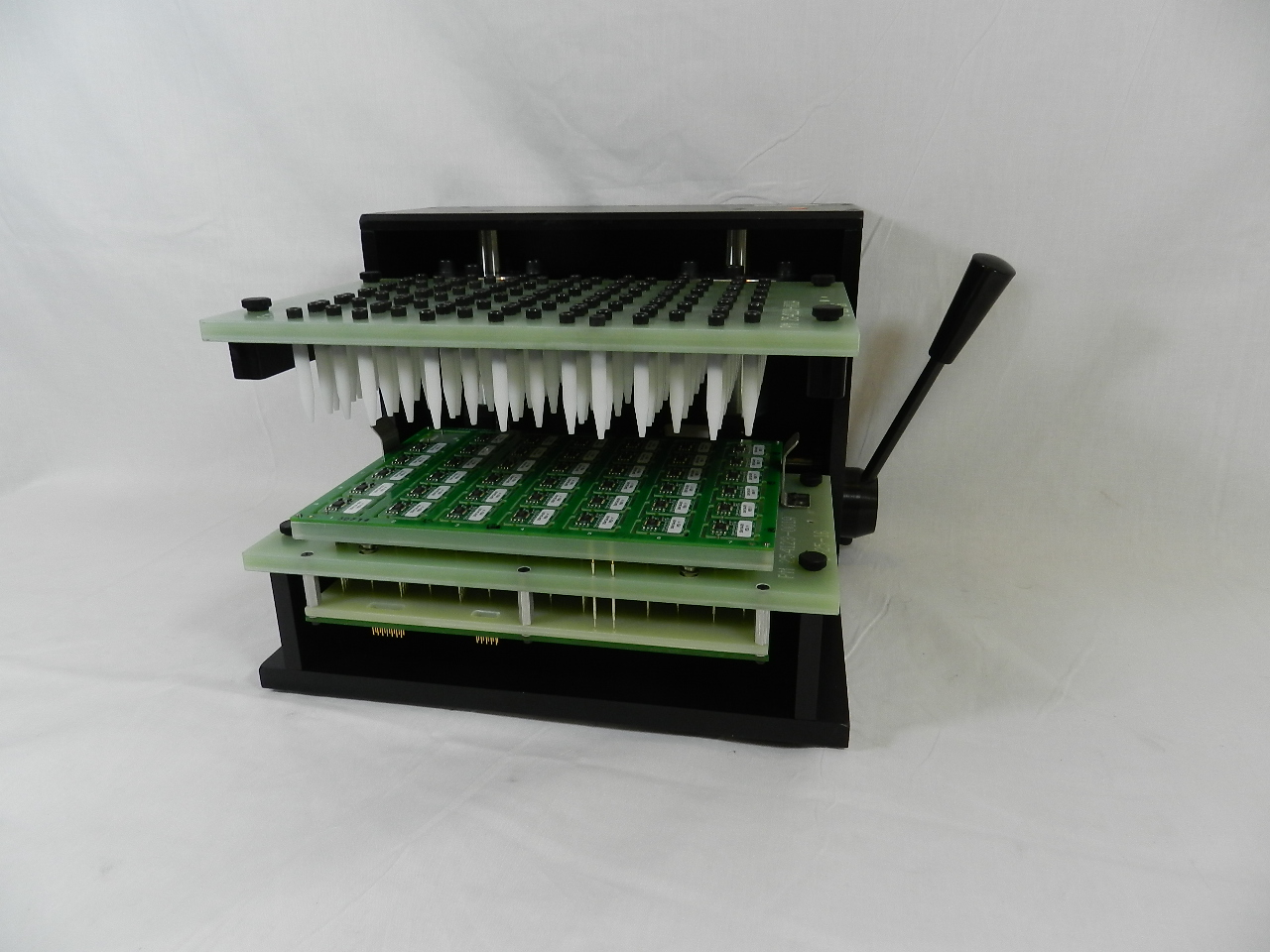

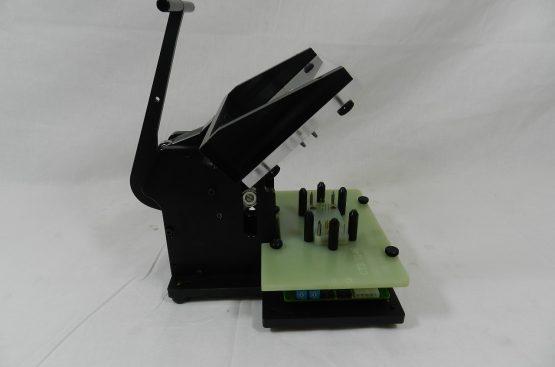

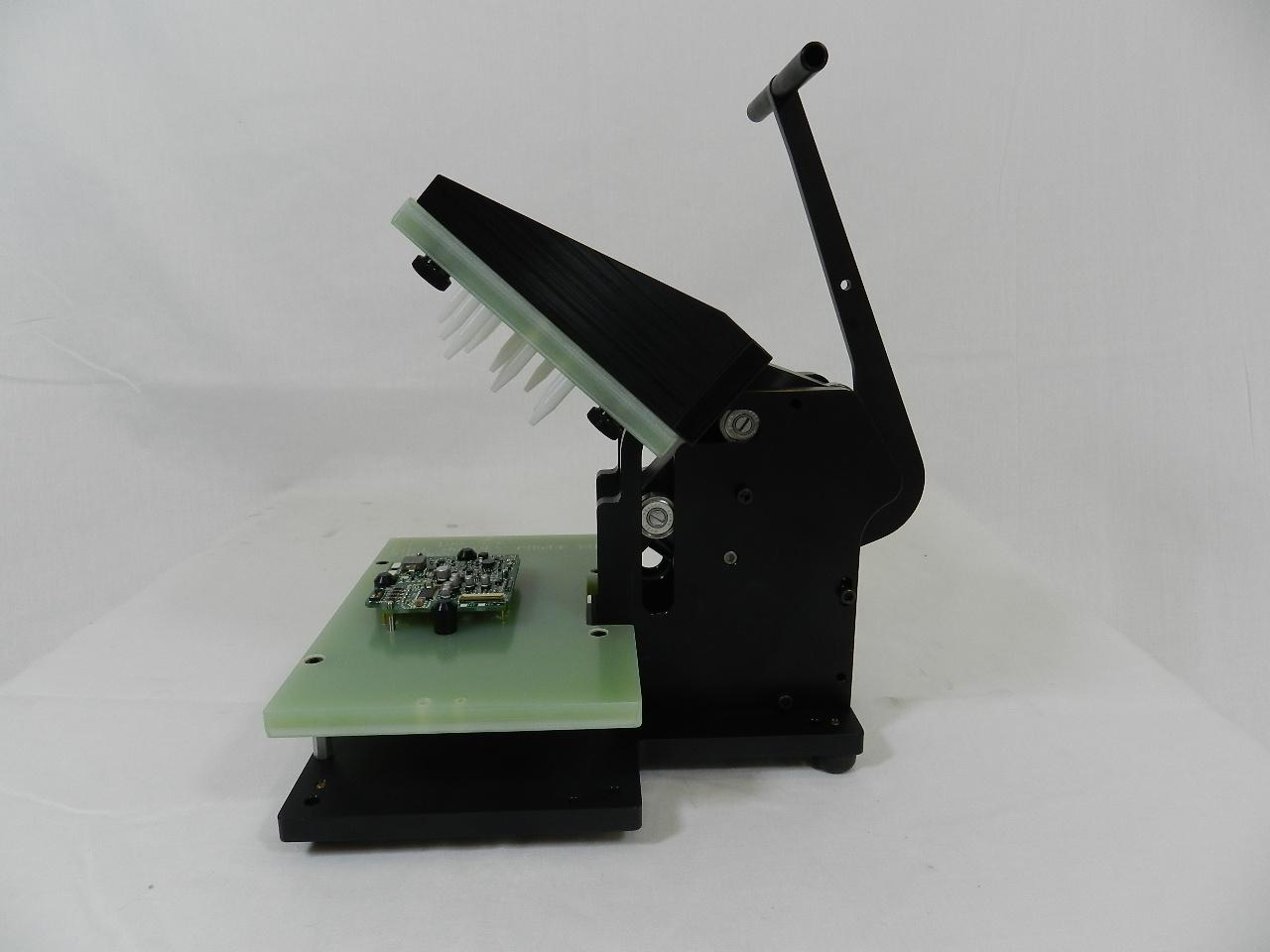

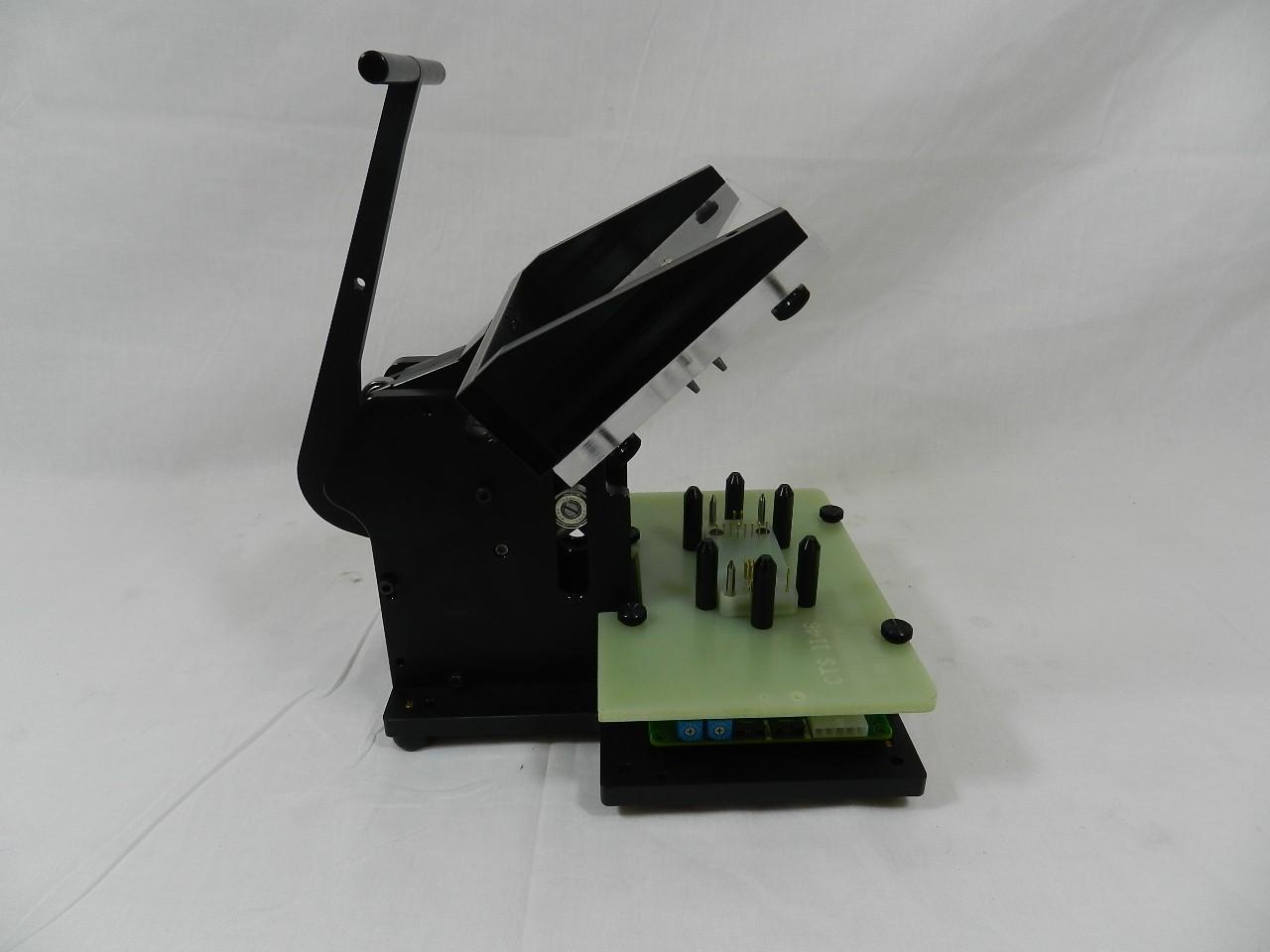

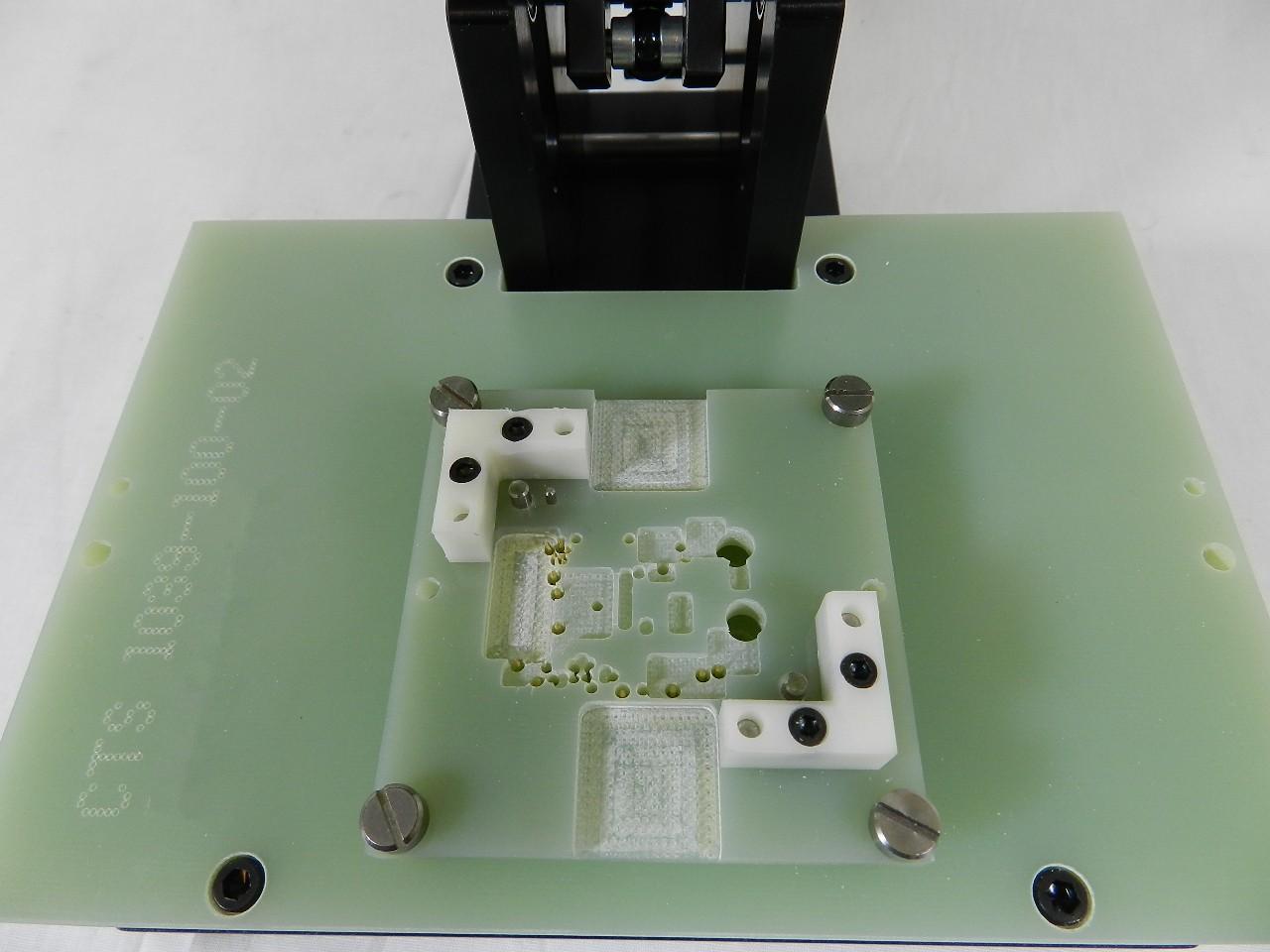

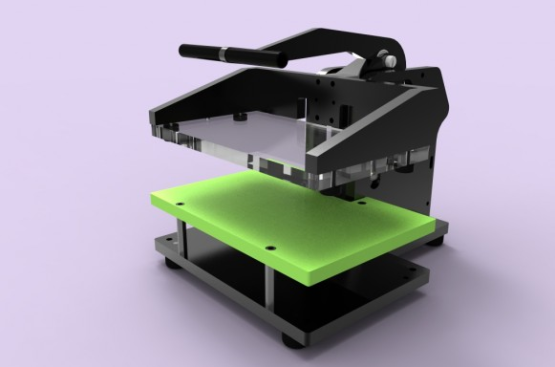

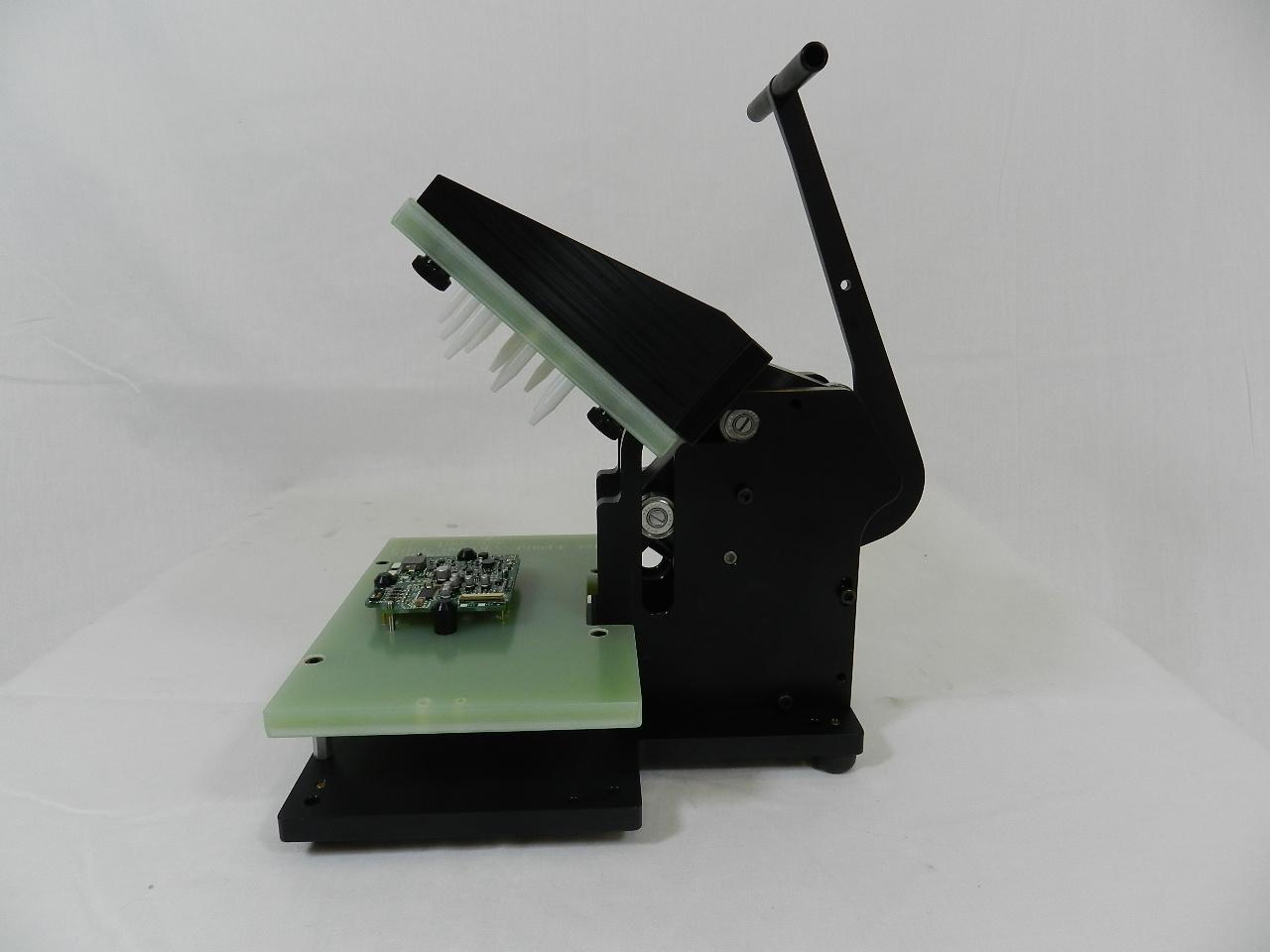

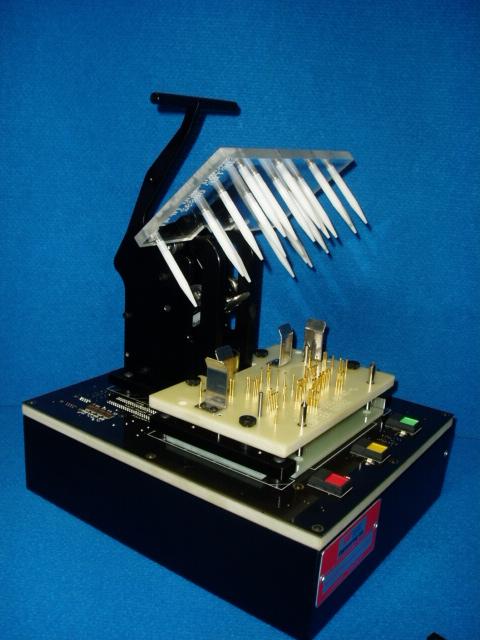

Mechanical Presses

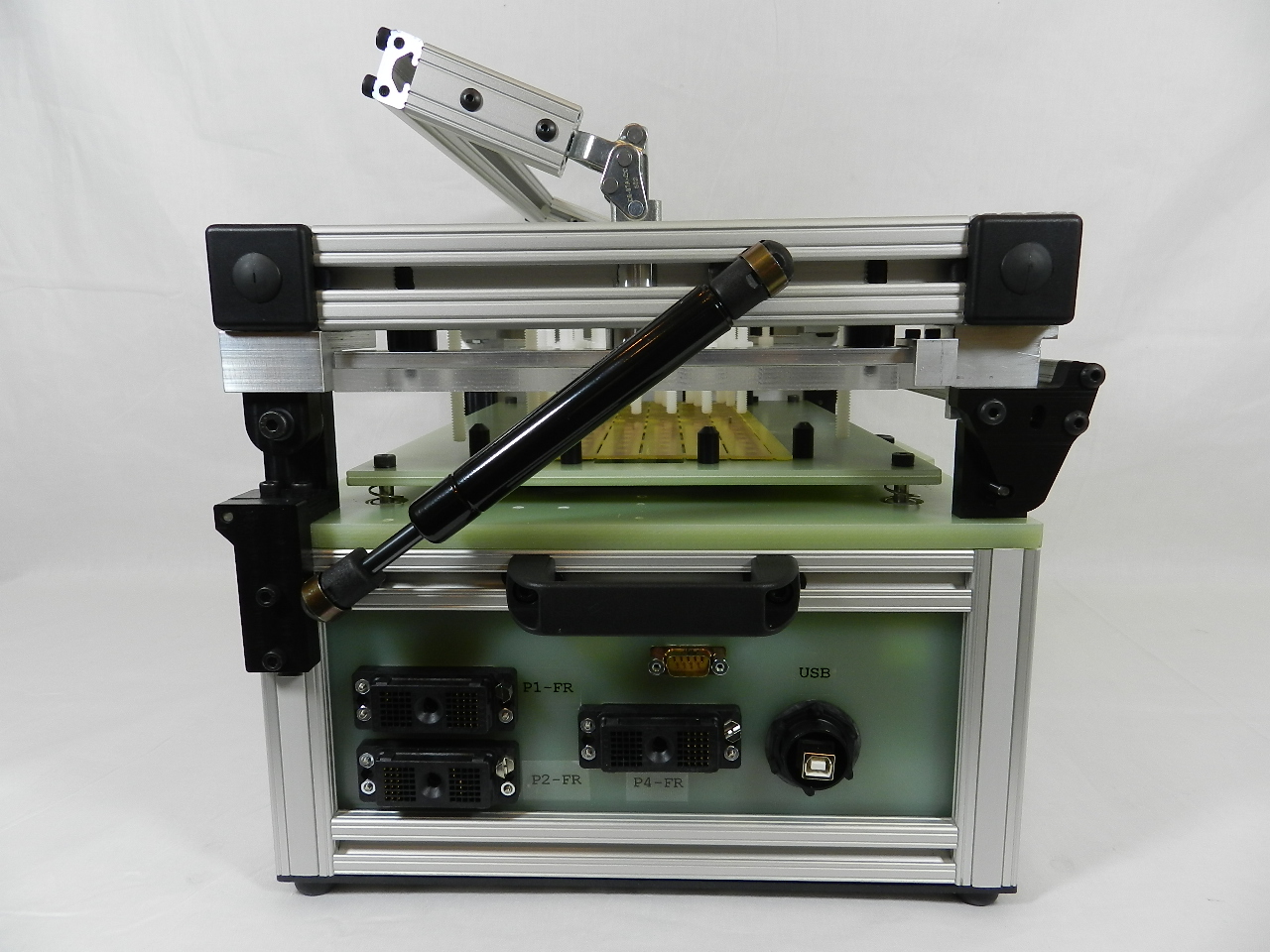

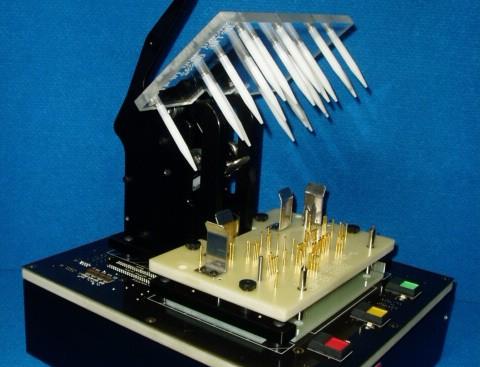

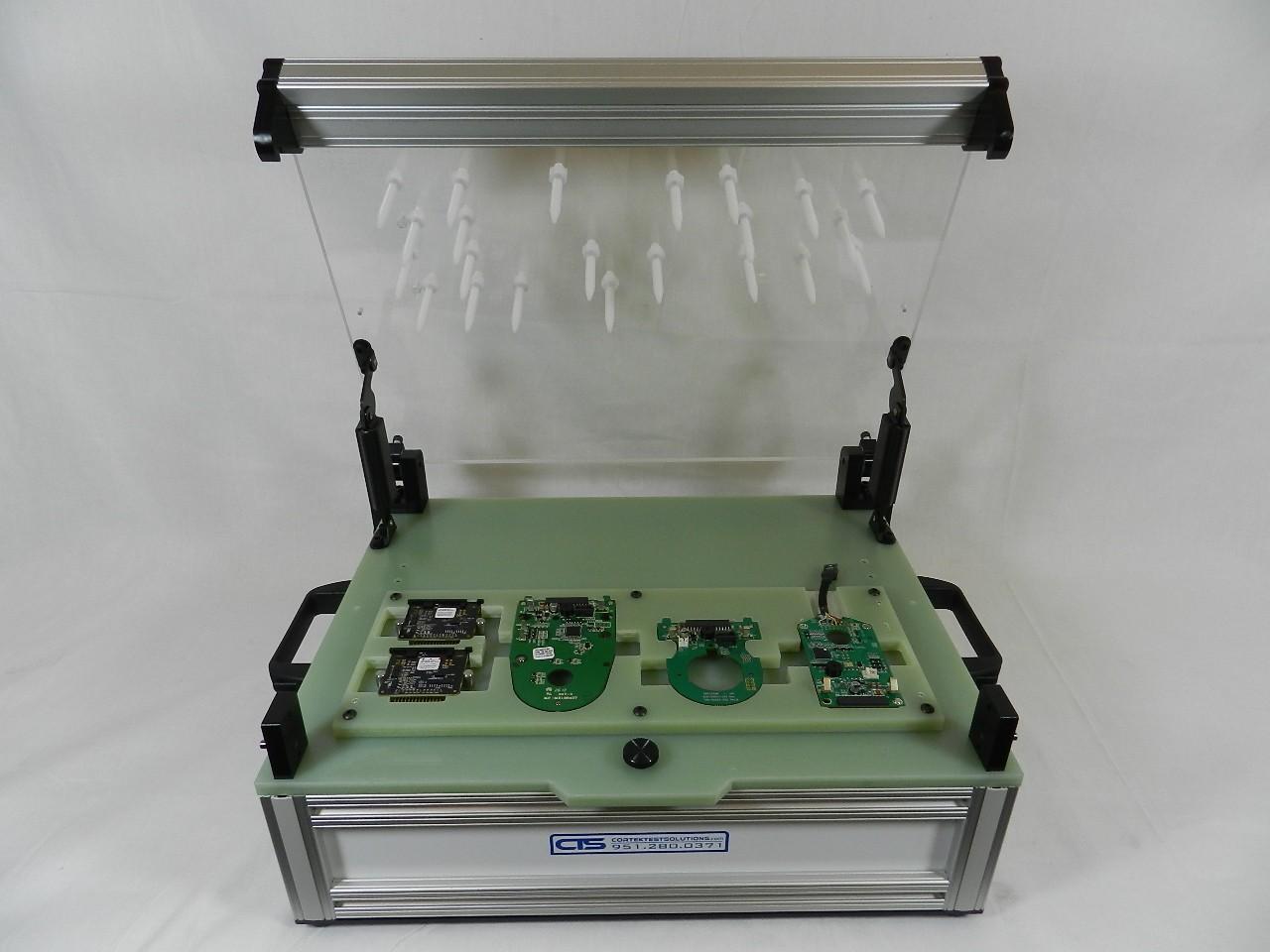

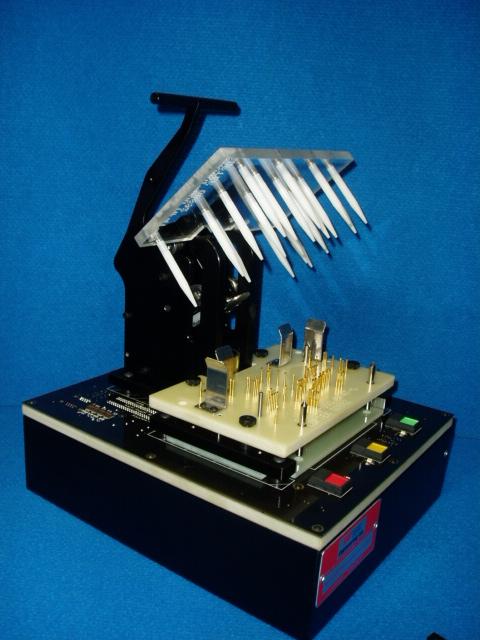

Flip-Top Presses

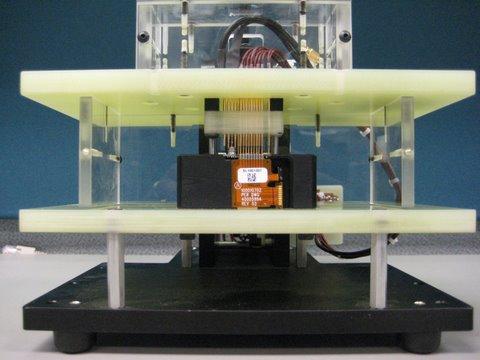

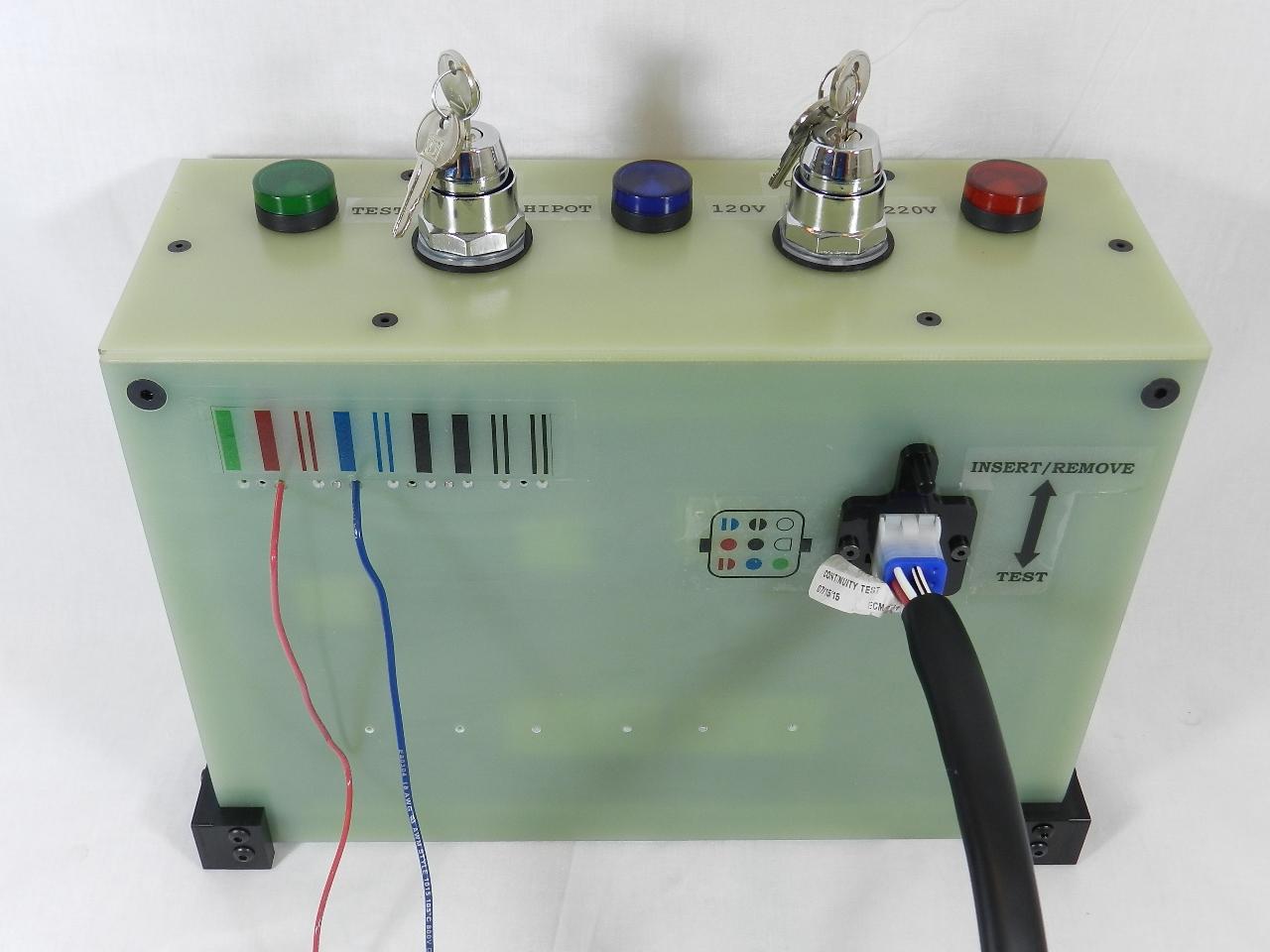

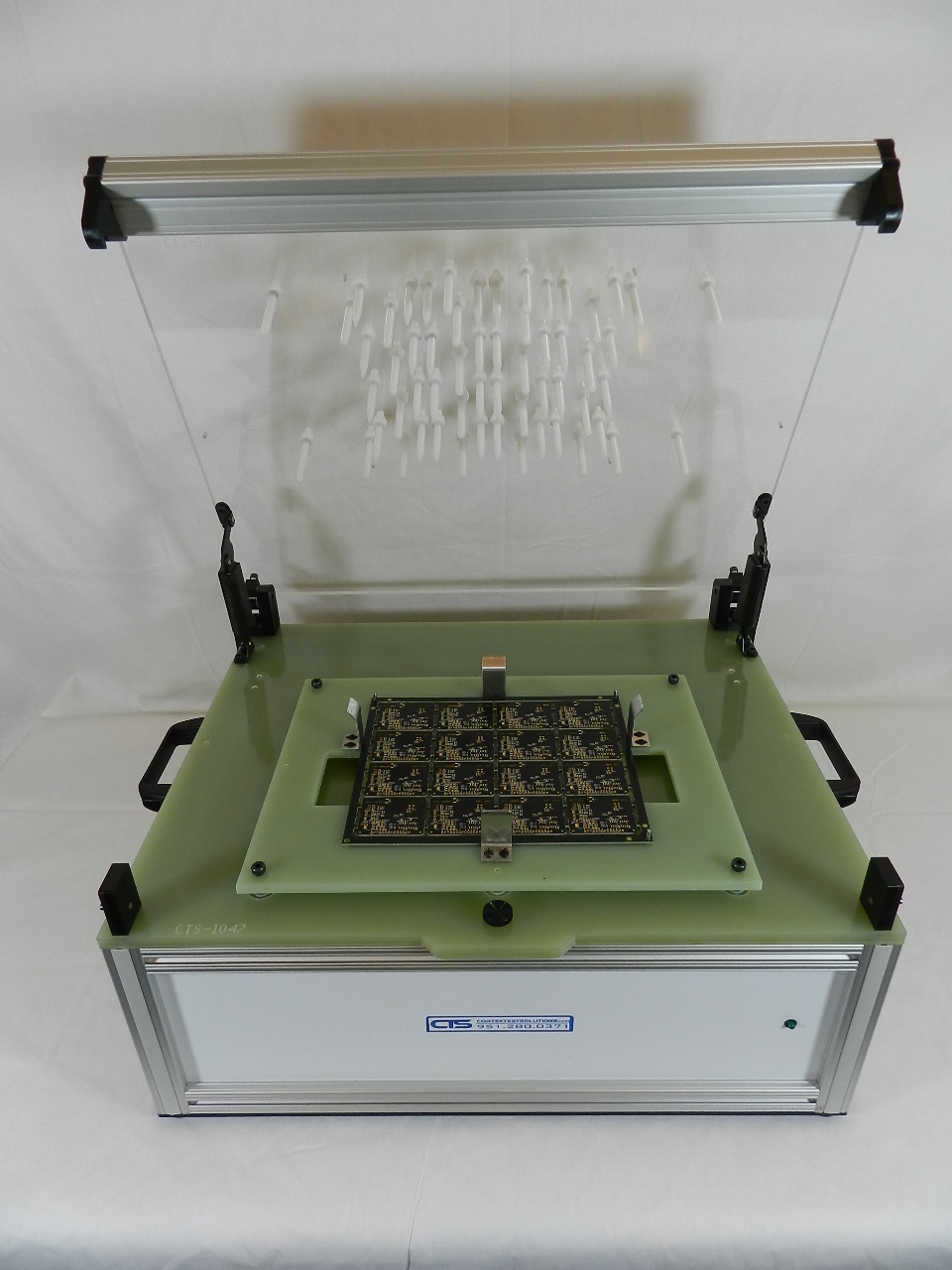

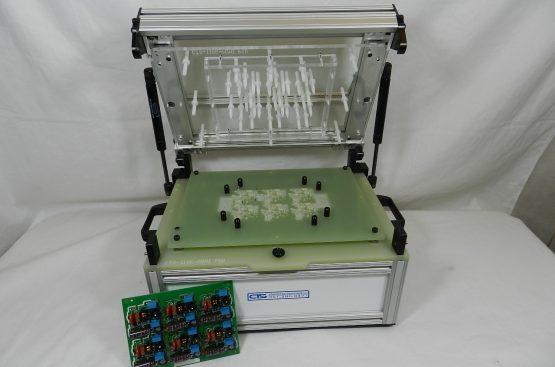

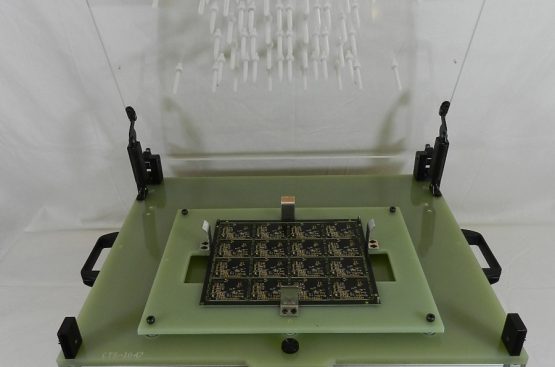

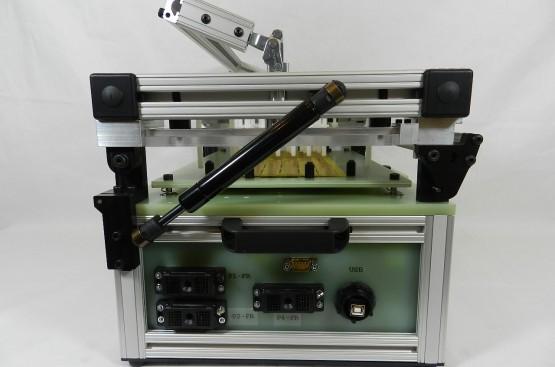

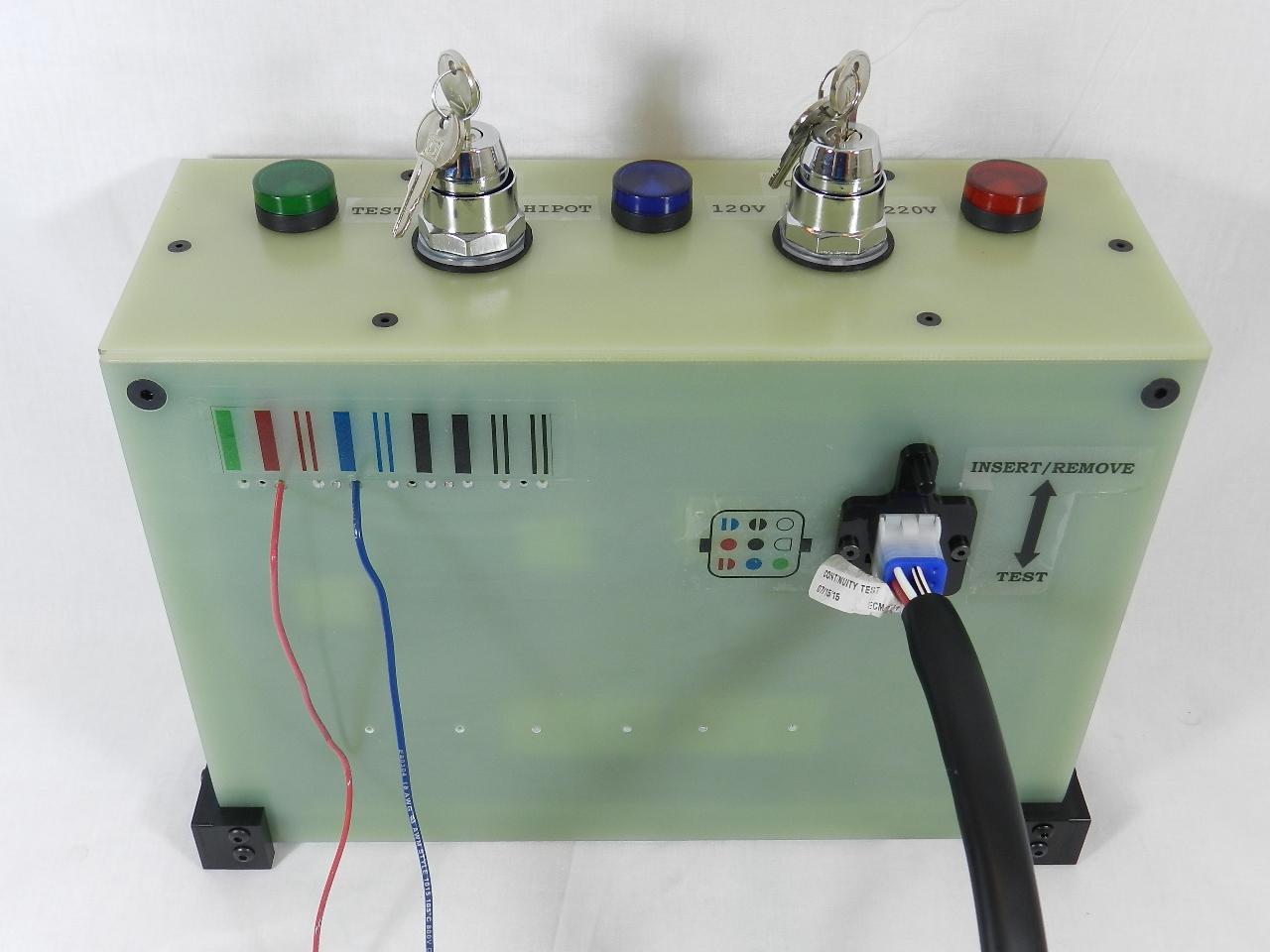

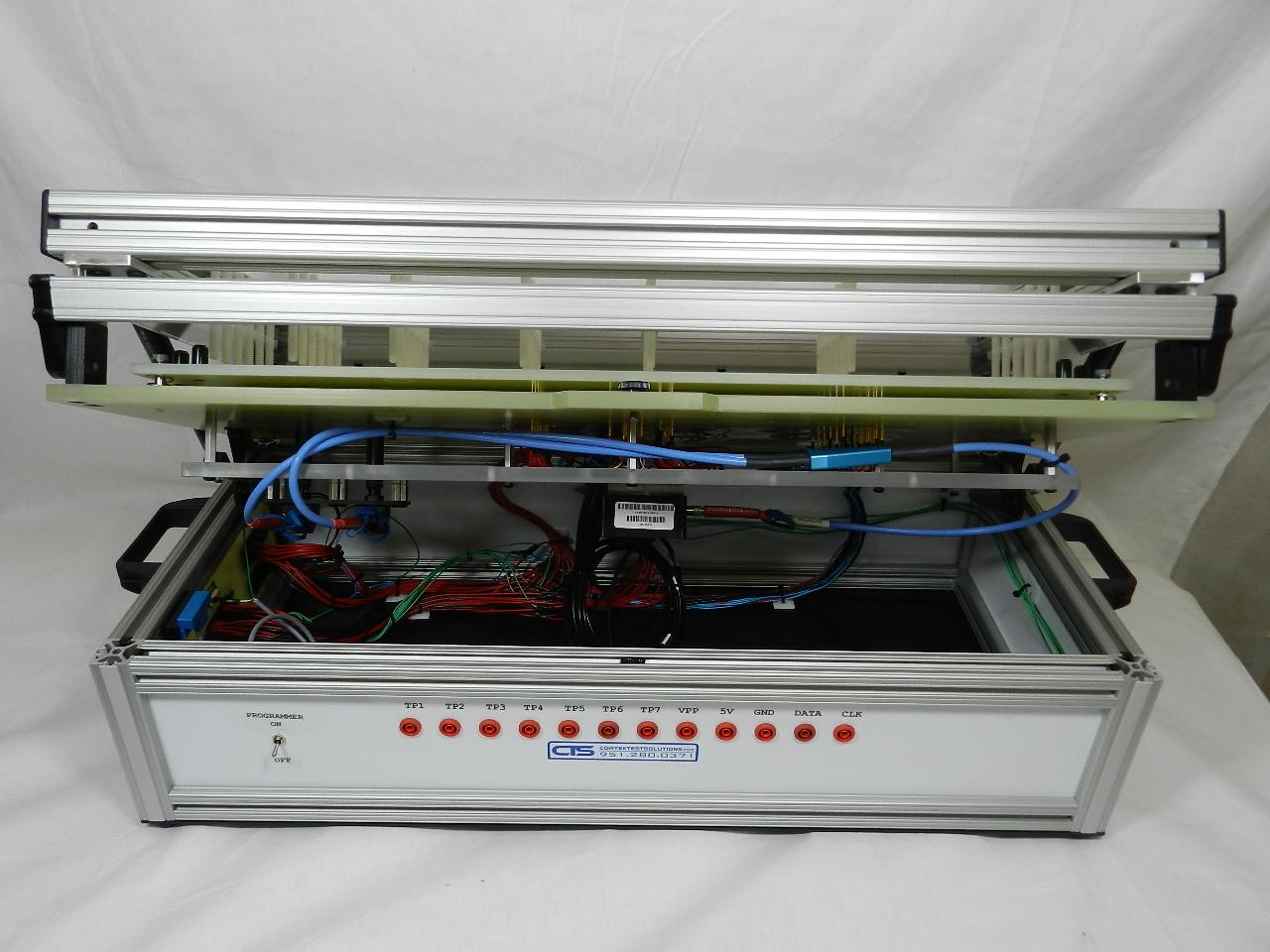

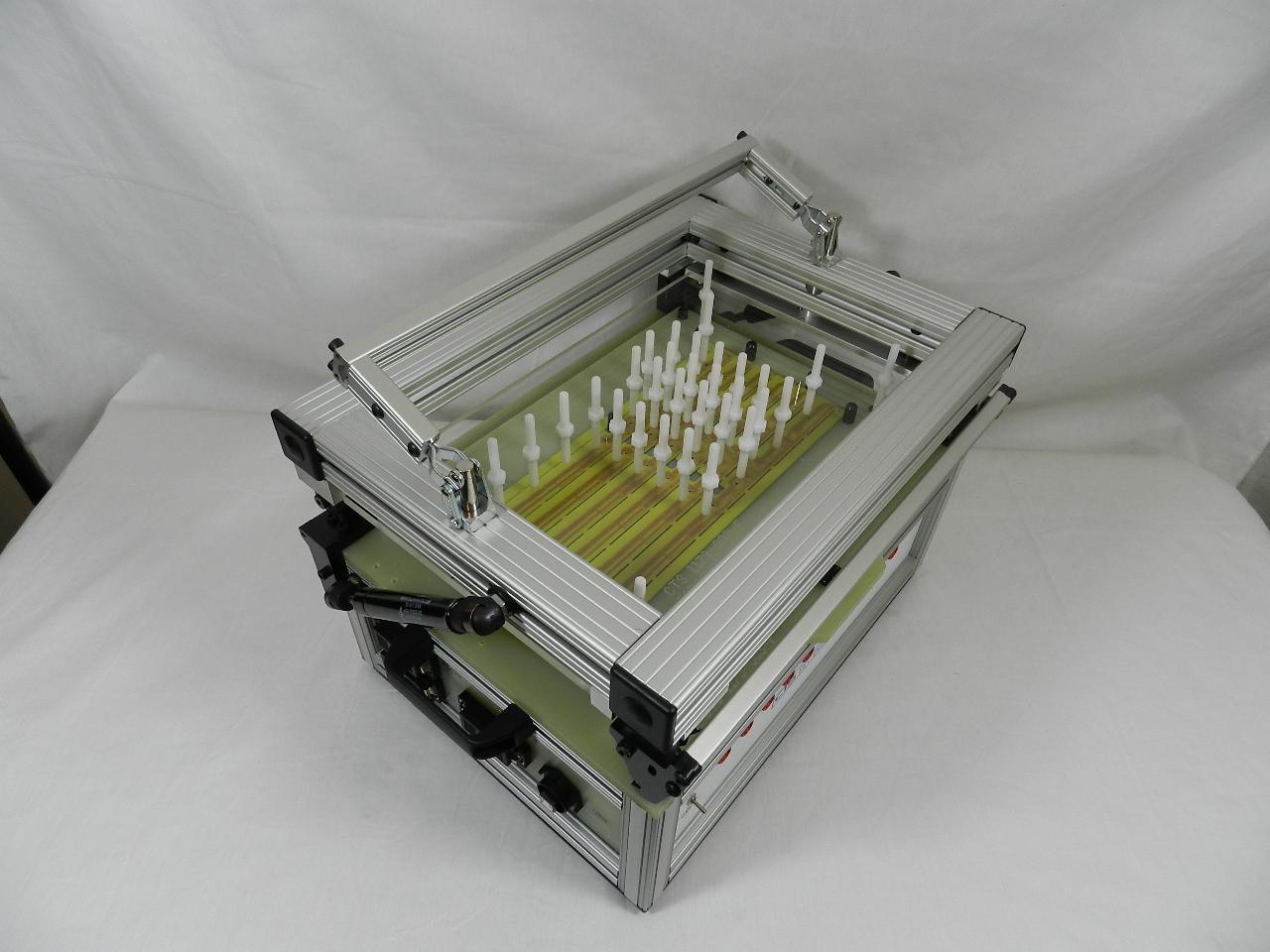

Fully Custom Units

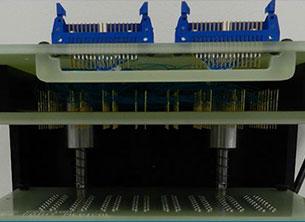

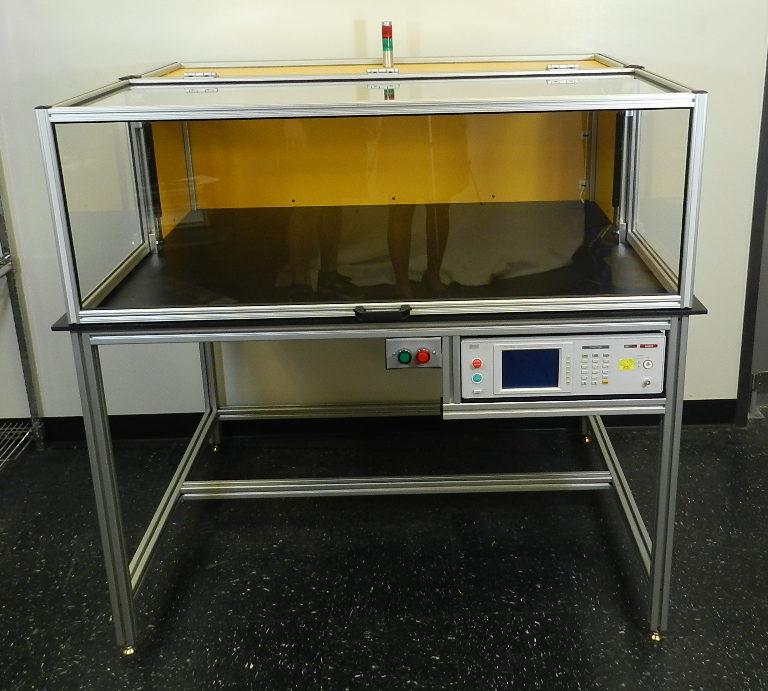

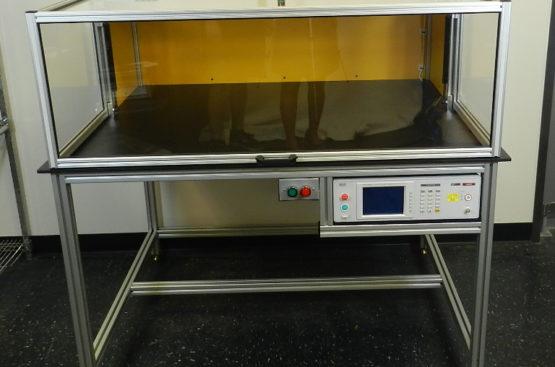

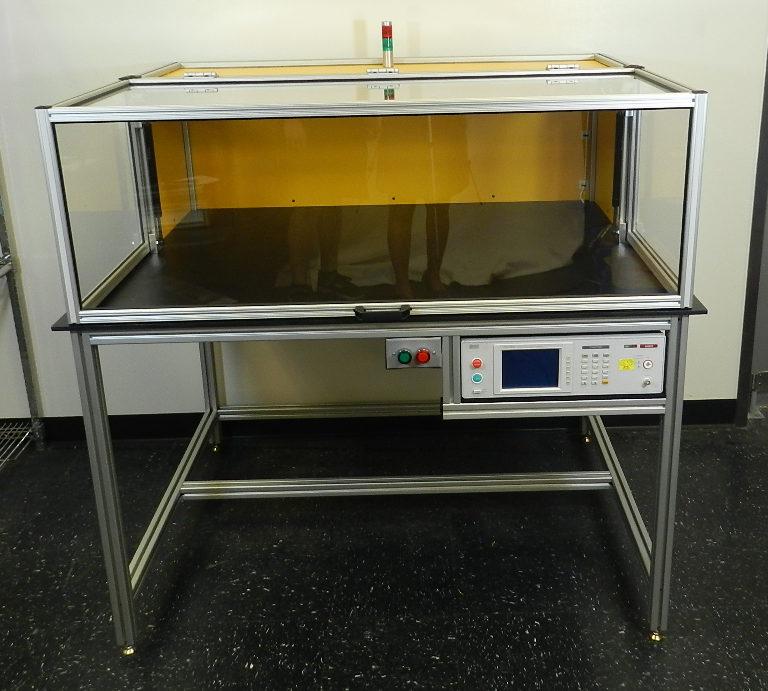

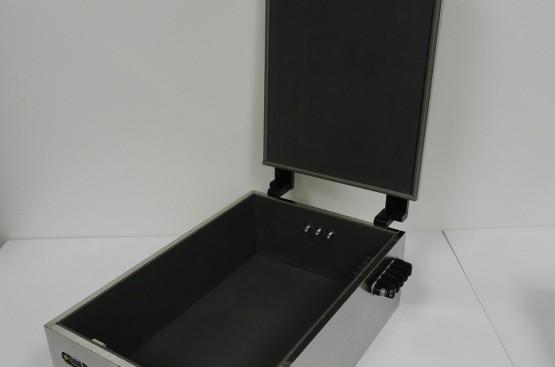

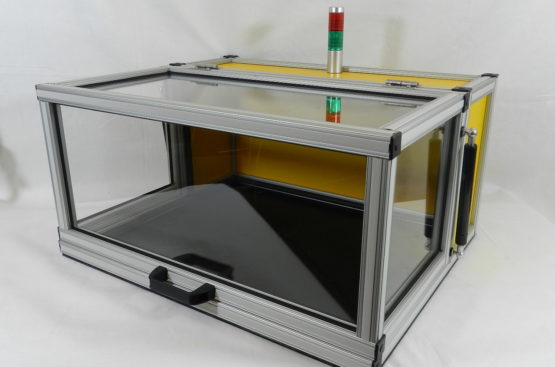

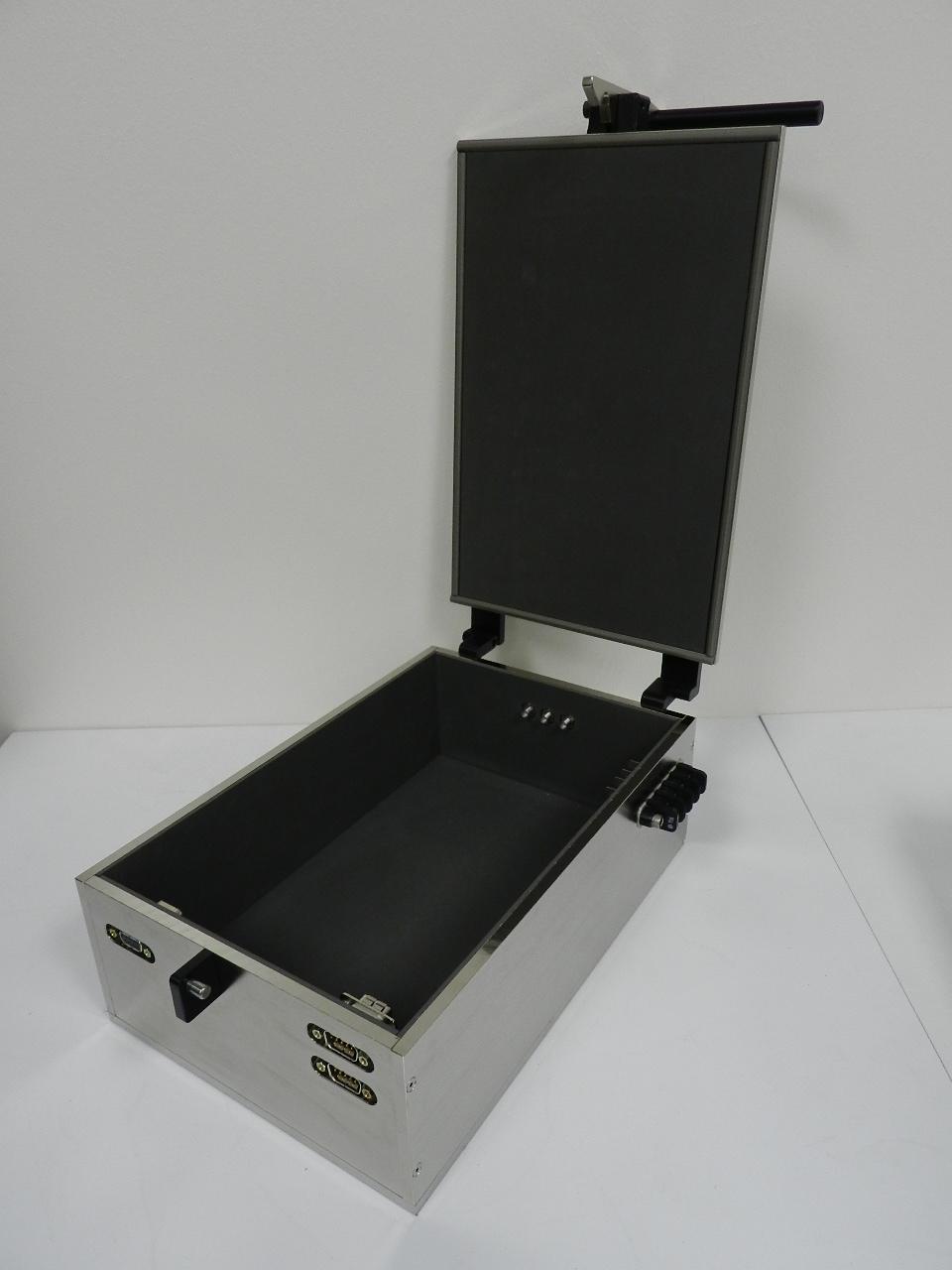

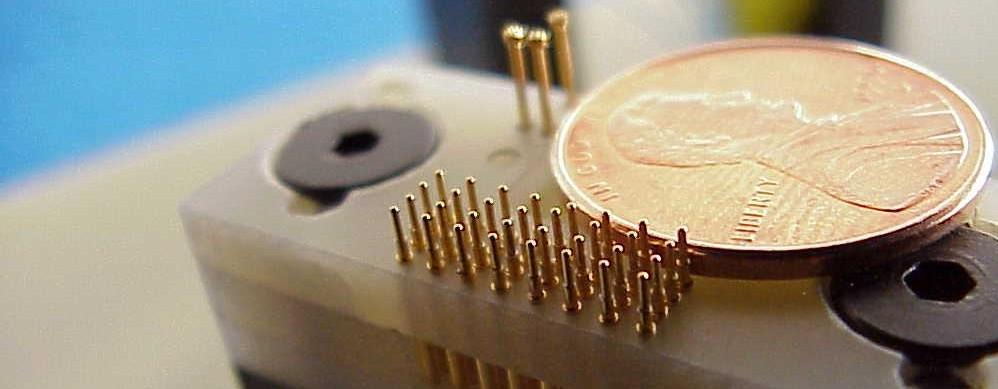

Custom Test Fixture Kits and Safety Enclosures
CTS’s offers custom design and development for Test Fixture Kits. Our capabilities range from very basic to extremely sophisticated custom solutions. Creating Custom Functional Test Fixture Kits requires an in-depth knowledge of mechanical design. Our mechanical engineers are well prepared for any job and provide an expertise second to none. Our team’s commitment to excellence is the key to the consistently ensuring high-quality products and services. Browse through a few different categories of our test fixture kit inventory below.

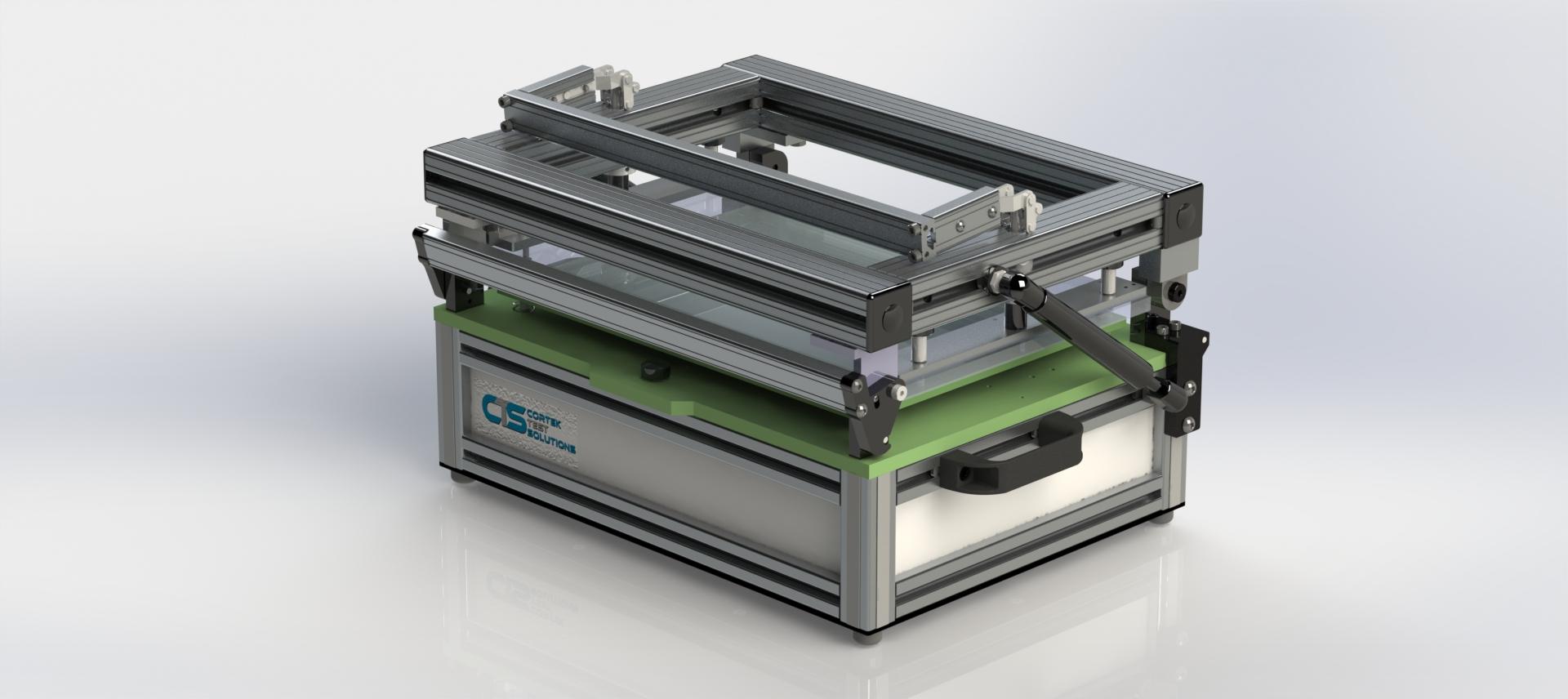

Off-the-Shelf Test Fixture Kits

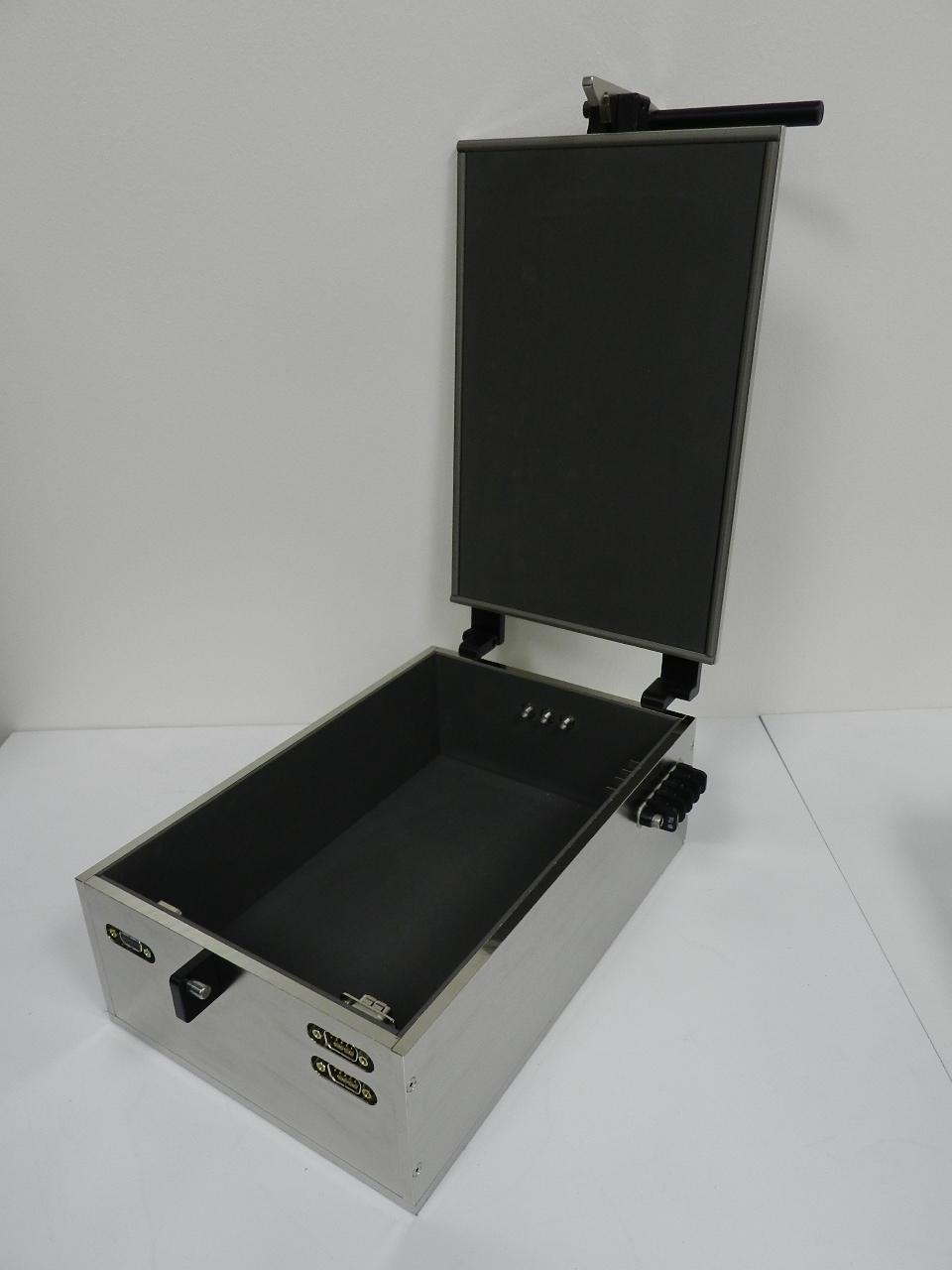

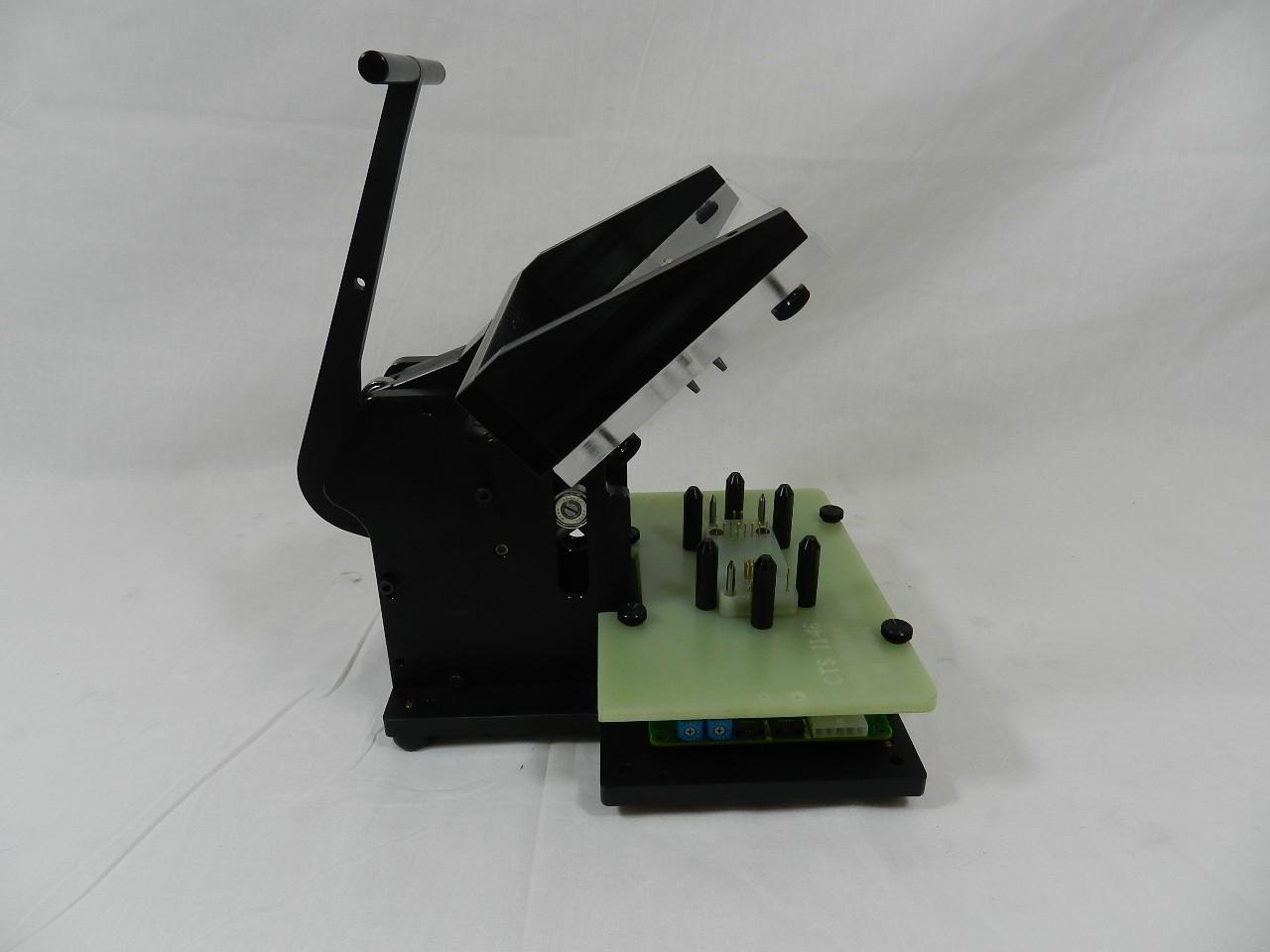

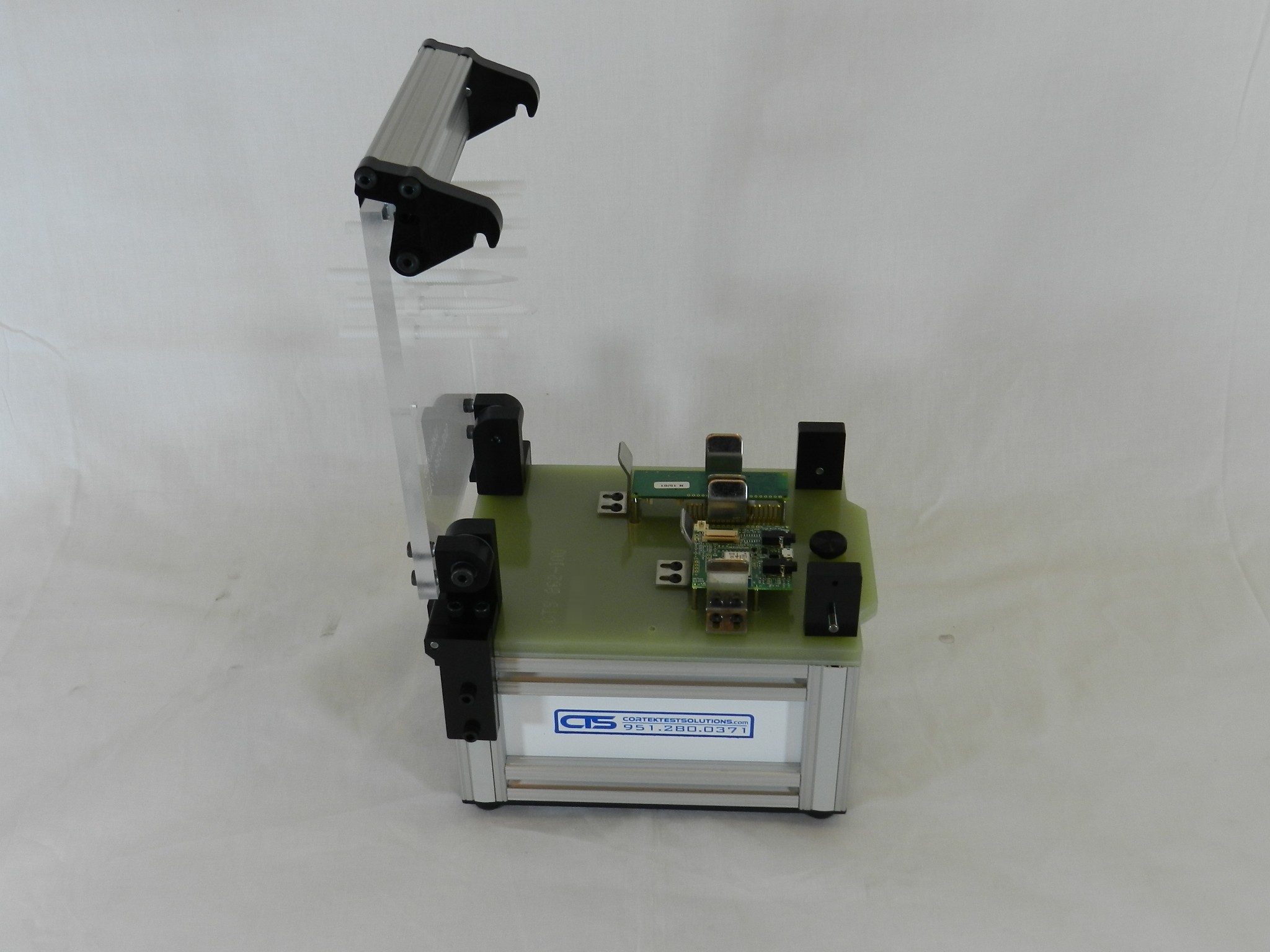

Mechanical Test Fixture Kit #0608

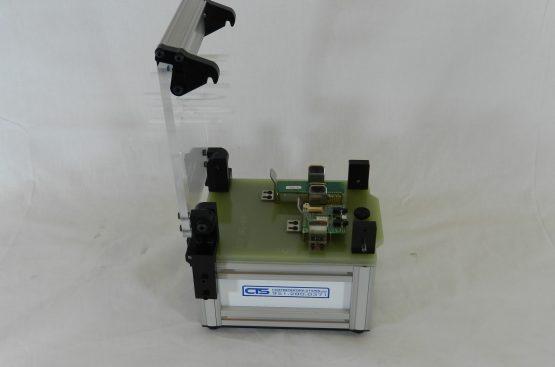

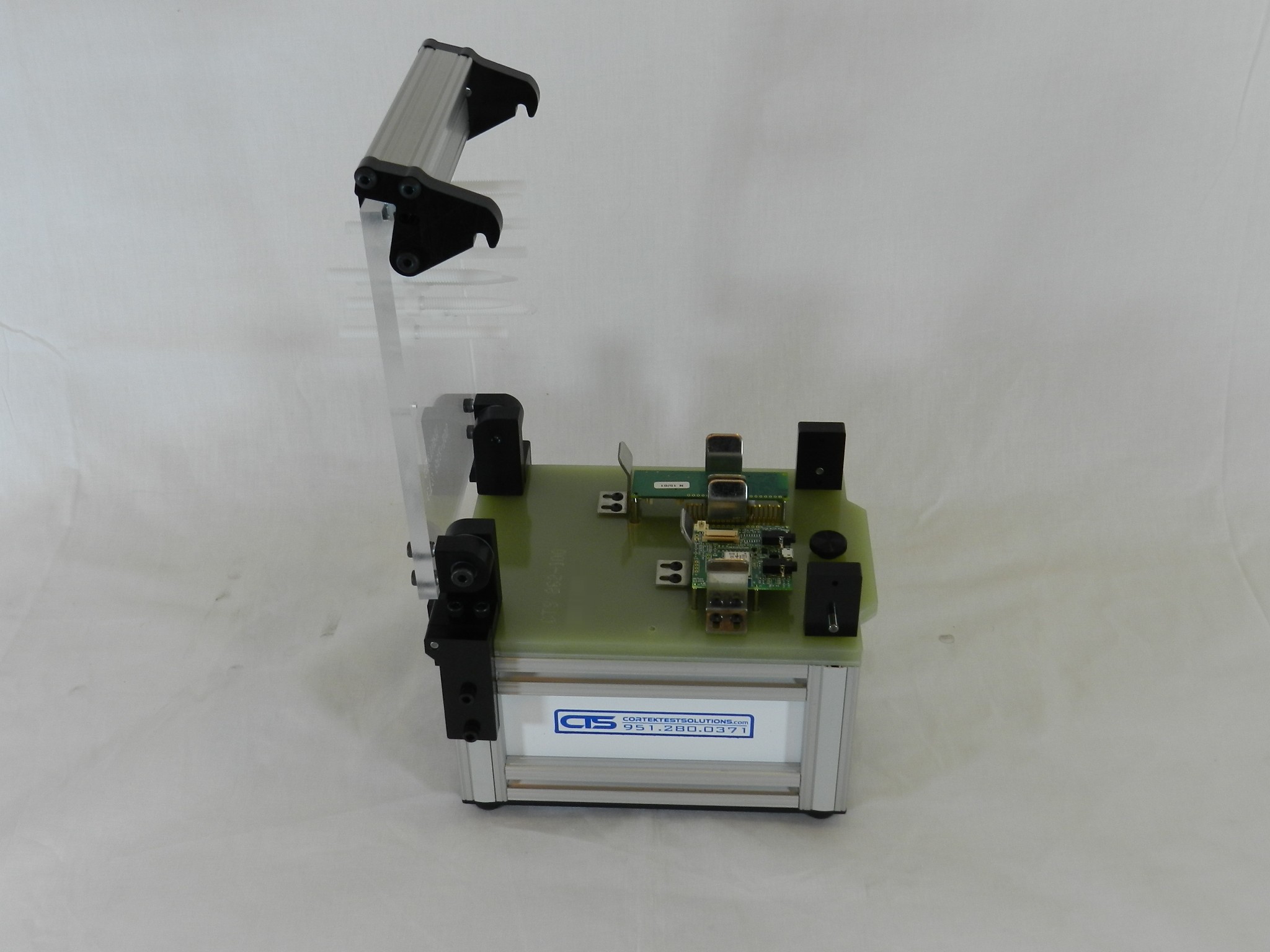

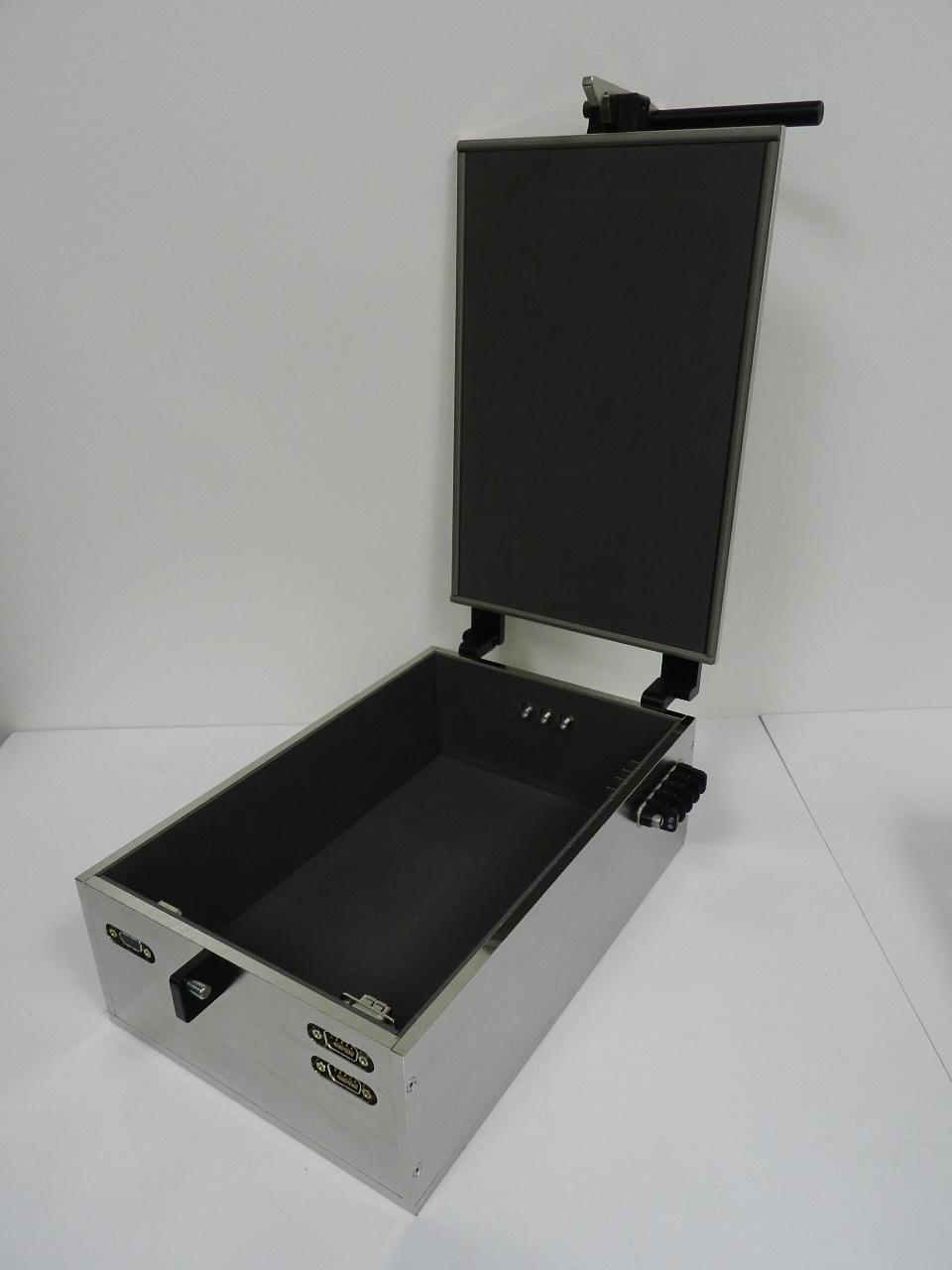

Weighing only seven pounds, the Functional Test Fixture Kit 0608 offers unique flexibility. This Mechanical Test Kit comes with custom size configurations readily available if our standard doesn’t meet your requirements. Included are custom designed hinges made of 6061 aluminum, black anodized.
- Customization of fixture plates(FR4, Acrylic, Polycarbonate ESD plates available)
- Easier for operator to use fixture because of accessibility improvements
- New latch bar design moves the latching posts outboard of the center UUT area making for easier UUT handling.
- Hinged, no internal springs
- Overall Dimensions: (W X D X H): 9.9” x 8.9” x 7.7”

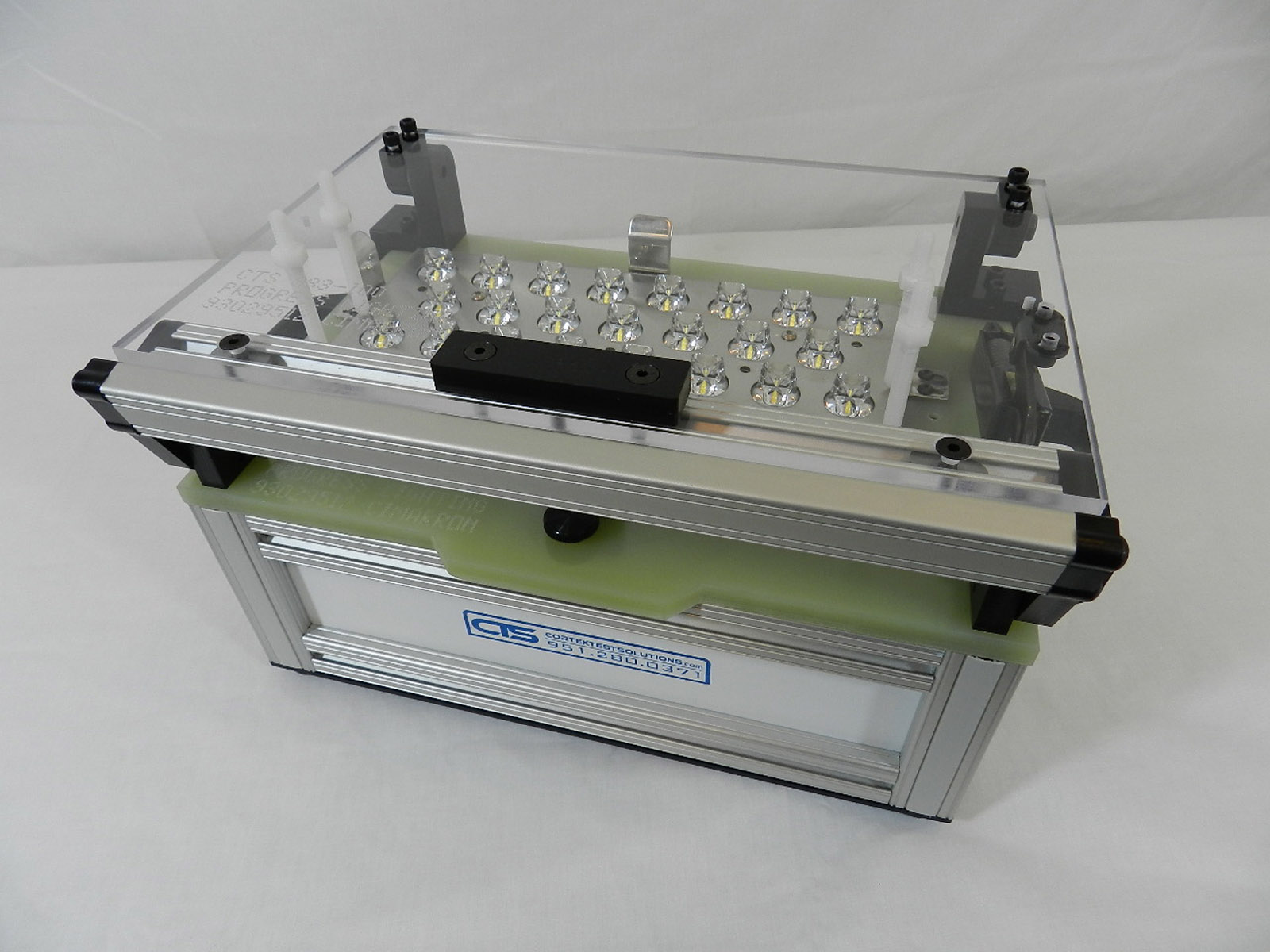

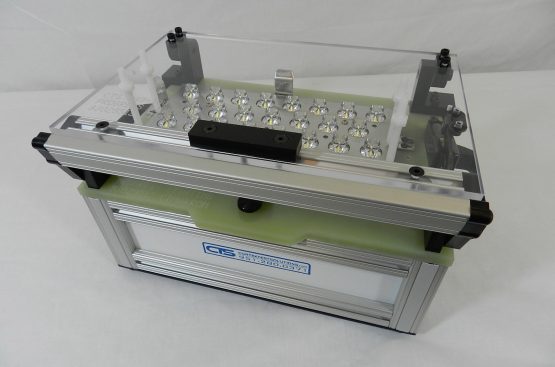

Mechanical Test Fixture Kit #1208
Cortek’s Mechanical Kit 1208 was designed to be easier for an operator to use with improved accessibility. This small-sized Functional test fixture boasts a design that is clean, streamlined and rugged. This kit was developed to be more adaptable compared to competition.
- Multiple heights available – unique custom size configurations readily available if our standard doesn’t meet your requirement.
- Design is clean, streamlined and rugged and more adaptable compared to competition.
- Mechanical Spring Hinges
- More useable testable area for UUT compared to competition
- Overall Dimensions: (W x D x H): 14.9” x 8.9” x 7.7”

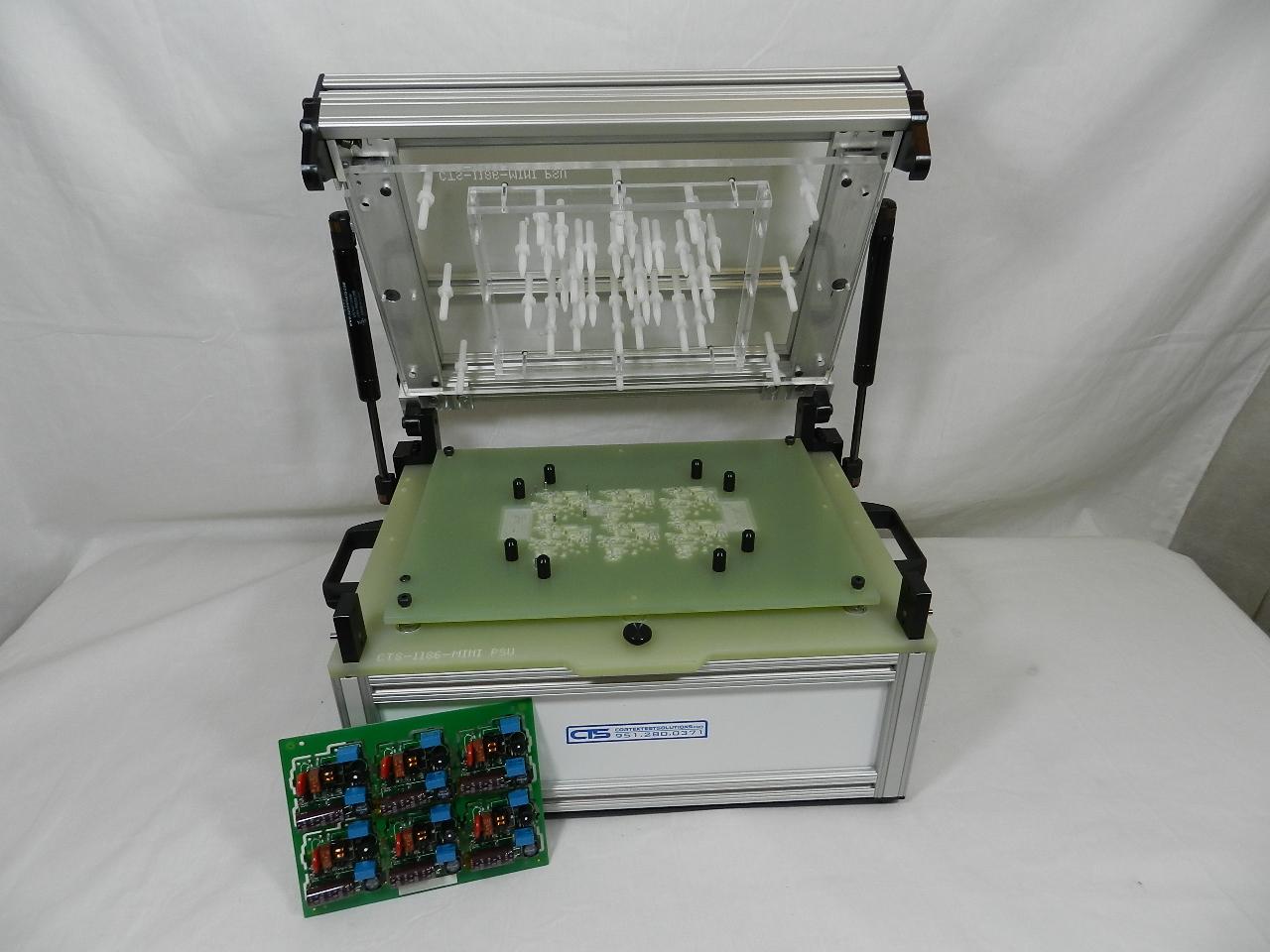

Mechanical Test Fixture Kit #1612

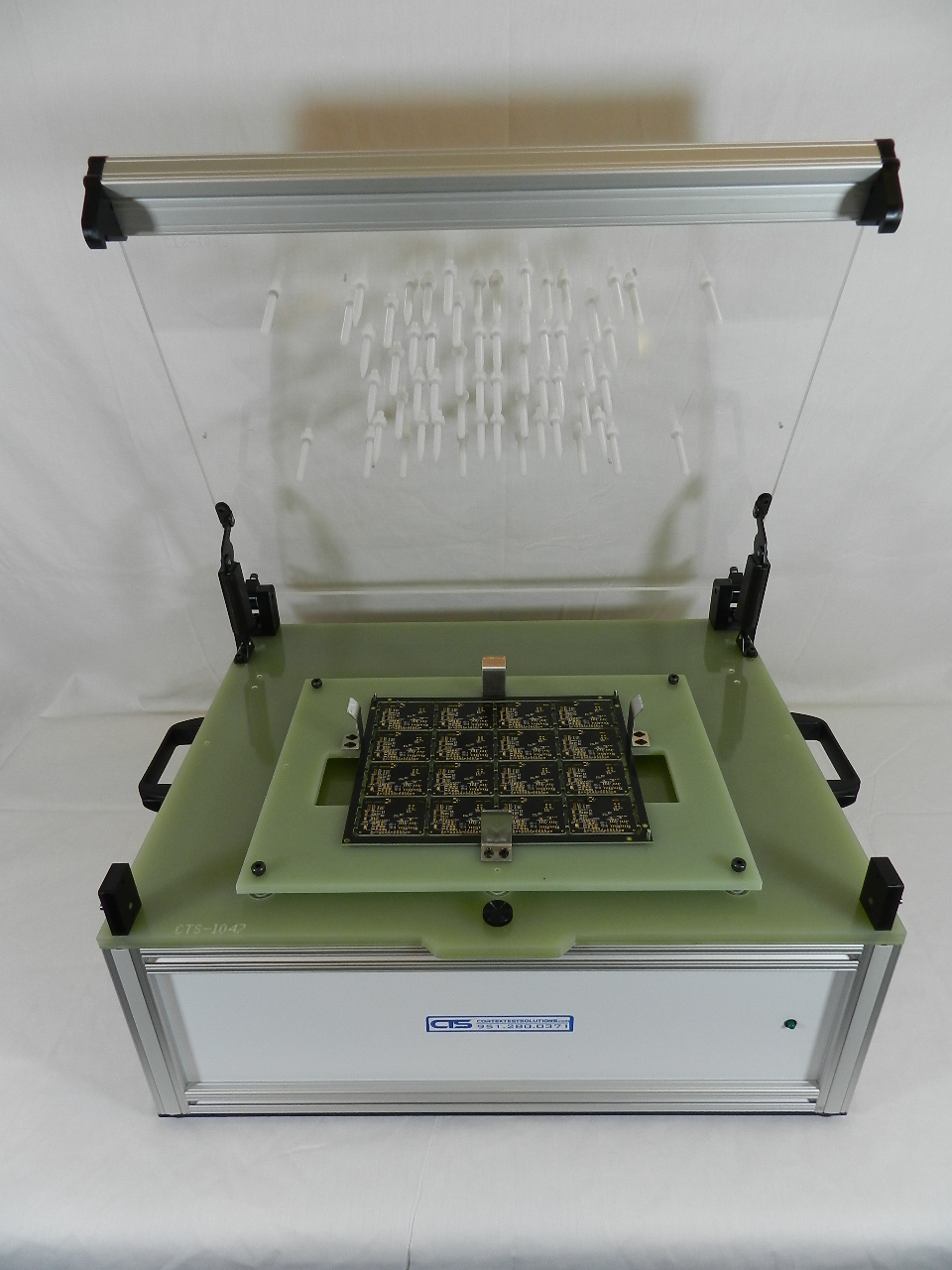

The 1612 Mechanical Test Fixture Kit offers a test area size expanding up to 14.0” x 10.0”. With more area to work with, bigger projects can be completed compared to our smaller Functional Test Fixture Kits. This mechanical text fixture unit can also be used for PCB testing.
- Test Area up to 12.0″ x 10.0″ x 2.0″
- More useable testable area for UUT compared to competition.
- CTS custom designed hinges made of 6061 aluminum, black anodized.
- Ease of side panel fabrication for I/O connections, switches or other hardware.
- Mechanical Spring Hinges
- Overall Dimensions: (W x D x H): 17.9” x 12.9” x 7.7”
