Z-Axis Test Fixture Kit 1612 Test Area up to 14″ x 10″

Model #: ZA1612

From $2,300.00

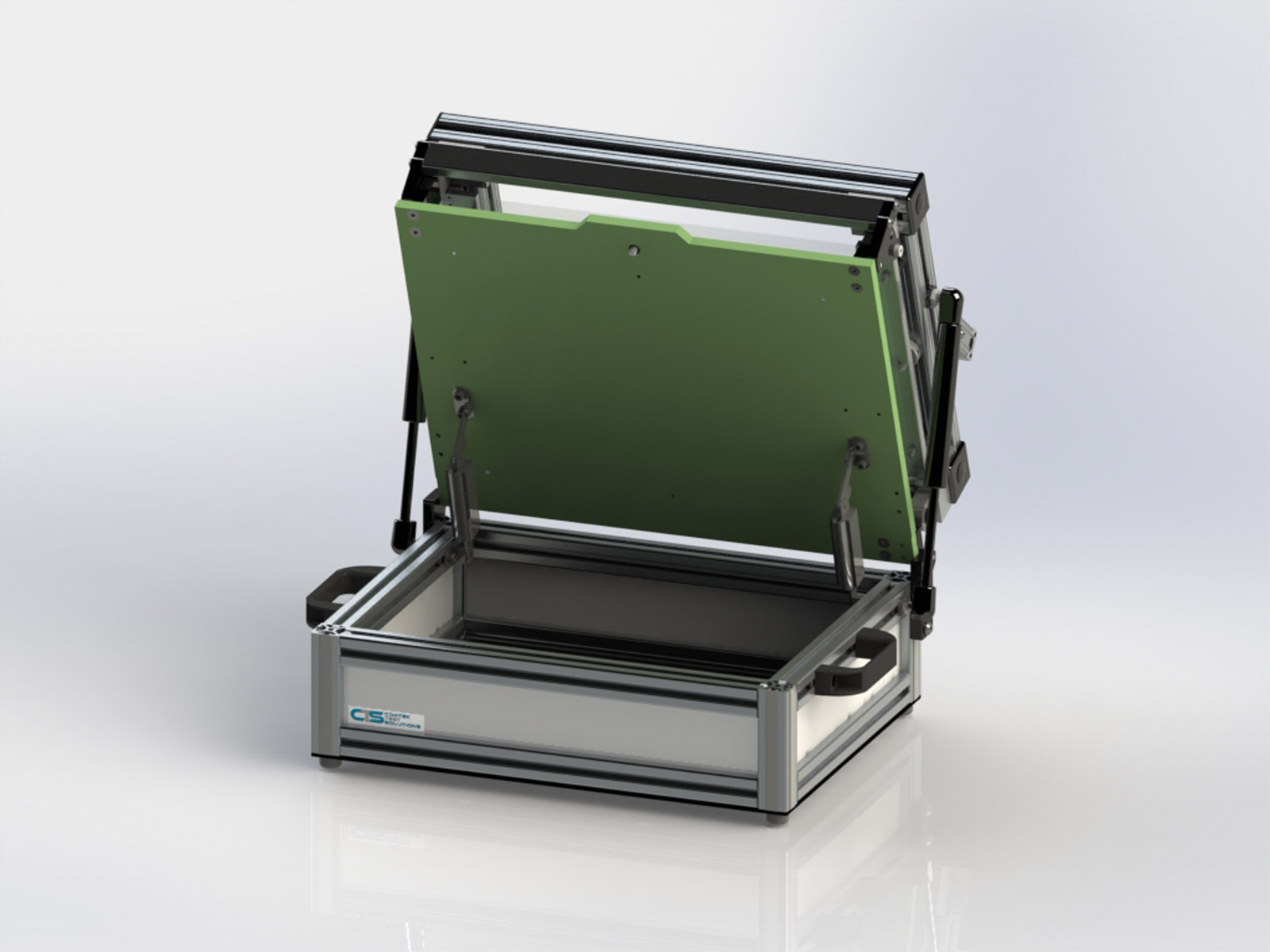

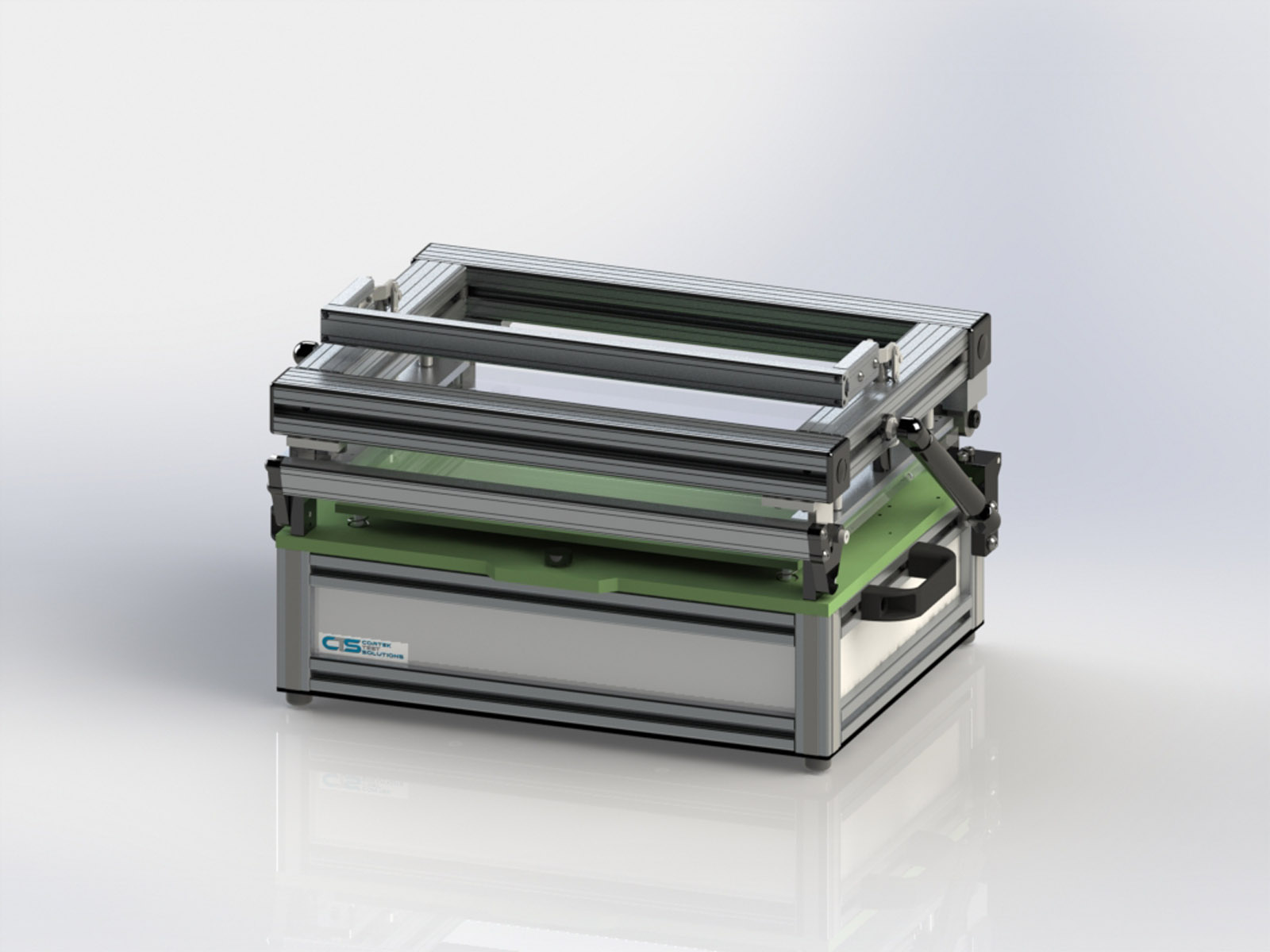

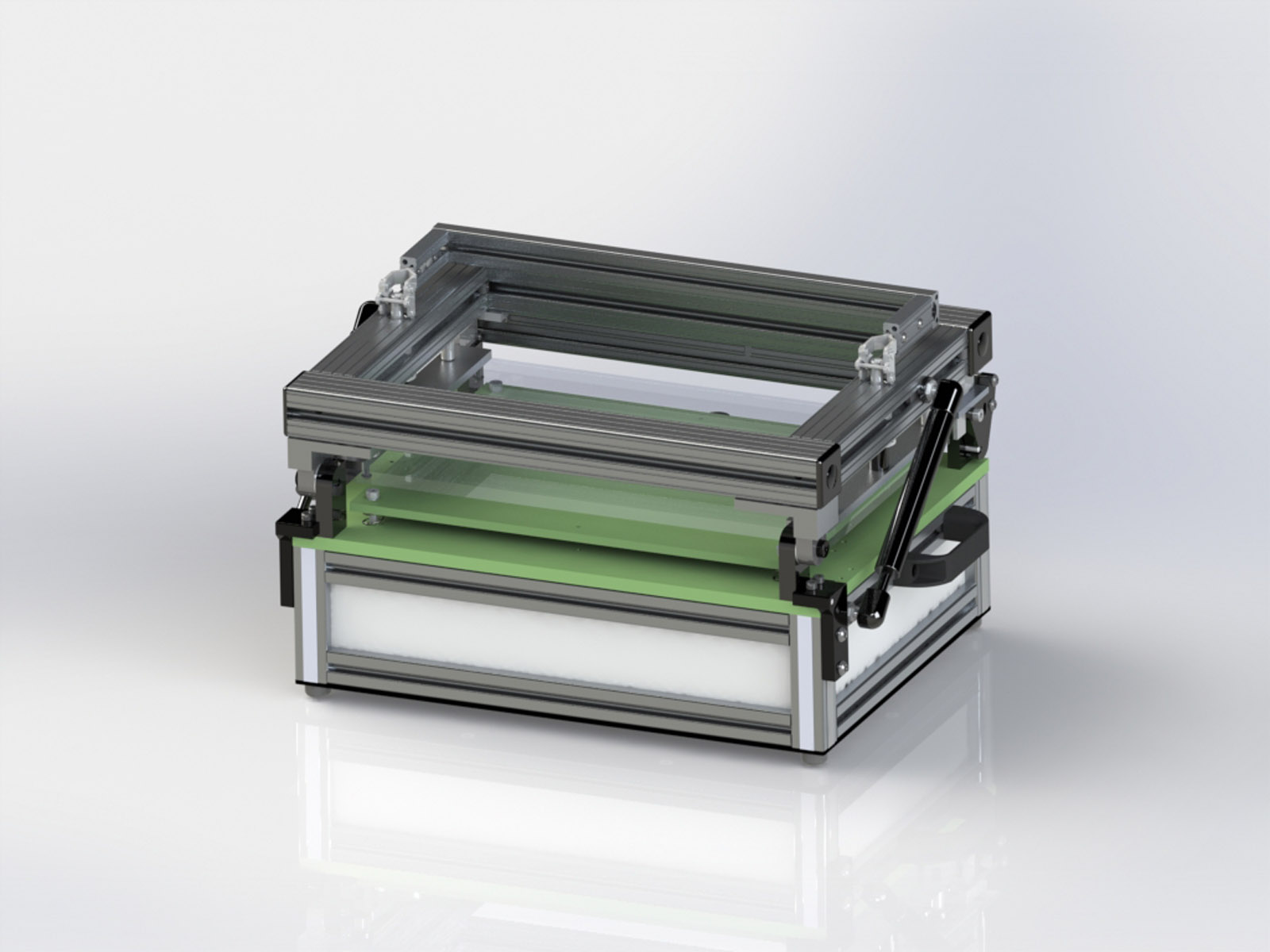

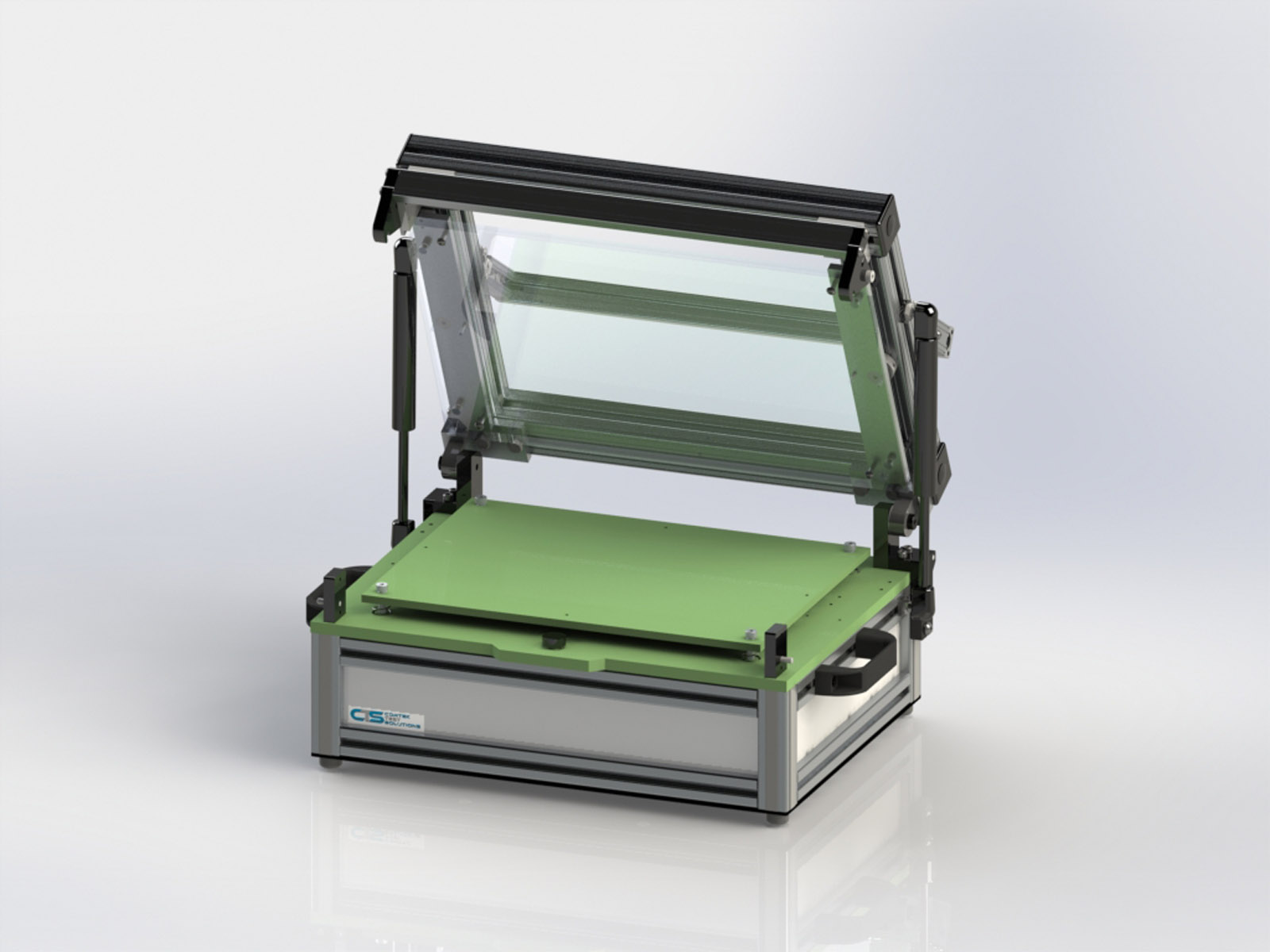

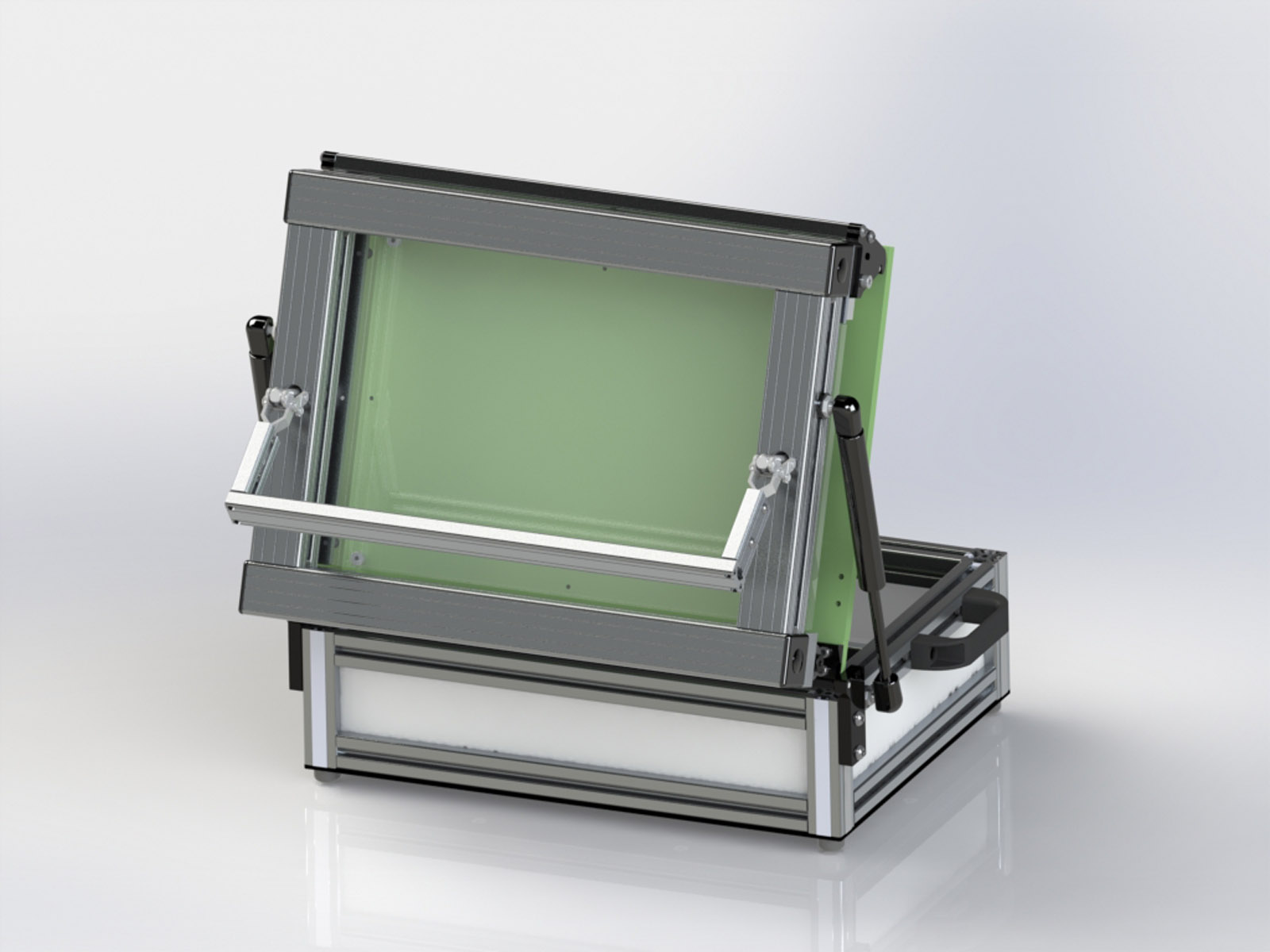

Test Area up to 14.0” x 10.0” The Z-Axis assembly is an option available for all mechanical fixture kits and is included on this kit. Each size of kit has a Z-Axis designed to match its UUT area. The Z-Axis replaces the hinged top push plate that is standard on our kits. Kits can be ordered with the Z-Axis in lieu of the standard push plate or as a field upgrade should it be determined later that it would be beneficial. Check out our machining and design services. Visit our Gallery to see some examples of applications of this unit.

Clear selection

Key Features:

  • Unobstructed working area within the push plate. No cross bars to deal with which allows complete access to the top side of the UUT.
  • A full ¾” of travel in the Z axis.
  • Easily replaceable top plate. The personalized top plate can be removed via four screws. ECO’s or new product types will not make the Z axis assembly obsolete.
  • The actuation design multiplies the force input from the operator. Much higher force can be applied to the UUT without fatiguing your operator. This allows for higher probe counts without sacrificing probe spring rates.
  • Accurate and repeatable actuation. Top and bottom probing and/or fine pitch probing can be done without side loading of the probes.
  • Robust design with four linear guides. Suitable for lab or harsh environments.
  • Gas spring supports balance the effort of opening and closing the fixture.



  • Customization of fixture plates – submission of data required for quote
  • Additional FR4, Acrylic, Polycarbonate ESD plates available
  • Installation of fixture hardware to include: Probes & Sockets, locating pins, push rods, side guides, connectors, interface pcb, interlocks, etc.
  • Wiring per customer specification
  • Safety shroud
  • Stripper plate


Additional Information

Weight 30 lbs
Add Stripper Plate?

No, Yes (+$110)

Add additional Fixture Plates for re-tooling?

Add additional Pin Plate (+$125), Add additional Push Plate (+$88), Add Both (+$213), No
