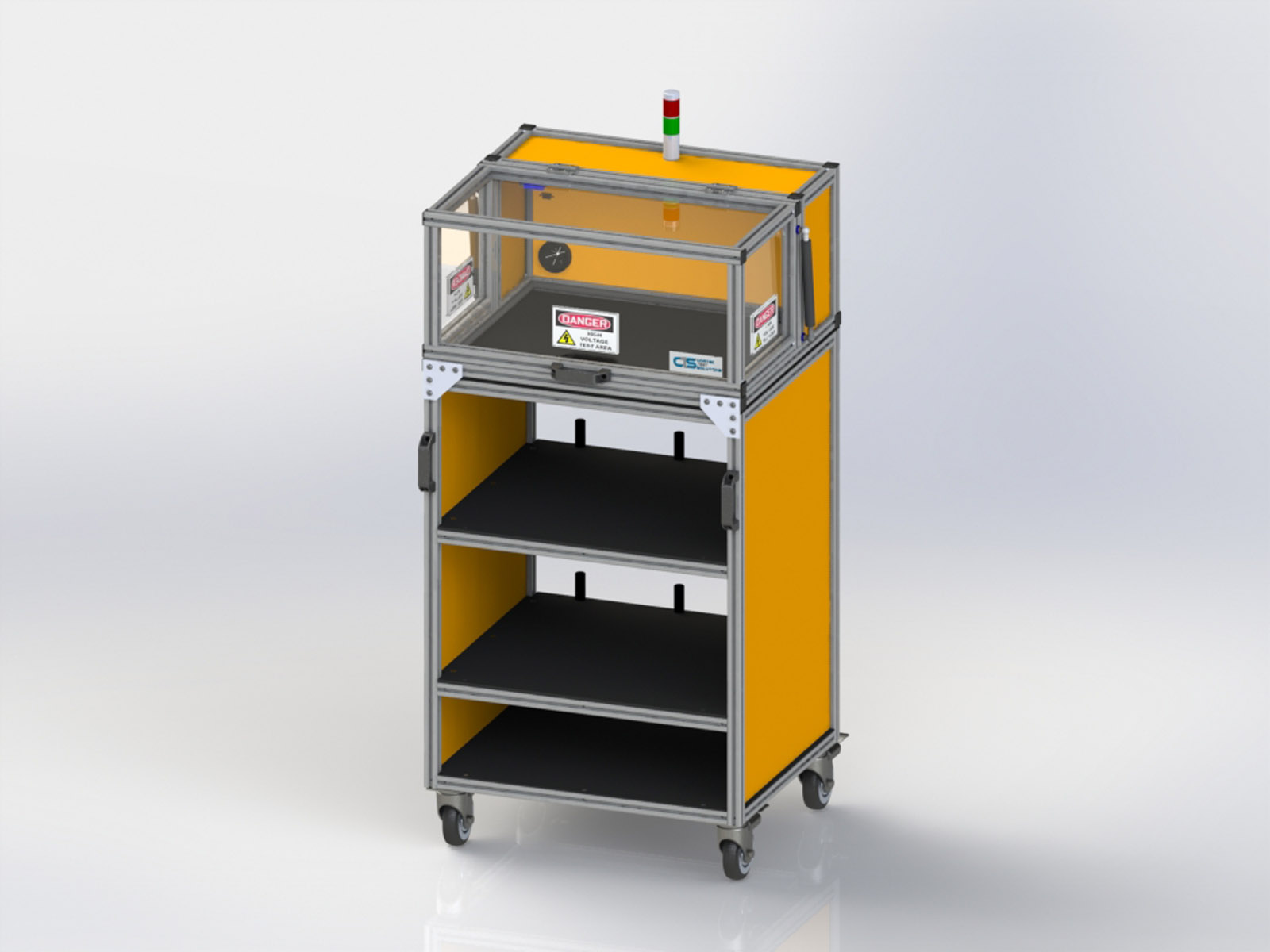

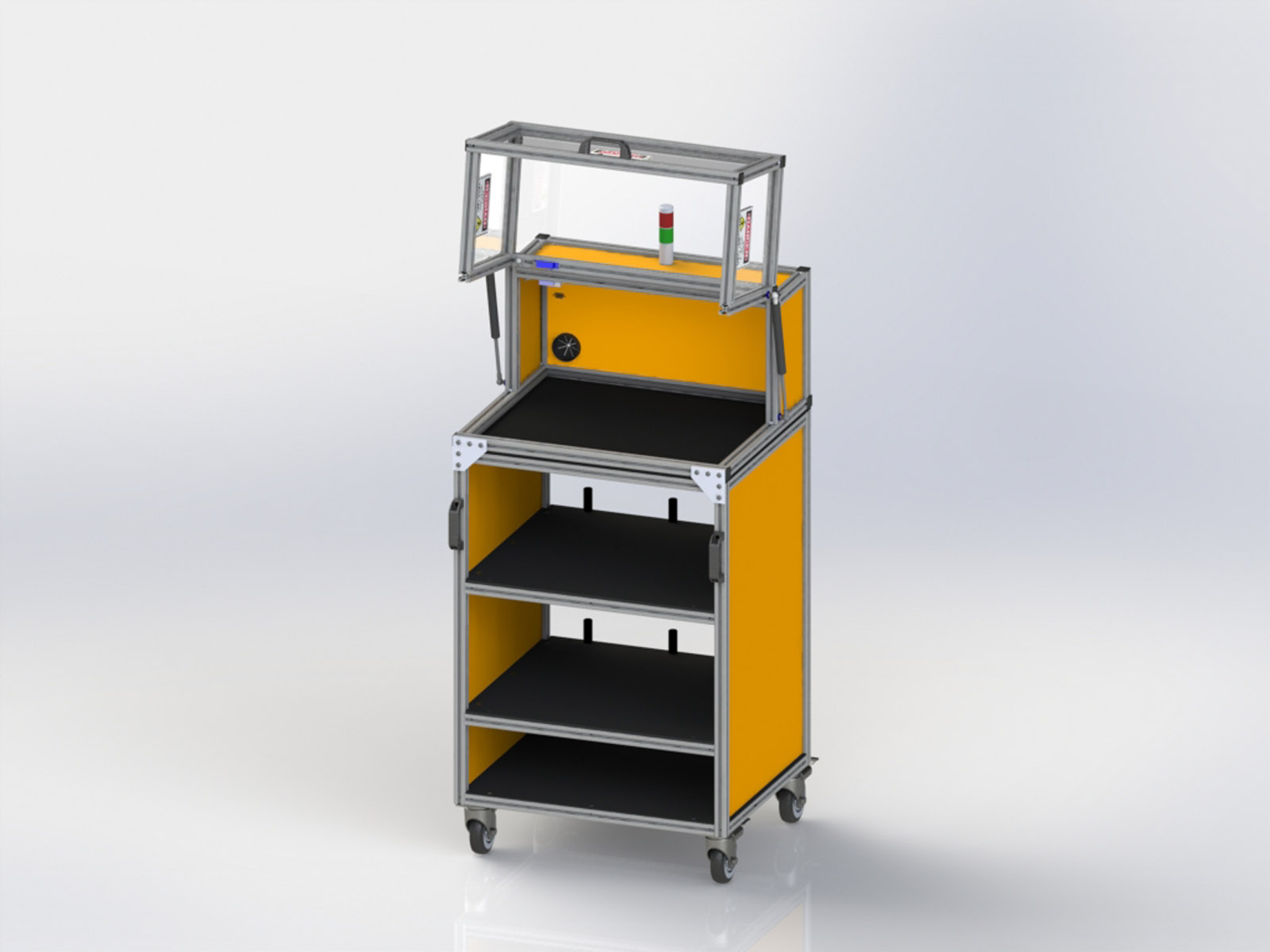

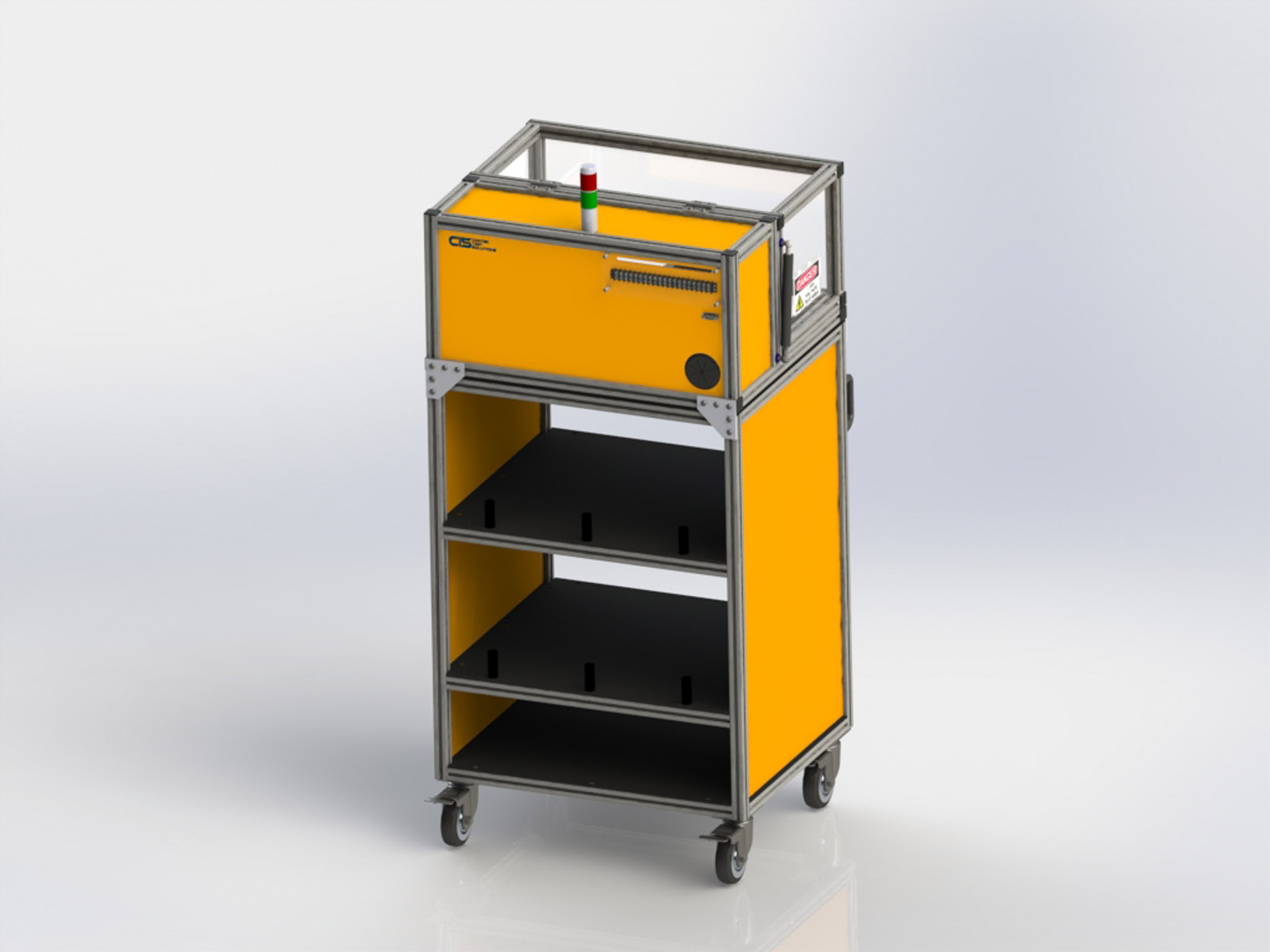

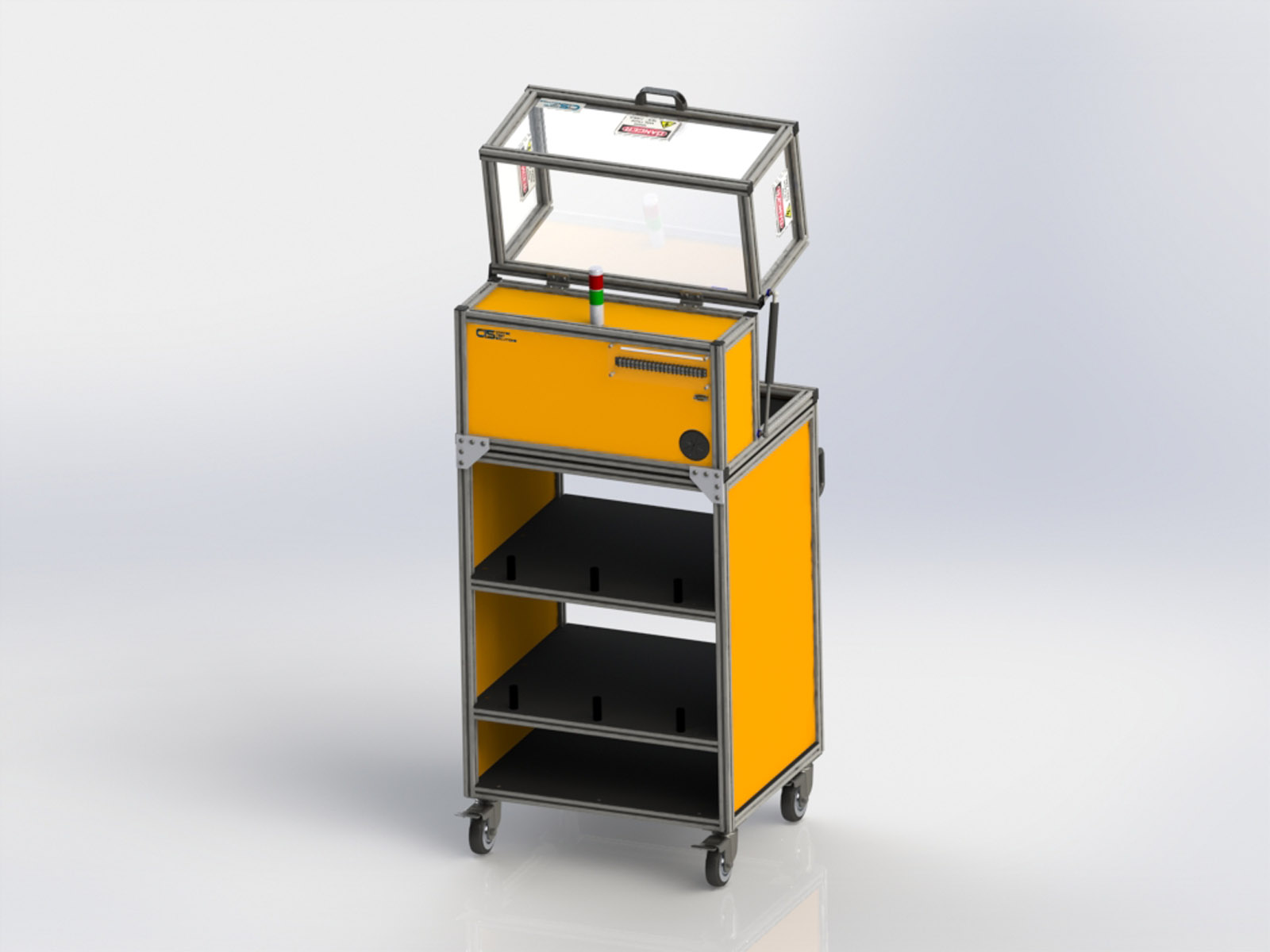

HiPot Electrical Safety Enclosure with Cart SE2420CT

Model #: SE2420CT

$4,950.00 $4,950.00

- +
Looking for a Custom Solution? Get a Free Quote

Fulfillment note:

Freight Fee incurred and charged separately once determined.

Various lead times may apply to this product. Please contact us for more details.

Description

Introducing Cortek Test Solutions DUT HiPot Safety Enclosures – the ultimate solution for electrical safety testing of products. These enclosures serve as essential Personal Protective Equipment (PPE) to prevent electrical shocks, ensuring utmost safety during testing. Equipped with a magnetic safety interlock switch and chassis ground connection, every operation is conducted with complete safety in mind. The enclosures offer easy scalability in the X, Y, and Z axes, effortlessly accommodating the required testable area. Choose from our range of standard sizes or request a custom quote for a perfect fit. When it comes to safety and accuracy, rely on Cortek Test Solutions DUT HiPot Safety Enclosures for uncompromised results. The CTS Hipot Electrical Safety Enclosure with Cart is perfect for people who need to move their enclosure around and store their instruments. This unit comes with locking casters and handles for easy maneuvering. It also has standard features like a magnetic interlock switch and a chassis ground lug for hook up.

Specifications

  • Unit Outside Dimensions: 24” wide x 20” deep x 48.5” high
  • Enclosure Inside Dimensions: 22” wide x 18” deep x 11” high
  • Weight: 71 lbs.
  • Tester compatibility: Most HiPot Testers are able to hook up to enclosure

Features

  • Constructed with a sturdy aluminum frame for durability.
  • Features an acrylic cover for visibility and protection.
  • Equipped with a magnetic interlock safety switch for enhanced safety.
  • Provides a chassis ground wire connection requiring customer hookup.
  • Includes yellow safety panels for increased visibility and precaution.
  • Comes with a 20 position terminal block that has a removable cover.
  • Features a 9-pin D-Sub connecto.
  • Incorporates a 2" flexible grommet for easy cable pass-through.
  • Offers a large-wide opening to facilitate effortless loading and unloading of the UUT.
  • Includes three high voltage test area stickers for clear identification.
  • Custom sizes are available, allowing easy adaptation to non-standard applications of smaller or larger sizes.

Options

  • Safety Light Tower – Red/Green, Red/Yellow/Green
  • Start Stop Switch Buttons
  • E-Stop
  • Extra Grommets – 1, 2, 3, 4
  • Insulation Mat
  • Instrument Shelf – 1,2
  • Solenoid Safety Switch, Tongue/Key Interlock; locks cover during test
