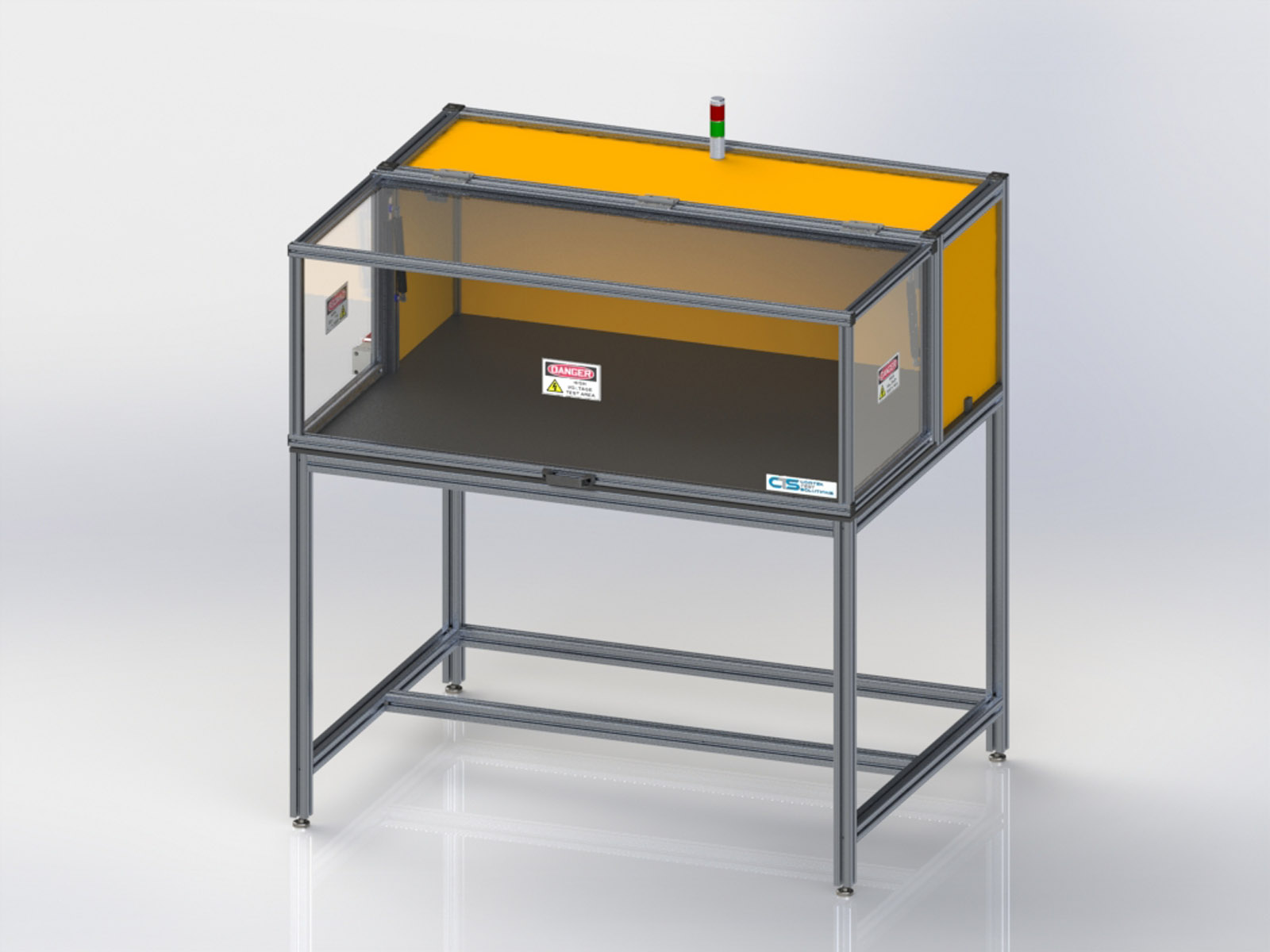

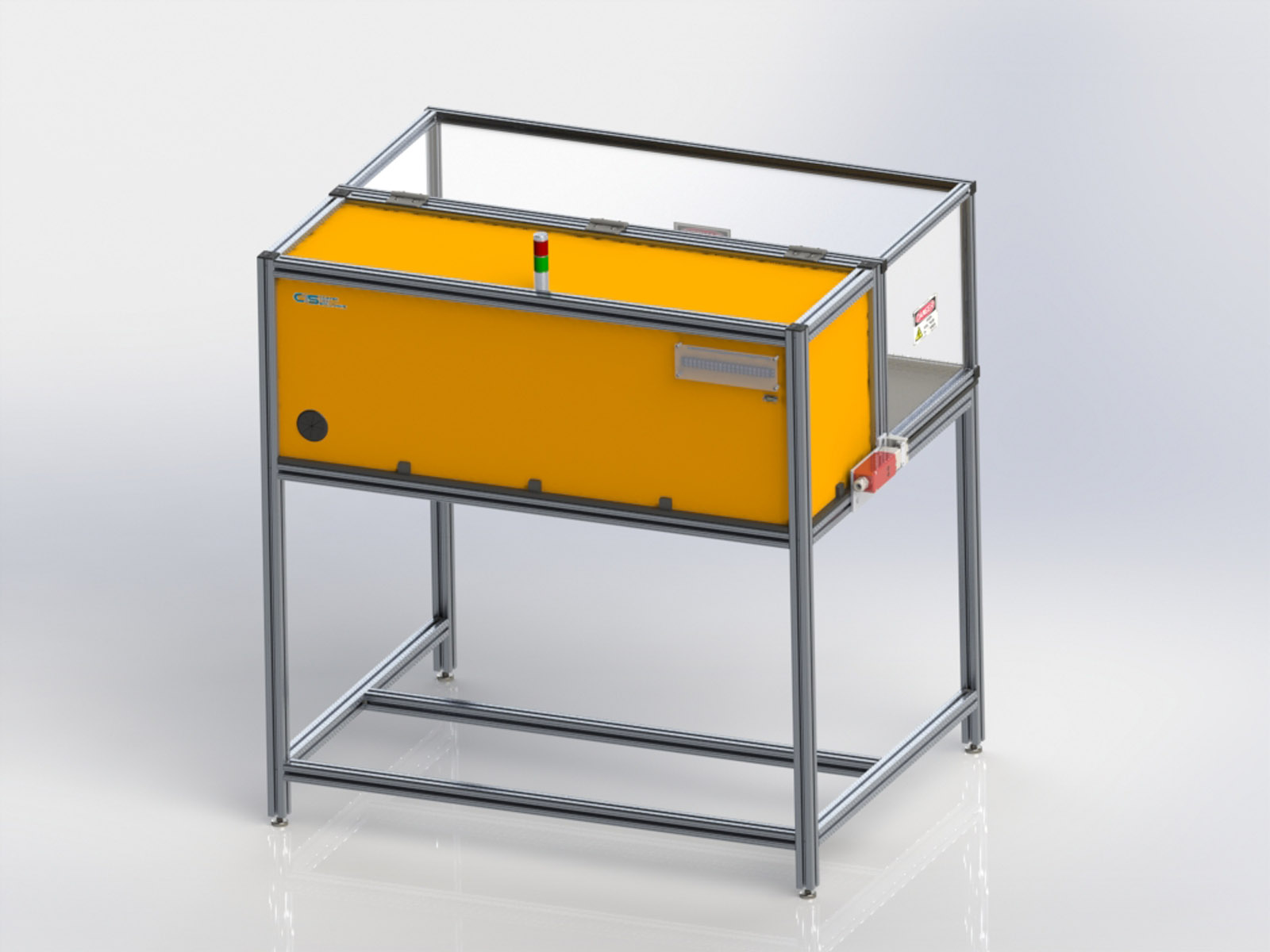

Hipot Electrical Safety Enclosure SE4836XL

Model #: SE4836XL

$7,500.00 $7,500.00

Probe Specification

  • Outside Dimensions

    48” wide x 36” deep x 49.5” high
  • Inside Dimensions

    45” wide x 34.75” deep x 15.75” high
  • Work Surface

    32.2”
  • Weight

    255lbs
  • Tester compatibility

    Most HiPot Testers are able to hook up to enclosure

Cortek Test Solutions HiPot test enclosure SE 4836XL is our largest off-the-shelf unit and is available with or without freestanding legs and instrumentation racks. This Personal Protective Equipment (PPE) is often integrated with Automated Test Equipment (ATE) and used to test large DUTs.  Examples of such products are batteries found in the Electric Vehicle industry, large cables/wires and Healthcare medical devices such as ventilators.

Key Features:

  • Aluminum frame construction
  • Acrylic Cover
  • Magnetic Interlock Safety Switch
  • Chassis Ground Wire Connection to be hooked up by customer
  • Yellow Safety Panels
  • 20 Position Terminal Block with Removeable Cover
  • 9 pin D-Sub Connector
  • 2” Flexible Grommet for pass through cables
  • Large-Wide opening for ease of loading and unloading UUT
  • [3] High voltage Test Area Stickers
  • Custom Sizes Available. Easily Adaptable to smaller or larger non-standard applications

Options:

  • Safety Light Tower – Red/Green, Red/Yellow/Green
  • Start Stop Switch Buttons
  • E-Stop
  • Extra Grommets – 1, 2, 3, 4
  • Insulation Mat
  • Instrument Shelf – 1,2
