Hipot Electrical Safety Enclosure with Stand SE2420ST

Model #: SE2420ST

$3,850.00 $3,850.00

- +
Looking for a Custom Solution? Get a Free Quote

Fulfillment note:

Freight Fee incurred and charged separately once determined.

Various lead times may apply to this product. Please contact us for more details.

Description

Introducing Cortek Test Solutions DUT HiPot Safety Enclosures – the reliable solution for electrical safety testing of products. These enclosures act as Personal Protective Equipment (PPE) to prevent electrical shocks when used correctly. They feature a magnetic safety interlock switch and chassis ground connection to ensure safe operation. The enclosures are easily scalable in the X, Y, and Z axes to accommodate the required testable area. You can choose from our standard sizes or request a custom quote for a perfect fit. Ensure safety and accuracy with Cortek Test Solutions DUT HiPot Safety Enclosures.

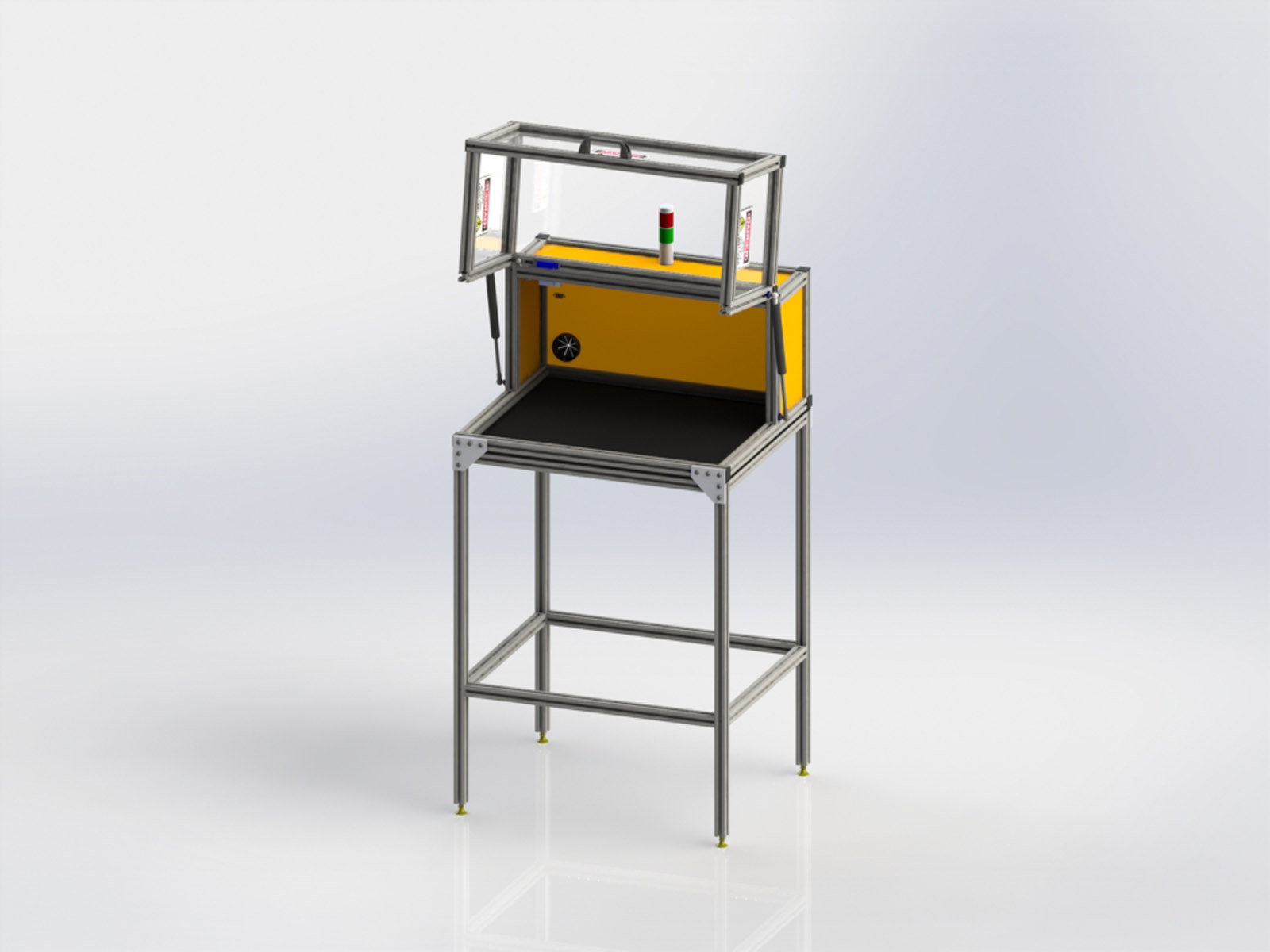

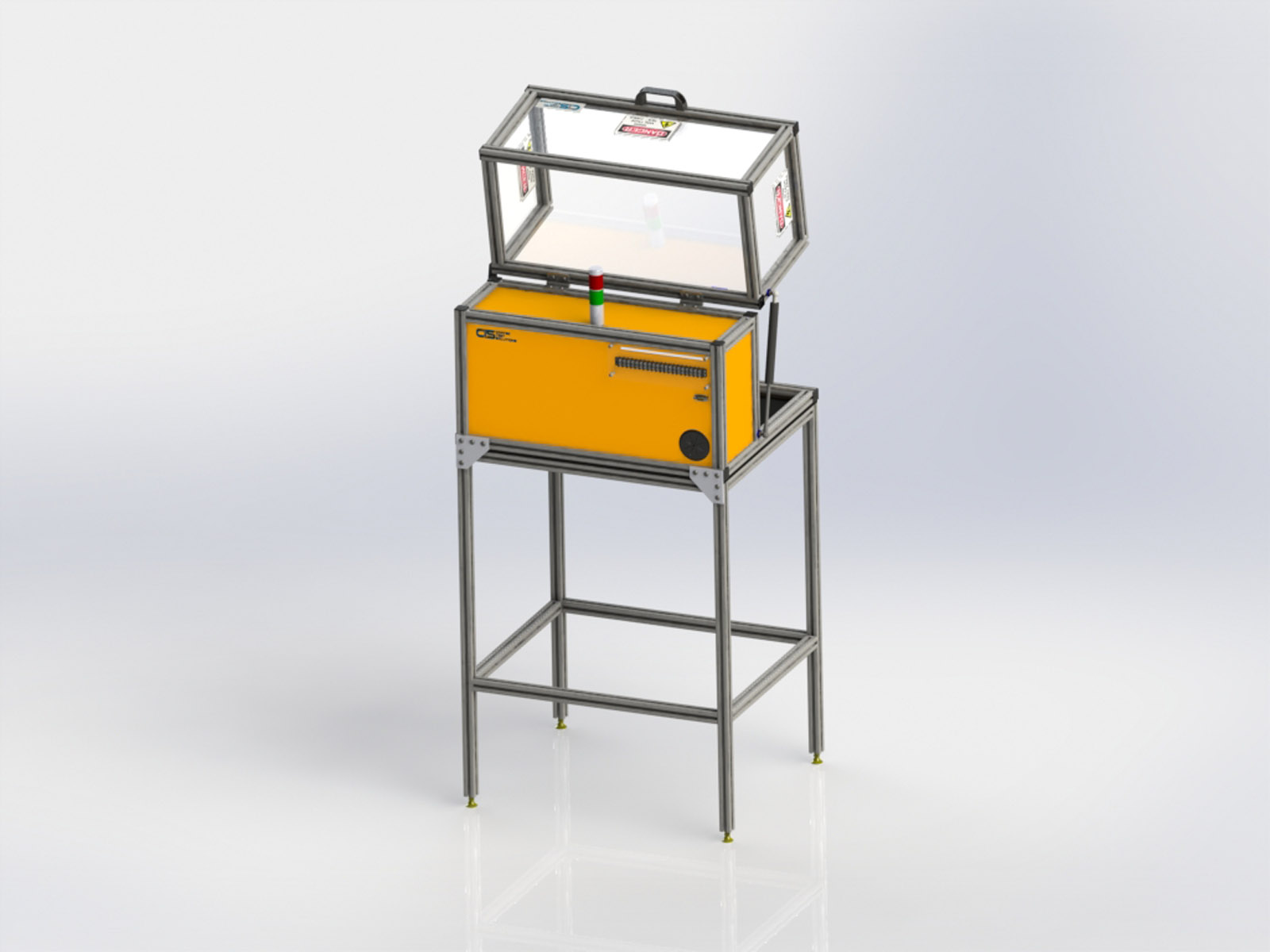

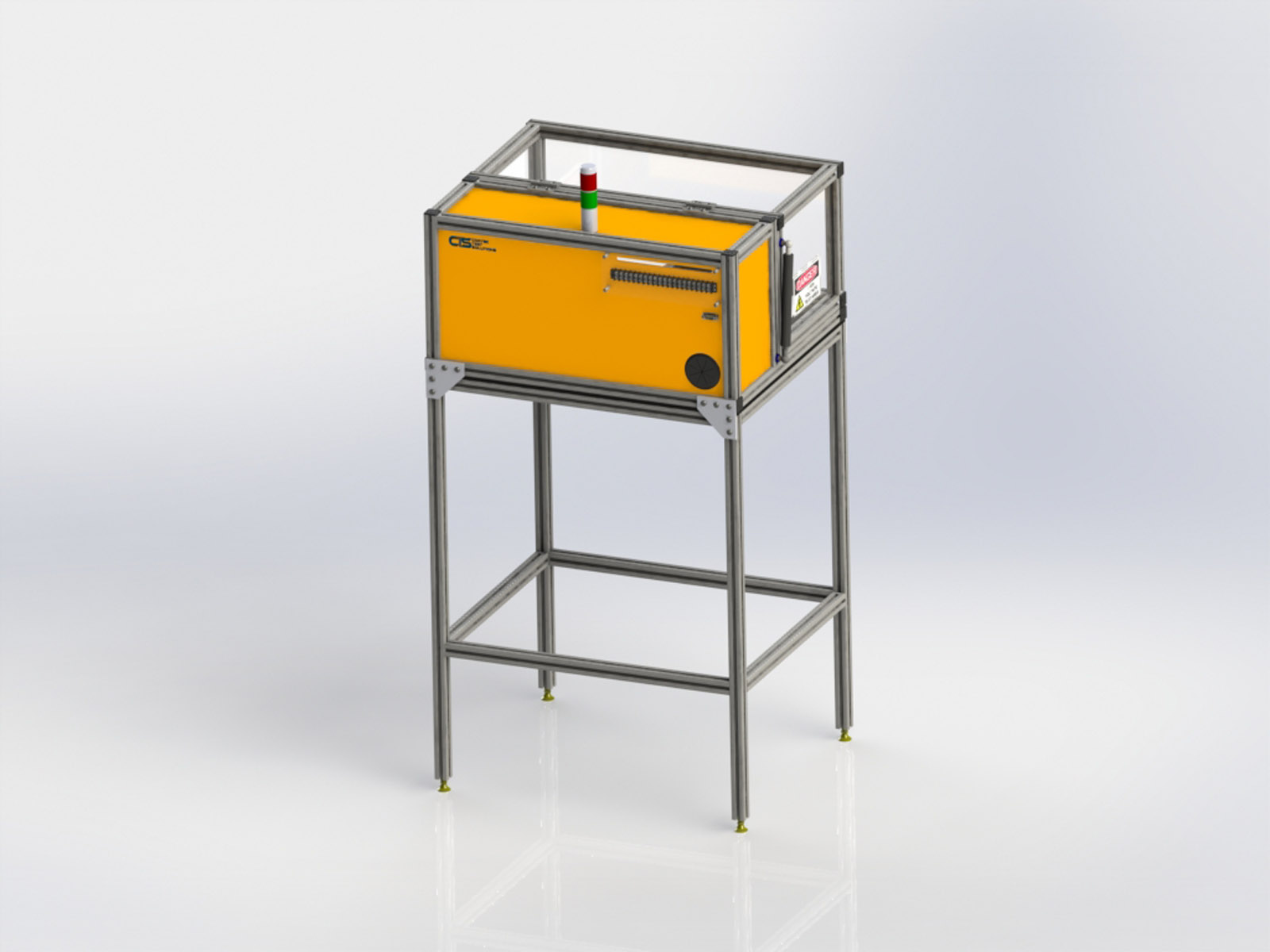

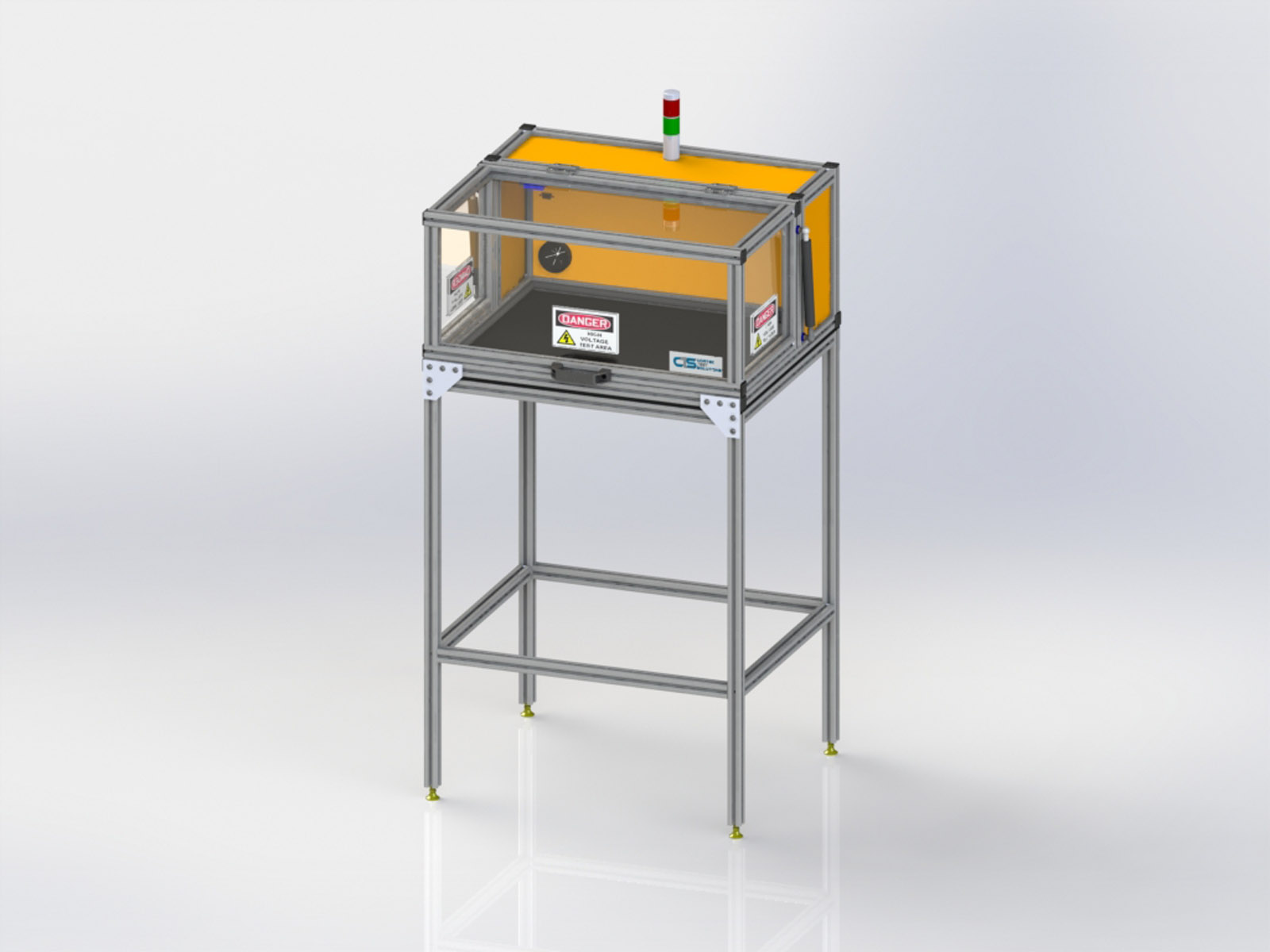

When you don’t have the space available on your benchtop, CTS offers a free-standing Safety Enclosure with leveling feet. This unit comes with all the same safety features as our other units including magnetic interlock switch and ground lug for hook up.

Specifications

  • Unit Outside Dimensions: 24” wide x 20” deep x 45” high
  • Enclosure Inside Dimensions: 21” wide x 17” deep x 11” high
  • Weight: 41 lbs.
  • Tester compatibility: Most HiPot Testers are able to hook up to enclosure

Features

  • Constructed with a sturdy aluminum frame for durability.
  • Features an acrylic cover for visibility and protection.
  • Equipped with a magnetic interlock safety switch for enhanced safety.
  • Chassis ground wire connection provided for customer installation.
  • Enhanced safety with yellow safety panels.
  • Includes a 20-position terminal block with a removable cover.
  • Incorporates a 9-pin D-Sub connector.
  • Features a 2" flexible grommet to facilitate cable pass-through.
  • Provides a large-wide opening for convenient loading and unloading of the Unit Under Test (UUT).
  • Includes three high voltage test area stickers.
  • Custom sizes are available, allowing for easy adaptation to smaller or larger non-standard applications.

Options

  • Safety Light Tower – Red/Green, Red/Yellow/Green
  • Start Stop Switch Buttons
  • E-Stop
  • Extra Grommets – 1, 2, 3, 4
  • Insulation Mat
  • Instrument Shelf – 1,2
  • Solenoid Safety Switch, Tongue/Key Interlock; locks cover during test
