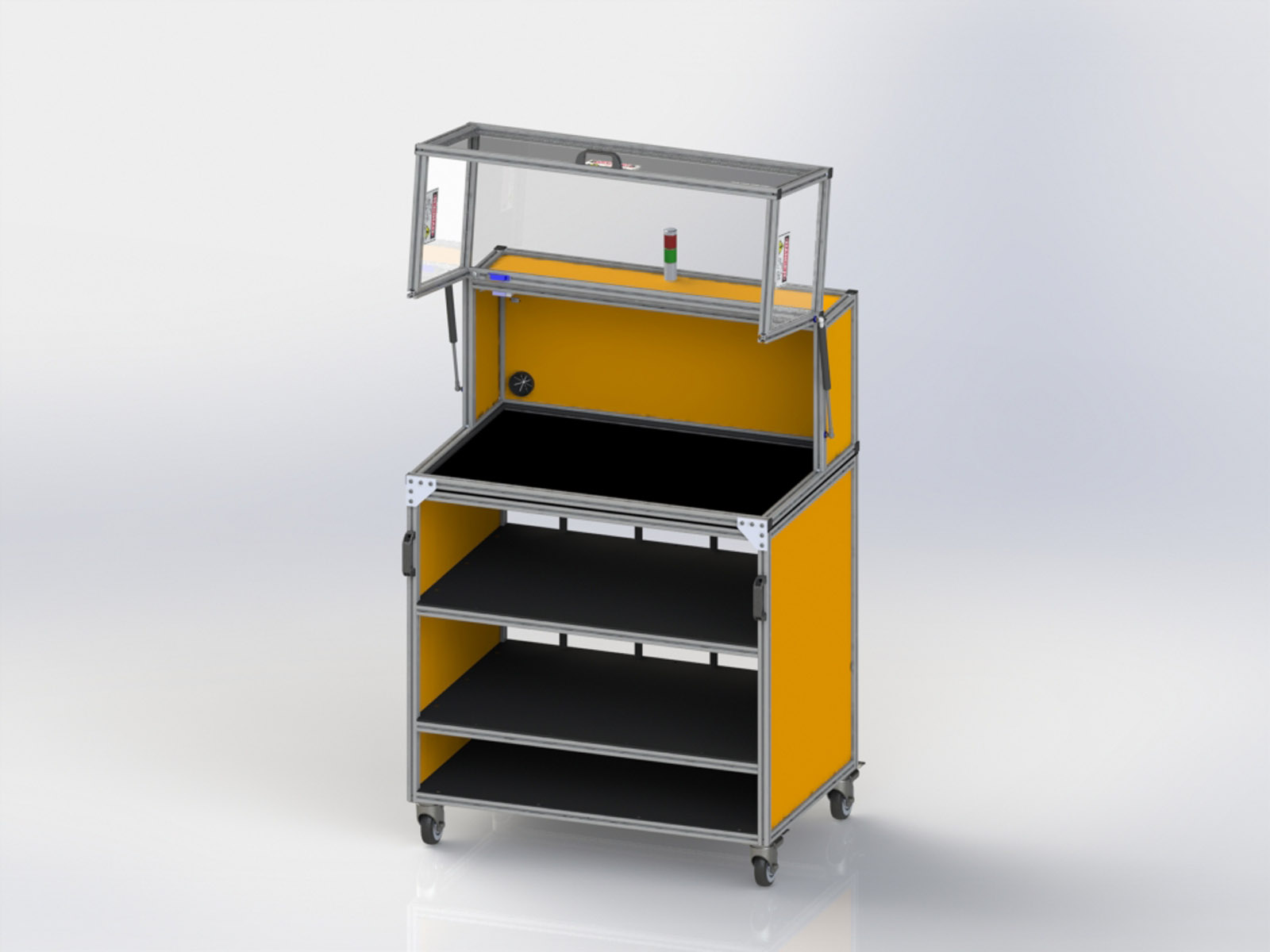

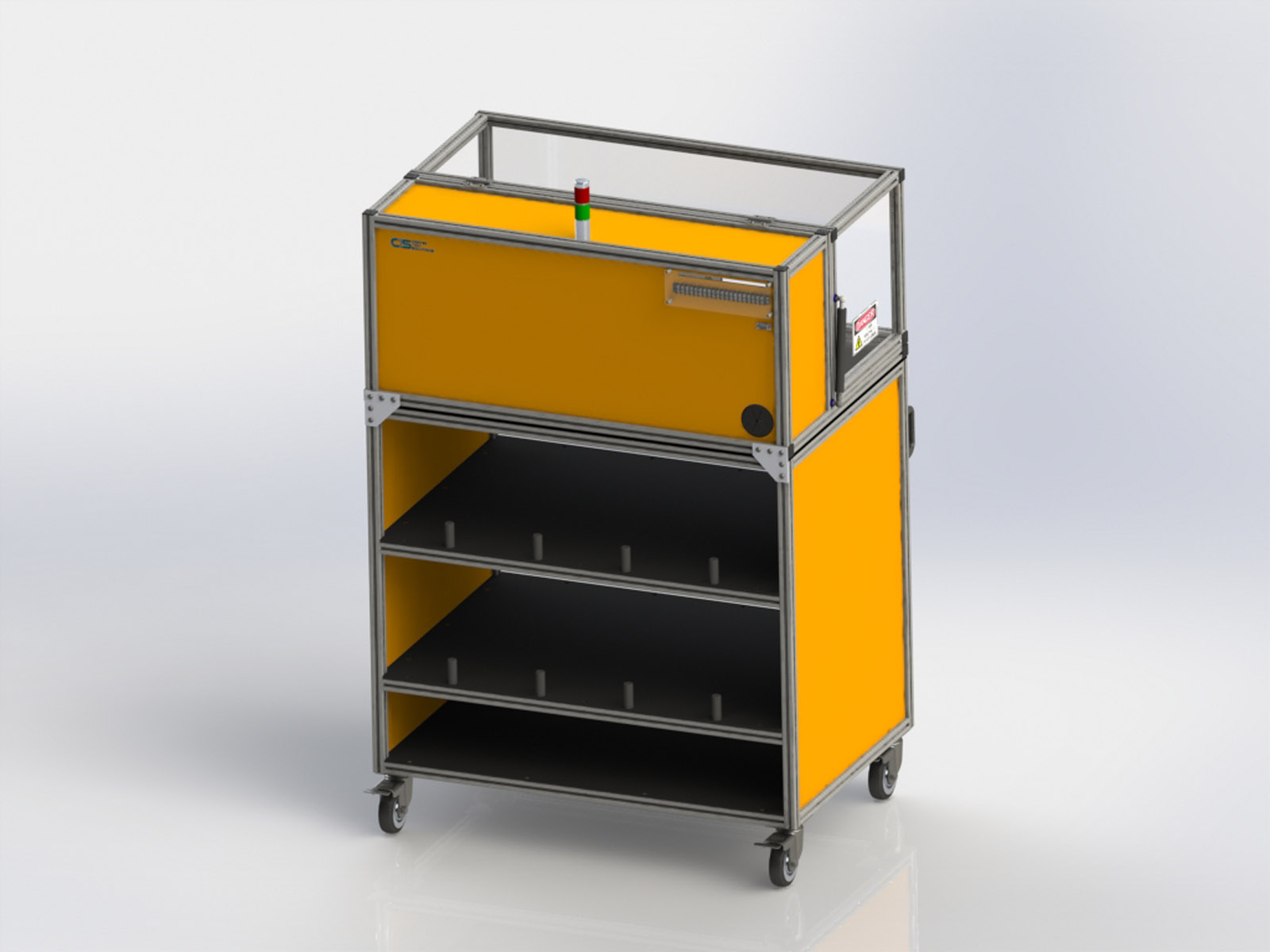

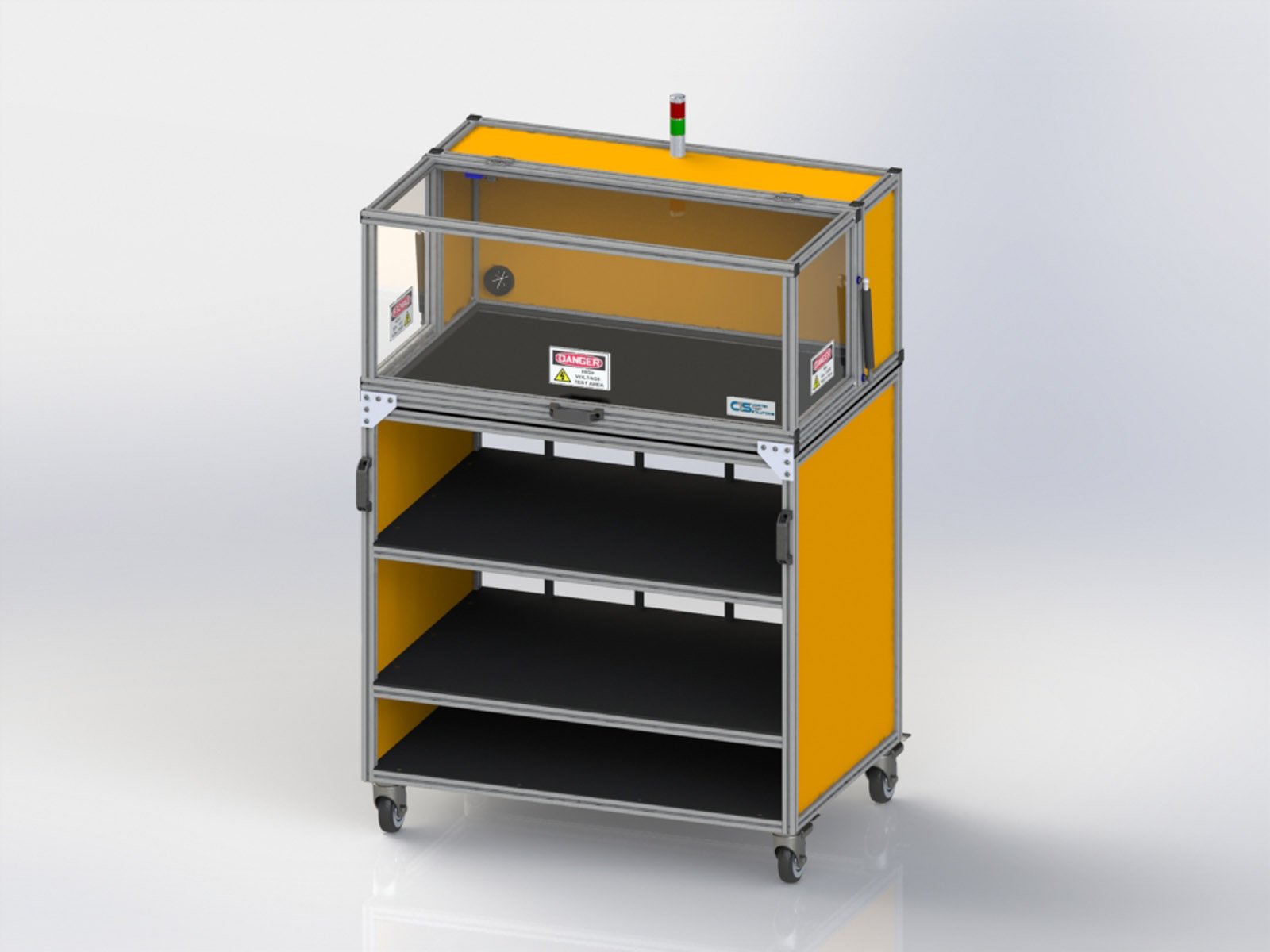

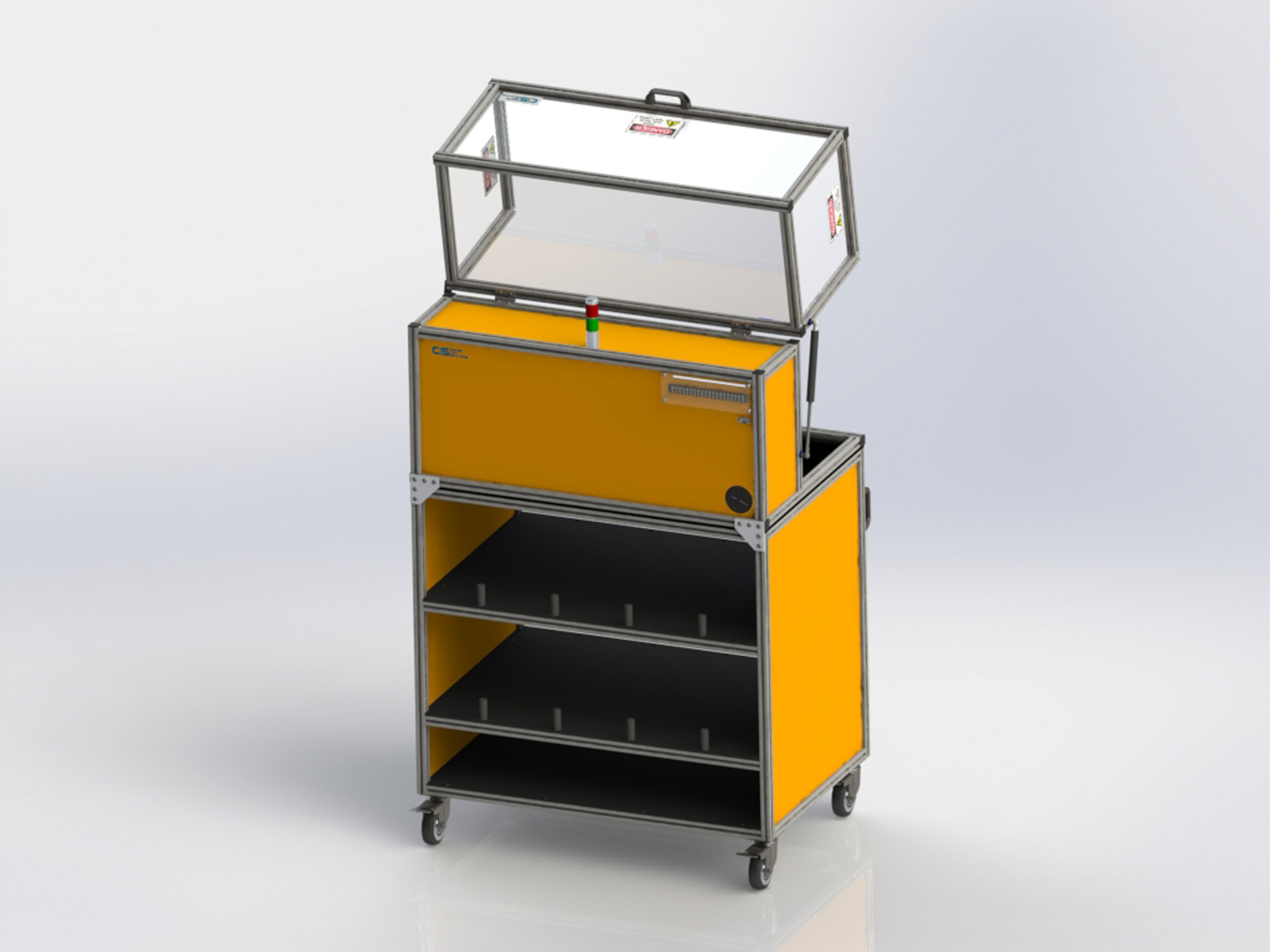

HiPot Electrical Safety Enclosure with Cart SE3624CT

Model #: SE3624CT

$6,050.00 $6,050.00

- +
Looking for a Custom Solution? Get a Free Quote

Fulfillment note:

Freight Fee incurred and charged separately once determined.

Various lead times may apply to this product. Please contact us for more details.

Description

Presenting our cutting-edge solution for ensuring electrical safety during product testing. These enclosures serve as essential Personal Protective Equipment (PPE) to protect against electrical shocks effectively. Equipped with a magnetic safety interlock switch and chassis ground connection, they ensure safe operation without any compromises. Versatility is key, and our enclosures can be effortlessly scaled in the X, Y, and Z axes to match the required testable area perfectly. Choose from our standard sizes or request a custom quote for a seamless fit.

The CTS Hipot Electrical Safety Enclosure with Cart is ideal for those who require mobility and storage for their instruments. This is our medium-sized cart unit, equipped with locking casters and handles for easy maneuvering. In addition, it includes standard features such as a magnetic interlock switch and a chassis ground lug for connection.

Specifications

  • Unit Outside Dimensions: 36” wide x 24” deep x 52.5” high
  • Enclosure Inside Dimensions: 33” wide x 21” deep x 14.625” high
  • Weight: 102 lbs.
  • Tester compatibility: Most HiPot Testers are able to hook up to enclosure

Features

  • Constructed with a durable aluminum frame for enhanced strength and reliability.
  • Features an acrylic cover for visibility and protection.
  • Equipped with a magnetic interlock safety switch for added security.
  • The chassis ground wire connection can be easily connected by the customer.
  • Enhanced safety with yellow safety panels.
  • Includes a 20 position terminal block with a removable cover.
  • Offers a 9-pin D-Sub connector.
  • Features a 2" flexible grommet for easy cable pass-through.
  • Provides a large-wide opening for effortless loading and unloading of the UUT.
  • Includes [3] high voltage test area stickers for clear identification.
  • Custom sizes are available, allowing for easy adaptation to smaller or larger non-standard applications.

Options

  • Safety Light Tower – Red/Green, Red/Yellow/Green
  • Start Stop Switch Buttons
  • E-Stop
  • Extra Grommets – 1, 2, 3, 4
  • Insulation Mat
  • Instrument Shelf – 1,2
  • Solenoid Safety Switch, Tongue/Key Interlock; locks cover during test
