Hipot Electrical Safety Enclosure SE3624

Model #: SE3624

$4,500.00 $4,500.00

- +
Looking for a Custom Solution? Get a Free Quote

Fulfillment note:

Various lead times may apply to this product. Please contact us for more details.

Description

Discover Cortek Test Solutions DUT HiPot Safety Enclosures – your ultimate solution for safe electrical testing of products. These enclosures, a form of Personal Protective Equipment (PPE), are meticulously designed to prevent electrical shocks when used correctly. Standard features include a magnetic safety interlock switch and chassis ground connection. Easily scalable in the X, Y, and Z axes to fit your product’s testing needs. If the standard size doesn’t match your requirements, request a custom quote. Ensure safety and precision in your testing processes with Cortek Test Solutions.

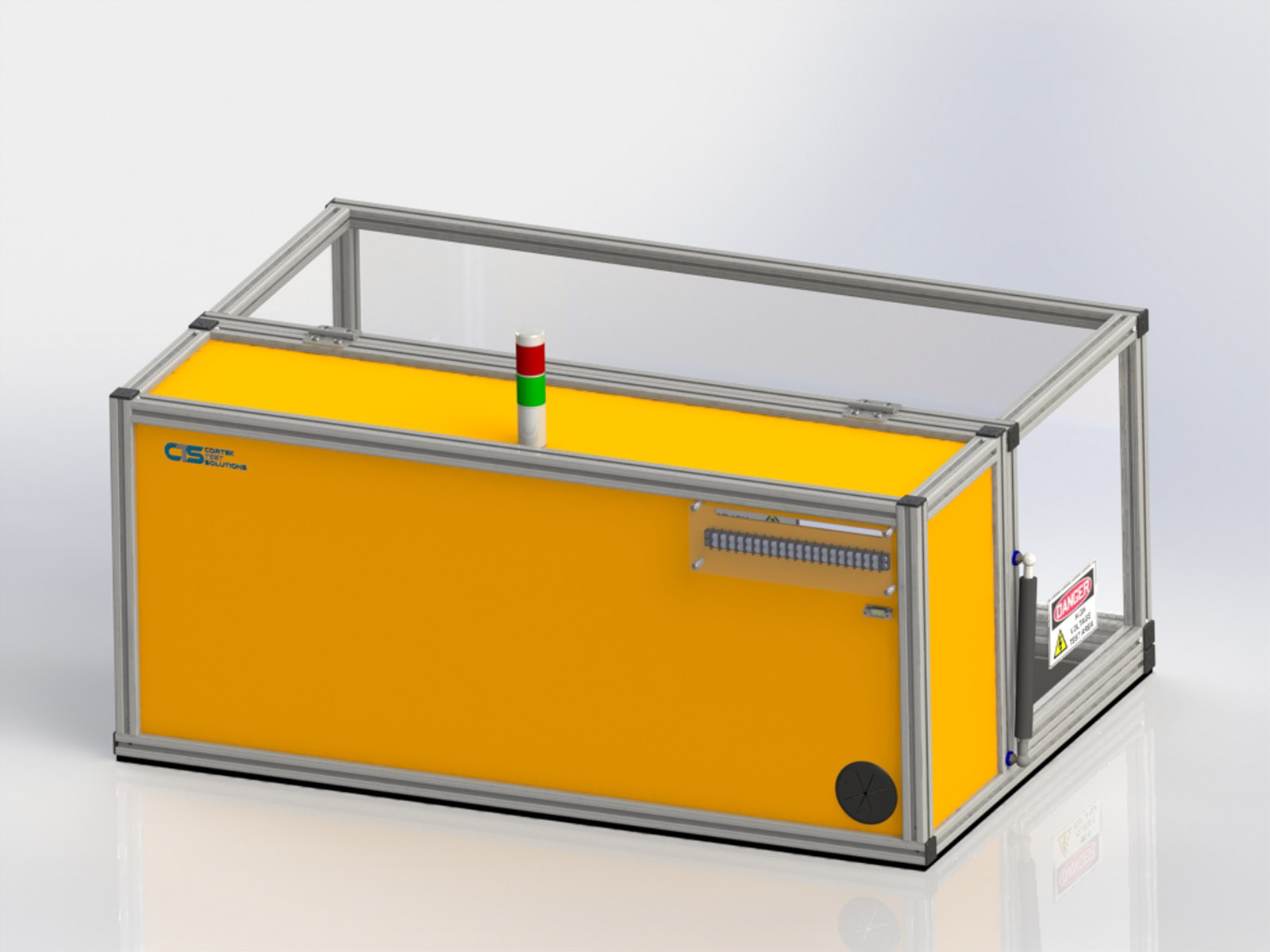

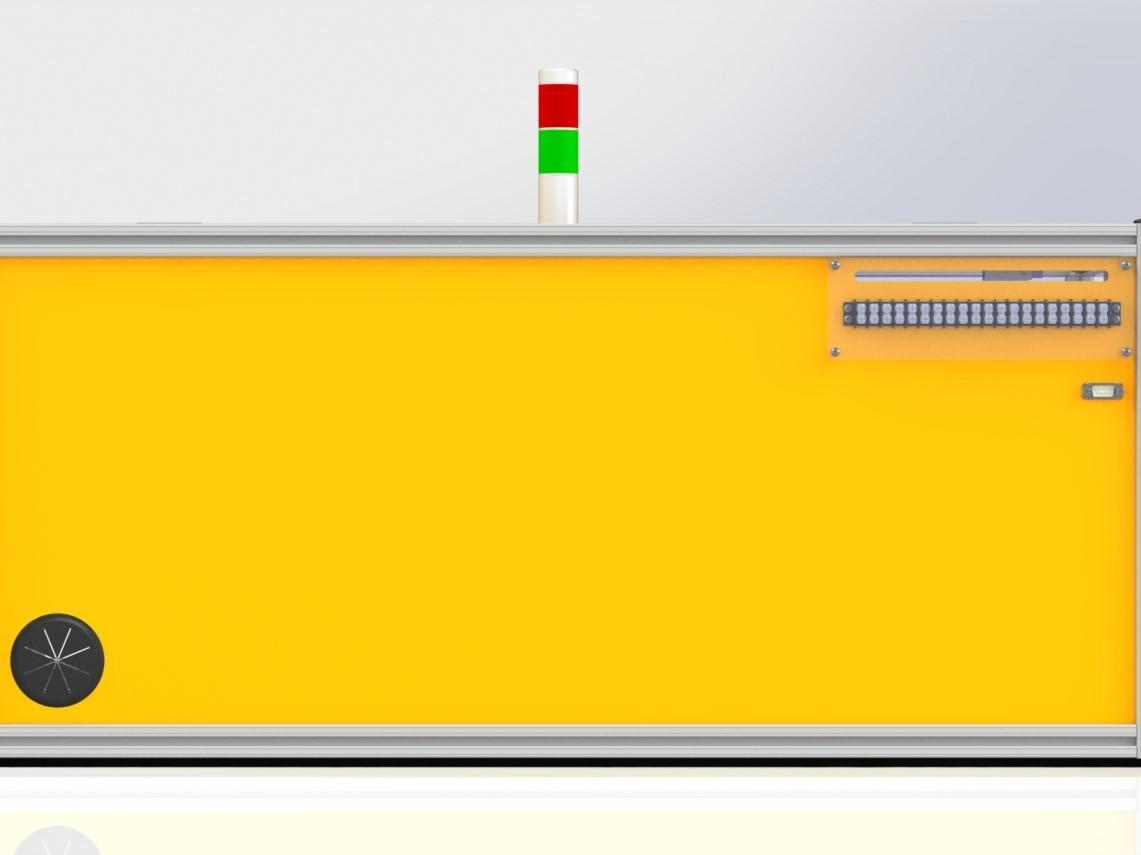

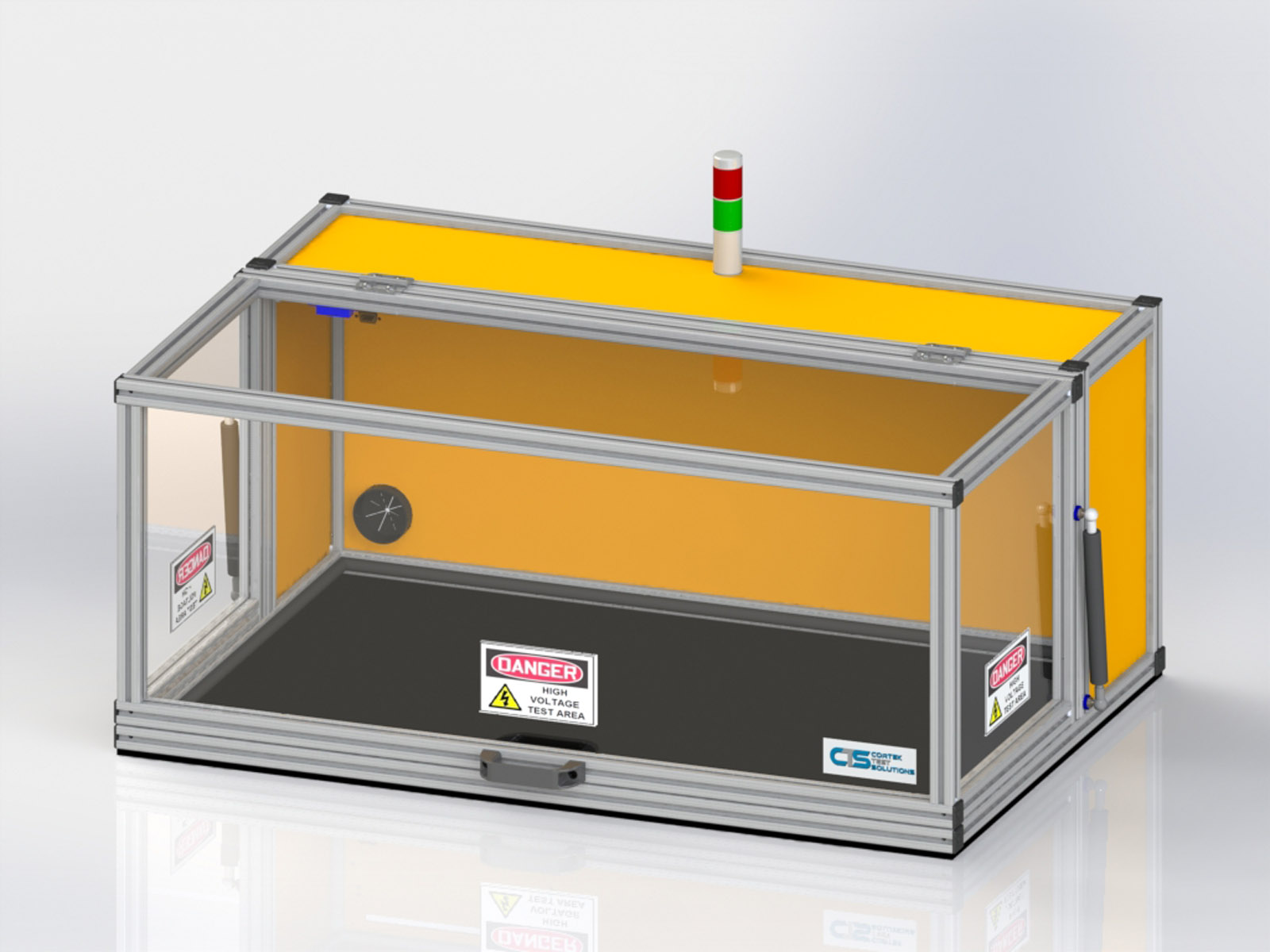

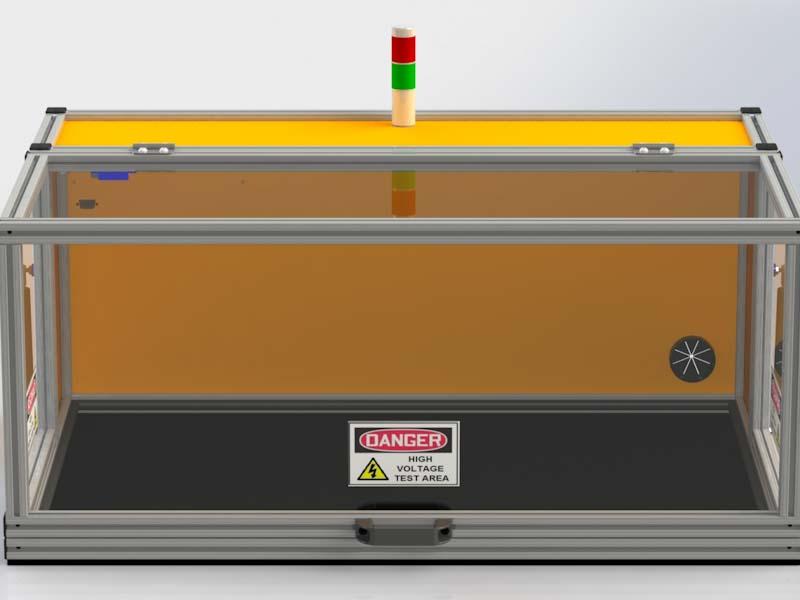

Our SE 3624 enclosure is a mid-sized, high voltage unit that includes a magnetic interlock switch. This feature is designed to ensure the operator’s safety. The CTS unit is versatile and can test various equipment, such as cable assemblies, LED lights, larger medical devices, as well as HiPot testers and electrical safety test systems.

Specifications

image of SE-3624-Dimentsions

Features

  • Constructed with a sturdy aluminum frame for durability.
  • Features an acrylic cover for protection and visibility.
  • Equipped with a magnetic interlock safety switch for enhanced safety measures.
  • Customer is responsible for connecting the chassis ground wire.
  • Incorporates yellow safety panels for increased visibility
  • Includes a 20 position terminal block with a removable cover.
  • Features a 9-pin D-Sub connector
  • Provides a 2" flexible grommet for convenient cable pass-through.

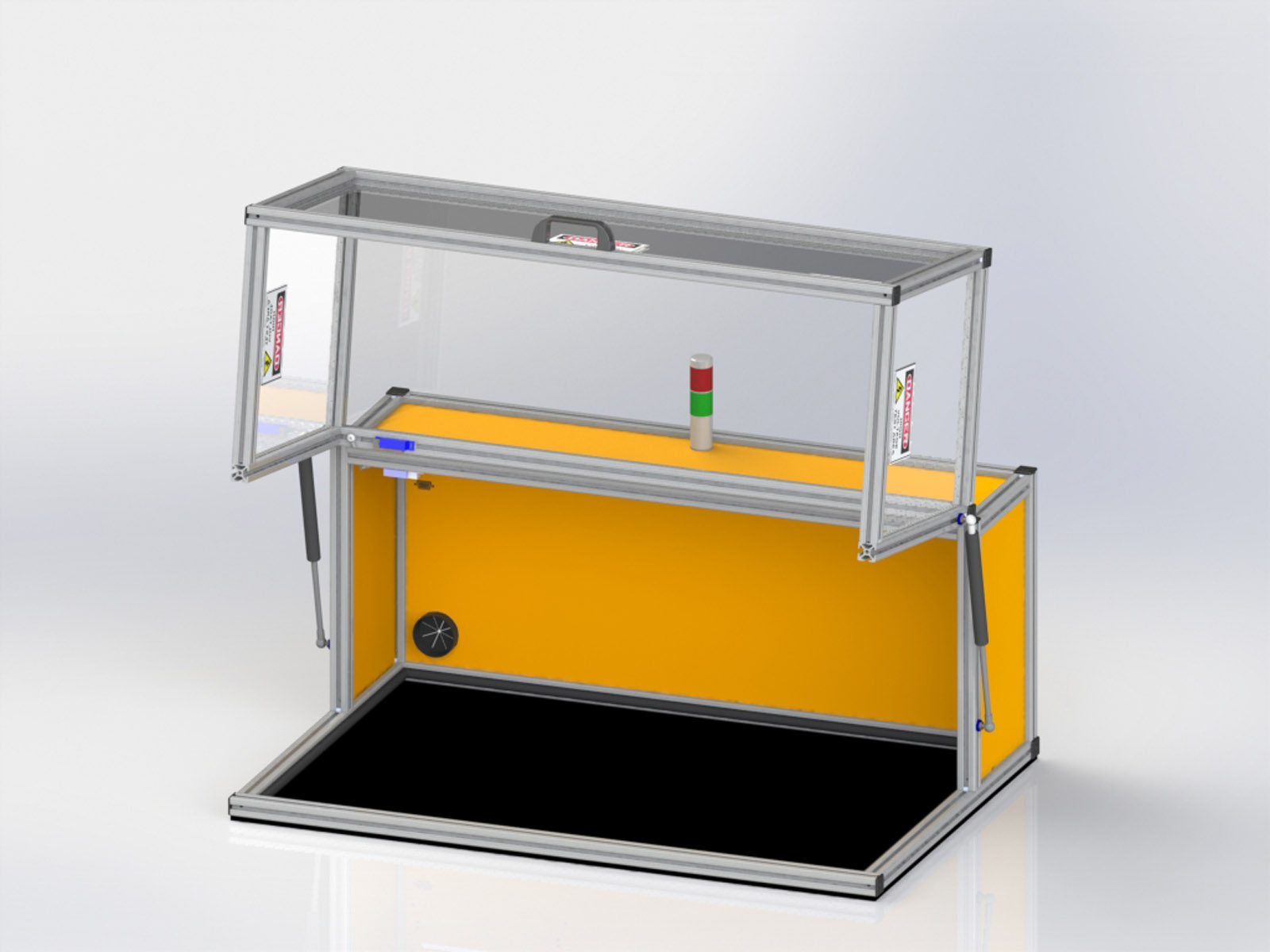

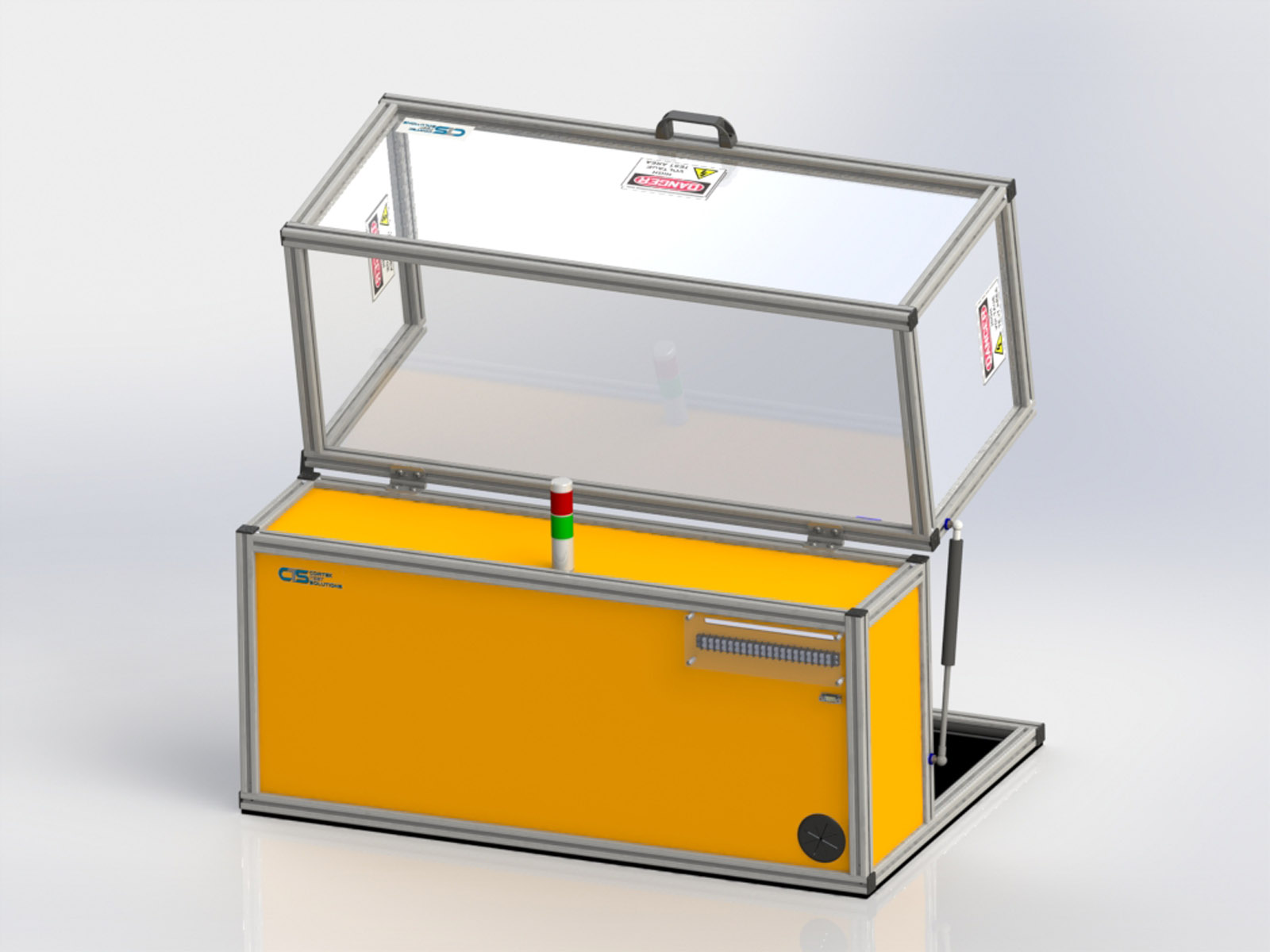

  • Offers a large-wide opening for effortless loading and unloading of the UUT.
  • Includes three high voltage test area stickers for clear identification.
  • Custom sizes are available, allowing easy adaptation to non-standard applications of smaller or larger sizes.

Options

  • Safety Light Tower – Red/Green, Red/Yellow/Green
  • Start Stop Switch Buttons
  • E-Stop
  • Extra Grommets – 1, 2, 3, 4
  • Insulation Mat
  • Instrument Shelf – 1,2
  • Solenoid Safety Switch, Tongue/Key Interlock; locks cover during test
