Hipot Electrical Safety Enclosure SE2420

Model #: SE2420

$3,300.00 $3,300.00

- +
Looking for a Custom Solution? Get a Free Quote

Fulfillment note:

Various lead times may apply to this product. Please contact us for more details.

Description

Introducing Cortek Test Solutions DUT HiPot Safety Enclosures, your reliable electrical safety solution for precise testing. These enclosures, also known as “Personal Protective Equipment” (PPE), prevent electrical shock risks when conducting tests. Our standard HiPot test equipment features a magnetic safety interlock switch and chassis ground connection. Easily scalable in X, Y, and Z axes, they can be customized to fit your product’s testable area. Ensure safety and accuracy in testing with our DUT HiPot Safety Enclosures.

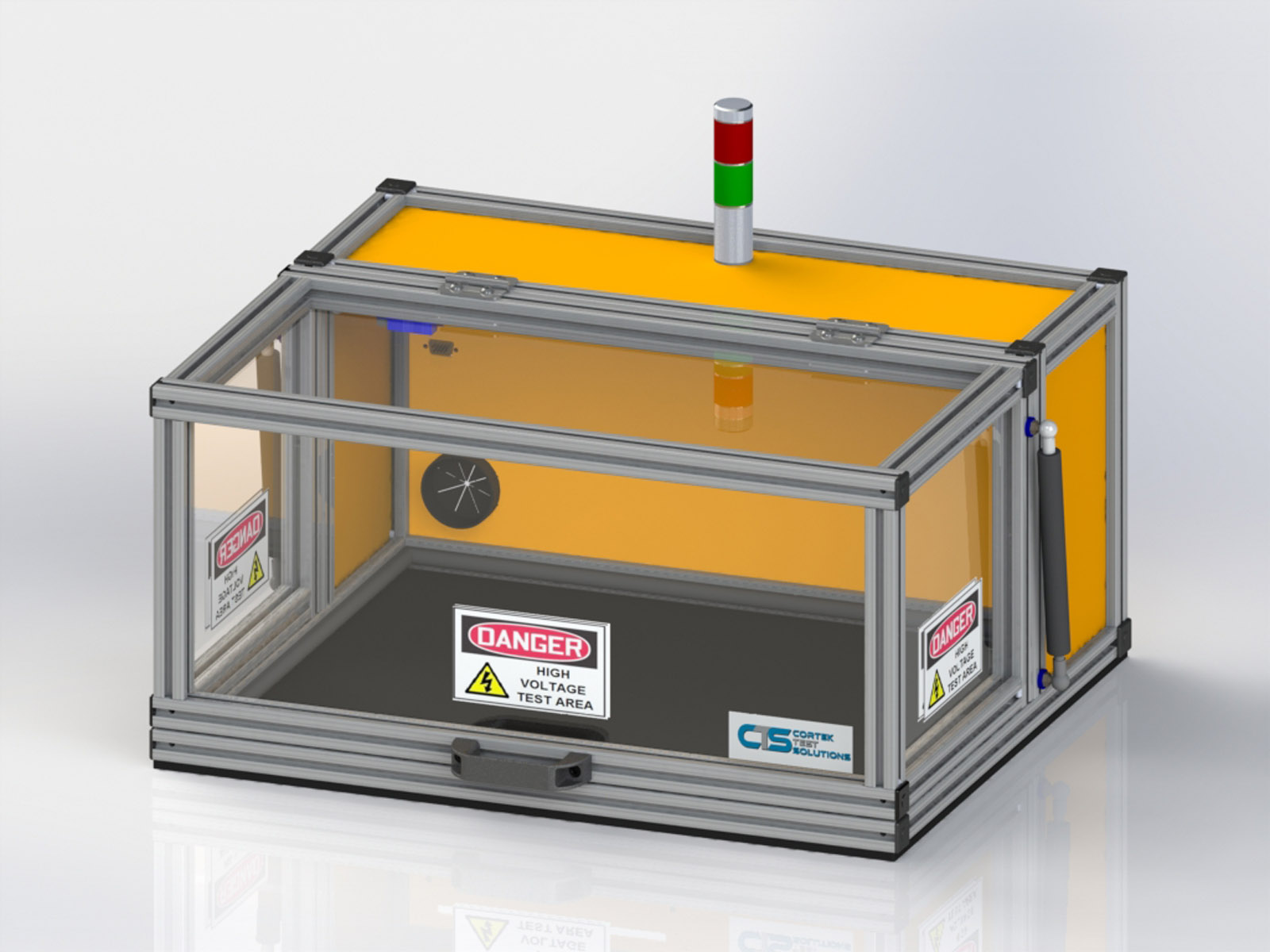

The SE 2420 Hipot Safety Enclosure is designed to prevent electrical shock while operating. It’s perfect for smaller electronic devices, including medical equipment. Cortek Test Solutions’ enclosures are easily adjustable for both smaller and larger UUTs.





Specifications

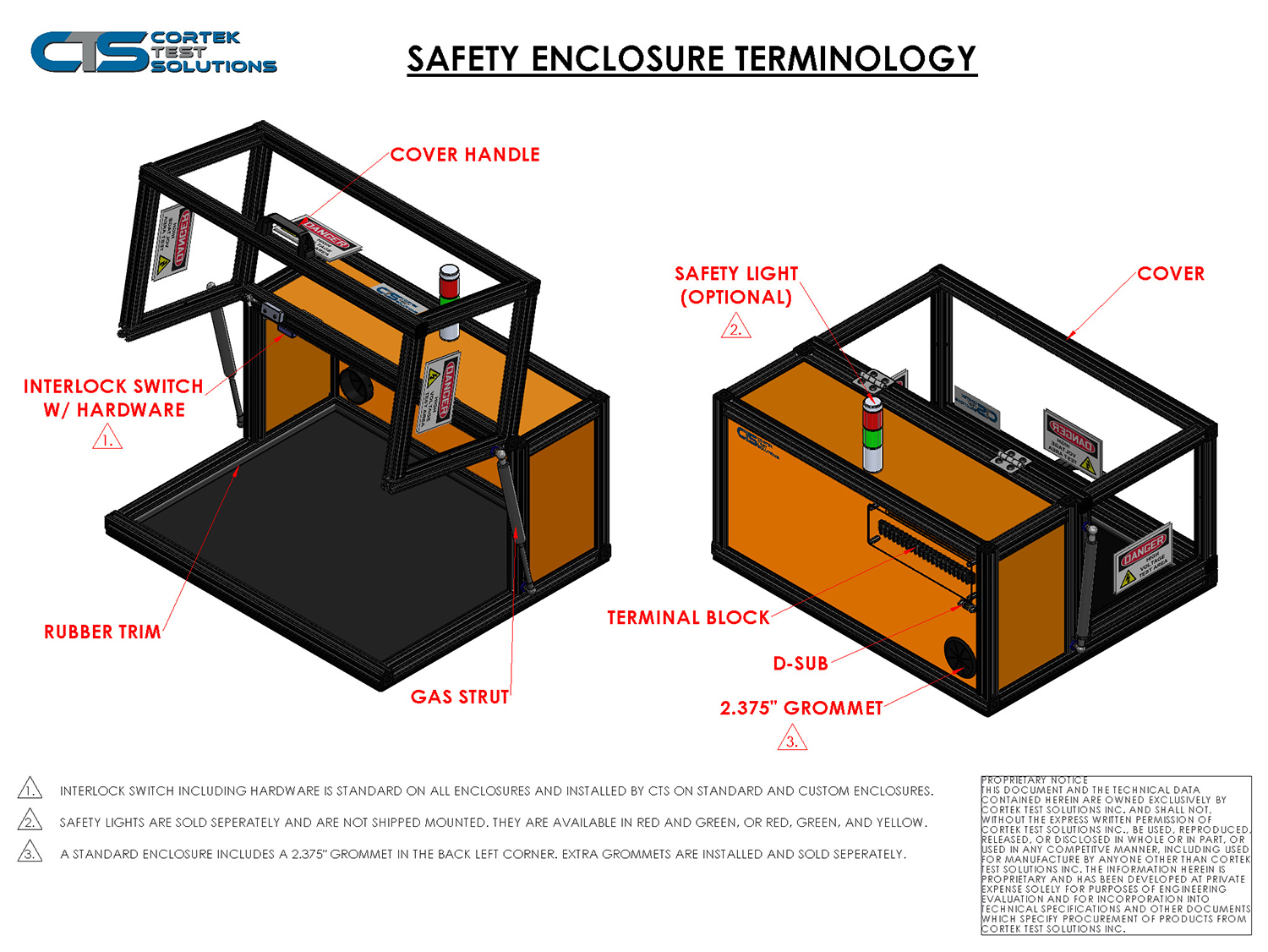

Features

  • Aluminum frame construction
  • Acrylic Cover
  • Magnetic Interlock Safety Switch
  • Chassis Ground Wire Connection to be hooked up by the customer
  • Yellow Safety Panels

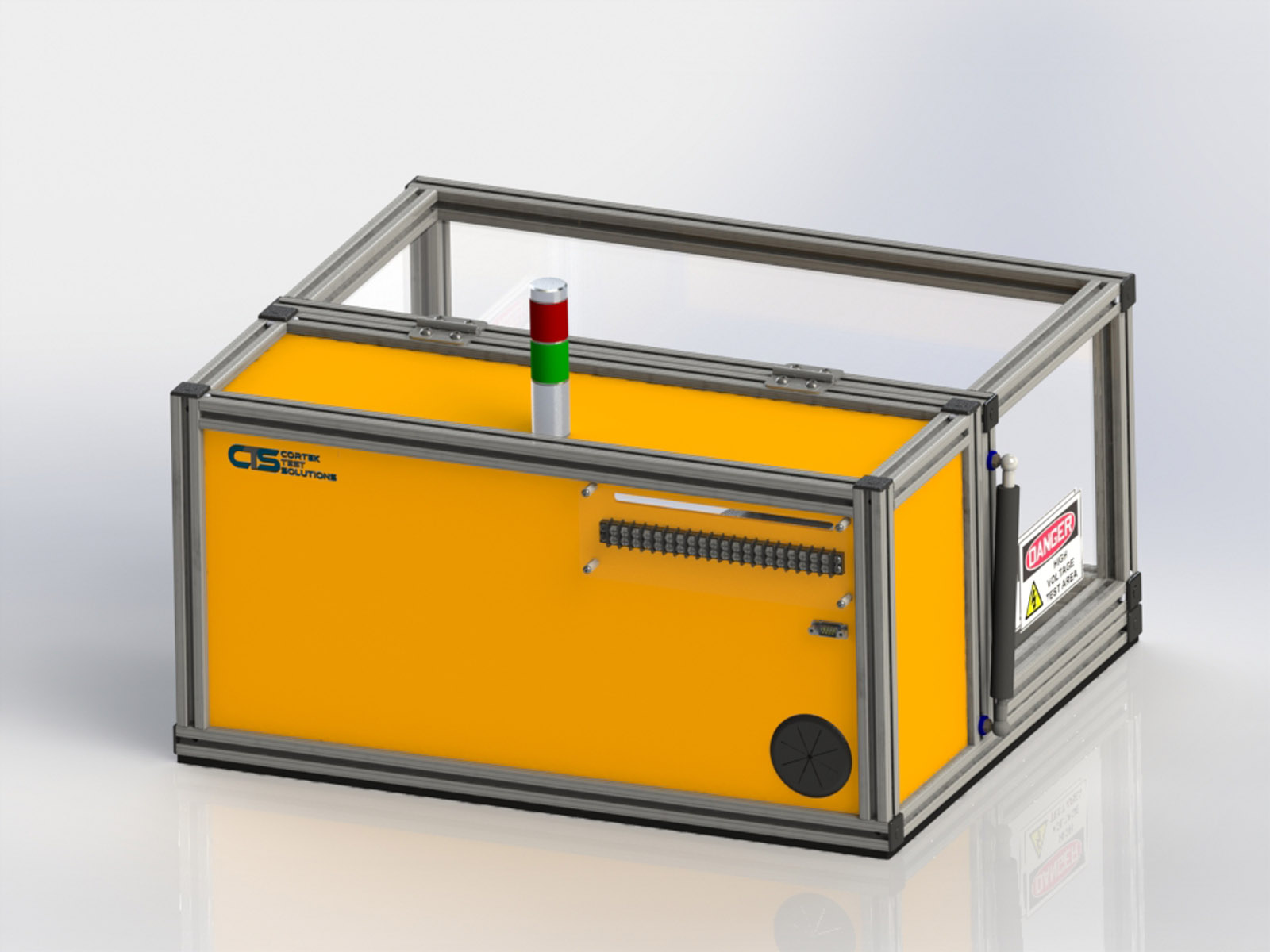

  • 20 Position Terminal Block with Removeable Cover
  • 9-pin D-Sub Connector
  • 2” Flexible Grommet for pass through cables

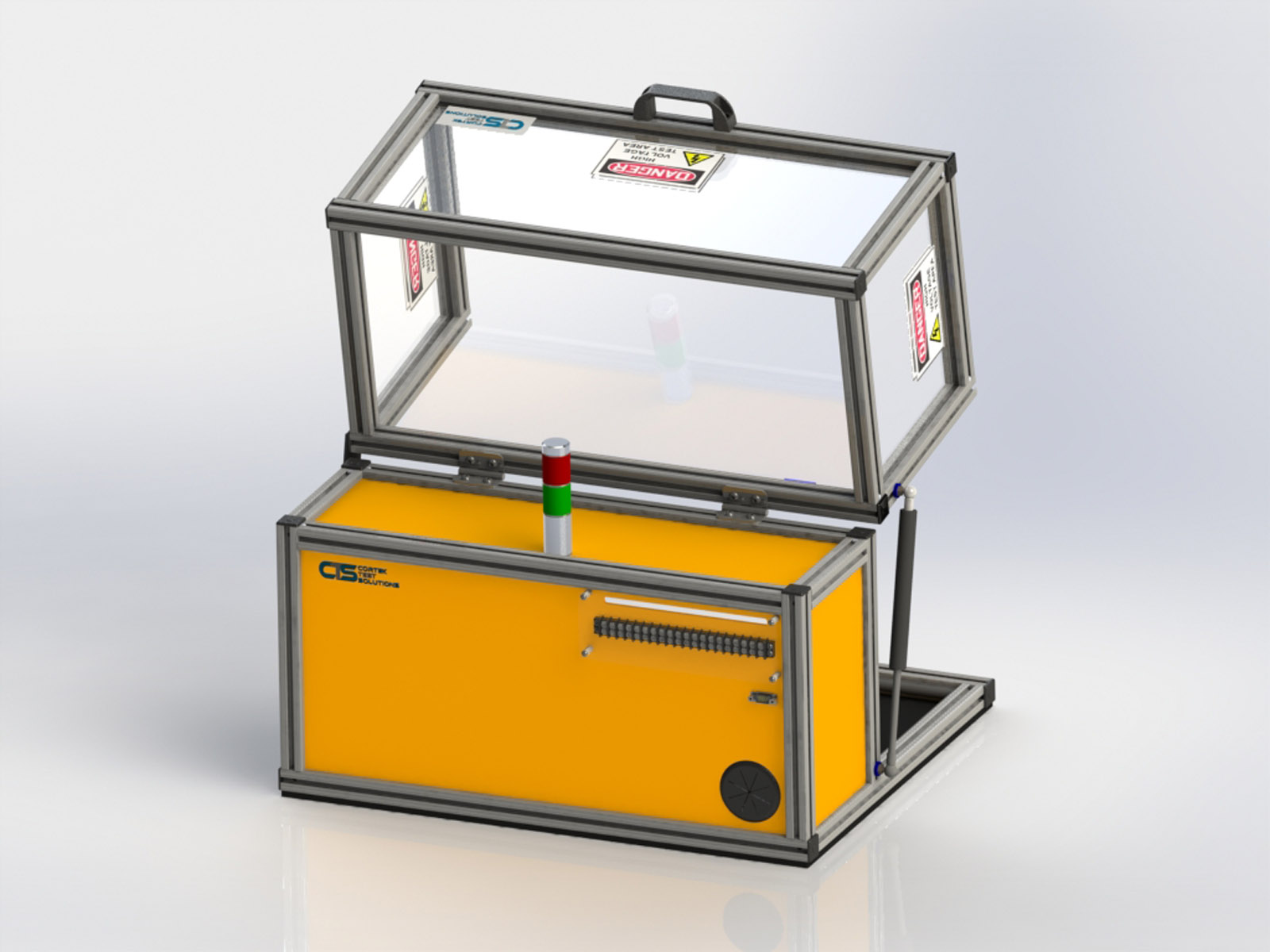

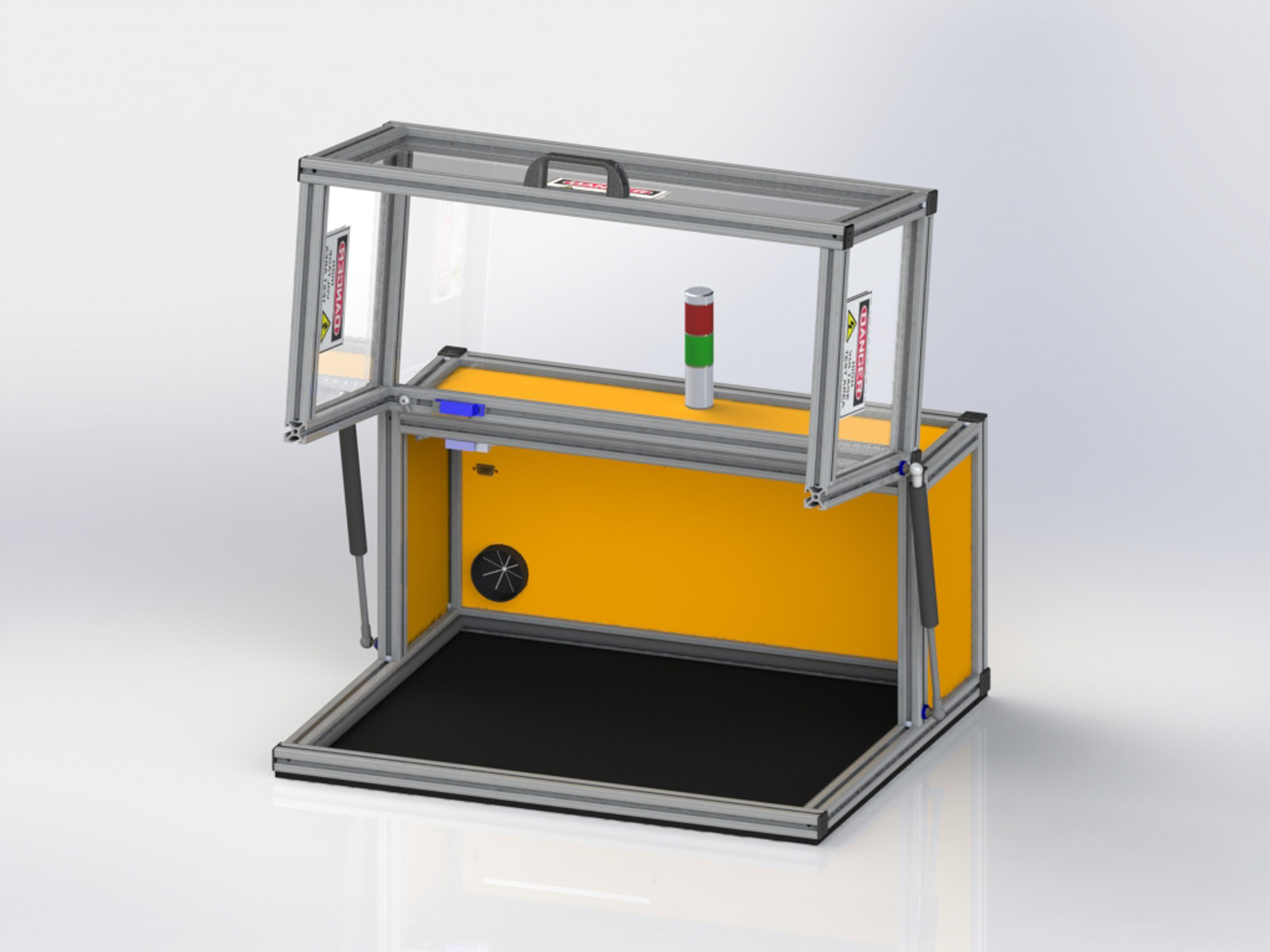

  • Large-Wide opening for ease of loading and unloading UUT
  • [3] High voltage Test Area Stickers
  • Custom Sizes Available.  Easily Adaptable to smaller or larger non-standard applications

Options

  • Safety Light Tower – Red/Green, Red/Yellow/Green
  • Start Stop Switch Buttons
  • E-Stop
  • Extra Grommets – 1, 2, 3, 4
  • Insulation Mat
  • Instrument Shelf – 1,2
  • Solenoid Safety Switch, Tongue/Key Interlock; locks cover during test
