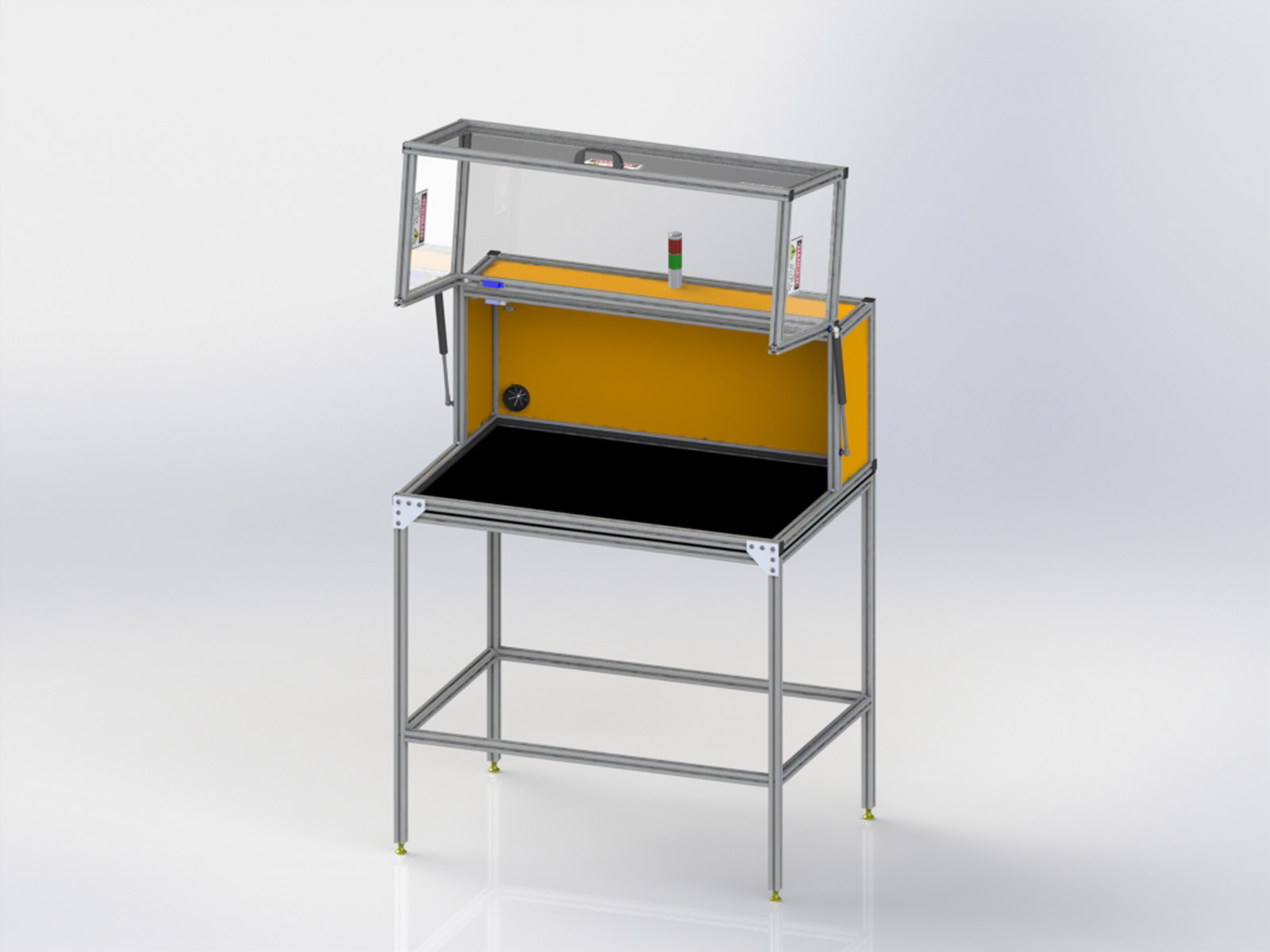

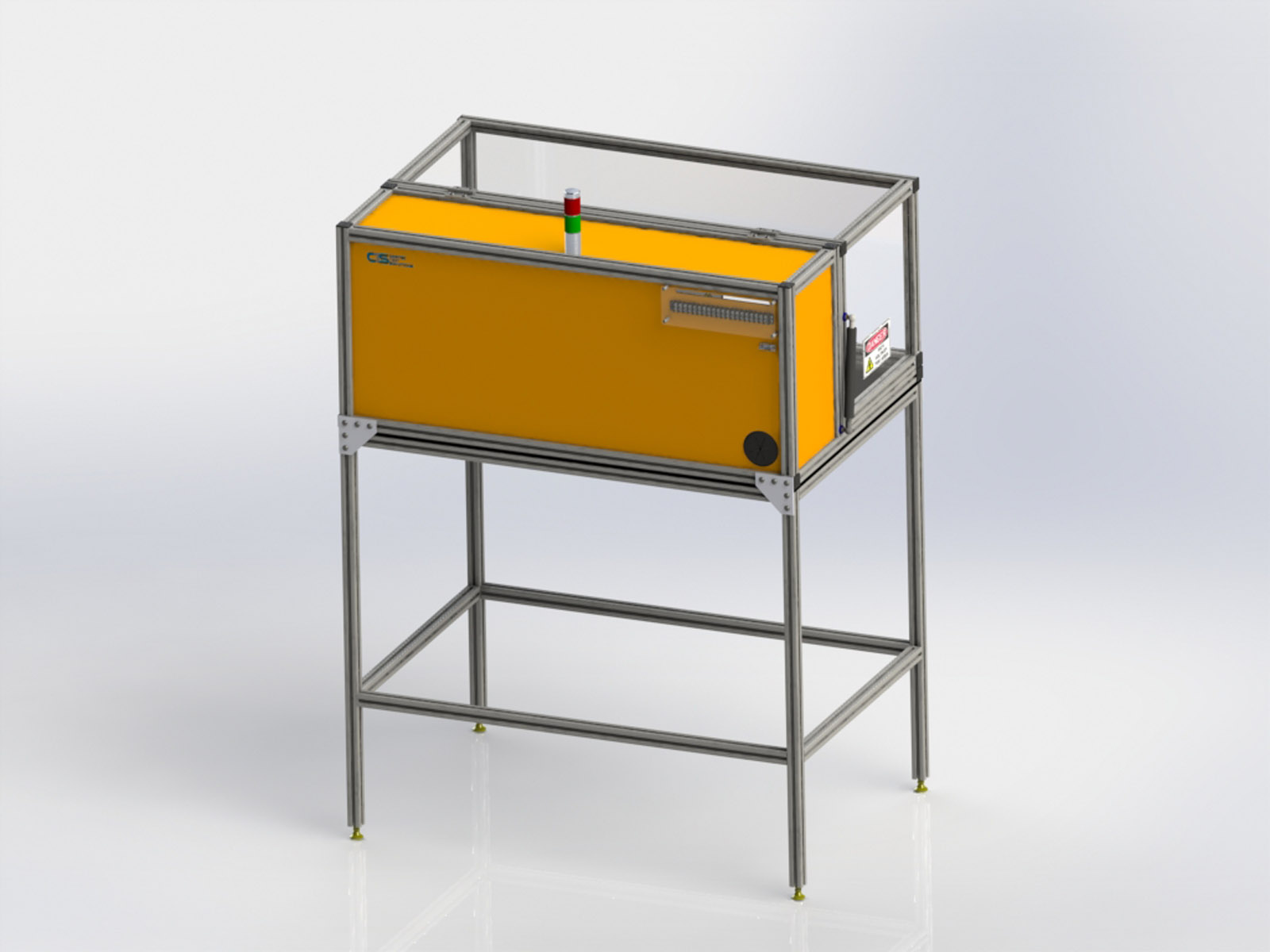

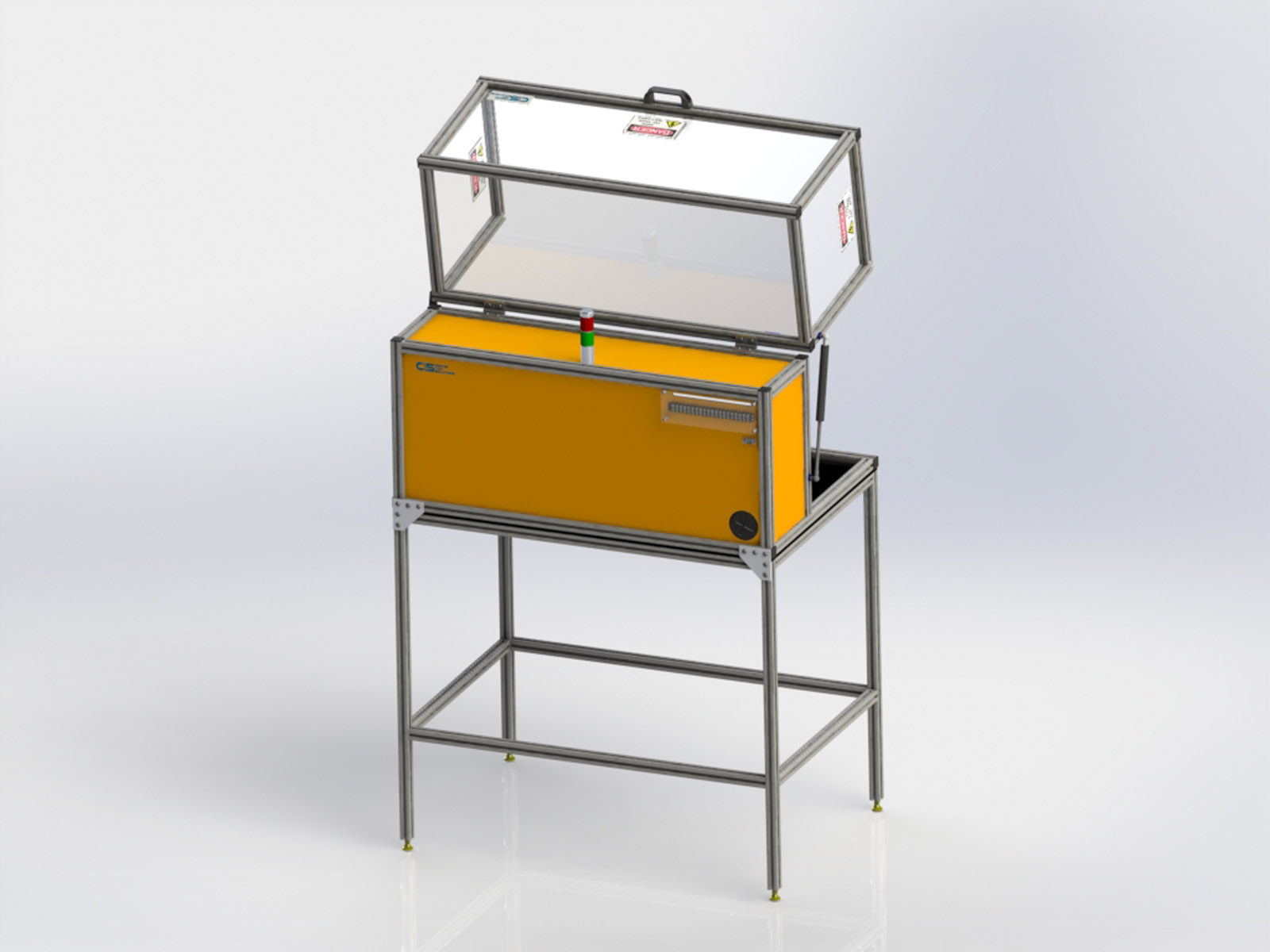

Hipot Electrical Safety Enclosure with Stand SE3624ST

Model #: SE3624ST

$4,950.00 $4,950.00

- +
Looking for a Custom Solution? Get a Free Quote

Fulfillment note:

Freight Fee incurred and charged separately once determined.

Various lead times may apply to this product. Please contact us for more details.

Description

Introducing the solution for electrical safety testing of products. These enclosures are necessary as Personal Protective Equipment (PPE) to prevent electrical shocks. With a magnetic safety interlock switch and chassis ground connection, safe operation is ensured without any exceptions. The enclosures can be easily scaled in the X, Y, and Z axes to accommodate the required testable area. Choose from our standard sizes or request a custom quote for a perfect fit. Safety and accuracy are crucial, and Cortek Test Solutions DUT HiPot Safety Enclosures guarantee uncompromised results.

The SE-3624-ST is a free-standing model from Cortek that is perfect for those who have limited space on their testing benches. It is a mid-sized enclosure that comes equipped with the same ground termination and interlock switch as all other enclosures. These enclosures offer flexibility in the X,Y, and Z axes to fit your product’s testing needs seemlessly.

Specifications

  • Unit Outside Dimensions:36” wide x 24” deep x 49” high
  • Enclosure Inside Dimensions: 33” wide x 21” deep x 14.625” high
  • Weight: 58 lbs.
  • Tester compatibility: Most HiPot Testers are able to hook up to enclosure

Features

  • Constructed with a durable aluminum frame
  • Features an acrylic cover for visibility and protection.
  • Includes a magnetic interlock safety switch for enhanced safety precautions.
  • Chassis Ground Wire Connection to be hooked up by the customer
  • Equipped with yellow safety panels.
  • Comes with a 20-position terminal block with a removable cover for convenience.
  • Includes a 9-pin D-Sub Connector
  • Includes a 2" flexible grommet to facilitate cable pass-through.
  • Provides a large-wide opening for effortless loading and unloading of the UUT.
  • Comes with three high voltage test area stickers for clear identification.
  • Custom sizes are available, allowing for easy adaptation to non-standard applications of various sizes.

Options

  • Safety Light Tower – Red/Green, Red/Yellow/Green
  • Start Stop Switch Buttons
  • E-Stop
  • Extra Grommets – 1, 2, 3, 4
  • Insulation Mat
  • Instrument Shelf – 1,2
  • Solenoid Safety Switch, Tongue/Key Interlock; locks cover during test
